What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

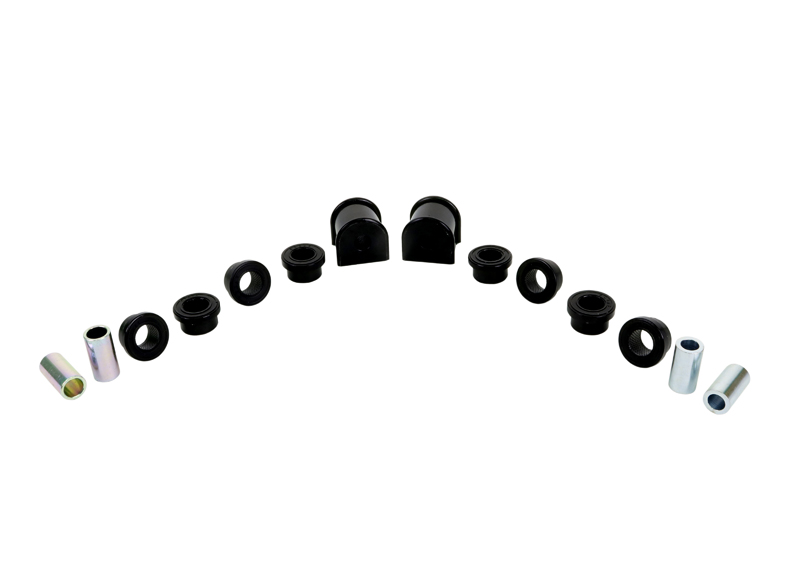

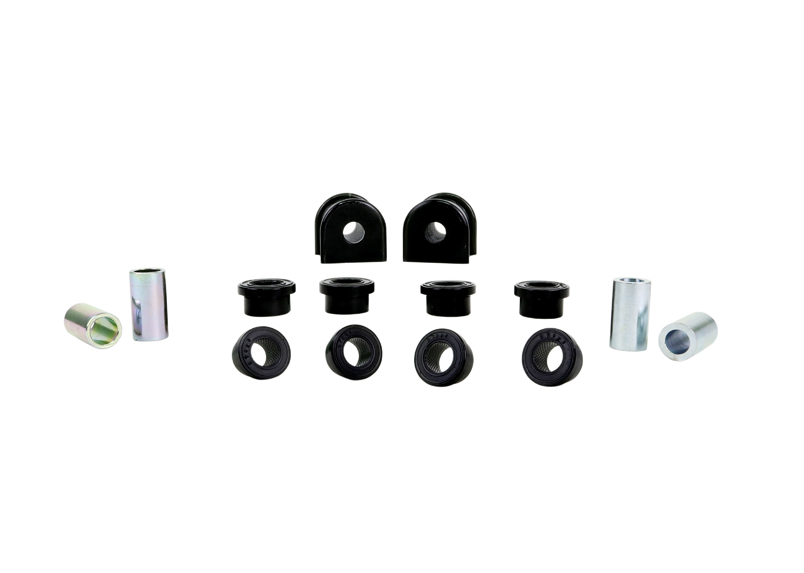

Anti Roll Bar Mount and Link - Bushing Kit 14.2mm to Suit Jeep Cherokee KJ

Description

Benefit Note:
Designed to fit a 14.2mm (9/16) sway bar. Nolathane bushings come with a knurled ID specifically designed to retain grease. Sway bar link bushings or grommets are the connection between your sway bar and chassis. Worn bushings can effect the vehicle handling and cornering performance, they are easy to install and are backed by a limited lifetime warranty. Nolathane bushings are made from the highest quality elastomers and designed to synchronize your suspension system for optimal safety, handling, performance and ride quality, longevity and reduced maintenance. They are the most positive link between your vehicle body, springs, struts, arms and shocks.

*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

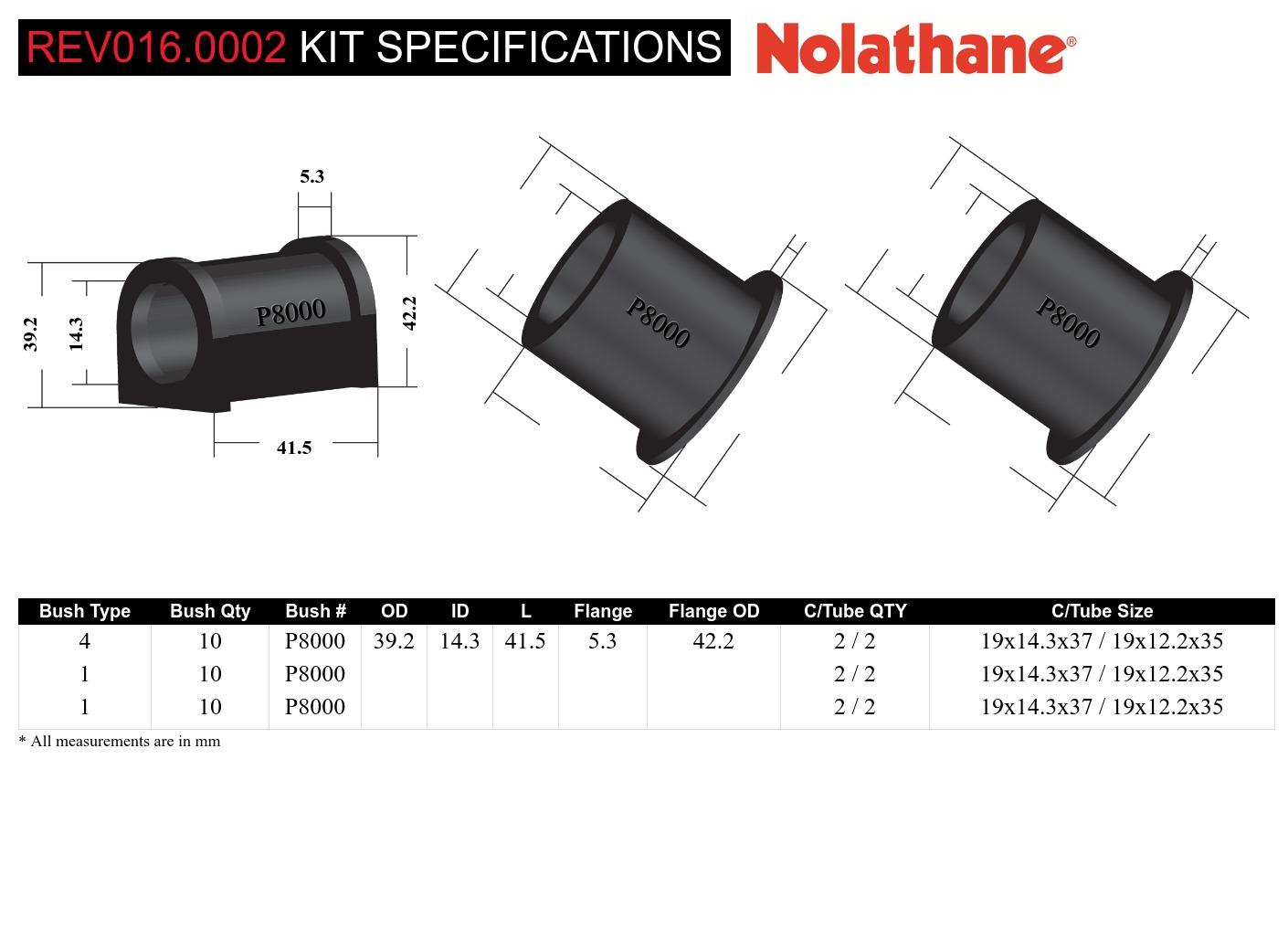

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	28.6 mm	19 mm	18.7 mm	6.4 mm	35.9 mm	2 / 2	19x14.3x37 / 19x12.2x35 mm	Click Here
4 - D-bushing With Flange	2 mm	39.2 mm	14.3 mm	41.5 mm	5.3 mm	42.2 mm	2 / 2	19x14.3x37 / 19x12.2x35 mm	Click Here
1 - Shackle Bushing	4 mm	28.6 mm	19 mm	17.6 mm	5.5 mm	35.7 mm	2 / 2	19x14.3x37 / 19x12.2x35 mm	Click Here

Bush Type	1 - Shackle Bushing	4 - D-bushing With Flange	1 - Shackle Bushing
Bush Quantity	4 mm	2 mm	4 mm
OD (A)	28.6 mm	39.2 mm	28.6 mm
ID (B)	19 mm	14.3 mm	19 mm
Length (C)	18.7 mm	41.5 mm	17.6 mm
Flange Thickness (D)	6.4 mm	5.3 mm	5.5 mm
Flange OD (E)	35.9 mm	42.2 mm	35.7 mm
C/Tube Quantity	2 / 2	2 / 2	2 / 2
C/Tube ODxIDxL	19x14.3x37 / 19x12.2x35 mm	19x14.3x37 / 19x12.2x35 mm	19x14.3x37 / 19x12.2x35 mm
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	28.6	19	18.7	6.4	35.9	2 / 2	19x14.3x37 / 19x12.2x35	Click Here
4	2	39.2	14.3	41.5	5.3	42.2	2 / 2	19x14.3x37 / 19x12.2x35	Click Here
1	4	28.6	19	17.6	5.5	35.7	2 / 2	19x14.3x37 / 19x12.2x35	Click Here

Bush Type	1	4	1
QTY	4	2	4
OD (A)	28.6	39.2	28.6
ID (B)	19	14.3	19
Length (C)	18.7	41.5	17.6
FL (D)	6.4	5.3	5.5
FLOD (E)	35.9	42.2	35.7
C/Tube Qty	2 / 2	2 / 2	2 / 2
C/Tube Size	19x14.3x37 / 19x12.2x35	19x14.3x37 / 19x12.2x35	19x14.3x37 / 19x12.2x35
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.4kg	7cm	20cm	14cm
in/lbs	0.88lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.4kg	0.88lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	REV016.0002
Foot Note 1	Contains both mount and link bushings
Foot Note 2	14.2mm
Foot Note 3	Lifetime Warranty
Components Per	10 Bushings, 4 Tubes
Product Note	Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 10 Bushings, 4 Tubes
EAN	9319924400614

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
