What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

REV114.0040

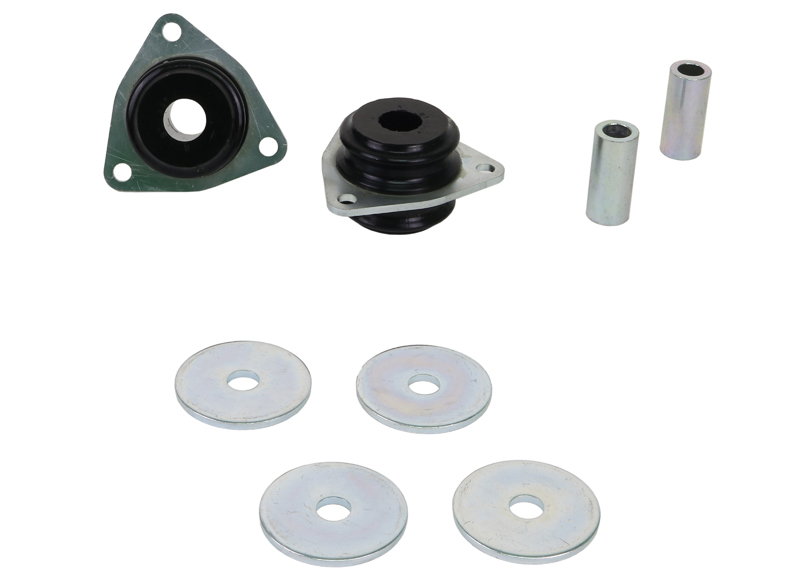

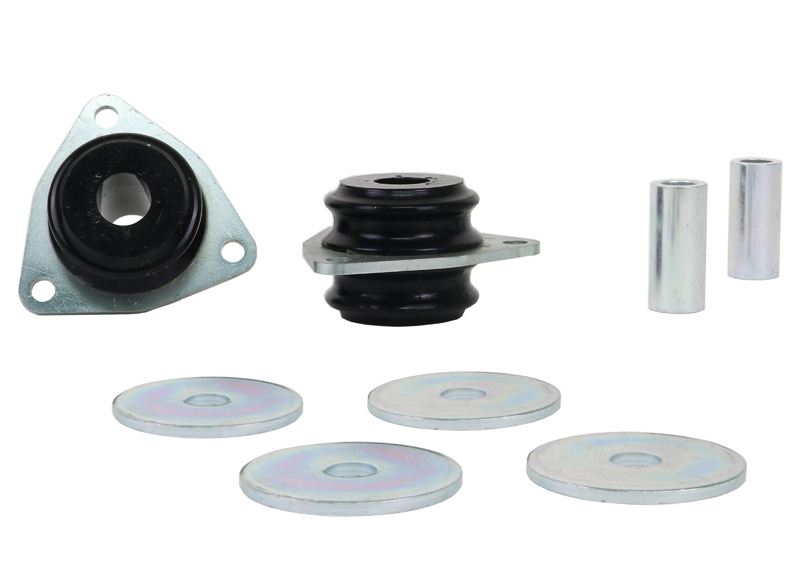

Rear Trailing Arm Lower - Front Bushing Kit to Suit Land Rover 90, 110/127 Country and Range Rover Classic

Rear Trailing Arm Lower - Front Bushing Kit to Suit Land Rover 90, 110/127 Country and Range Rover Classic

16mm ID

Item Price

£103.49

SKU	REV114.0040
Warranty	lifetime warranty
Installation Time	2 Hours
Fitting Position	Rear Axle

Select your car to check fitment.

in stock

Ships within 24hrs

Description

Benefit Note:
Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

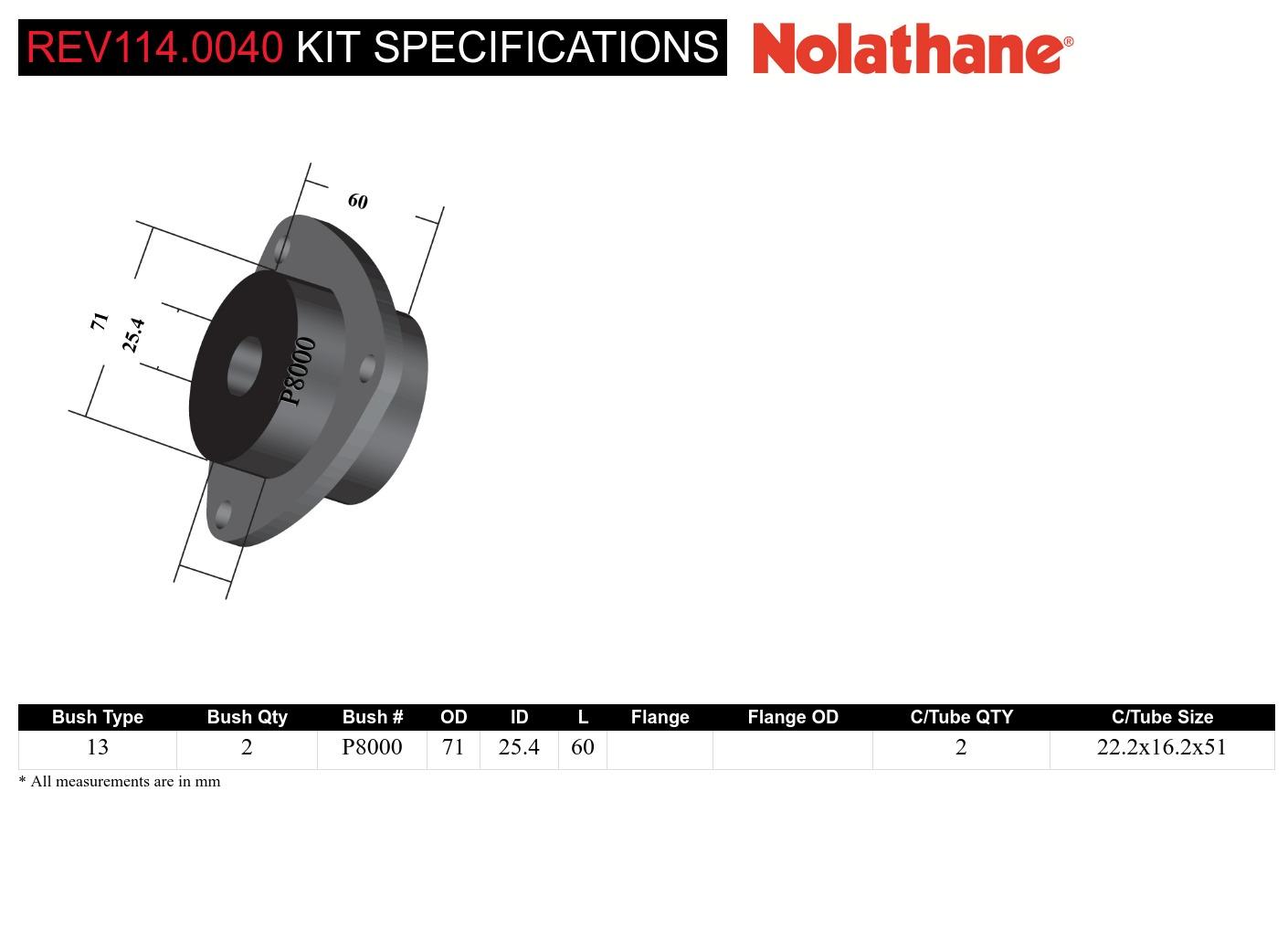

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
13 - Bushing With Mounting Plate	2 mm	71 mm	25.4 mm	60 mm			2	22.2x16.2x51 mm	Click Here

Bush Type	13 - Bushing With Mounting Plate
Bush Quantity	2 mm
OD (A)	71 mm
ID (B)	25.4 mm
Length (C)	60 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity	2
C/Tube ODxIDxL	22.2x16.2x51 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 13 - Bushing With Mounting Plate

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
13	2	71	25.4	60.0			2	22.2x16.2x51	Click Here

Bush Type	13
QTY	2
OD (A)	71
ID (B)	25.4
Length (C)	60.0
FL (D)
FLOD (E)
C/Tube Qty	2
C/Tube Size	22.2x16.2x51
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.58kg	10cm	26cm	16cm
in/lbs	3.48lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1.58kg	3.48lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	REV114.0040
Foot Note 3	Lifetime Warranty
Components Per	4 Bushings, 2 Plates, 2 Tubes, 4 Washers
Product Note	Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 4 Bushings, 2 Plates, 2 Tubes, 4 Washers
EAN	9319924418428

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
