Rear Trailing Arm Lower - Bushing Kit to Suit Toyota Land Cruiser 80 and 105 Series

Description

Benefit Note:
Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

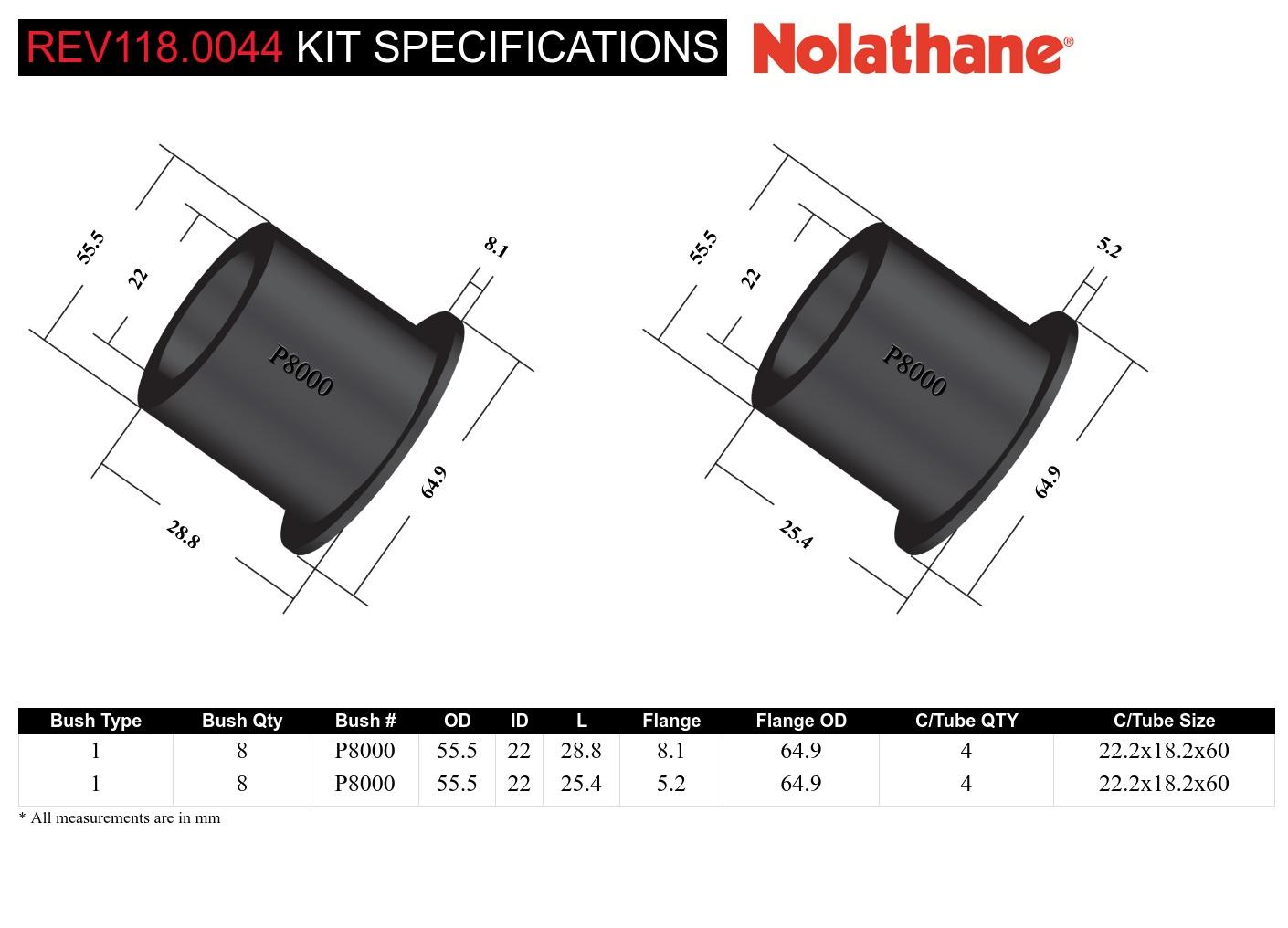

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	55.5 mm	22 mm	28.8 mm	8.1 mm	64.9 mm	4	22.2x18.2x60 mm	Click Here
1 - Shackle Bushing	4 mm	55.5 mm	22 mm	25.4 mm	5.2 mm	64.9 mm	4	22.2x18.2x60 mm	Click Here

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	4 mm	4 mm
OD (A)	55.5 mm	55.5 mm
ID (B)	22 mm	22 mm
Length (C)	28.8 mm	25.4 mm
Flange Thickness (D)	8.1 mm	5.2 mm
Flange OD (E)	64.9 mm	64.9 mm
C/Tube Quantity	4	4
C/Tube ODxIDxL	22.2x18.2x60 mm	22.2x18.2x60 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	55.5	22	28.8	8.1	64.9	4	22.2x18.2x60	Click Here
1	4	55.5	22	25.4	5.2	64.9	4	22.2x18.2x60	Click Here

Bush Type	1	1
QTY	4	4
OD (A)	55.5	55.5
ID (B)	22	22
Length (C)	28.8	25.4
FL (D)	8.1	5.2
FLOD (E)	64.9	64.9
C/Tube Qty	4	4
C/Tube Size	22.2x18.2x60	22.2x18.2x60
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.104kg	10cm	26cm	16cm
in/lbs	2.43lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1.104kg	2.43lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	REV118.0044
Foot Note 1	Fitter friendly design
Foot Note 3	Lifetime Warranty

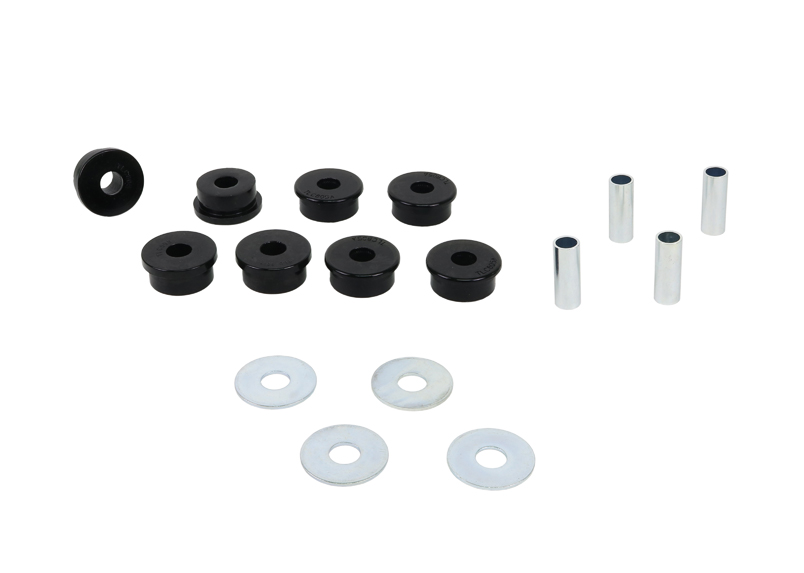

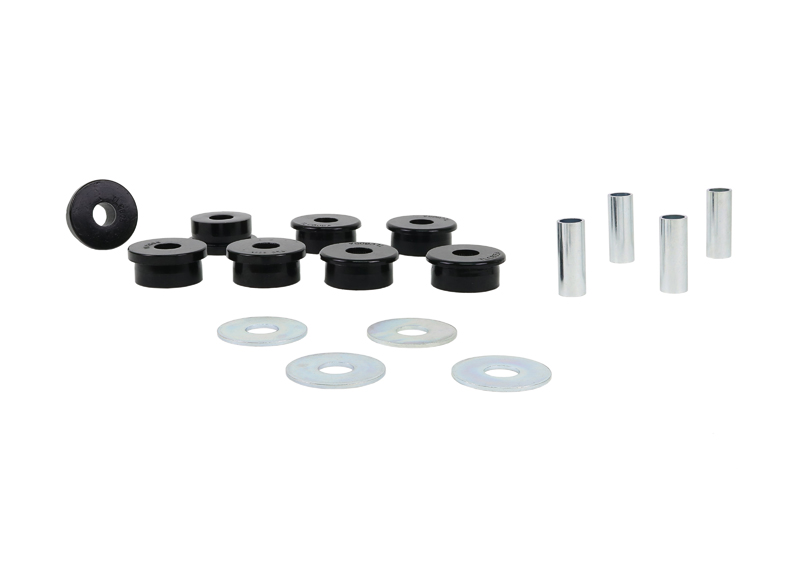

Components Per	8 Bushings, 4 Tubes, 4 Washers
Product Note	Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 8 Bushings, 4 Tubes, 4 Washers
EAN	9319924418701

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment
