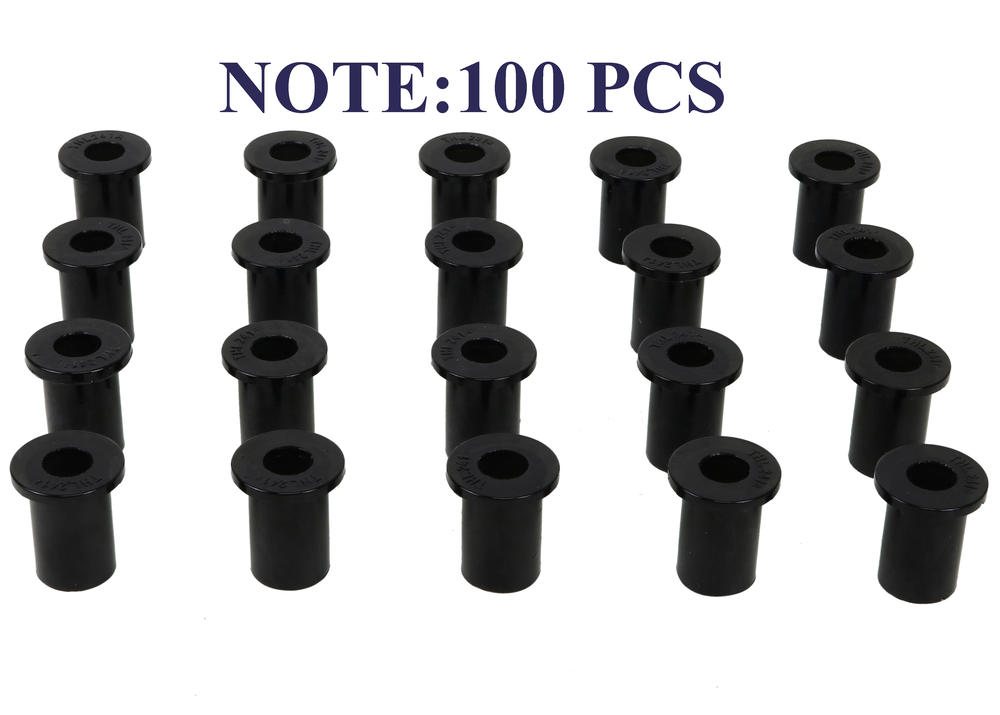

Leaf Spring - Eye and Shackle Bushing Kit to Suit Universal Applications

Description

Benefit Note:
A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Nolathane bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

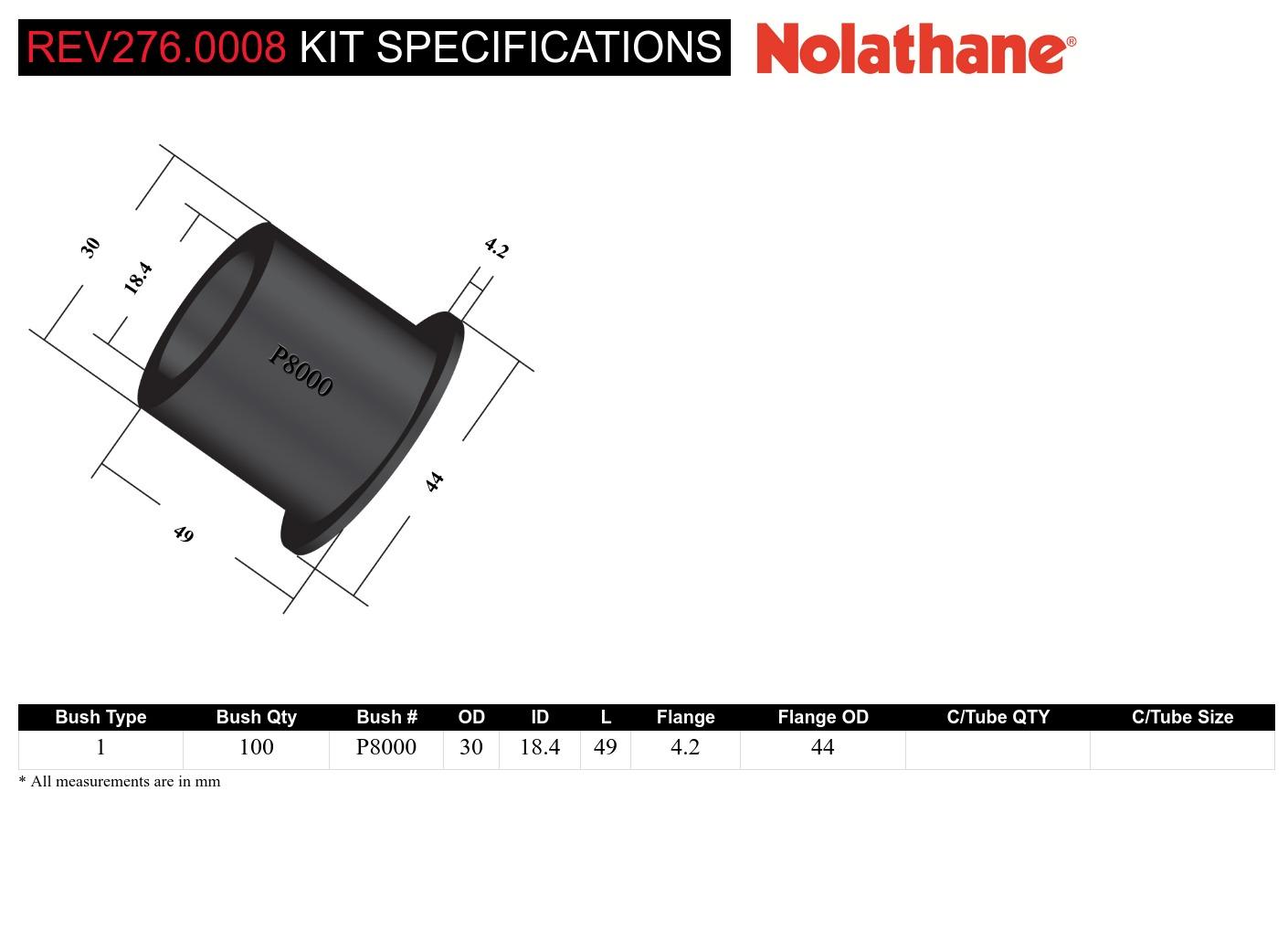

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	100 mm	30 mm	18.4 mm	49 mm	4.2 mm	44 mm			Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	100 mm
OD (A)	30 mm
ID (B)	18.4 mm
Length (C)	49 mm
Flange Thickness (D)	4.2 mm
Flange OD (E)	44 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	100	30	18.4	49.0	4.2	44			Click Here

Bush Type	1
QTY	100
OD (A)	30
ID (B)	18.4
Length (C)	49.0
FL (D)	4.2
FLOD (E)	44
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	2.96kg	25cm	18cm	22cm
in/lbs	6.53lbs	9.84"	7.09"	8.66"

Units	cm/kg	in/lbs
Weight	2.96kg	6.53lbs
Length	25cm	9.84"
Width	18cm	7.09"
Height	22cm	8.66"

Misc. Product Information

More Information
SKU	REV276.0008

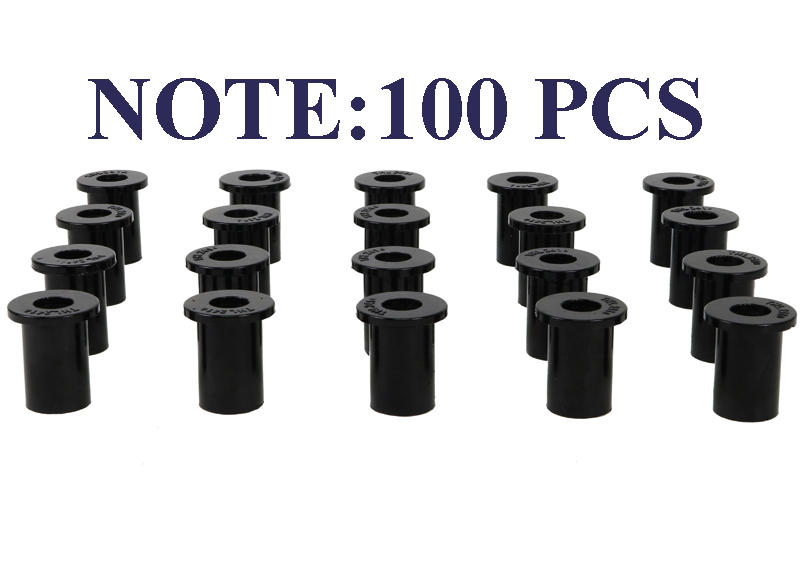

Foot Note 1	Bulk pack containing 100 loose bushings
Foot Note 3	Lifetime Warranty
Components Per	100 Bushings
Product Note	Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:
EAN	9319924438938

Installation & Fitment Guide

More Information
Wheel Alignment Required	No
