Front Steering Rack and Pinion - Mount Bushing Kit to Suit Toyota Prado and 4Runner

Description

Benefit Note:
Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Nolathane steering rack mounts are engineered to outlast and enhance steering precision and feedback.

*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

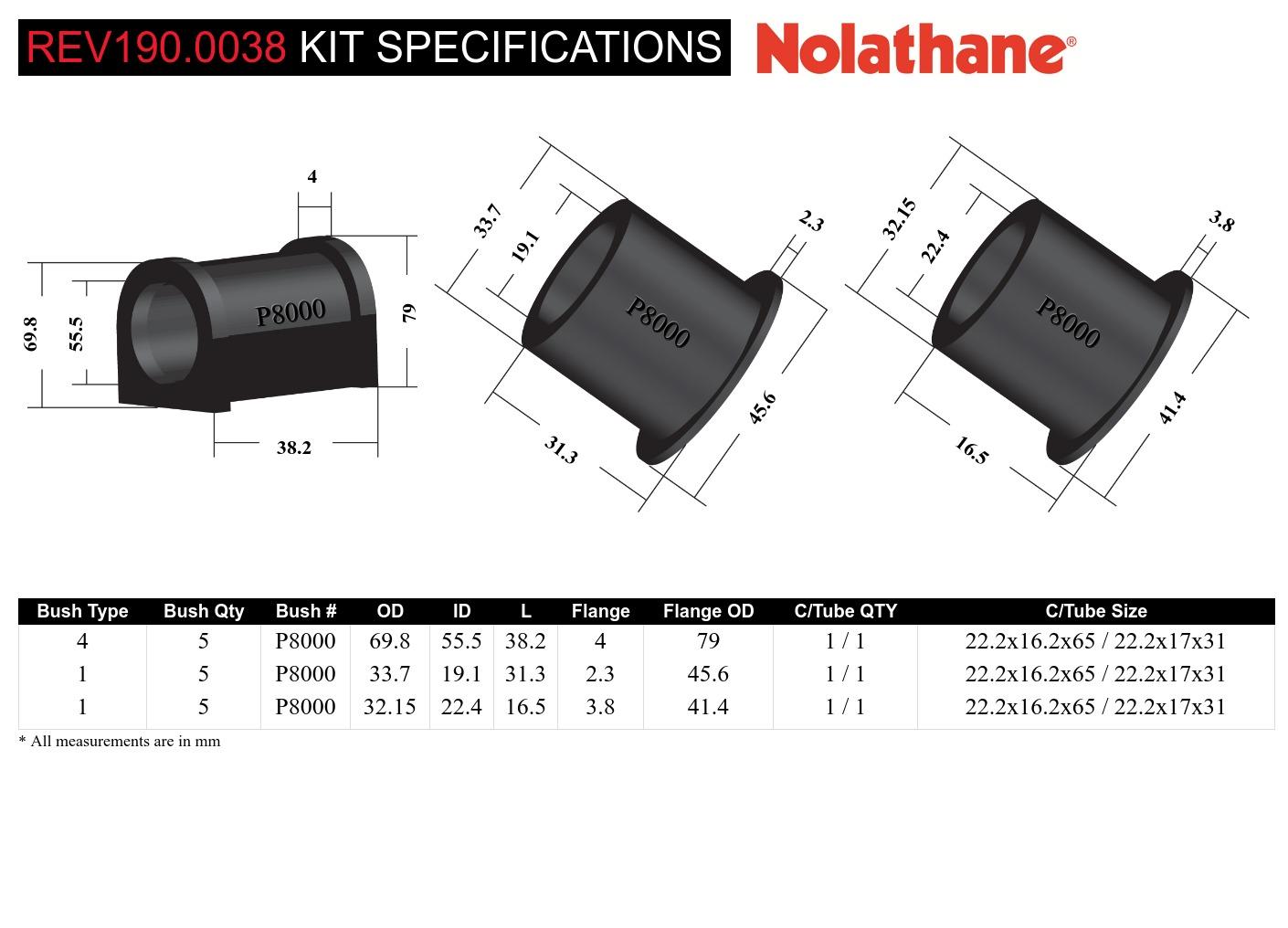

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
4 - D-bushing With Flange	1 mm	69.8 mm	55.5 mm	38.2 mm	4 mm	79 mm	1 / 1	22.2x16.2x65 / 22.2x17x31 mm	Click Here
1 - Shackle Bushing	2 mm	33.7 mm	19.1 mm	31.3 mm	2.3 mm	45.6 mm	1 / 1	22.2x16.2x65 / 22.2x17x31 mm	Click Here
1 - Shackle Bushing	2 mm	32.15 mm	22.4 mm	16.5 mm	3.8 mm	41.4 mm	1 / 1	22.2x16.2x65 / 22.2x17x31 mm	Click Here

Bush Type	4 - D-bushing With Flange	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	1 mm	2 mm	2 mm
OD (A)	69.8 mm	33.7 mm	32.15 mm
ID (B)	55.5 mm	19.1 mm	22.4 mm
Length (C)	38.2 mm	31.3 mm	16.5 mm
Flange Thickness (D)	4 mm	2.3 mm	3.8 mm
Flange OD (E)	79 mm	45.6 mm	41.4 mm
C/Tube Quantity	1 / 1	1 / 1	1 / 1
C/Tube ODxIDxL	22.2x16.2x65 / 22.2x17x31 mm	22.2x16.2x65 / 22.2x17x31 mm	22.2x16.2x65 / 22.2x17x31 mm
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
4	1	69.8	55.5	38.2	4	79	1 / 1	22.2x16.2x65 / 22.2x17x31	Click Here
1	2	33.7	19.1	31.3	2.3	45.6	1 / 1	22.2x16.2x65 / 22.2x17x31	Click Here
1	2	32.15	22.4	16.5	3.8	41.4	1 / 1	22.2x16.2x65 / 22.2x17x31	Click Here

Bush Type	4	1	1
QTY	1	2	2
OD (A)	69.8	33.7	32.15
ID (B)	55.5	19.1	22.4
Length (C)	38.2	31.3	16.5
FL (D)	4	2.3	3.8
FLOD (E)	79	45.6	41.4
C/Tube Qty	1 / 1	1 / 1	1 / 1
C/Tube Size	22.2x16.2x65 / 22.2x17x31	22.2x16.2x65 / 22.2x17x31	22.2x16.2x65 / 22.2x17x31
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.316kg	10cm	16cm	26cm
in/lbs	0.7lbs	3.94"	6.3"	10.24"

Units	cm/kg	in/lbs
Weight	0.316kg	0.7lbs
Length	10cm	3.94"
Width	16cm	6.3"
Height	26cm	10.24"

Misc. Product Information

More Information
SKU	REV190.0038

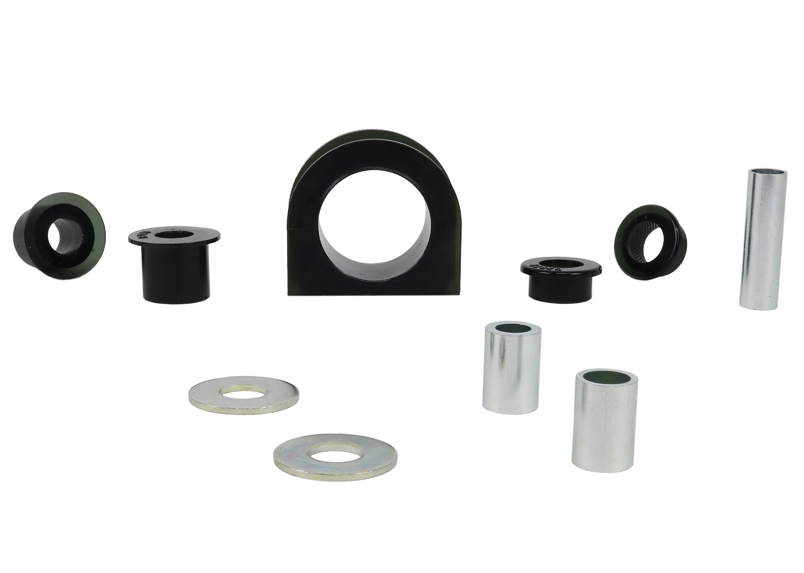

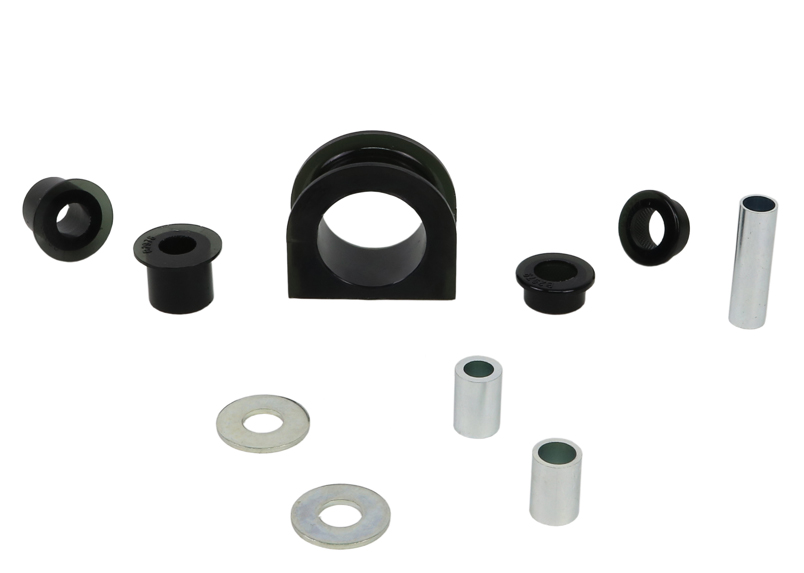

Components Per	5 Bushings, 2 Tubes, 1 Washer
Product Note	Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:
EAN	9319924420834

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
