What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

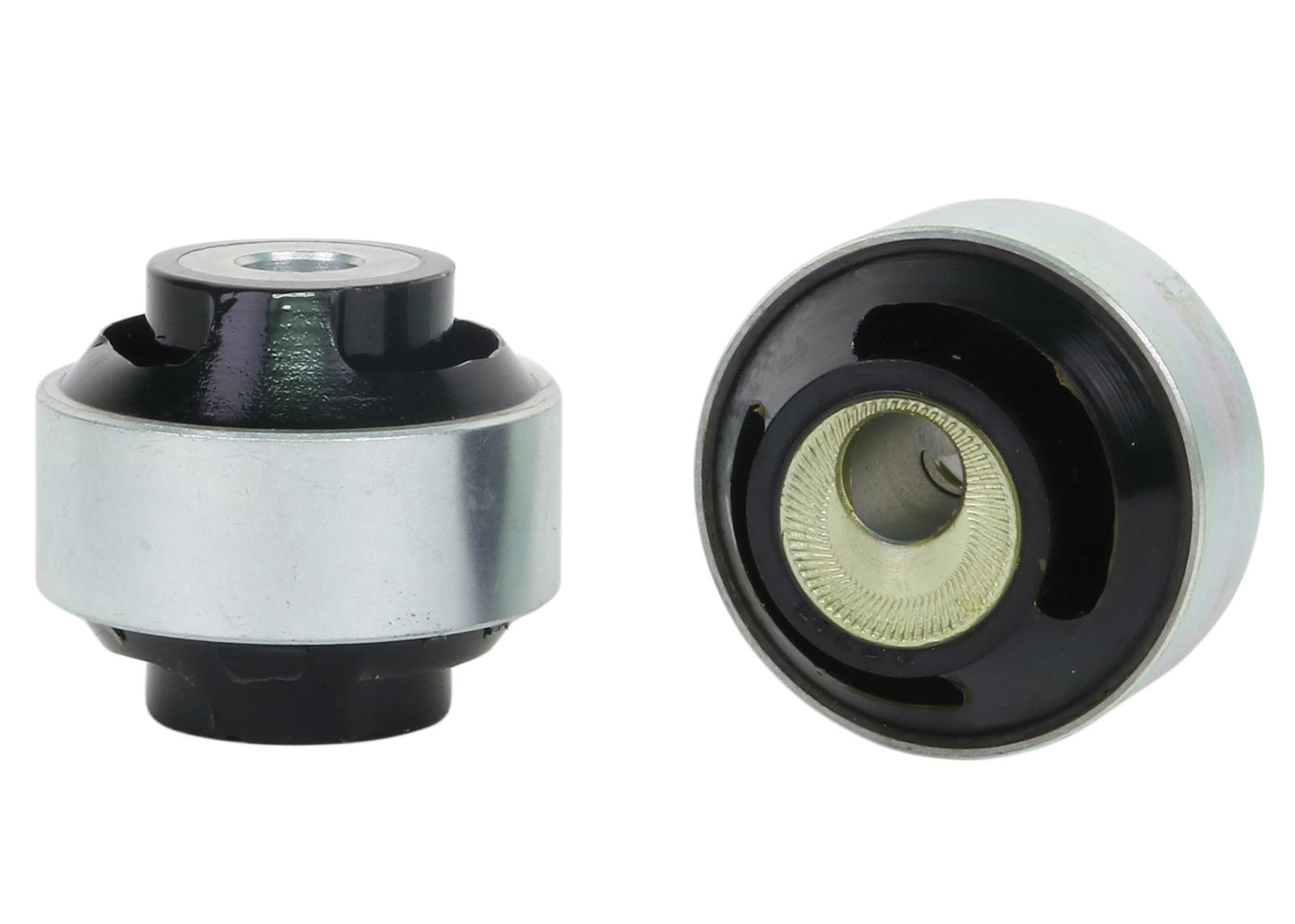

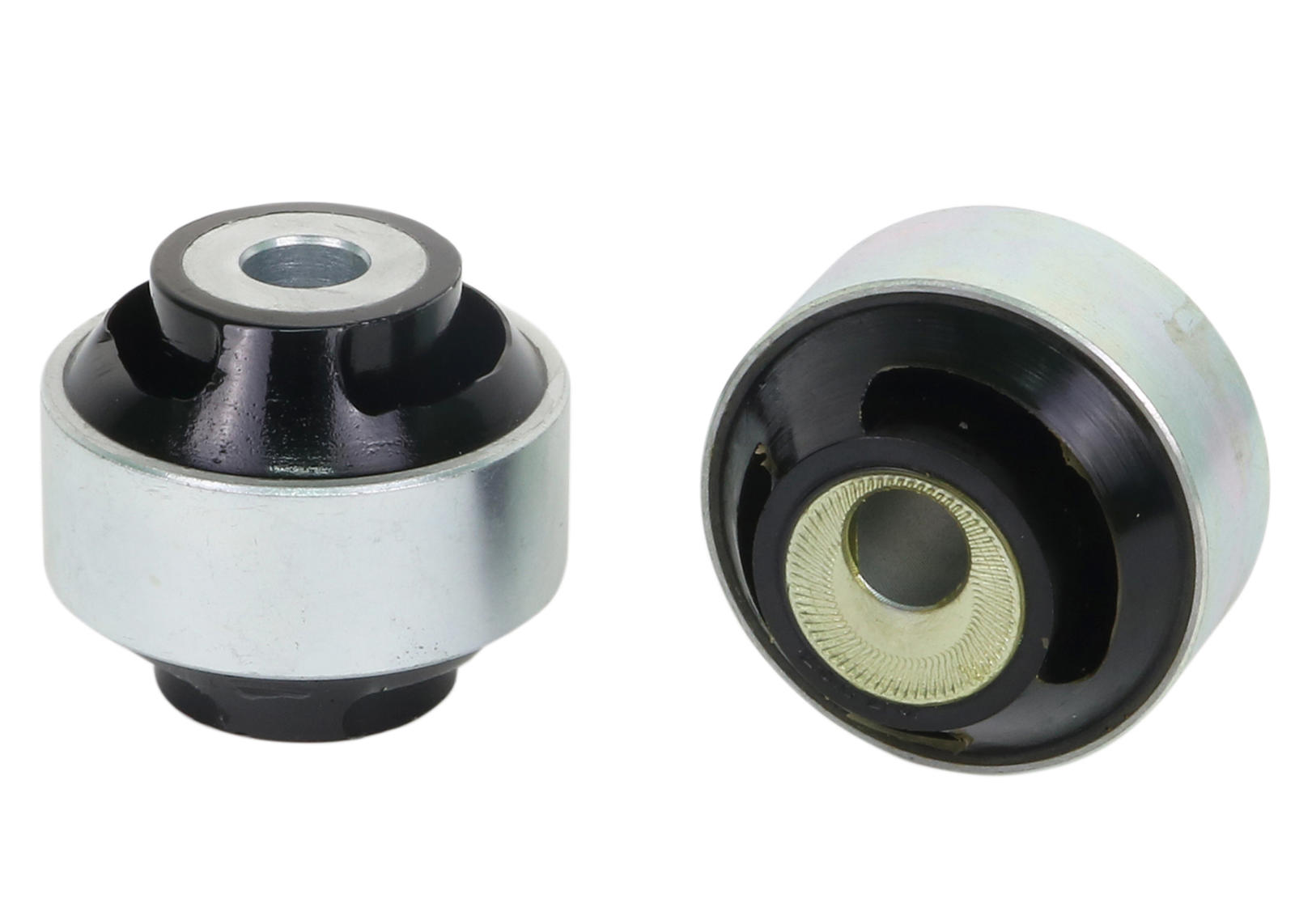

Control Arm Lower - Inner Rear Bushing Kit-Single Offset to Suit Toyota Corolla, Prius and Rav 4

Description

Benefit Note:

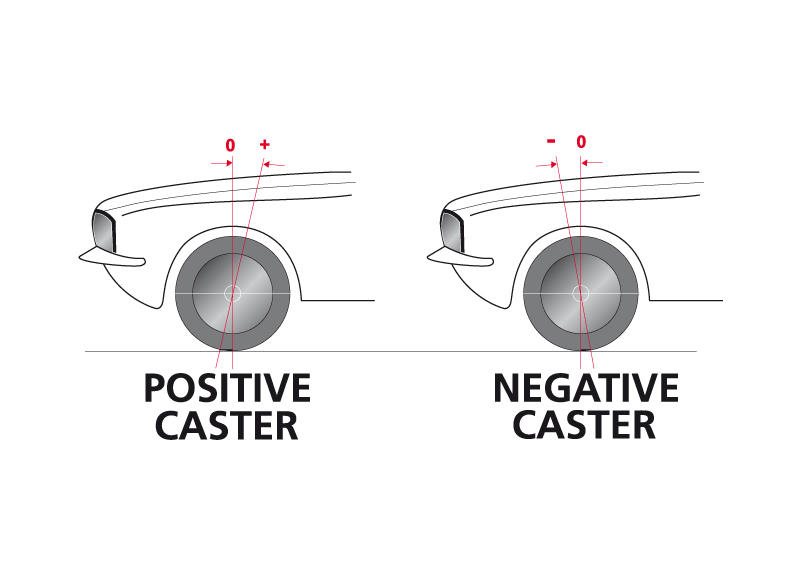

Not all roads are flat – believe it or not sometimes the road can cause the car to pull either left or right – This Nolathane Kit is supplied with a passenger side offset bushing to increase caster and a drivers side standard bushing to maintain OEM caster. This will allow the wheel alignment geometry to be adjusted accordingly to rectify the pull in the car by staggering the offset of the caster. This is a non tyre wearing geometry change that has a substantial effect on a vehicles ability to track straight.

*All prices shown on the website include VAT. You will not be charged any additional fees related to tax. For international orders, VAT is removed, local import duties or taxes may apply but will not be charged by us.

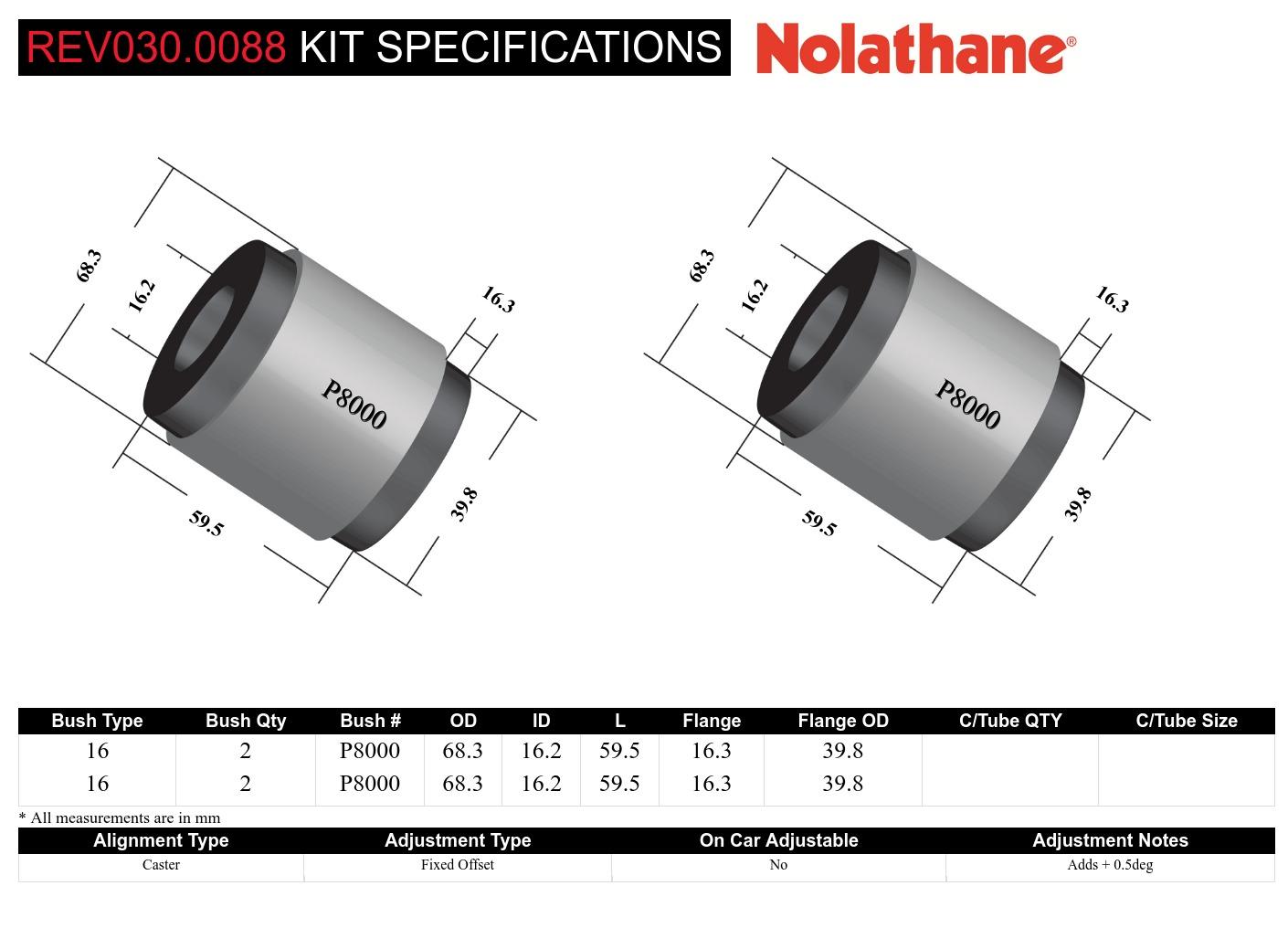

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	1 mm	68.3 mm	16.2 mm	59.5 mm	16.3 mm	39.8 mm			Click Here
16 - Shell Without Flange Bushing	1 mm	68.3 mm	16.2 mm	59.5 mm	16.3 mm	39.8 mm			Click Here

Bush Type	16 - Shell Without Flange Bushing	16 - Shell Without Flange Bushing
Bush Quantity	1 mm	1 mm
OD (A)	68.3 mm	68.3 mm
ID (B)	16.2 mm	16.2 mm
Length (C)	59.5 mm	59.5 mm
Flange Thickness (D)	16.3 mm	16.3 mm
Flange OD (E)	39.8 mm	39.8 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Caster	Offset	No
Caster	Offset	No

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16	1	68.3	16.2	59.5	16.3	39.8			Click Here
16	1	68.3	16.2	59.5	16.3	39.8			Click Here

Bush Type	16	16
QTY	1	1
OD (A)	68.3	68.3
ID (B)	16.2	16.2
Length (C)	59.5	59.5
FL (D)	16.3	16.3
FLOD (E)	39.8	39.8
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.955kg	7cm	20cm	14cm
in/lbs	2.11lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.955kg	2.11lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	REV030.0088
Foot Note 1	Steering-Pull Correction
Foot Note 2	Adds +0.5deg caster
Foot Note 3	Lifetime Warranty
Components Per	2 Shell Bushings
Product Note	Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 2 Shell Bushings
EAN	9319924415373

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2.5 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
