What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

REV006.0048

Anti Roll Bar Link - Bushing Kit to Suit Toyota HiAce LY230 and Land Cruiser 76, 78, 79 and 100 Series

Anti Roll Bar Link - Bushing Kit to Suit Toyota HiAce LY230 and Land Cruiser 76, 78, 79 and 100 Series

Contains bushings, bolts, nuts and crush tubes

Item Price

€20.59

SKU	REV006.0048
Warranty	lifetime warranty
Installation Time	1 Hour
Fitting Position	Front Axle

Select your car to check fitment.

in stock

Ships within 24hrs

Description

Benefit Note:
Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Nolathane bushings are engineered to last and deliver improved driving performance.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

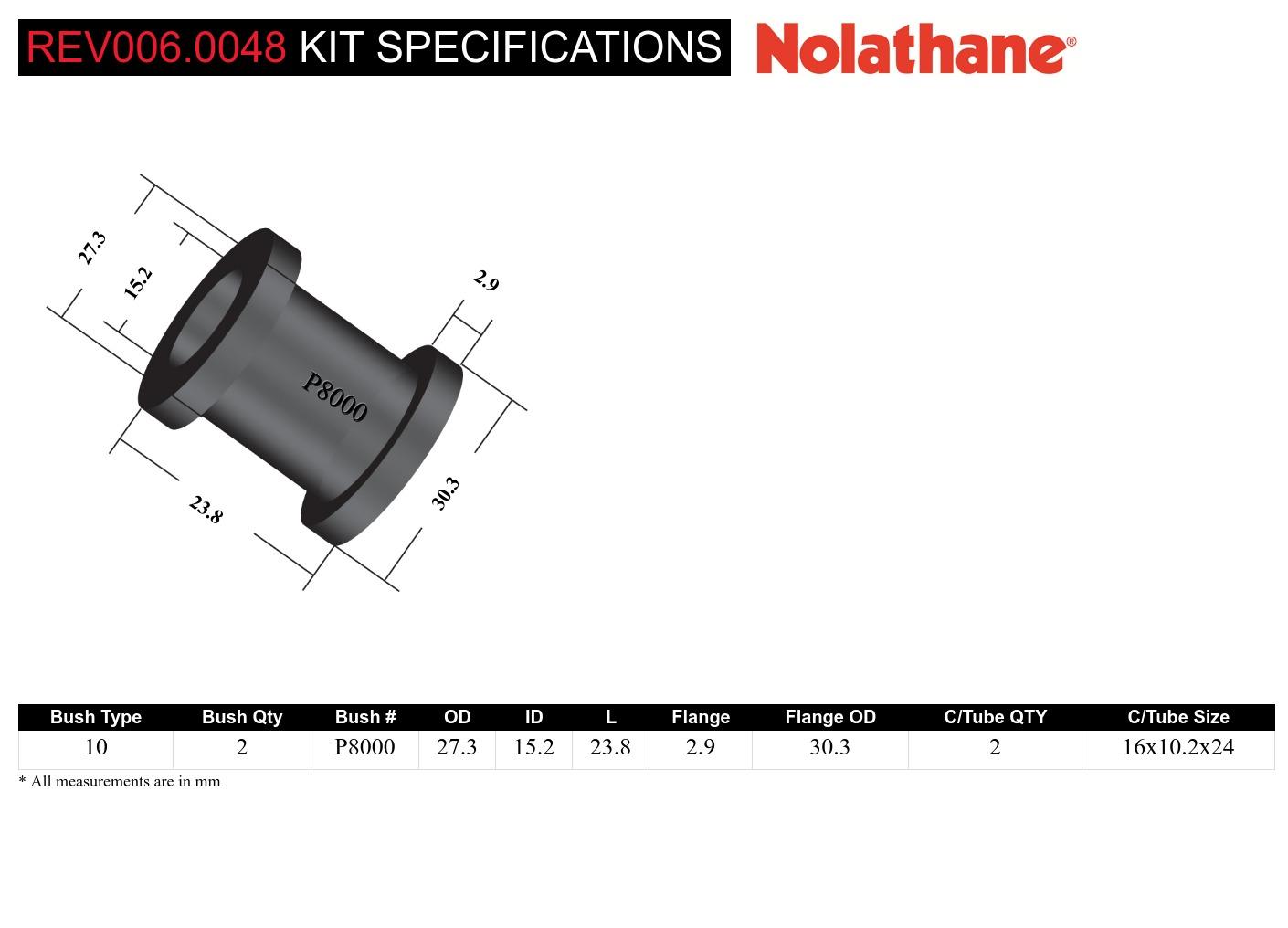

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
10 - Cotton Reel With & Without Tapper Bushing	2 mm	27.3 mm	15.2 mm	23.8 mm	2.9 mm	30.3 mm	2	16x10.2x24 mm	Click Here

Bush Type	10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity	2 mm
OD (A)	27.3 mm
ID (B)	15.2 mm
Length (C)	23.8 mm
Flange Thickness (D)	2.9 mm
Flange OD (E)	30.3 mm
C/Tube Quantity	2
C/Tube ODxIDxL	16x10.2x24 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
10	2	27.3	15.2	23.8	2.9	30.3	2	16x10.2x24	Click Here

Bush Type	10
QTY	2
OD (A)	27.3
ID (B)	15.2
Length (C)	23.8
FL (D)	2.9
FLOD (E)	30.3
C/Tube Qty	2
C/Tube Size	16x10.2x24
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.195kg	7cm	20cm	14cm
in/lbs	0.43lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.195kg	0.43lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	REV006.0048
Foot Note 1	Contains bushings, bolts, nuts and crush tubes
Foot Note 3	Lifetime Warranty

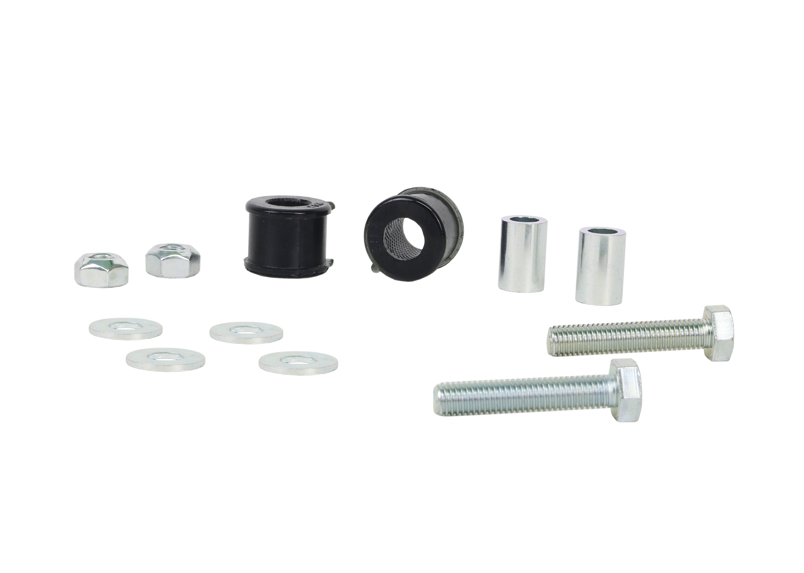

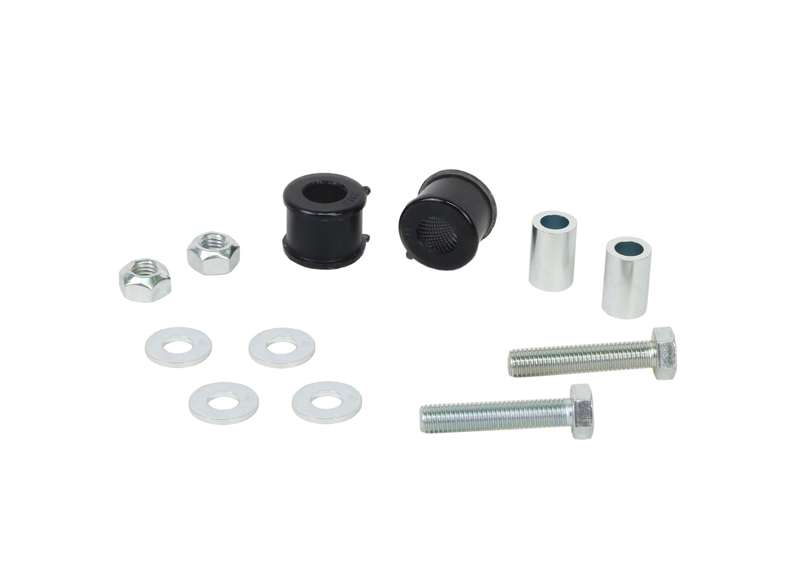

Components Per	2 Bushings, 2 Tubes, 2 Bolts, 4 Washers, 2 Nuts
Product Note	Enhances vehicle stability and reduces understeer or oversteer; the best, replacement upgrade. Includes: 2 Bushings, 2 Tubes, 2 Bolts, 4 Washers, 2 Nuts
EAN	9319924412341

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
