What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

REV011.0144B

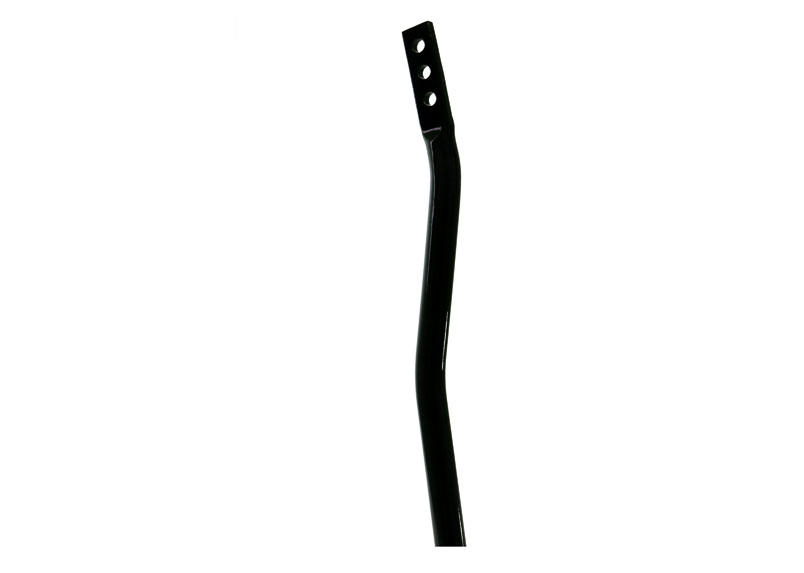

Rear Anti Roll Bar - 22mm 3 Point Adjustable to Suit Ford Ranger PXI, II, III and Mazda BT-50 UP, UR

Rear Anti Roll Bar - 22mm 3 Point Adjustable to Suit Ford Ranger PXI, II, III and Mazda BT-50 UP, UR

22mm 3 Point Adjustable

Item Price

€343.63

SKU	REV011.0144B
Warranty	lifetime warranty
Installation Time	1 Hour
Fitting Position	Rear Axle

Select your car to check fitment.

in stock

Ships within 24hrs

Description

Benefit Note:
Nolathane's sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Nolathane 22mm 3 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

Kit Specifications

Diameter (mm)	Diameter (in) Fraction	Diameter (in) Decimal	Material	Sway Bar Adjustment Type
22	7/8"	0.866	Solid Spring Steel	3 Point Adjustable

Diameter (mm)	22
Diameter (in) Fraction	7/8"
Diameter (in) Decimal	0.866
Material	Solid Spring Steel
Sway Bar Adjustment Type	3 Point Adjustable

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.

Sway Bar Adjustment Settings

Setting	Effective Bar Size (mm)	% Change vs Previous Setting	% Stiffer Than OE
Soft - Comfort / low grip	21 mm	-	+196.8%
Medium - Balanced	22 mm	+20.5%	+257.4%
Hard - Maximum roll control	23 mm	+19.5%	+327.0%

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	9.76kg	240cm	10cm	20cm
in/lbs	21.52lbs	94.49"	3.94"	7.87"

Units	cm/kg	in/lbs
Weight	9.76kg	21.52lbs
Length	240cm	94.49"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	REV011.0144B
Foot Note 3	Lifetime Warranty

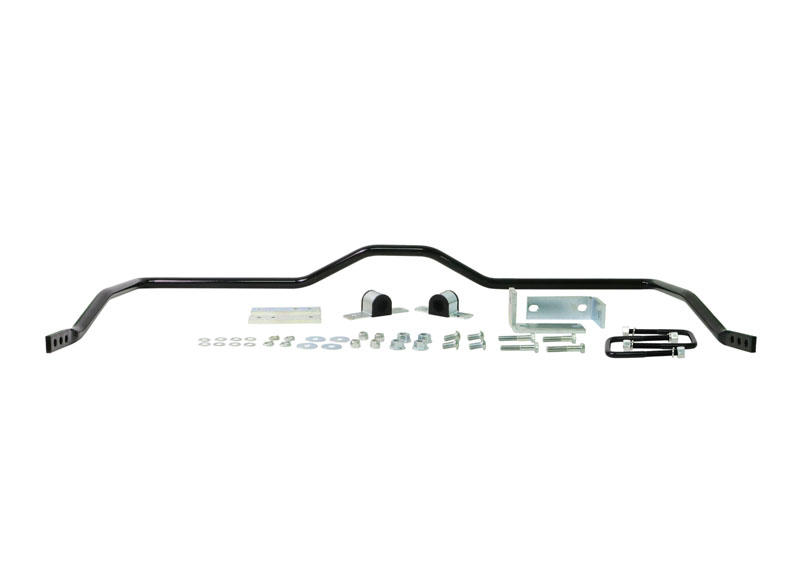

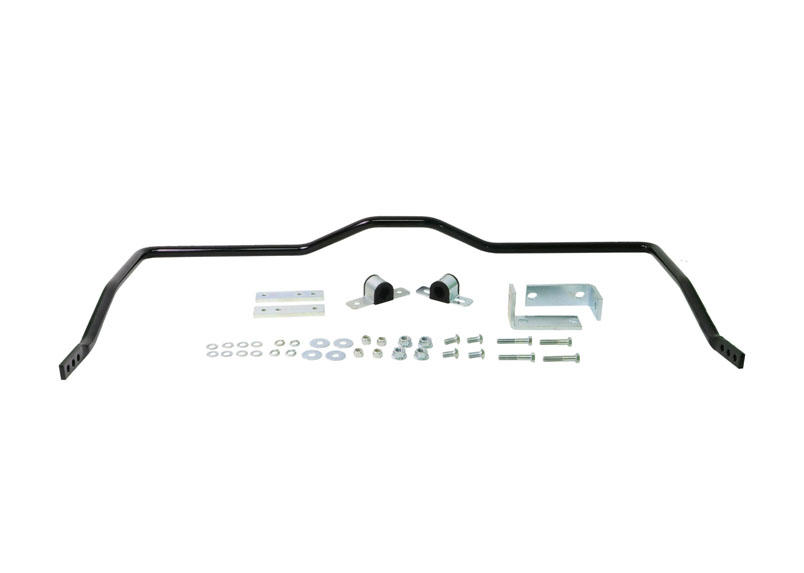

Components Per	1 Sway Bar, 2 Links, 2 Bushings, 2 Saddles, 2 Brackets, 2 U-Bolts, 8 Bolts, 16 Washers, 8 Nuts
Product Note	Enhances vehicle stability and reduces understeer or oversteer; the best, replacement upgrade. Includes: 1 Sway Bar, 2 Links, 2 Bushings, 2 Saddles, 2 Brackets, 2 U-Bolts, 8 Bolts, 16 Washers, 8 Nuts
EAN	9319924452668

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
