What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

REV011.0160B

Rear Anti Roll Bar - 20mm 3 Point Adjustable to Suit Toyota Hilux 2005-2015 4wd

Rear Anti Roll Bar - 20mm 3 Point Adjustable to Suit Toyota Hilux 2005-2015 4wd

20mm 3 Point Adjustable - excludes models with airbag suspension

Item Price

€333.33

SKU	REV011.0160B
Warranty	lifetime warranty
Installation Time	4 Hours
Fitting Position	Rear Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:
Nolathane's sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Nolathane 20mm 3 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

Kit Specifications

Diameter (mm)	Diameter (in) Fraction	Diameter (in) Decimal	Material	Sway Bar Adjustment Type
20	51/64"	0.787	Solid Spring Steel	3 Point Adjustable

Diameter (mm)	20
Diameter (in) Fraction	51/64"
Diameter (in) Decimal	0.787
Material	Solid Spring Steel
Sway Bar Adjustment Type	3 Point Adjustable

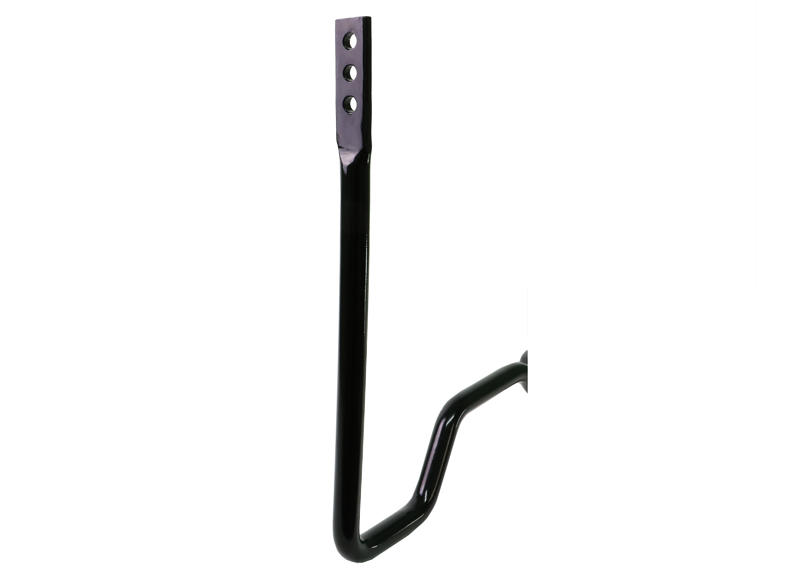

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.

Sway Bar Adjustment Settings

Setting	Effective Bar Size (mm)	% Change vs Previous Setting	% Stiffer Than OE
Soft - Comfort / low grip	19 mm	-	+98.9%
Medium - Balanced	20 mm	+22.8%	+144.1%
Hard - Maximum roll control	21 mm	+21.6%	+196.8%

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	9kg	120cm	25cm	20cm
in/lbs	19.84lbs	47.24"	9.84"	7.87"

Units	cm/kg	in/lbs
Weight	9kg	19.84lbs
Length	120cm	47.24"
Width	25cm	9.84"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	REV011.0160B
Foot Note 3	3 Year / 60,000Kms

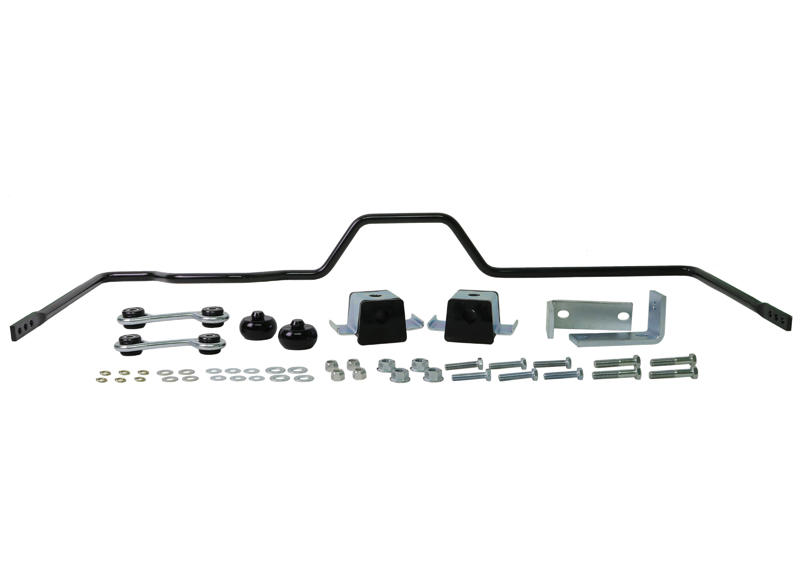

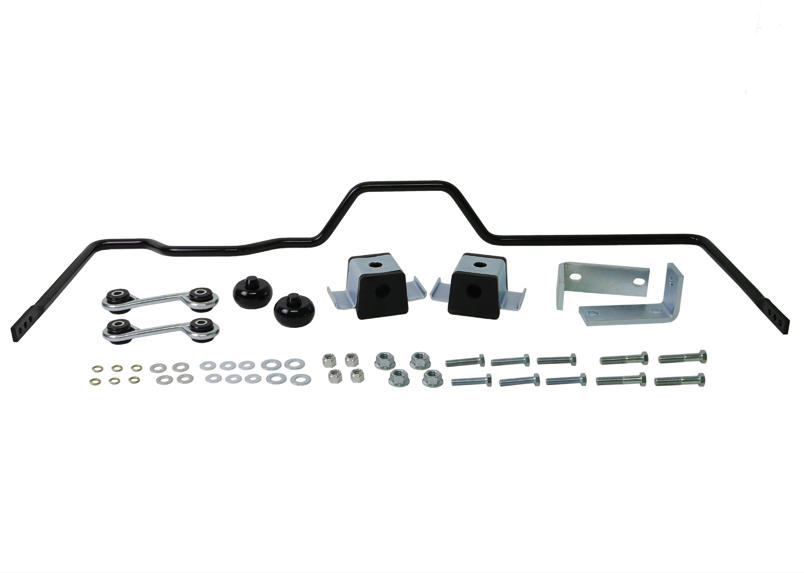

Components Per	1 Sway Bar, 2 Links, 4 Bushings, 2 Saddles, 2 Brackets, 2 U-Bolts, 10 Bolts, 22 Washers, 8 Nuts
Product Note	Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 1 Sway Bar, 2 Links, 4 Bushings, 2 Saddles, 2 Brackets, 2 U-Bolts, 10 Bolts, 22 Washers, 8 Nuts
EAN	9319924451982

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	4 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment
