What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

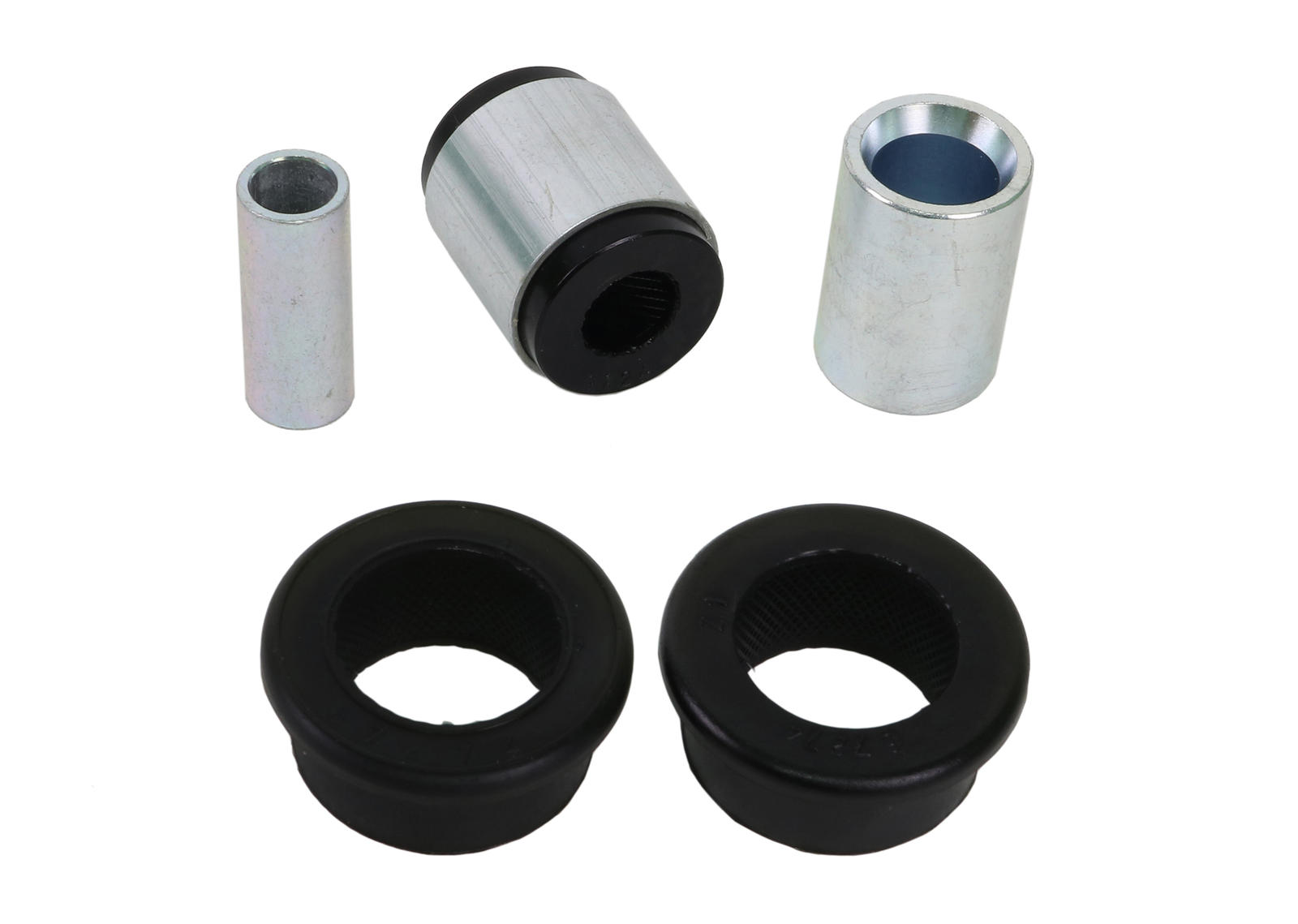

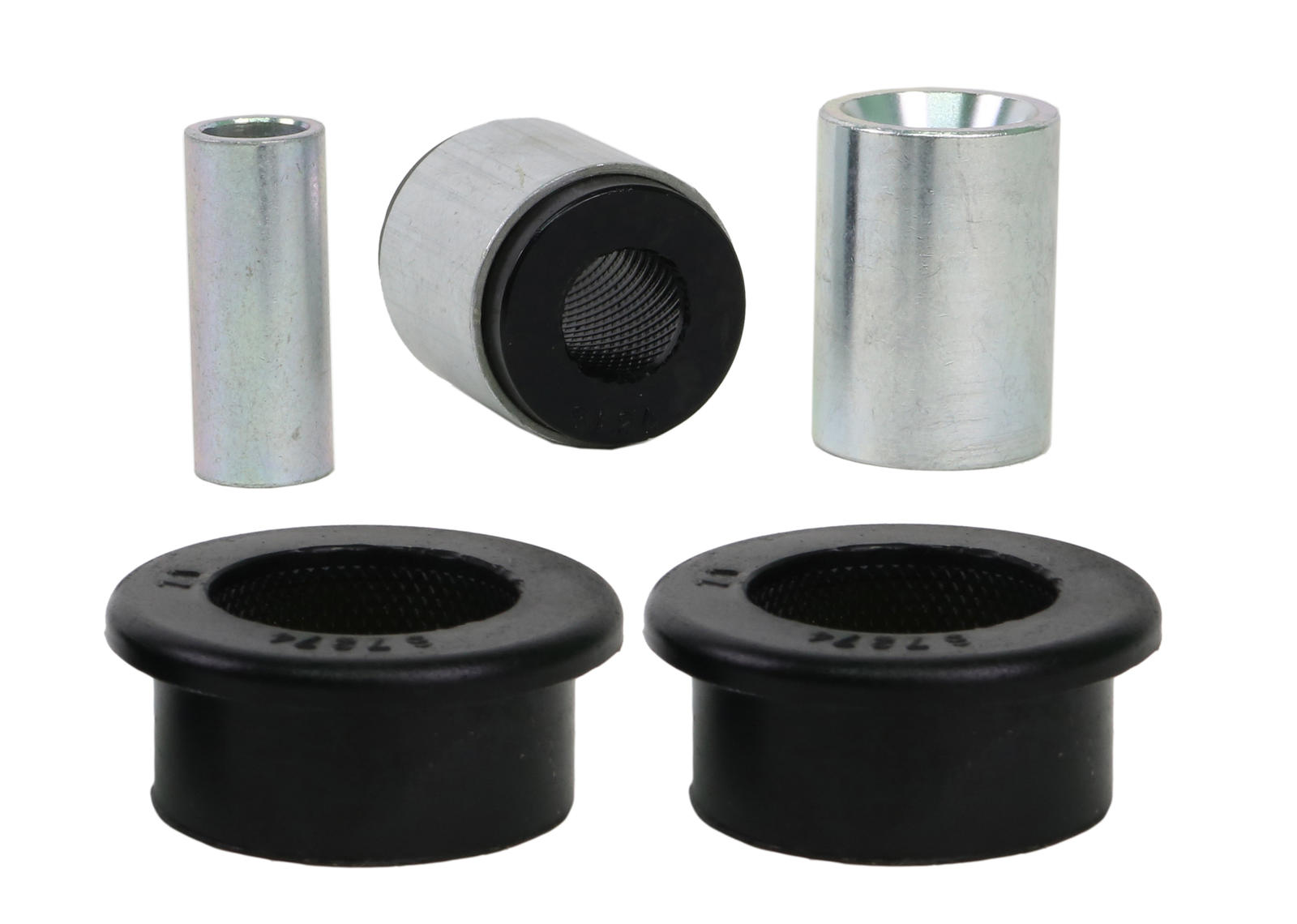

Rear Panhard Rod - Bushing Kit to Suit Nissan Pathfinder R50 and QX4 JR50

Description

Benefit Note:
Eliminate wheel shimmy and ensure accurate axle location with Nolathane superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	1 mm	40.5 mm	18.8 mm	49 mm	6.5 mm	37 mm	1 / 1	19x14.3x48 / 33x22.2x47 mm	Click Here
1 - Shackle Bushing	2 mm	45 mm	33 mm	23.5 mm	5 mm	55 mm	1 / 1	19x14.3x48 / 33x22.2x47 mm	Click Here

Bush Type	16 - Shell Without Flange Bushing	1 - Shackle Bushing
Bush Quantity	1 mm	2 mm
OD (A)	40.5 mm	45 mm
ID (B)	18.8 mm	33 mm
Length (C)	49 mm	23.5 mm
Flange Thickness (D)	6.5 mm	5 mm
Flange OD (E)	37 mm	55 mm
C/Tube Quantity	1 / 1	1 / 1
C/Tube ODxIDxL	19x14.3x48 / 33x22.2x47 mm	19x14.3x48 / 33x22.2x47 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16	1	40.5	18.8	49.0	6.5	37	1 / 1	19x14.3x48 / 33x22.2x47	Click Here
1	2	45	33	23.5	5	55	1 / 1	19x14.3x48 / 33x22.2x47	Click Here

Bush Type	16	1
QTY	1	2
OD (A)	40.5	45
ID (B)	18.8	33
Length (C)	49.0	23.5
FL (D)	6.5	5
FLOD (E)	37	55
C/Tube Qty	1 / 1	1 / 1
C/Tube Size	19x14.3x48 / 33x22.2x47	19x14.3x48 / 33x22.2x47
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.398kg	7cm	20cm	14cm
in/lbs	0.88lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.398kg	0.88lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	REV142.0024
Foot Note 3	Lifetime Warranty
Components Per	1 Shell Bushing, 2 Bushings, 2 Tubes
Product Note	Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:
EAN	9319924419500

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
