What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

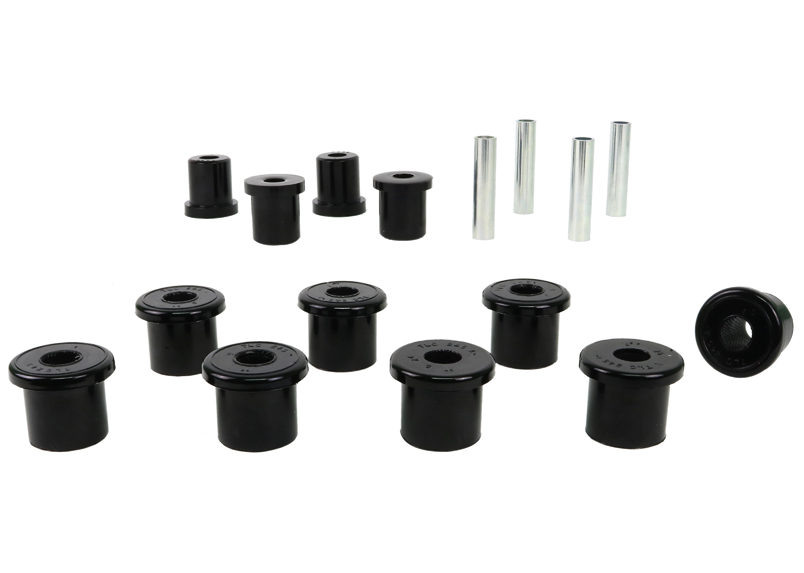

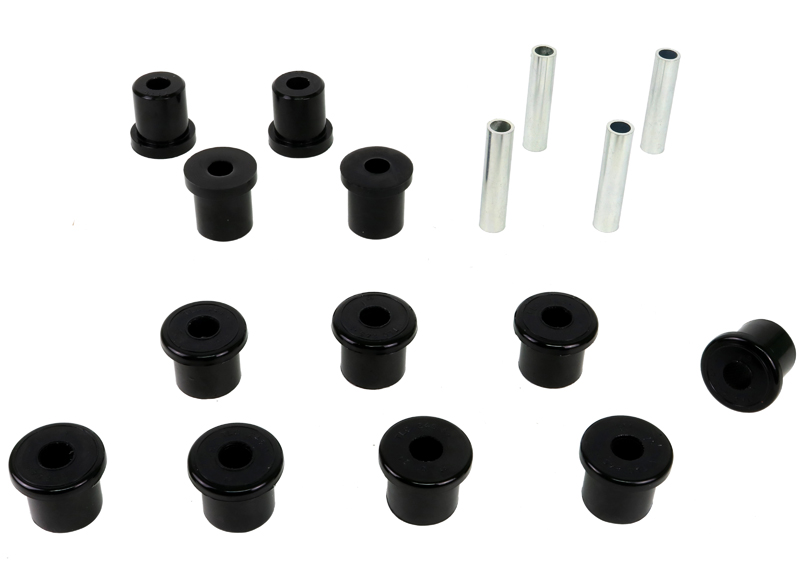

Rear Leaf Spring - Bushing Kit to Suit Toyota Land Cruiser 79 Series

Description

Benefit Note:
A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Nolathane bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	40.1 mm	18 mm	50 mm	8 mm	50 mm	4	19x14.3x85 mm	Click Here
1 - Shackle Bushing	8 mm	40.3 mm	18.2 mm	41.5 mm	6.7 mm	54.3 mm	4	19x14.3x85 mm	Click Here

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	4 mm	8 mm
OD (A)	40.1 mm	40.3 mm
ID (B)	18 mm	18.2 mm
Length (C)	50 mm	41.5 mm
Flange Thickness (D)	8 mm	6.7 mm
Flange OD (E)	50 mm	54.3 mm
C/Tube Quantity	4	4
C/Tube ODxIDxL	19x14.3x85 mm	19x14.3x85 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	40.1	18	50.0	8	50	4	19x14.3x85	Click Here
1	8	40.3	18.2	41.5	6.7	54.3	4	19x14.3x85	Click Here

Bush Type	1	1
QTY	4	8
OD (A)	40.1	40.3
ID (B)	18	18.2
Length (C)	50.0	41.5
FL (D)	8	6.7
FLOD (E)	50	54.3
C/Tube Qty	4	4
C/Tube Size	19x14.3x85	19x14.3x85
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.01kg	35cm	10cm	20cm
in/lbs	2.23lbs	13.78"	3.94"	7.87"

Units	cm/kg	in/lbs
Weight	1.01kg	2.23lbs
Length	35cm	13.78"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	REV161.0064
Foot Note 3	Lifetime Warranty
Components Per	12 Bushings, 4 Tubes
Product Note	Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
EAN	9319924438778

Installation & Fitment Guide

More Information
Installation Time	1.5 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment
