What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

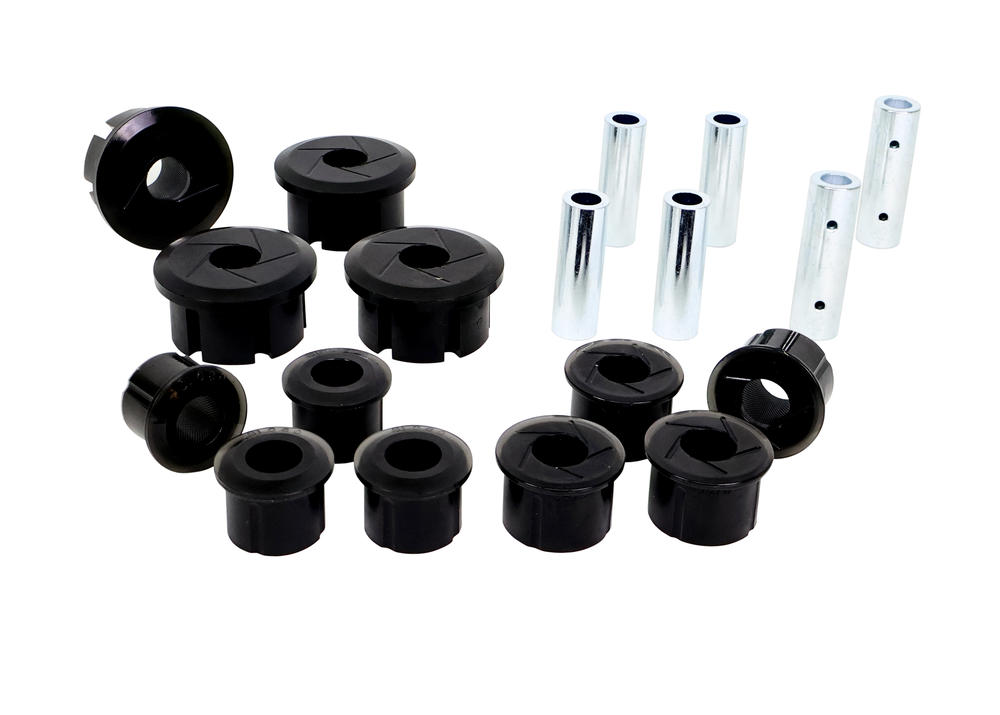

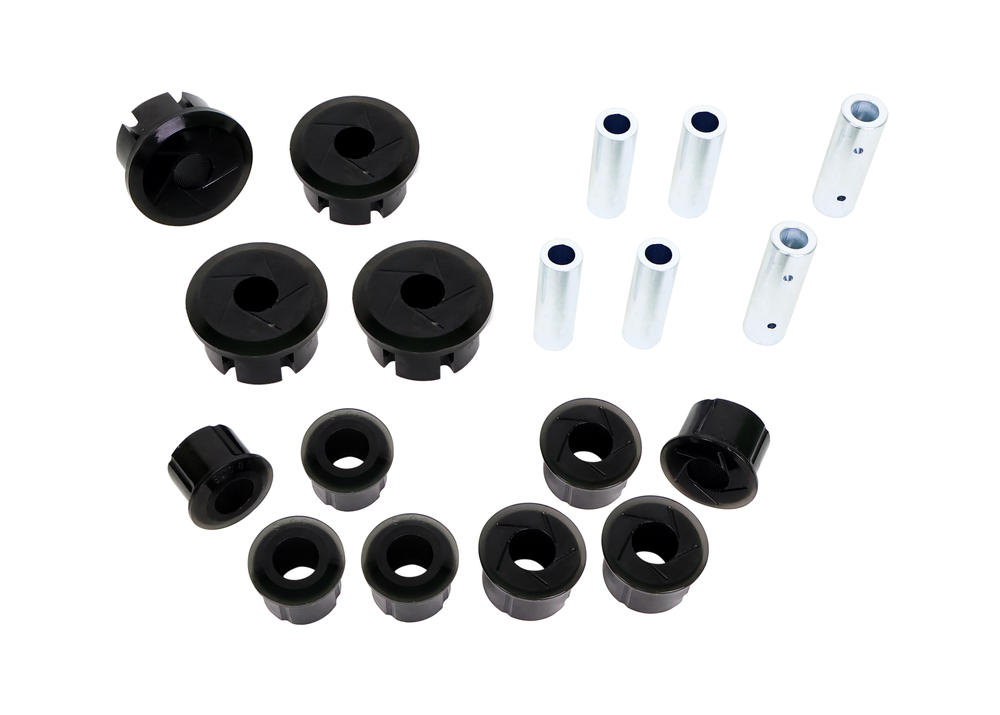

Leaf Spring - Bushing Kit to Suit Jeep Cherokee KJ

Description

Benefit Note:
A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Nolathane bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	38.2 mm	19 mm	29.5 mm	5 mm	46 mm	4 / 2	19x15x71 / 19x15x81 mm	Click Here
1 - Shackle Bushing	4 mm	43.8 mm	19 mm	34.3 mm	3.3 mm	55 mm	4 / 2	19x15x71 / 19x15x81 mm	Click Here
1 - Shackle Bushing	4 mm	62.9 mm	19 mm	40.5 mm	9.4 mm	76.3 mm	4 / 2	19x15x71 / 19x15x81 mm	Click Here

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	4 mm	4 mm	4 mm
OD (A)	38.2 mm	43.8 mm	62.9 mm
ID (B)	19 mm	19 mm	19 mm
Length (C)	29.5 mm	34.3 mm	40.5 mm
Flange Thickness (D)	5 mm	3.3 mm	9.4 mm
Flange OD (E)	46 mm	55 mm	76.3 mm
C/Tube Quantity	4 / 2	4 / 2	4 / 2
C/Tube ODxIDxL	19x15x71 / 19x15x81 mm	19x15x71 / 19x15x81 mm	19x15x71 / 19x15x81 mm
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	38.2	19	29.5	5	46	4 / 2	19x15x71 / 19x15x81	Click Here
1	4	43.8	19	34.3	3.3	55	4 / 2	19x15x71 / 19x15x81	Click Here
1	4	62.9	19	40.5	9.4	76.3	4 / 2	19x15x71 / 19x15x81	Click Here

Bush Type	1	1	1
QTY	4	4	4
OD (A)	38.2	43.8	62.9
ID (B)	19	19	19
Length (C)	29.5	34.3	40.5
FL (D)	5	3.3	9.4
FLOD (E)	46	55	76.3
C/Tube Qty	4 / 2	4 / 2	4 / 2
C/Tube Size	19x15x71 / 19x15x81	19x15x71 / 19x15x81	19x15x71 / 19x15x81
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.3kg	40cm	10cm	20cm
in/lbs	2.87lbs	15.75"	3.94"	7.87"

Units	cm/kg	in/lbs
Weight	1.3kg	2.87lbs
Length	40cm	15.75"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	REV161.0002
Foot Note 3	Lifetime Warranty
Components Per	12 Bushings, 6 Tubes
Product Note	Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:
EAN	9319924401000

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
