What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

REV042.0034

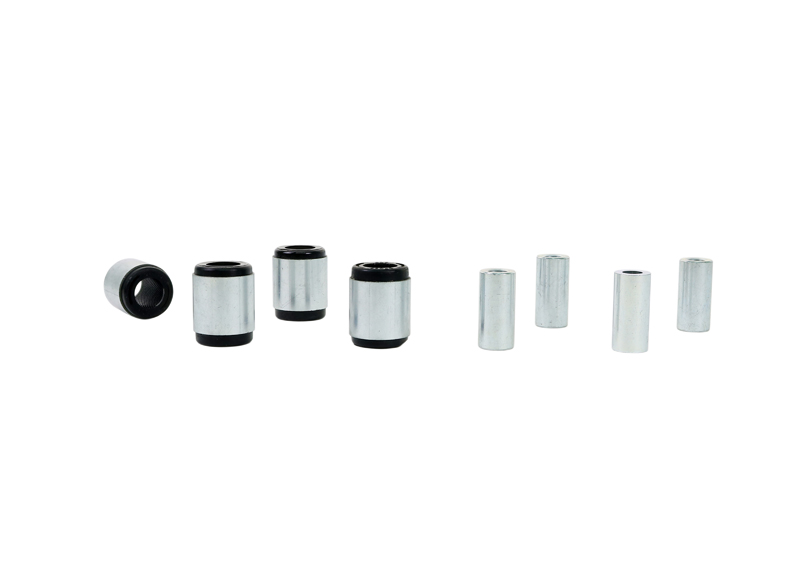

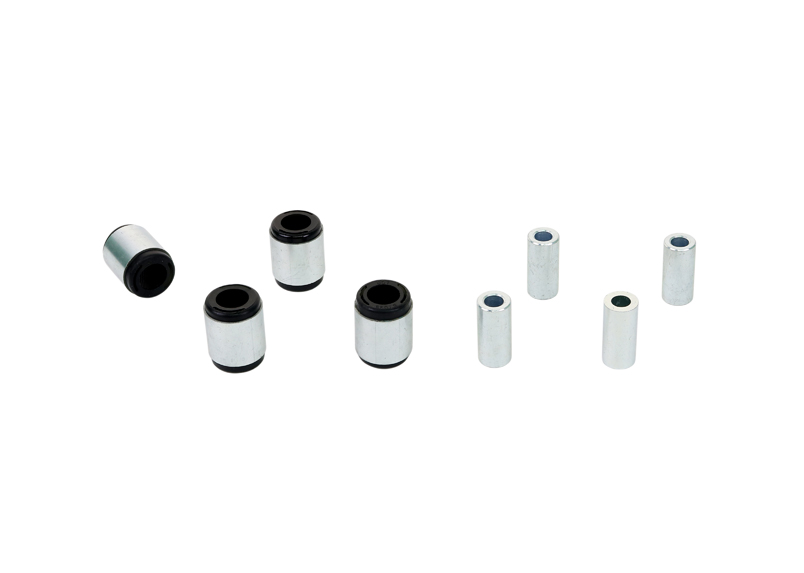

Front Upper Control Arm - Bushing Kit to Suit Nissan Navara D40, D23 and Pathfinder R51

Front Upper Control Arm - Bushing Kit to Suit Nissan Navara D40, D23 and Pathfinder R51

Standard Alignment

Item Price

€79.28

SKU	REV042.0034
Warranty	lifetime warranty
Installation Time	3 Hours
Fitting Position	Front Axle

Select your car to check fitment.

in stock

Ships within 24hrs

Description

Benefit Note:
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

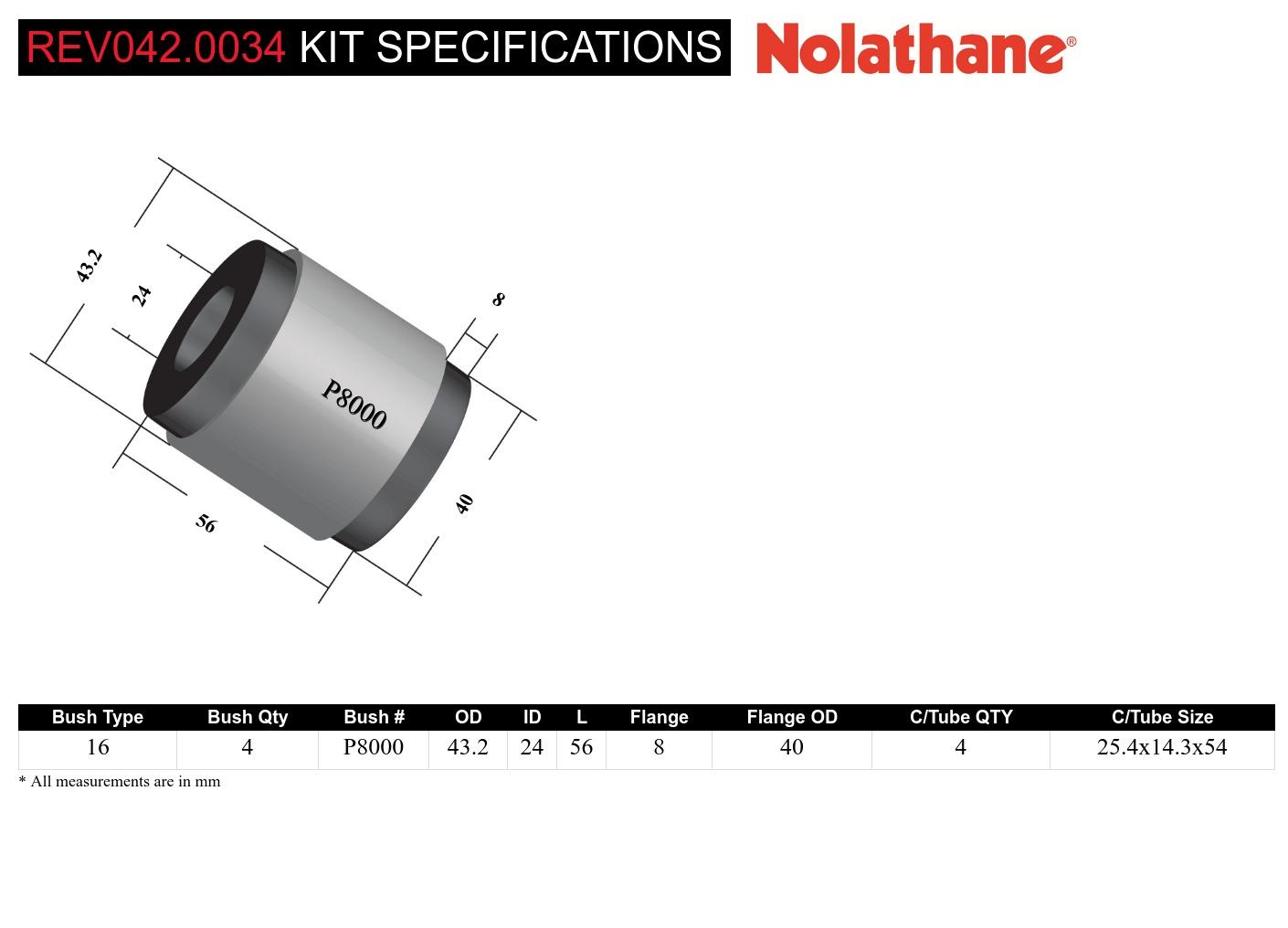

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	4 mm	43.2 mm	24 mm	56 mm	8 mm	40 mm	4	25.4x14.3x54 mm	Click Here

Bush Type	16 - Shell Without Flange Bushing
Bush Quantity	4 mm
OD (A)	43.2 mm
ID (B)	24 mm
Length (C)	56 mm
Flange Thickness (D)	8 mm
Flange OD (E)	40 mm
C/Tube Quantity	4
C/Tube ODxIDxL	25.4x14.3x54 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16	4	43.2	24	56.0	8	40	4	25.4x14.3x54	Click Here

Bush Type	16
QTY	4
OD (A)	43.2
ID (B)	24
Length (C)	56.0
FL (D)	8
FLOD (E)	40
C/Tube Qty	4
C/Tube Size	25.4x14.3x54
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.045kg	10cm	26cm	16cm
in/lbs	2.3lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1.045kg	2.3lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	REV042.0034
Foot Note 1	Standard Alignment
Foot Note 3	Lifetime Warranty
Components Per	4 Shell Bushings, 4 Tubes
Product Note	Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 4 Shell Bushings, 4 Tubes
EAN	9319924416752

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
