What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

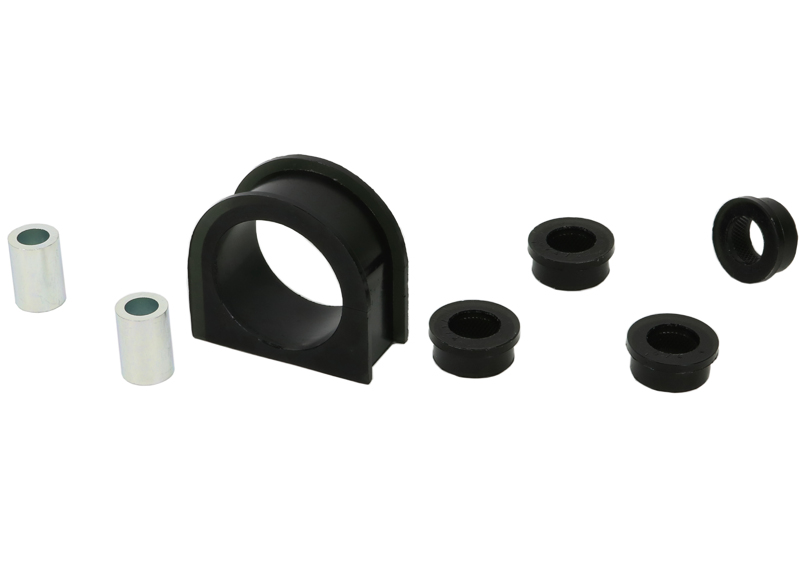

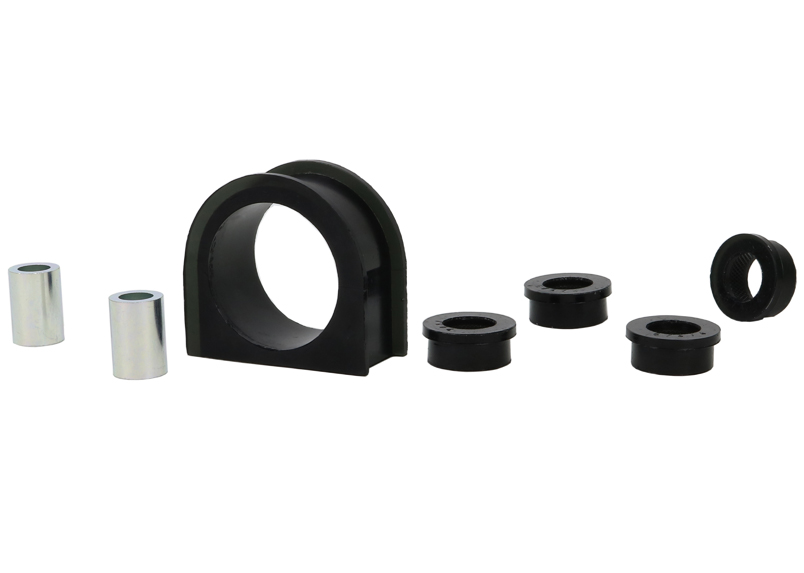

Front Steering Rack and Pinion - Mount Bushing Kit to Suit Toyota Land Cruiser 100 Series IFS

Description

Benefit Note:
Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Nolathane steering rack mounts are engineered to outlast and enhance steering precision and feedback.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

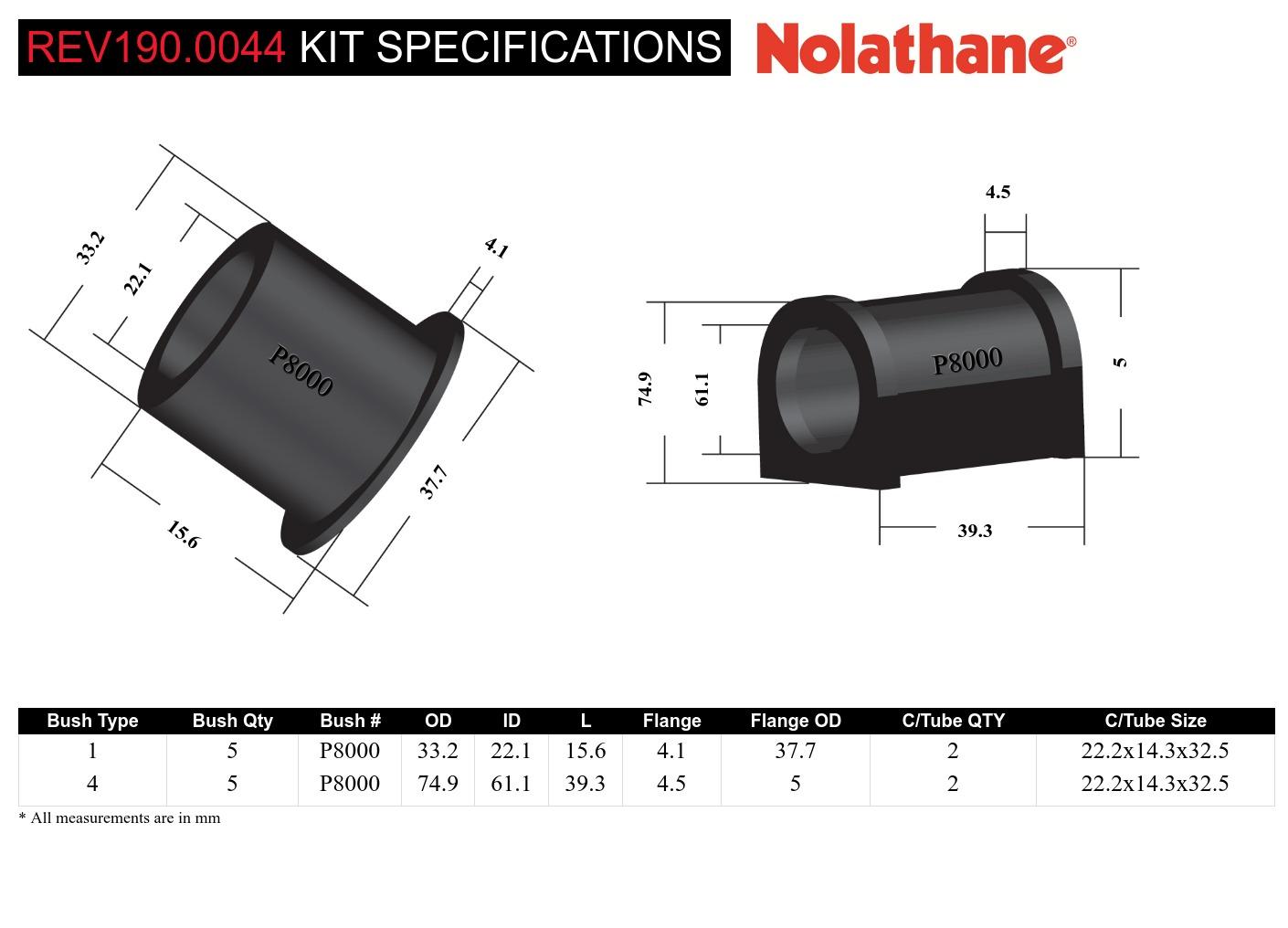

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	33.2 mm	22.1 mm	15.6 mm	4.1 mm	37.7 mm	2	22.2x14.3x32.5 mm	Click Here
4 - D-bushing With Flange	1 mm	74.9 mm	61.1 mm	39.3 mm	4.5 mm	5 mm	2	22.2x14.3x32.5 mm	Click Here

Bush Type	1 - Shackle Bushing	4 - D-bushing With Flange
Bush Quantity	4 mm	1 mm
OD (A)	33.2 mm	74.9 mm
ID (B)	22.1 mm	61.1 mm
Length (C)	15.6 mm	39.3 mm
Flange Thickness (D)	4.1 mm	4.5 mm
Flange OD (E)	37.7 mm	5 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	22.2x14.3x32.5 mm	22.2x14.3x32.5 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	33.2	22.1	15.6	4.1	37.7	2	22.2x14.3x32.5	Click Here
4	1	74.9	61.1	39.3	4.5	5	2	22.2x14.3x32.5	Click Here

Bush Type	1	4
QTY	4	1
OD (A)	33.2	74.9
ID (B)	22.1	61.1
Length (C)	15.6	39.3
FL (D)	4.1	4.5
FLOD (E)	37.7	5
C/Tube Qty	2	2
C/Tube Size	22.2x14.3x32.5	22.2x14.3x32.5
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.268kg	7cm	20cm	14cm
in/lbs	0.59lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.268kg	0.59lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	REV190.0044
Foot Note 3	Lifetime Warranty
Components Per	5 Bushings, 2 Tubes
Product Note	Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
EAN	9319924420865

Installation & Fitment Guide

More Information
Installation Time	2 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
