What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

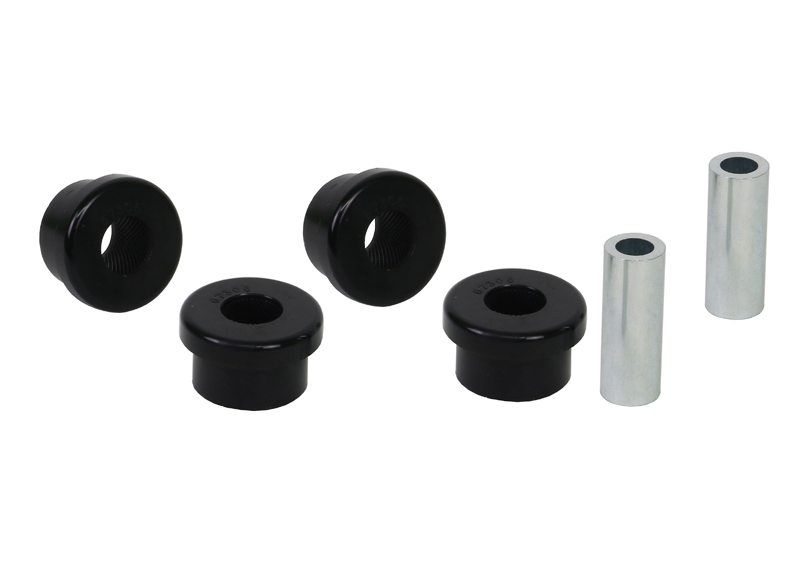

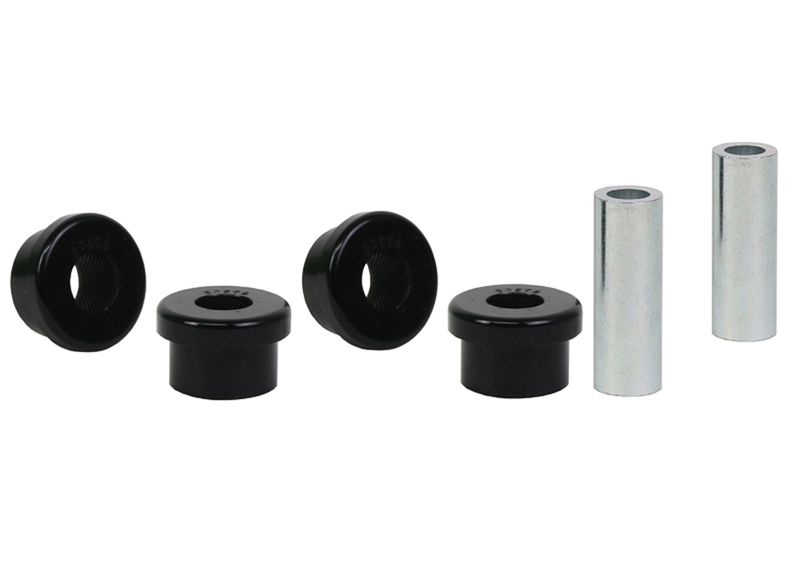

Front Lower Control Arm - Inner Front Bushing Kit to Suit Nissan Elgrand E50 and Pathfinder R50

Description

Benefit Note:
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

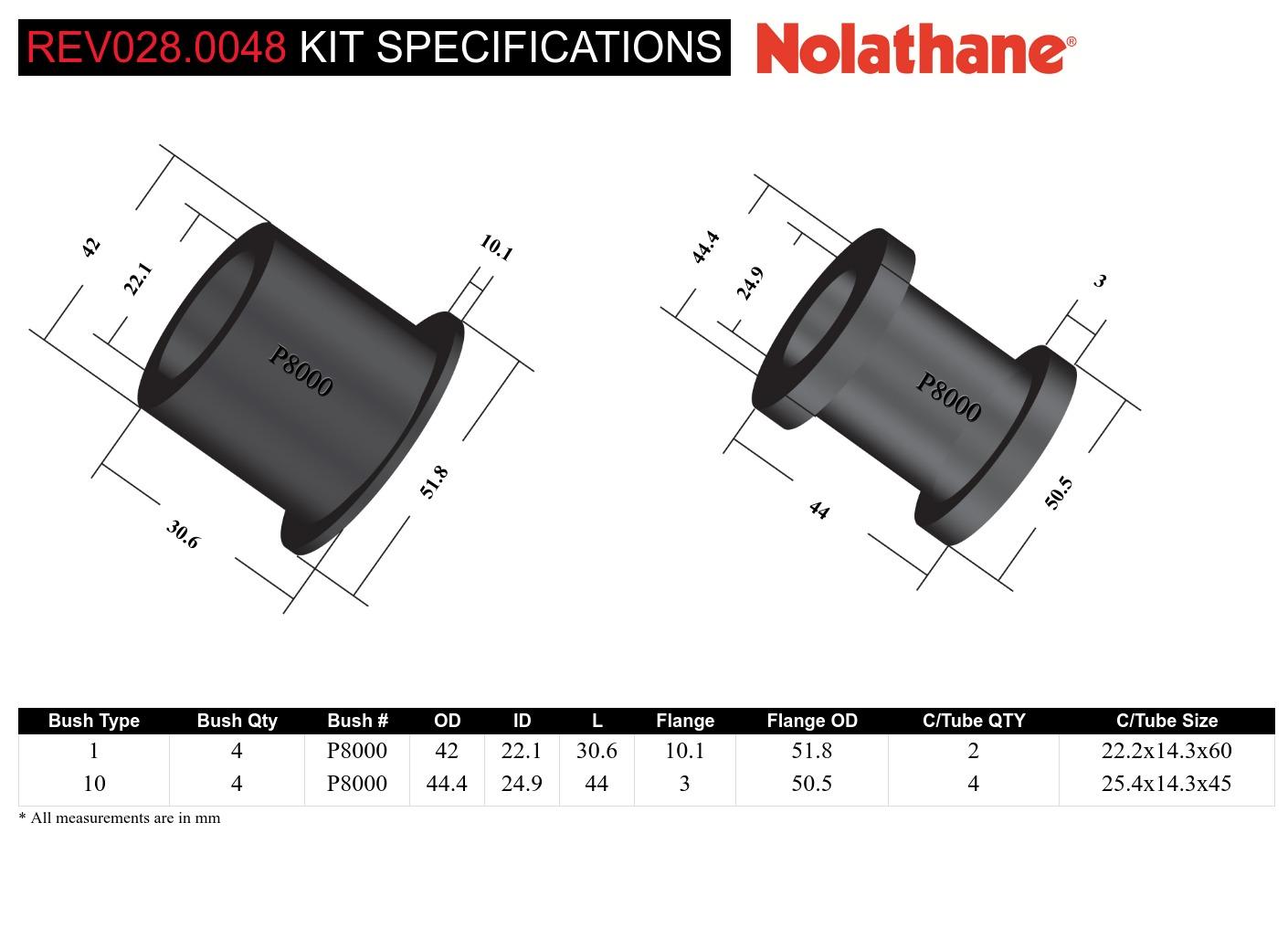

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	42 mm	22.1 mm	30.6 mm	10.1 mm	51.8 mm	2	22.2x14.3x60 mm	Click Here
10 - Cotton Reel With & Without Tapper Bushing	4 mm	44.4 mm	24.9 mm	44 mm	3 mm	50.5 mm	4	25.4x14.3x45 mm	Click Here

Bush Type	1 - Shackle Bushing	10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity	4 mm	4 mm
OD (A)	42 mm	44.4 mm
ID (B)	22.1 mm	24.9 mm
Length (C)	30.6 mm	44 mm
Flange Thickness (D)	10.1 mm	3 mm
Flange OD (E)	51.8 mm	50.5 mm
C/Tube Quantity	2	4
C/Tube ODxIDxL	22.2x14.3x60 mm	25.4x14.3x45 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	42	22.1	30.6	10.1	51.8	2	22.2x14.3x60	Click Here
10	4	44.4	24.9	44.0	3	50.5	4	25.4x14.3x45	Click Here

Bush Type	1	10
QTY	4	4
OD (A)	42	44.4
ID (B)	22.1	24.9
Length (C)	30.6	44.0
FL (D)	10.1	3
FLOD (E)	51.8	50.5
C/Tube Qty	2	4
C/Tube Size	22.2x14.3x60	25.4x14.3x45
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.352kg	7cm	20cm	14cm
in/lbs	0.78lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.352kg	0.78lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	REV028.0048
Foot Note 3	Lifetime Warranty
Components Per	4 Bushings, 2 Tubes
Product Note	Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 4 Bushings, 2 Tubes
EAN	9319924414024

Installation & Fitment Guide

More Information
Installation Time	2.5 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Shipping & Returns

Shipping Times

You can use the shipping calculator to find your shipping costs. The shipping calculator will also show all shipping prices.

Returns

We guarantee the fitment and quality of our products, but if you choose to return an item we offer a generous 60 day returns policy. See our returns policy here.

Warranty

All products sold by Nolathane are covered by a national warranty. The products warranty is subject to conditions from the date of purchase, unless otherwise stated on the item.

Warranty claims must meet certain criteria and be sent to Nolathane with a receipt to be eligible for a refund. See full warranty claim criteria here.
