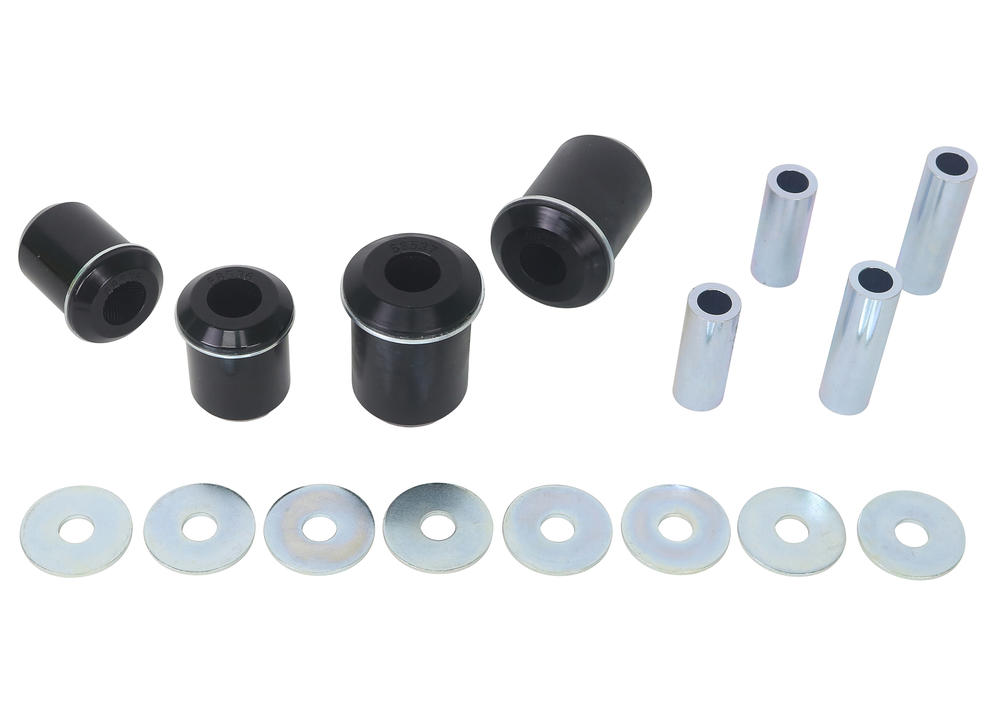

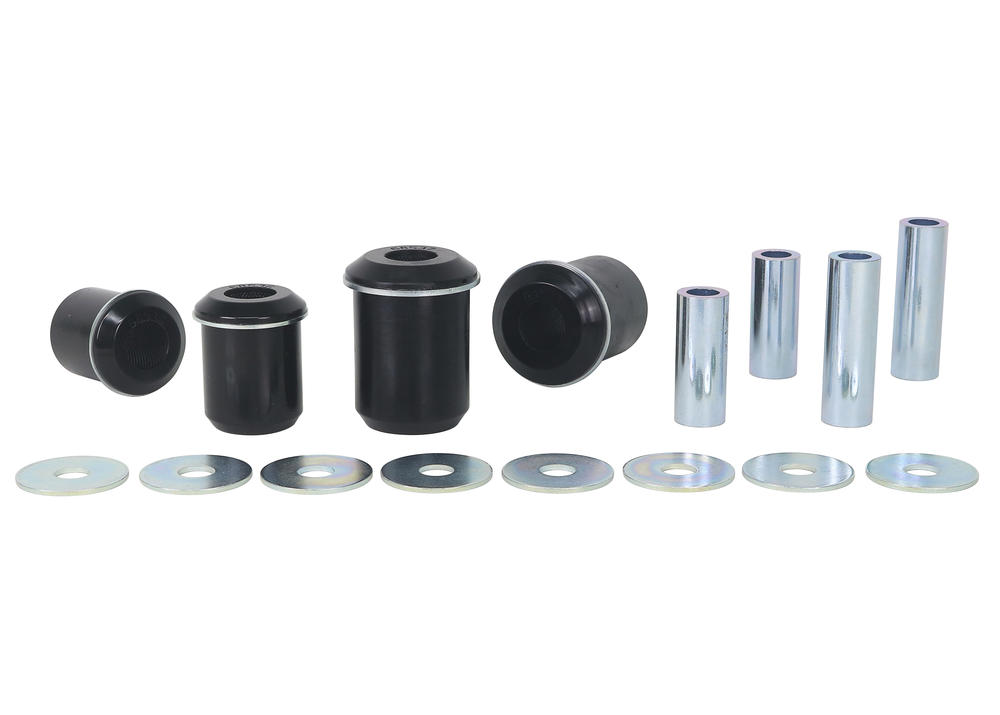

Front Lower Control Arm - Bushing Kit to Suit Toyota HiLux 2015-on and Fortuner GUN156 4wd

Description

Benefit Note:

Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	2 mm	48.1 mm	25.3 mm	65.6 mm	10.8 mm	56 mm	2 / 2	25.4x16.2x65 / 25.4x16.2x83 mm	Click Here
1 - Shackle Bushing	2 mm	56.1 mm	25.3 mm	83.5 mm	12.8 mm	66.5 mm	2 / 2	25.4x16.2x65 / 25.4x16.2x83 mm	Click Here

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	2 mm
OD (A)	48.1 mm	56.1 mm
ID (B)	25.3 mm	25.3 mm
Length (C)	65.6 mm	83.5 mm
Flange Thickness (D)	10.8 mm	12.8 mm
Flange OD (E)	56 mm	66.5 mm
C/Tube Quantity	2 / 2	2 / 2
C/Tube ODxIDxL	25.4x16.2x65 / 25.4x16.2x83 mm	25.4x16.2x65 / 25.4x16.2x83 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	2	48.1	25.3	65.6	10.8	56	2 / 2	25.4x16.2x65 / 25.4x16.2x83	Click Here
1	2	56.1	25.3	83.5	12.8	66.5	2 / 2	25.4x16.2x65 / 25.4x16.2x83	Click Here

Bush Type	1	1
QTY	2	2
OD (A)	48.1	56.1
ID (B)	25.3	25.3
Length (C)	65.6	83.5
FL (D)	10.8	12.8
FLOD (E)	56	66.5
C/Tube Qty	2 / 2	2 / 2
C/Tube Size	25.4x16.2x65 / 25.4x16.2x83	25.4x16.2x65 / 25.4x16.2x83
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.7kg	10cm	26cm	16cm
in/lbs	3.75lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1.7kg	3.75lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	REV032.0060
Foot Note 3	Lifetime Warranty
Components Per	4 Bushings, 4 Tubes, 8 Washers
Product Note
EAN	9319924469819

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
