What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

REV246.0004

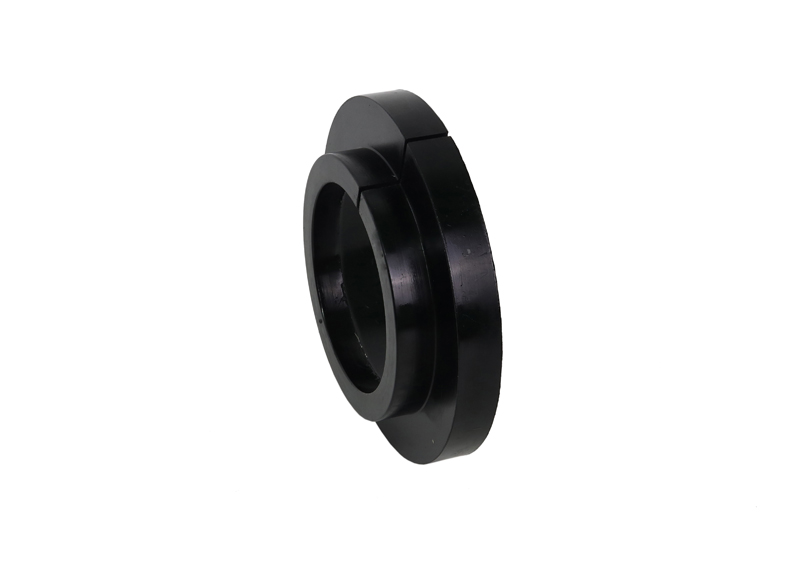

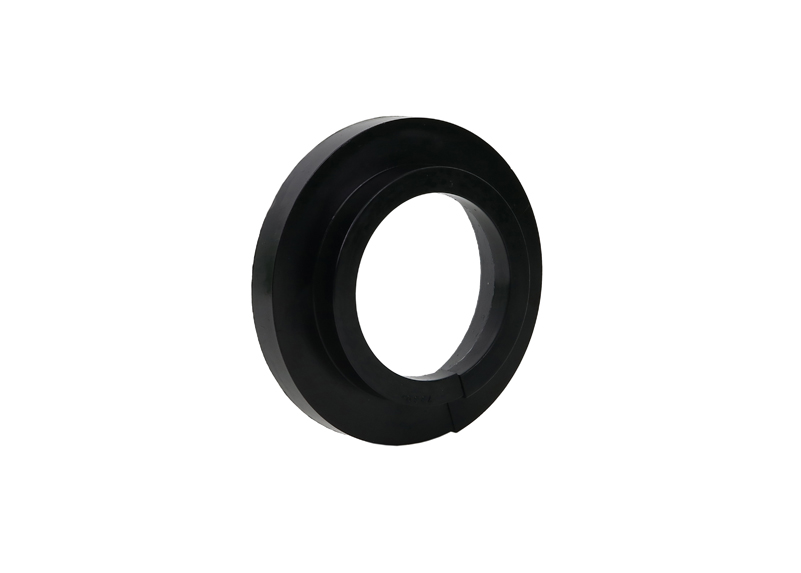

Coil Spring Pad - Lower Bushing Kit to Suit Nissan Patrol GQ, GU

Coil Spring Pad - Lower Bushing Kit to Suit Nissan Patrol GQ, GU

OD=170, ID=122, H=20mm

Item Price

€34.49

SKU	REV246.0004
Warranty	lifetime warranty
Installation Time	1.5 Hours
Fitting Position	Front Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:
Whether its replacing deteriorated original units, to compensate loading one side of a vehicle (common to 4x4 Models), looking to obtain that preferred ride height setting or improve steering response. Nolathane spring pads are an economical solution.

*We do not charge any taxes on purchases made outside of the UK through our EU site. Goods will be shipped from the UK and you should expect to pay your own import tax and related clearance charges when the parcel reaches the destination country. We cannot predict what this charge will be as it varies country to country & parcel to parcel.

Specifications

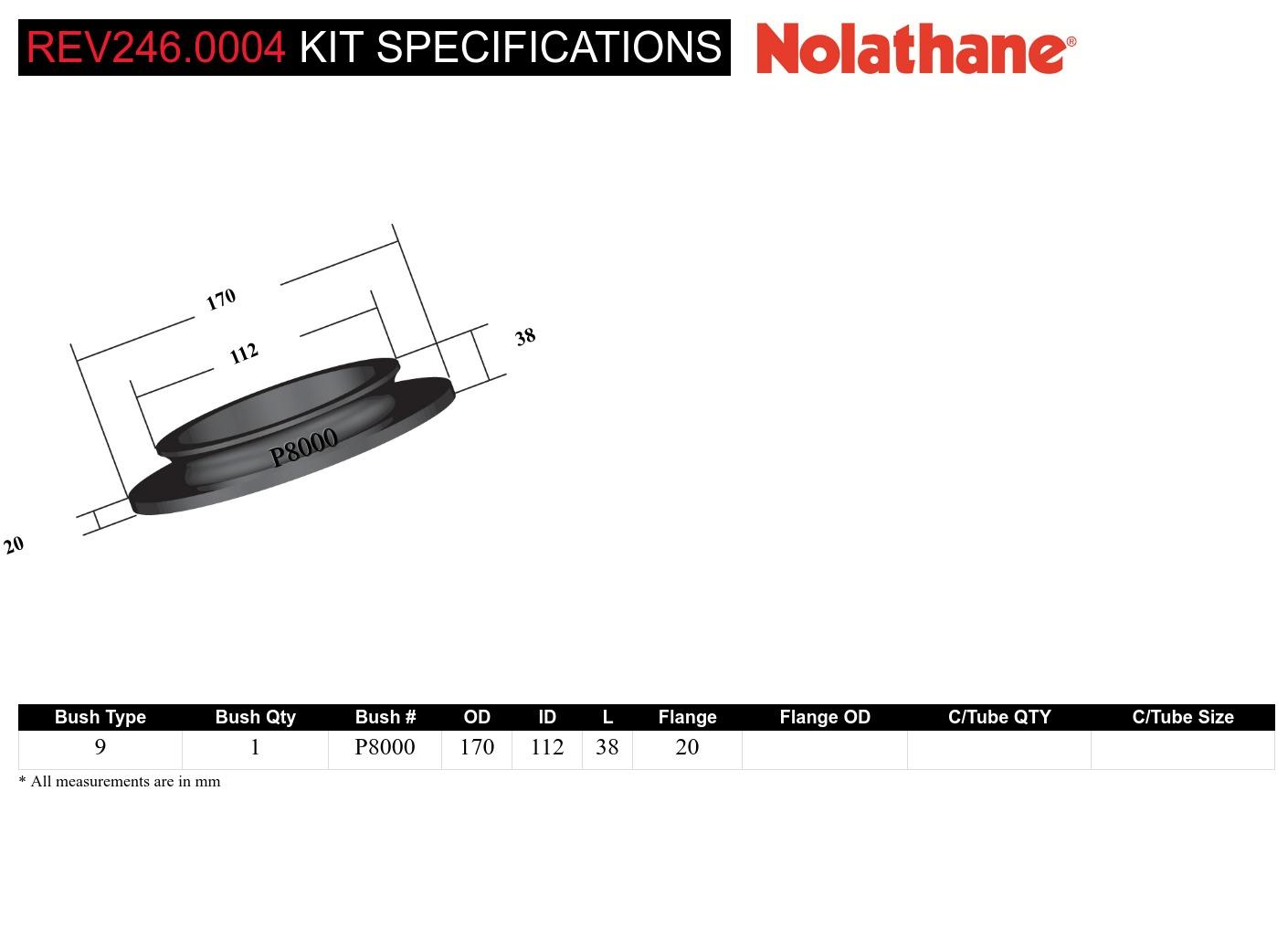

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
9 - Coil Spring Seats And Spacer Bushing	1 mm	170 mm	112 mm	38 mm	20 mm				Click Here

Bush Type	9 - Coil Spring Seats And Spacer Bushing
Bush Quantity	1 mm
OD (A)	170 mm
ID (B)	112 mm
Length (C)	38 mm
Flange Thickness (D)	20 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 9 - Coil Spring Seats And Spacer Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
9	1	170	112	38.0	20				Click Here

Bush Type	9
QTY	1
OD (A)	170
ID (B)	112
Length (C)	38.0
FL (D)	20
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.38kg	10cm	26cm	16cm
in/lbs	0.84lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.38kg	0.84lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	REV246.0004
Foot Note 1	Ride height increase
Foot Note 2	20mm
Foot Note 3	Lifetime Warranty
Components Per	1 Bushing
Product Note	Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:
EAN	9319924421541

Installation & Fitment Guide

More Information
Installation Time	1.5 Hours
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
