What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

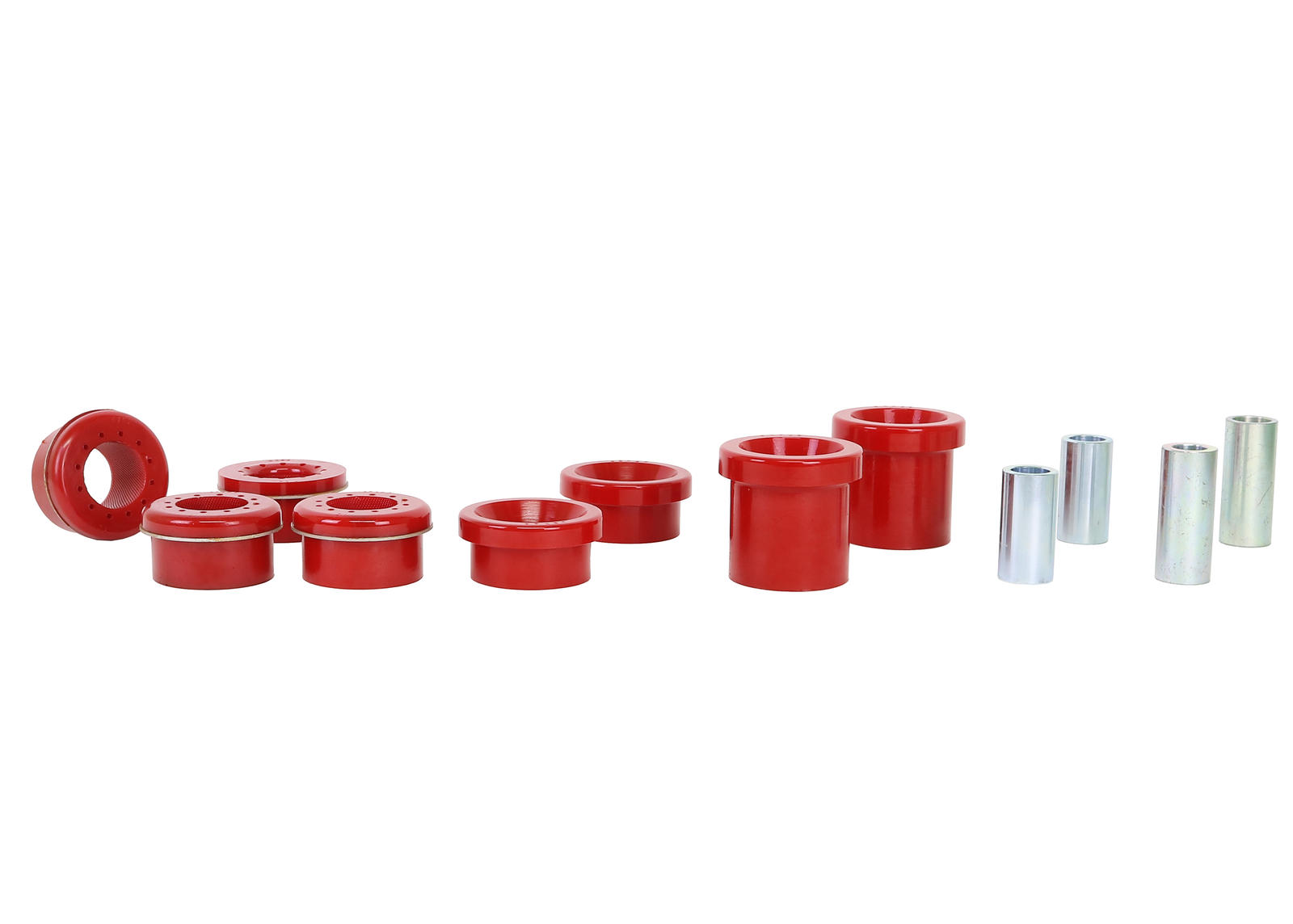

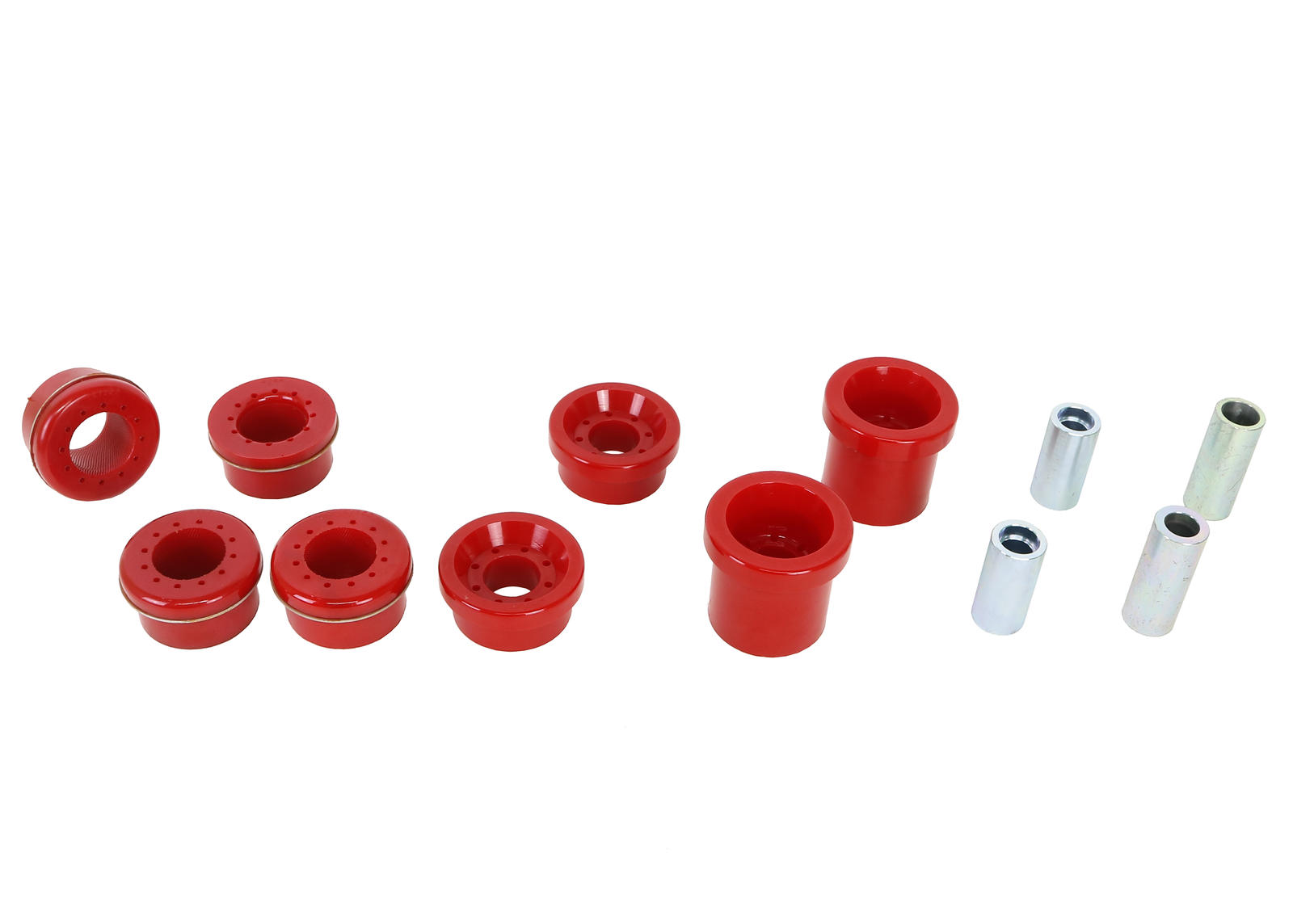

Rear Subframe - Bushing Kit to Suit Holden Commodore VE, VF and HSV

Description

Benefit Note:

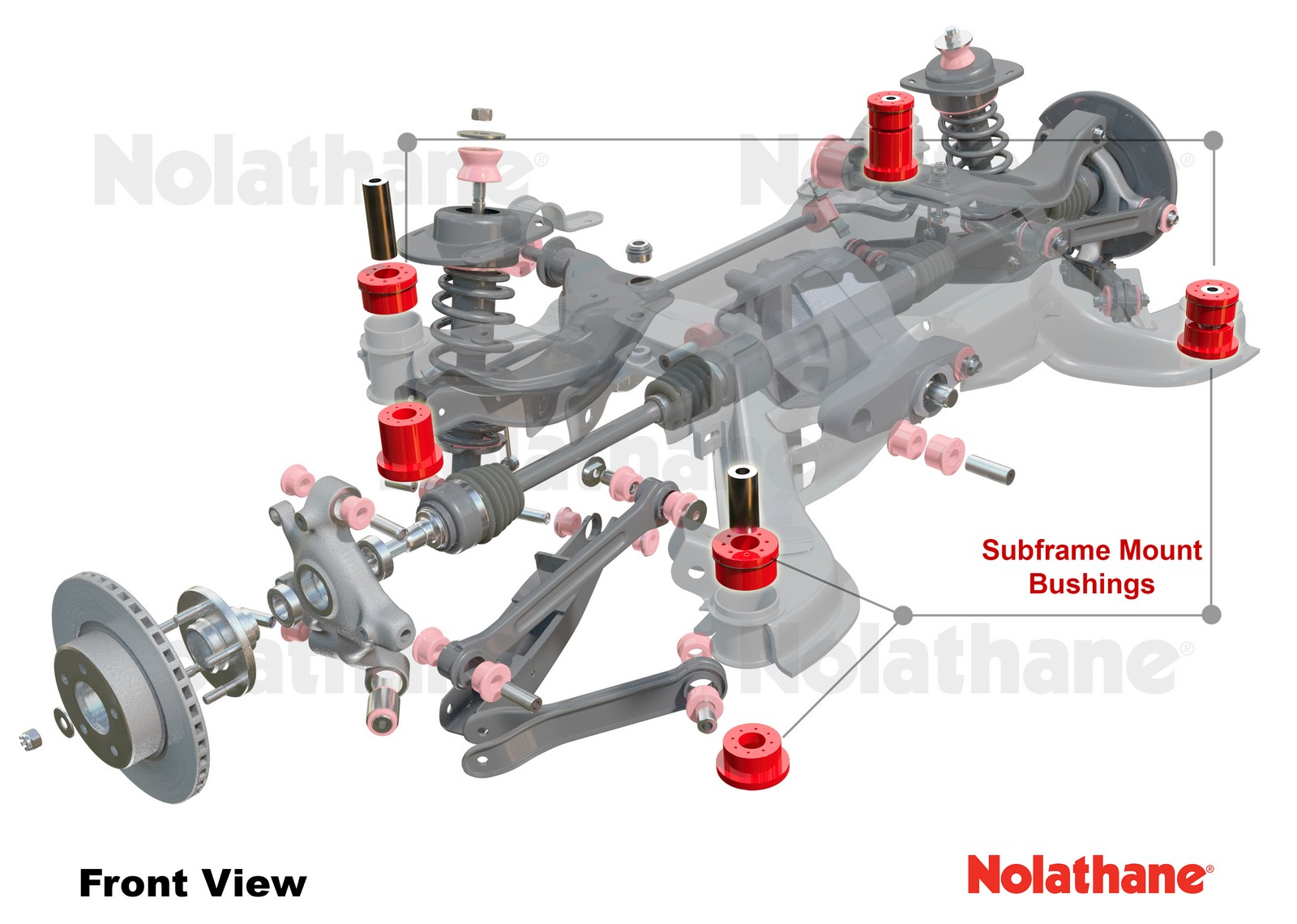

This Nolathane kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

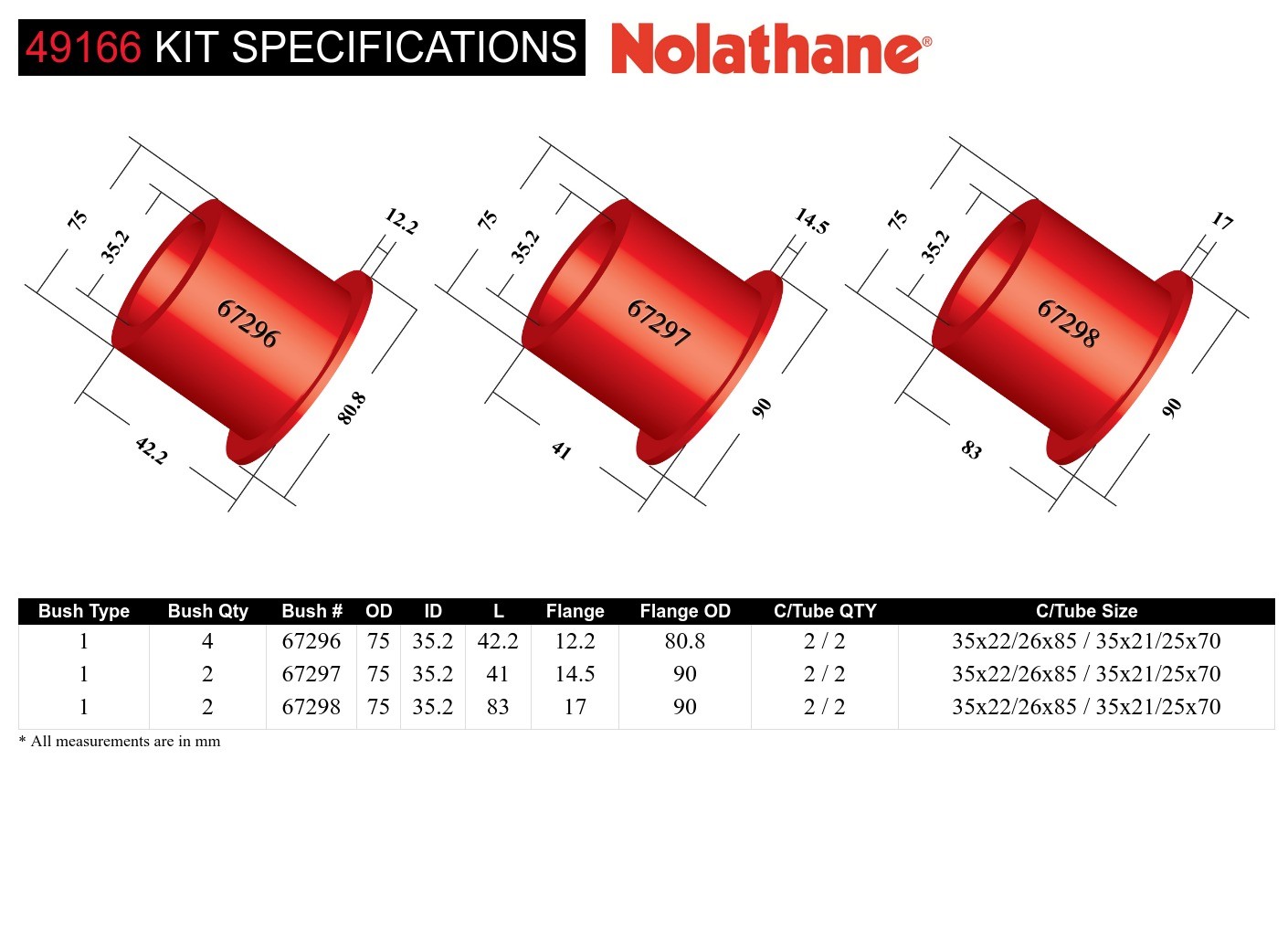

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	2 mm	75 mm	35.2 mm	41 mm	14.5 mm	90 mm	2 / 2	35x22/26x85 / 35x21/25x70 mm	Click Here
1 - Shackle Bushing	4 mm	75 mm	35.2 mm	42.2 mm	12.2 mm	80.8 mm	2 / 2	35x22/26x85 / 35x21/25x70 mm	Click Here
1 - Shackle Bushing	2 mm	75 mm	35.2 mm	83 mm	17 mm	90 mm	2 / 2	35x22/26x85 / 35x21/25x70 mm	Click Here

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	4 mm	2 mm
OD (A)	75 mm	75 mm	75 mm
ID (B)	35.2 mm	35.2 mm	35.2 mm
Length (C)	41 mm	42.2 mm	83 mm
Flange Thickness (D)	14.5 mm	12.2 mm	17 mm
Flange OD (E)	90 mm	80.8 mm	90 mm
C/Tube Quantity	2 / 2	2 / 2	2 / 2
C/Tube ODxIDxL	35x22/26x85 / 35x21/25x70 mm	35x22/26x85 / 35x21/25x70 mm	35x22/26x85 / 35x21/25x70 mm
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	2	75	35.2	41.0	14.5	90	2 / 2	35x22/26x85 / 35x21/25x70	Click Here
1	4	75	35.2	42.2	12.2	80.8	2 / 2	35x22/26x85 / 35x21/25x70	Click Here
1	2	75	35.2	83.0	17	90	2 / 2	35x22/26x85 / 35x21/25x70	Click Here

Bush Type	1	1	1
QTY	2	4	2
OD (A)	75	75	75
ID (B)	35.2	35.2	35.2
Length (C)	41.0	42.2	83.0
FL (D)	14.5	12.2	17
FLOD (E)	90	80.8	90
C/Tube Qty	2 / 2	2 / 2	2 / 2
C/Tube Size	35x22/26x85 / 35x21/25x70	35x22/26x85 / 35x21/25x70	35x22/26x85 / 35x21/25x70
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	2.976kg	40cm	10cm	20cm
in/lbs	6.56lbs	15.75"	3.94"	7.87"

Units	cm/kg	in/lbs
Weight	2.976kg	6.56lbs
Length	40cm	15.75"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	49166
Foot Note 3	Lifetime Warranty
Components Per	8 Bushings, 4 Tubes
Product Note	Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
EAN	9319924378883

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	4 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
