What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

47026

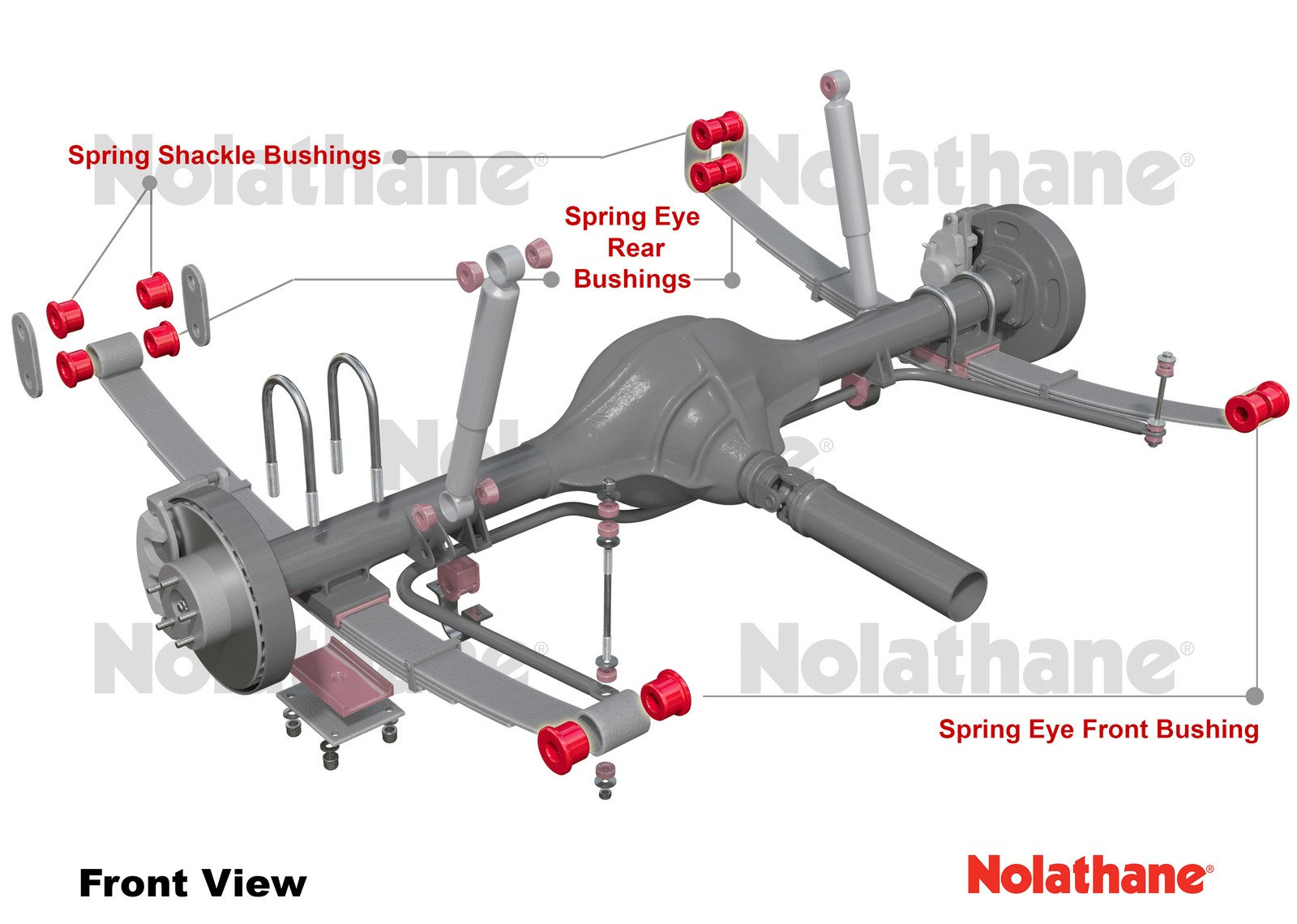

Rear Leaf Spring - Bushing Kit to Suit Ford Courier, Econovan and Mazda B Series Bravo

Rear Leaf Spring - Bushing Kit to Suit Ford Courier, Econovan and Mazda B Series Bravo

Suits models to - 12/1980

Item Price

$165.06

SKU	47026
Warranty	lifetime warranty
Installation Time	3 Hours
Fitting Position	Rear Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:
A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Nolathane's signature red bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

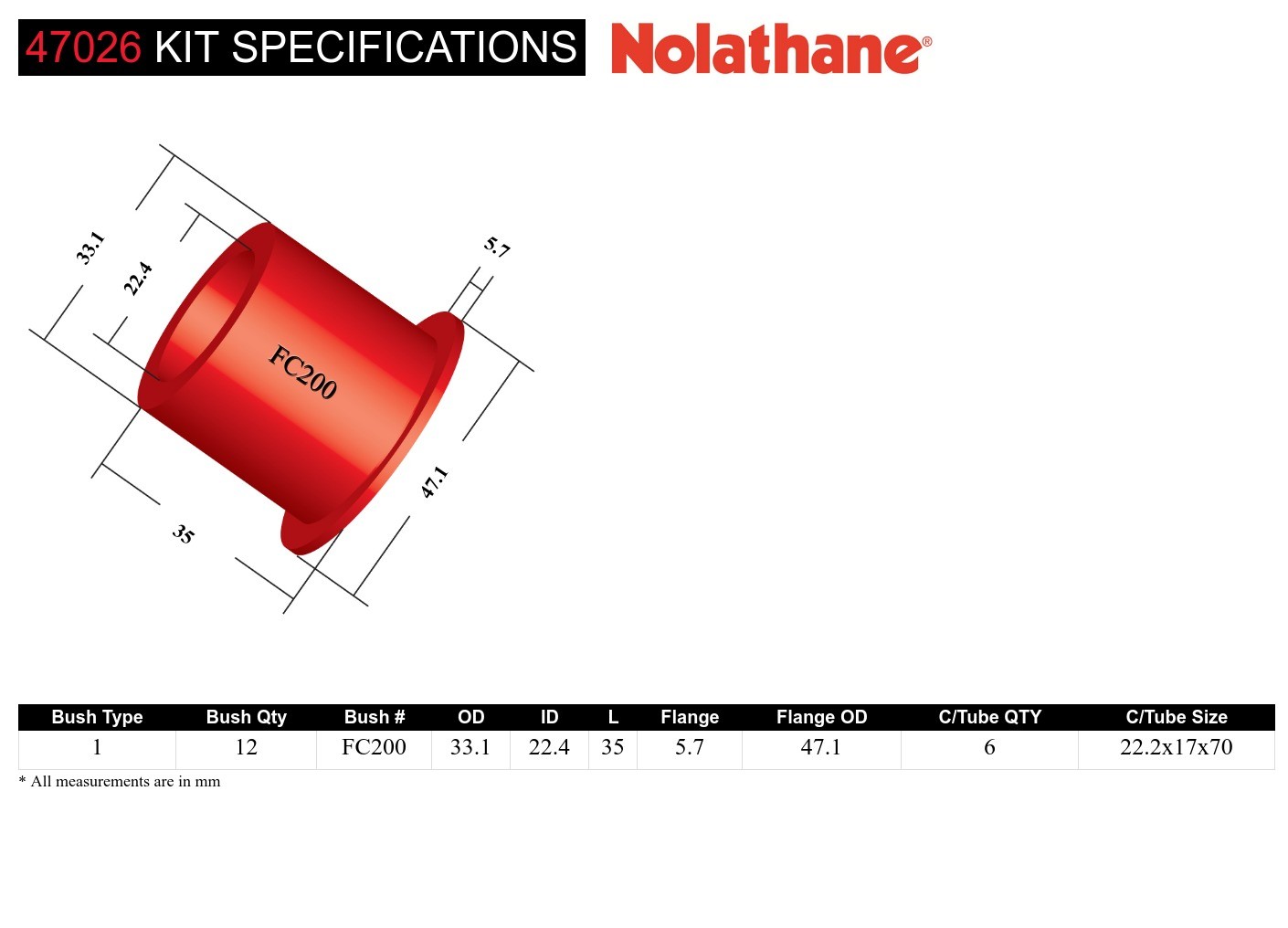

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	12 mm	33.1 mm	22.4 mm	35 mm	5.7 mm	47.1 mm	6	22.2x17x70 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	12 mm
OD (A)	33.1 mm
ID (B)	22.4 mm
Length (C)	35 mm
Flange Thickness (D)	5.7 mm
Flange OD (E)	47.1 mm
C/Tube Quantity	6
C/Tube ODxIDxL	22.2x17x70 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	12	33.1	22.4	35.0	5.7	47.1	6	22.2x17x70	Click Here

Bush Type	1
QTY	12
OD (A)	33.1
ID (B)	22.4
Length (C)	35.0
FL (D)	5.7
FLOD (E)	47.1
C/Tube Qty	6
C/Tube Size	22.2x17x70
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.845kg	10cm	26cm	16cm
in/lbs	1.86lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.845kg	1.86lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	47026
Foot Note 3	Lifetime Warranty

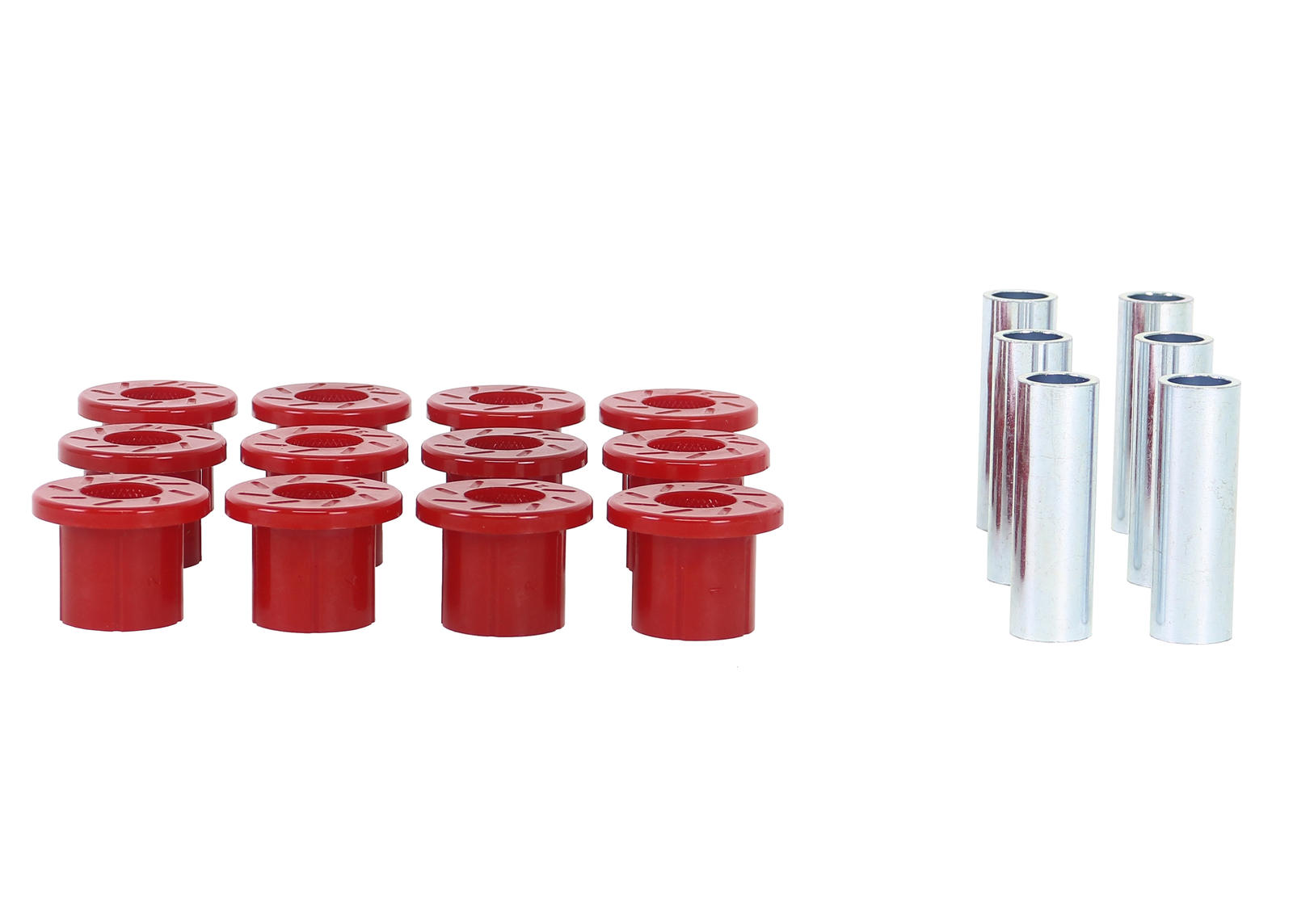

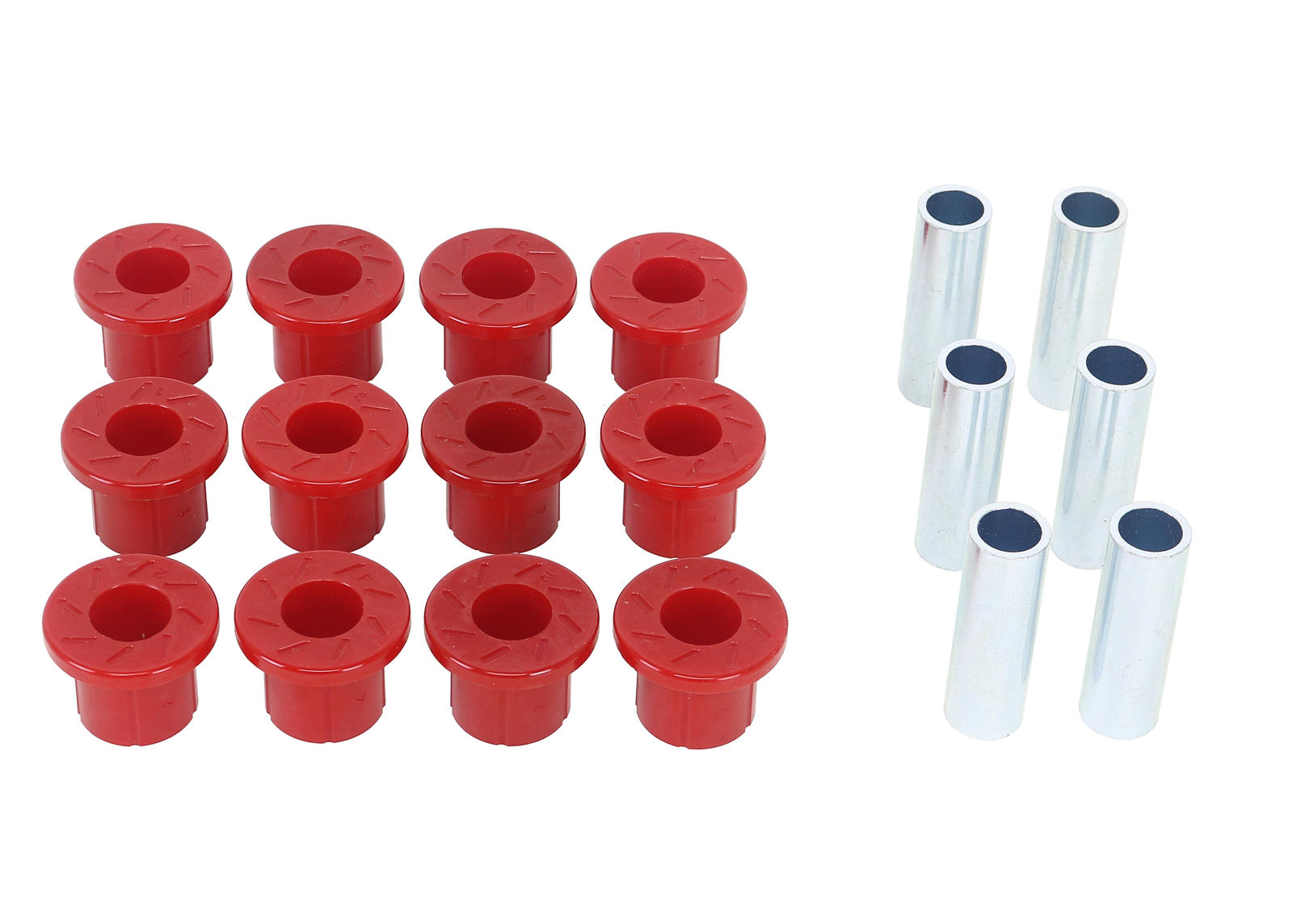

Components Per	12 Bushings, 6 Tubes
Product Note	Engineered to be long-lasting and resistant to oil, heat, and road contaminants; the best, replacement upgrade. Includes:
EAN	9314258502546

Installation & Fitment Guide

More Information
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
