What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

KU7003/100

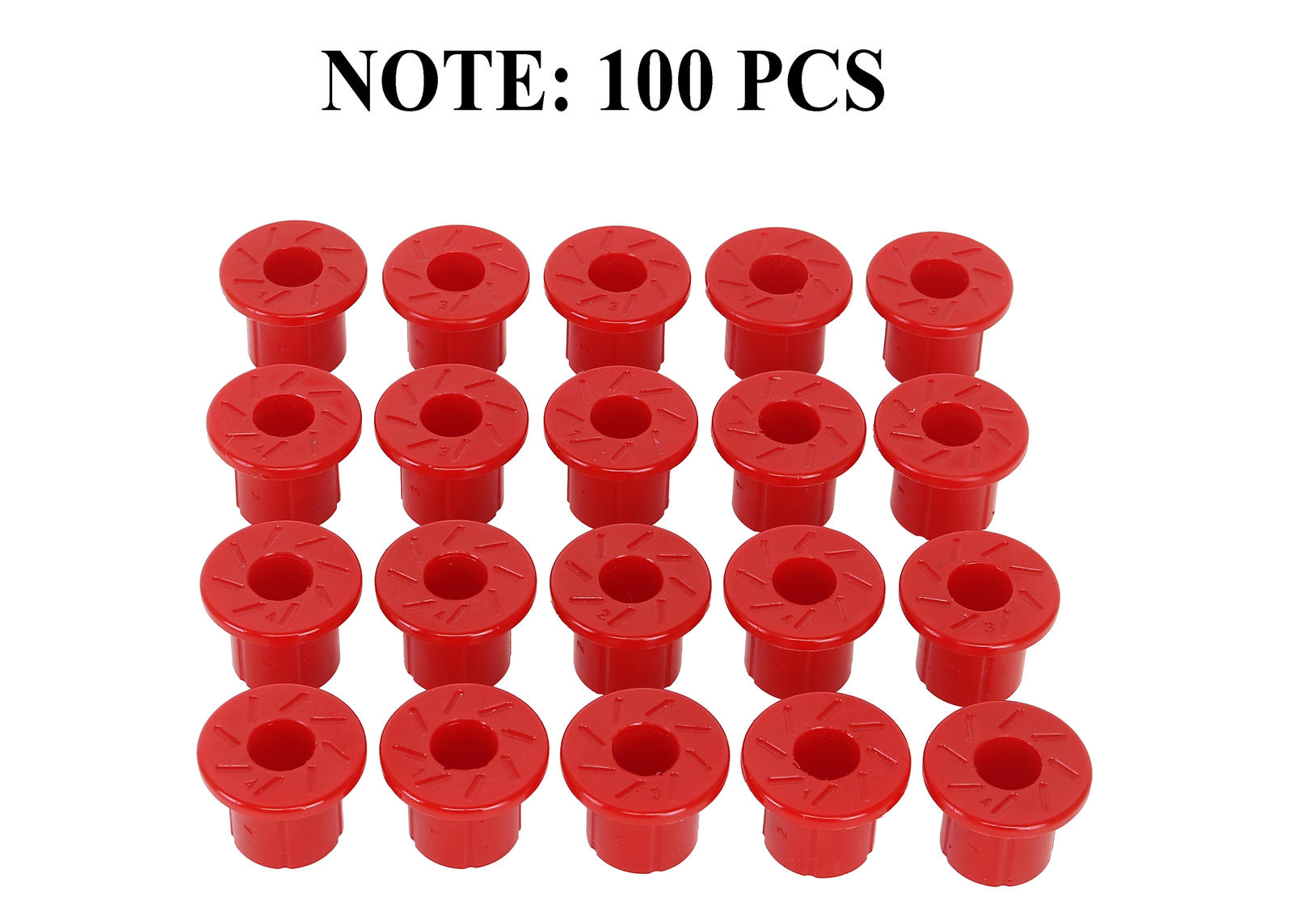

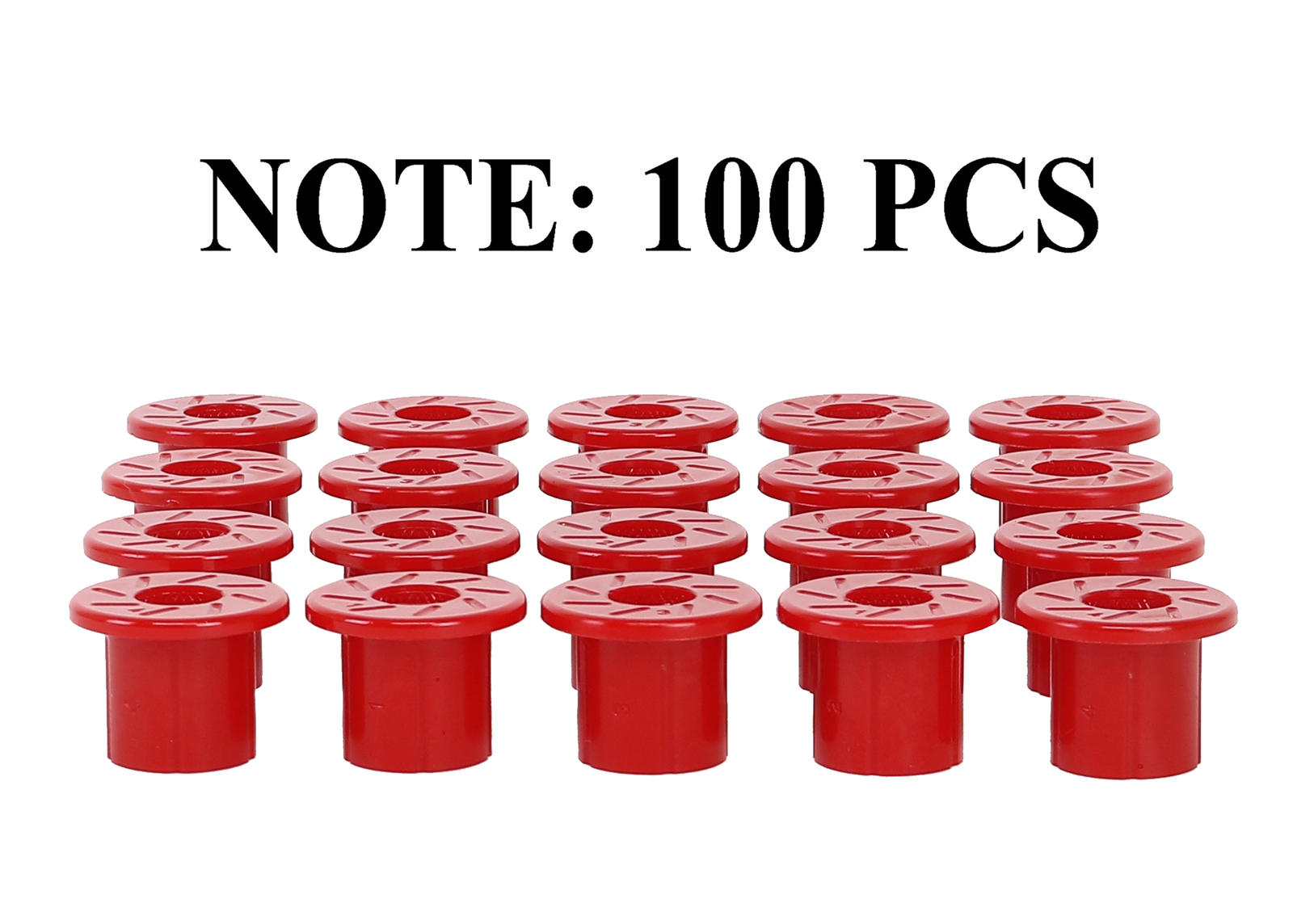

Rear Leaf Spring - Bushing Kit Bulk Pack to Suit Holden Colorado, Rodeo, Isuzu D-Max and LDV T60

Rear Leaf Spring - Bushing Kit Bulk Pack to Suit Holden Colorado, Rodeo, Isuzu D-Max and LDV T60

OD=30.2, ID=18.2, L=33mm - bulk pack containing 100 loose bushings

Item Price

$732.96

SKU	KU7003/100
Warranty	lifetime warranty

Select your car to check fitment.

in stock

Ships within 24hrs

Description

Benefit Note:
A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Nolathane's signature red bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	100 mm	30.2 mm	18.2 mm	33 mm	4 mm	41 mm			Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	100 mm
OD (A)	30.2 mm
ID (B)	18.2 mm
Length (C)	33 mm
Flange Thickness (D)	4 mm
Flange OD (E)	41 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	100	30.2	18.2	33.0	4	41			Click Here

Bush Type	1
QTY	100
OD (A)	30.2
ID (B)	18.2
Length (C)	33.0
FL (D)	4
FLOD (E)	41
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.99kg	25cm	18cm	22cm
in/lbs	4.39lbs	9.84"	7.09"	8.66"

Units	cm/kg	in/lbs
Weight	1.99kg	4.39lbs
Length	25cm	9.84"
Width	18cm	7.09"
Height	22cm	8.66"

Misc. Product Information

More Information
SKU	KU7003/100
Foot Note 1	Bulk pack containing 100 loose bushings
Foot Note 3	Lifetime Warranty
Components Per	100 Bushings
Product Note	Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:
EAN	9330074007812

Installation & Fitment Guide

More Information
Wheel Alignment Required	No

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Shipping & Returns

Shipping Times

You can use the shipping calculator to find your shipping costs. The shipping calculator will also show all shipping prices.

Returns

We guarantee the fitment and quality of our products, but if you choose to return an item we offer a generous 60 day returns policy. See our returns policy here.

Warranty

All products sold by Nolathane are covered by a national warranty. The products warranty is subject to conditions from the date of purchase, unless otherwise stated on the item.

Warranty claims must meet certain criteria and be sent to Nolathane with a receipt to be eligible for a refund. See full warranty claim criteria here.

⚠️
