What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

49217

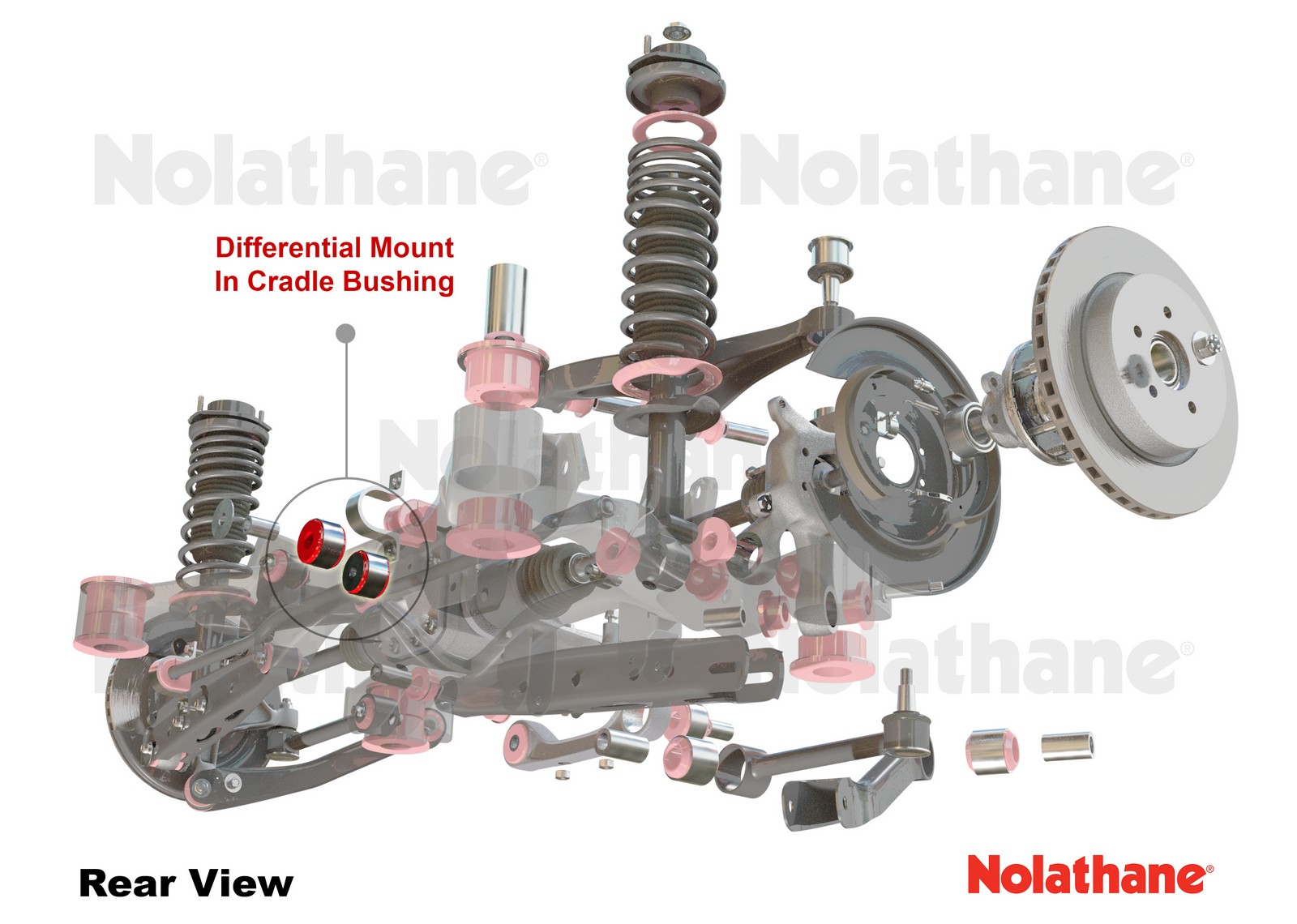

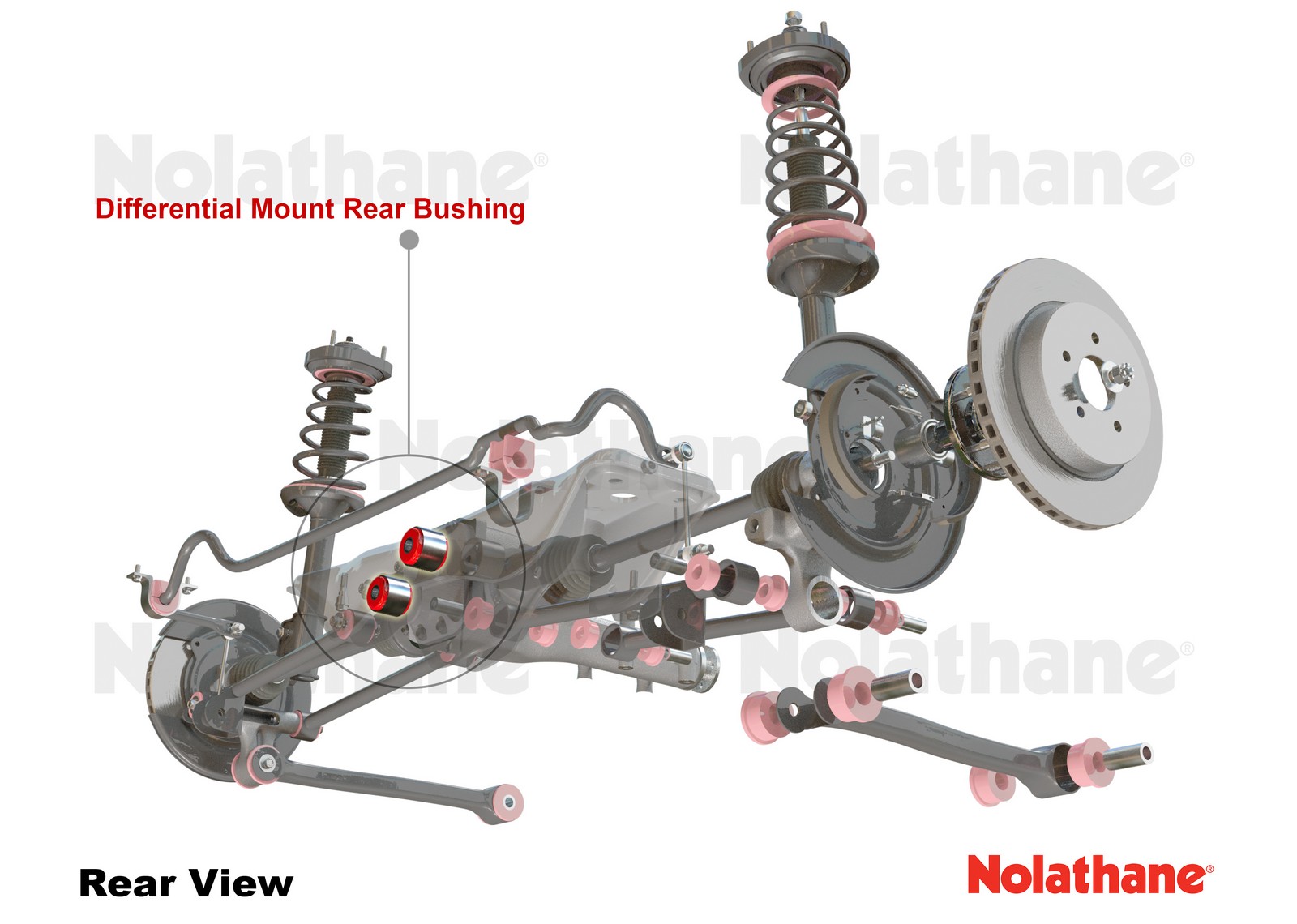

Rear Differential Mount - Rear Bushing Kit to Suit Mitsubishi Lancer Evo 1-9 and Outlander

Rear Differential Mount - Rear Bushing Kit to Suit Mitsubishi Lancer Evo 1-9 and Outlander

Support bracket

Item Price

$105.81

SKU	49217
Warranty	lifetime warranty
Installation Time	4 Hours
Fitting Position	Rear Axle

Select your car to check fitment.

in stock

Ships within 24hrs

Description

Benefit Note:
Nolathane's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

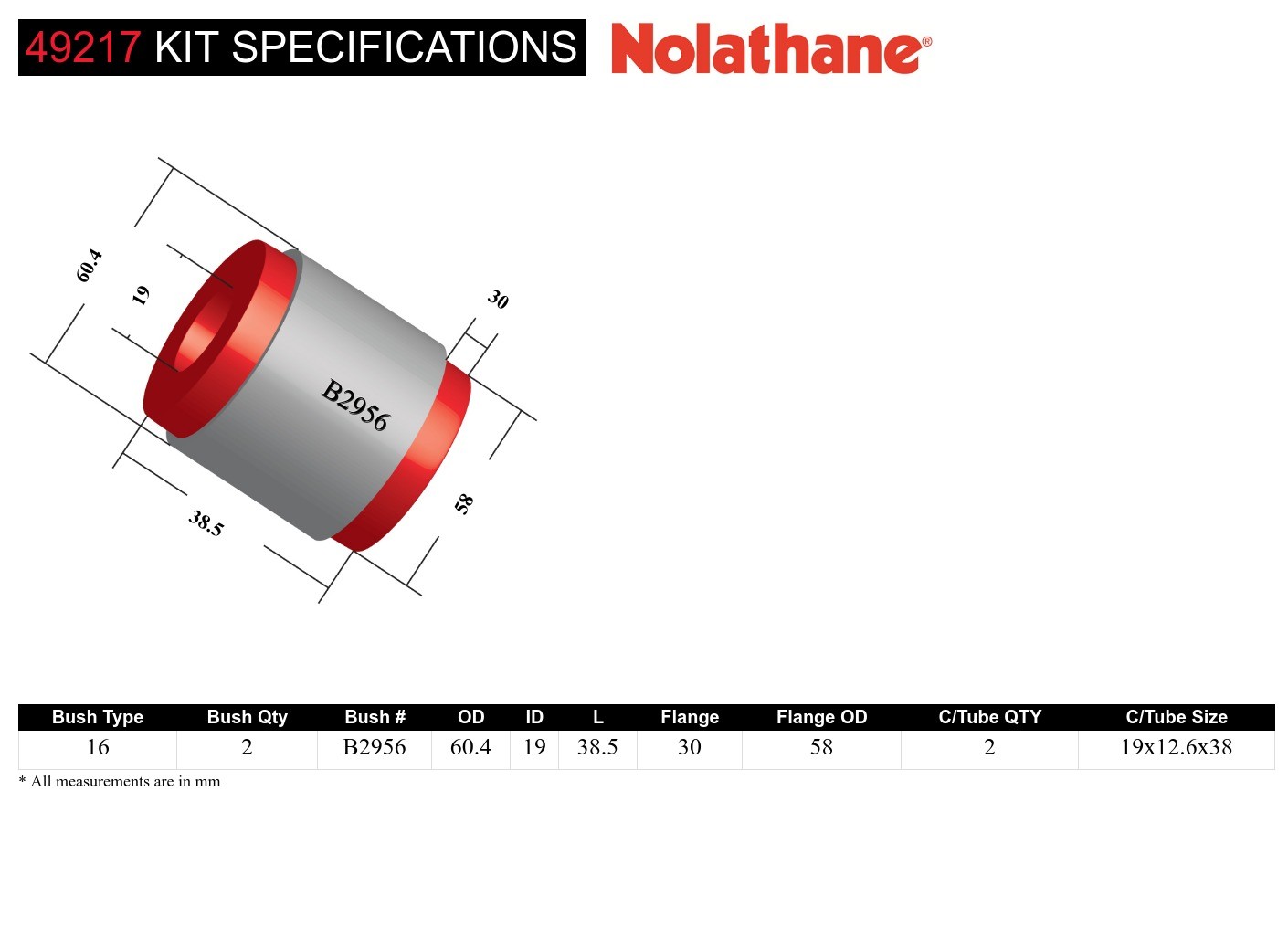

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	2 mm	60.4 mm	19 mm	38.5 mm	30 mm	58 mm	2	19x12.6x38 mm	Click Here

Bush Type	16 - Shell Without Flange Bushing
Bush Quantity	2 mm
OD (A)	60.4 mm
ID (B)	19 mm
Length (C)	38.5 mm
Flange Thickness (D)	30 mm
Flange OD (E)	58 mm
C/Tube Quantity	2
C/Tube ODxIDxL	19x12.6x38 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16	2	60.4	19	38.5	30	58	2	19x12.6x38	Click Here

Bush Type	16
QTY	2
OD (A)	60.4
ID (B)	19
Length (C)	38.5
FL (D)	30
FLOD (E)	58
C/Tube Qty	2
C/Tube Size	19x12.6x38
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.445kg	7cm	20cm	14cm
in/lbs	0.98lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.445kg	0.98lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	49217
Foot Note 1	Support bracket
Foot Note 3	Lifetime Warranty

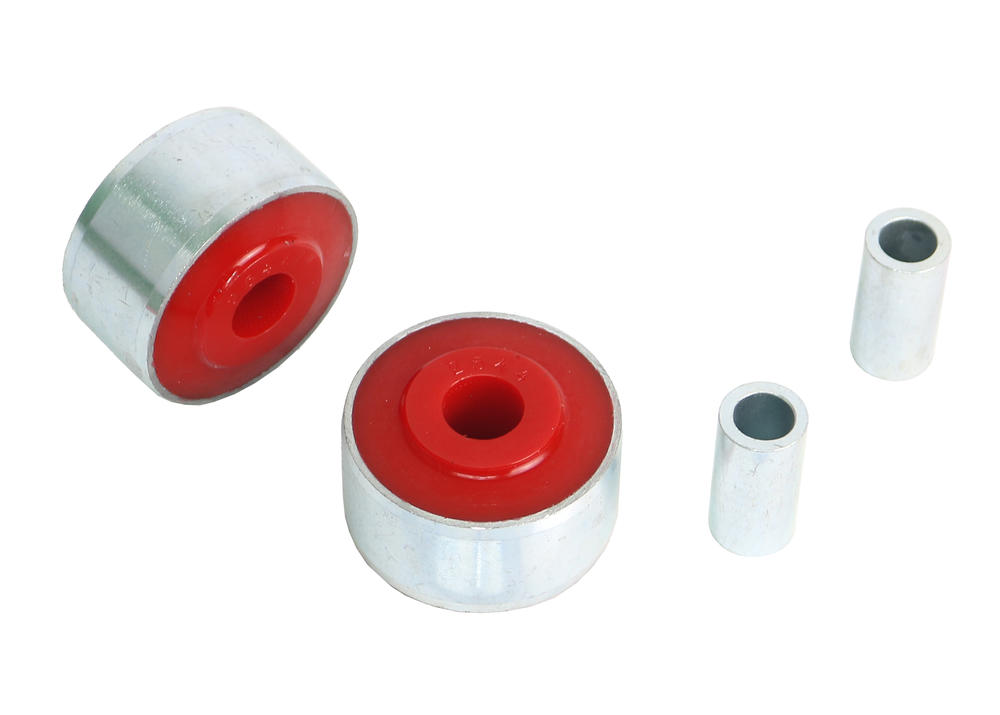

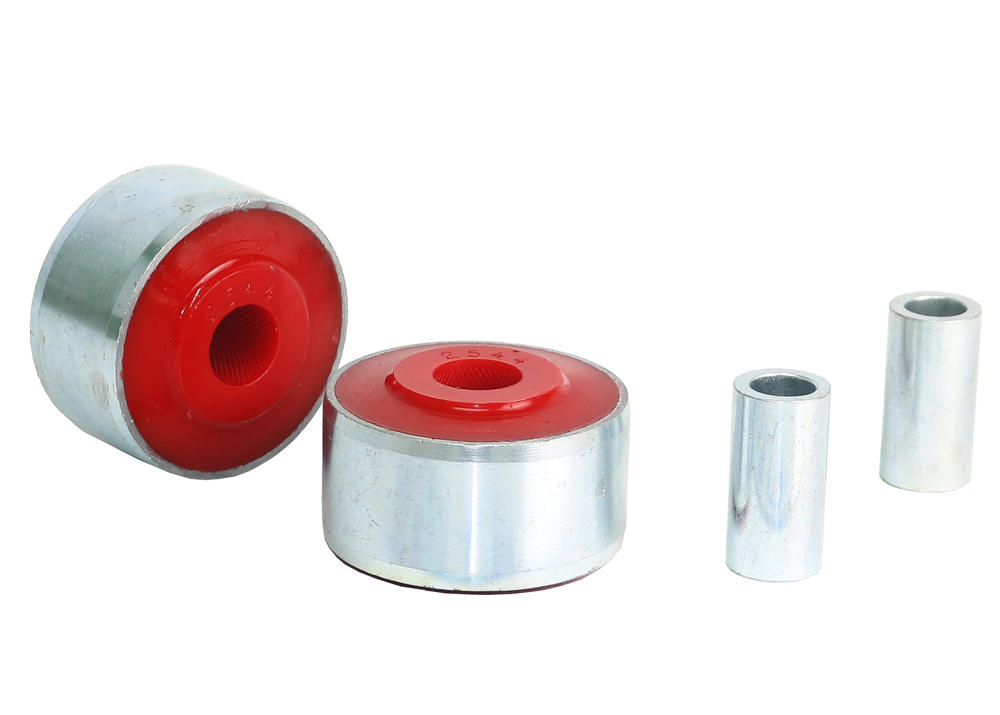

Components Per	2 Shell Bushings, 2 Tubes
Product Note	Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:
EAN	9319924393756

Installation & Fitment Guide

More Information
Installation Time	4 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
