What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

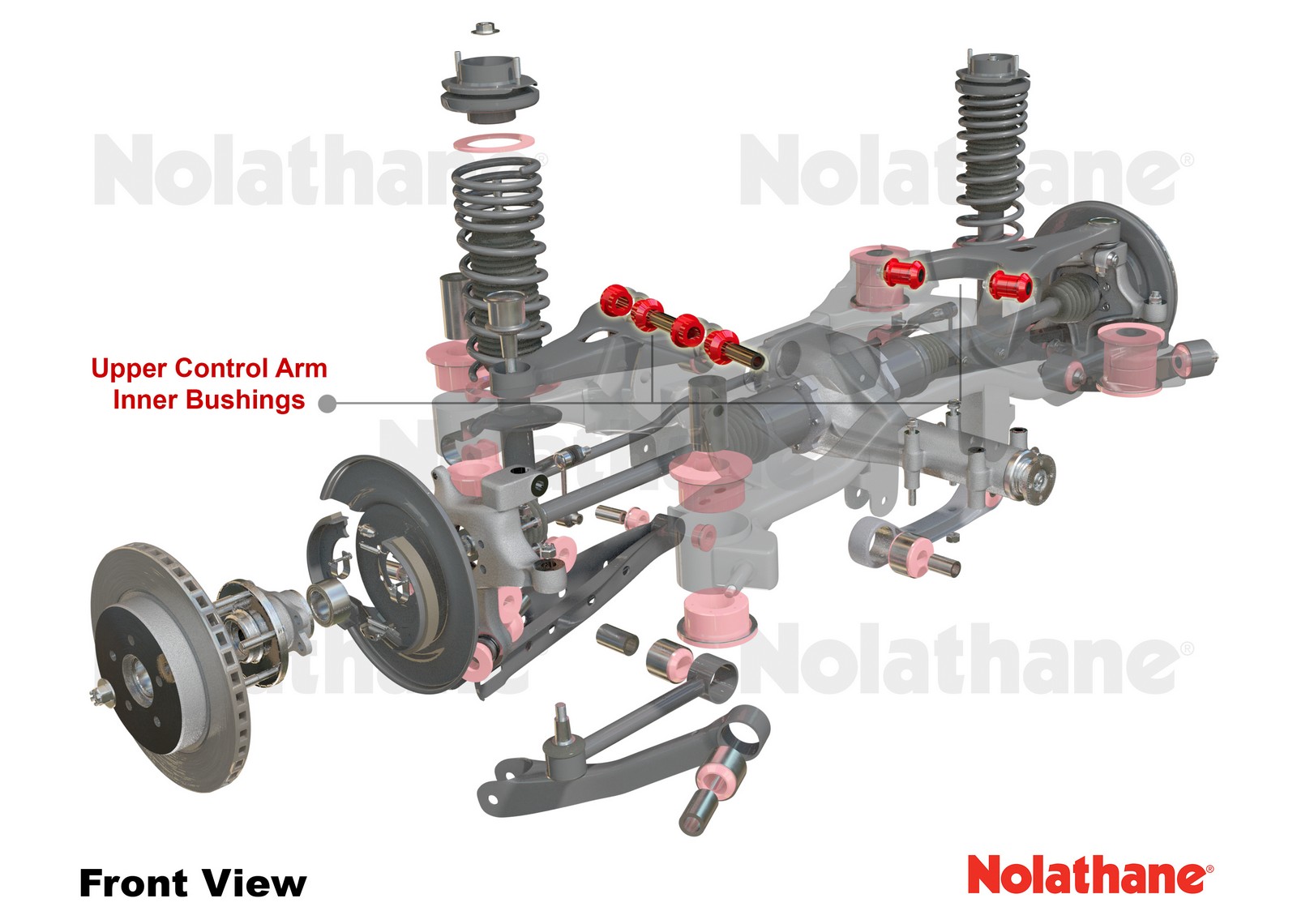

Rear Control Arm Upper - Inner Bushings Double Offset Camber to Suit Subaru BRZ, Forester, Impreza, Levorg, Liberty and Toyota 86

Description

Benefit Note:
A common serviceable item, worn joints exhibit excess movement and are commonly diagnosed simply from knocking and rattling noises coming from the upright or hub area. If worn and not replaced, these joints can have significant negative impact on wheel alignment and resulting uneven tyre wear or scrub. Nolathane's replacement joints boast superior internal joint structure for improved performance and durability. The outer housing also features a chamfered leading edge for ease of installation.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

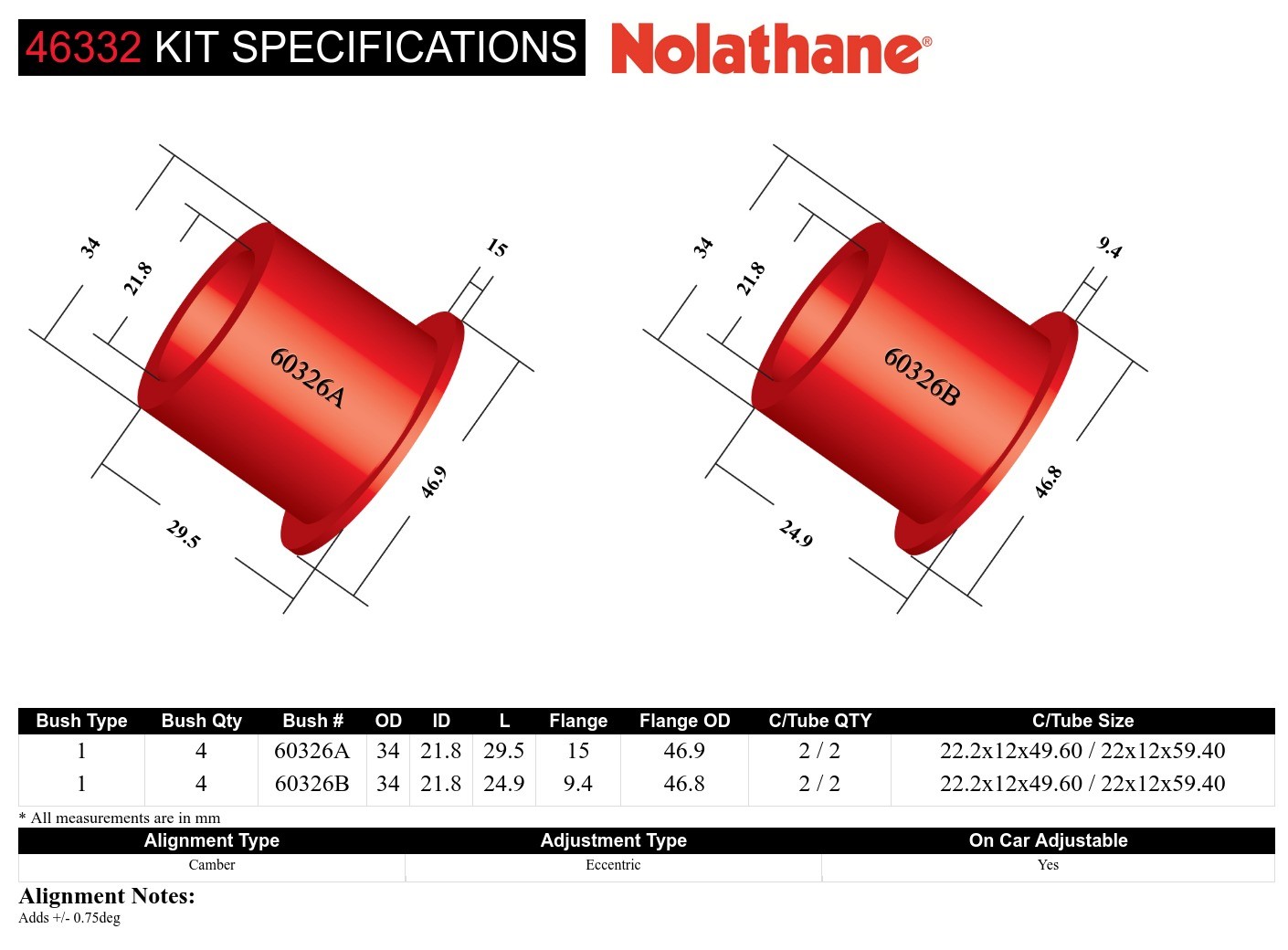

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	34 mm	21.8 mm	29.5 mm	15 mm	46.9 mm	2 / 2	22.2x12x49.60 / 22x12x59.40 mm	Click Here
1 - Shackle Bushing	4 mm	34 mm	21.8 mm	24.9 mm	9.4 mm	46.8 mm	2 / 2	22.2x12x49.60 / 22x12x59.40 mm	Click Here

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	4 mm	4 mm
OD (A)	34 mm	34 mm
ID (B)	21.8 mm	21.8 mm
Length (C)	29.5 mm	24.9 mm
Flange Thickness (D)	15 mm	9.4 mm
Flange OD (E)	46.9 mm	46.8 mm
C/Tube Quantity	2 / 2	2 / 2
C/Tube ODxIDxL	22.2x12x49.60 / 22x12x59.40 mm	22.2x12x49.60 / 22x12x59.40 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

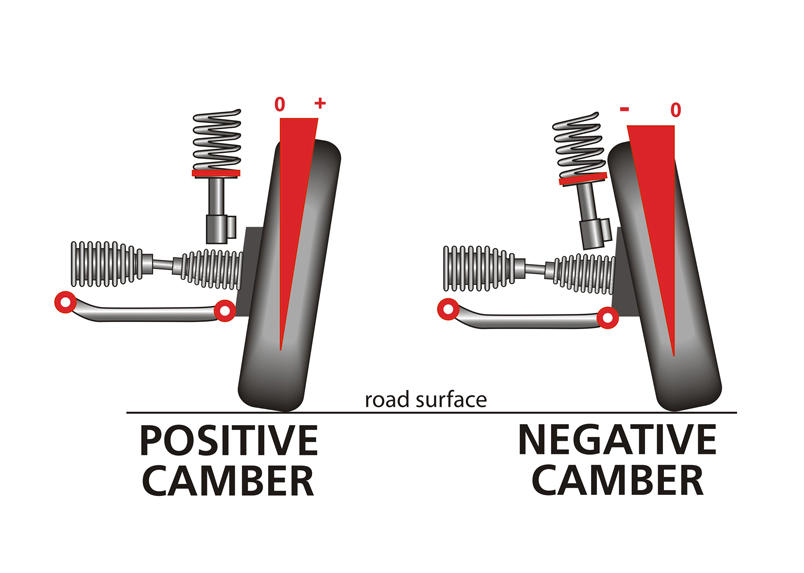

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Camber	Eccentric	Yes
Camber	Eccentric	Yes

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	34	21.8	29.5	15	46.9	2 / 2	22.2x12x49.60 / 22x12x59.40	Click Here
1	4	34	21.8	24.9	9.4	46.8	2 / 2	22.2x12x49.60 / 22x12x59.40	Click Here

Bush Type	1	1
QTY	4	4
OD (A)	34	34
ID (B)	21.8	21.8
Length (C)	29.5	24.9
FL (D)	15	9.4
FLOD (E)	46.9	46.8
C/Tube Qty	2 / 2	2 / 2
C/Tube Size	22.2x12x49.60 / 22x12x59.40	22.2x12x49.60 / 22x12x59.40
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.151kg	10cm	26cm	16cm
in/lbs	2.54lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1.151kg	2.54lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	46332
Foot Note 2	Adds +/-0.75deg camber
Foot Note 3	Lifetime Warranty

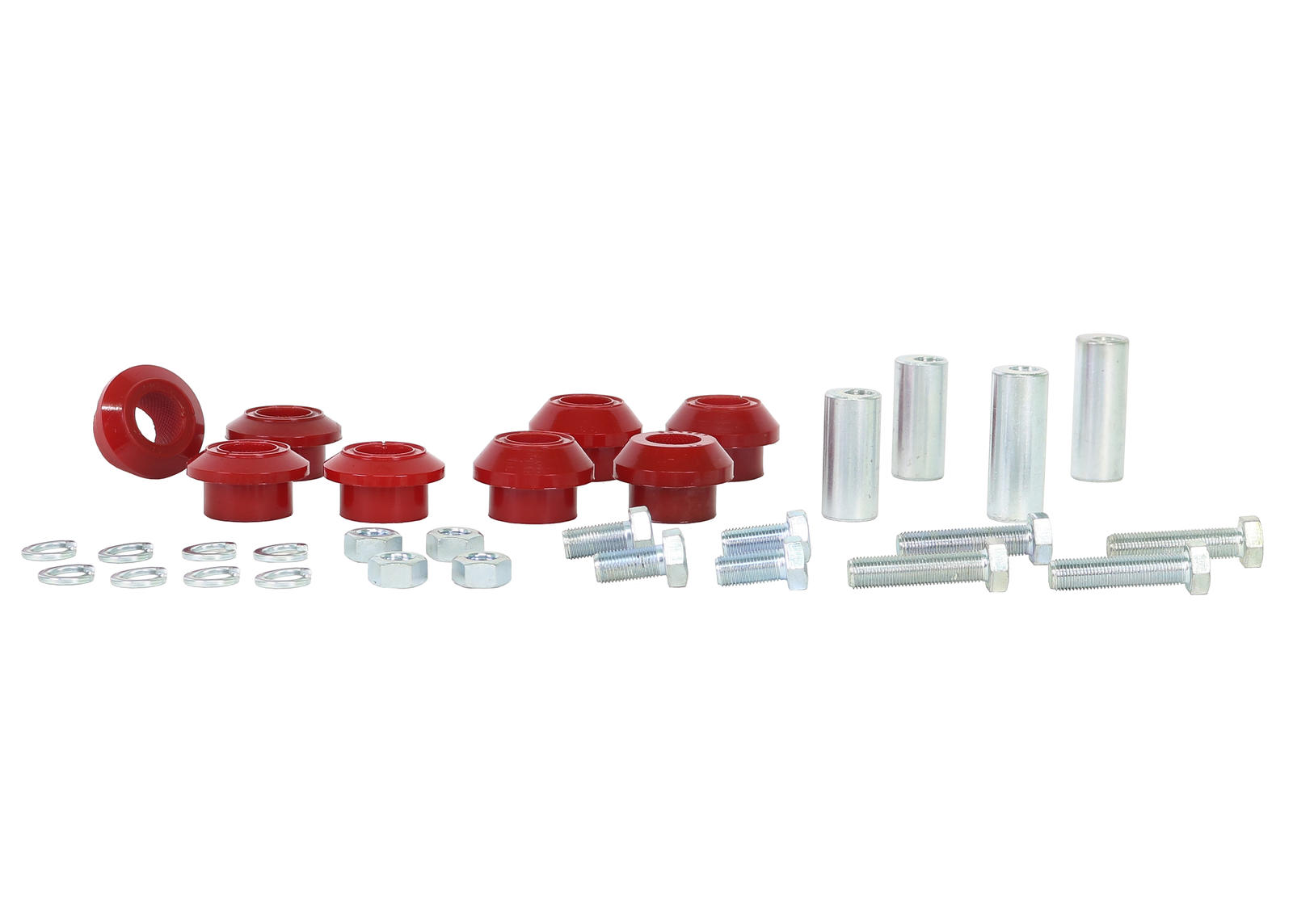

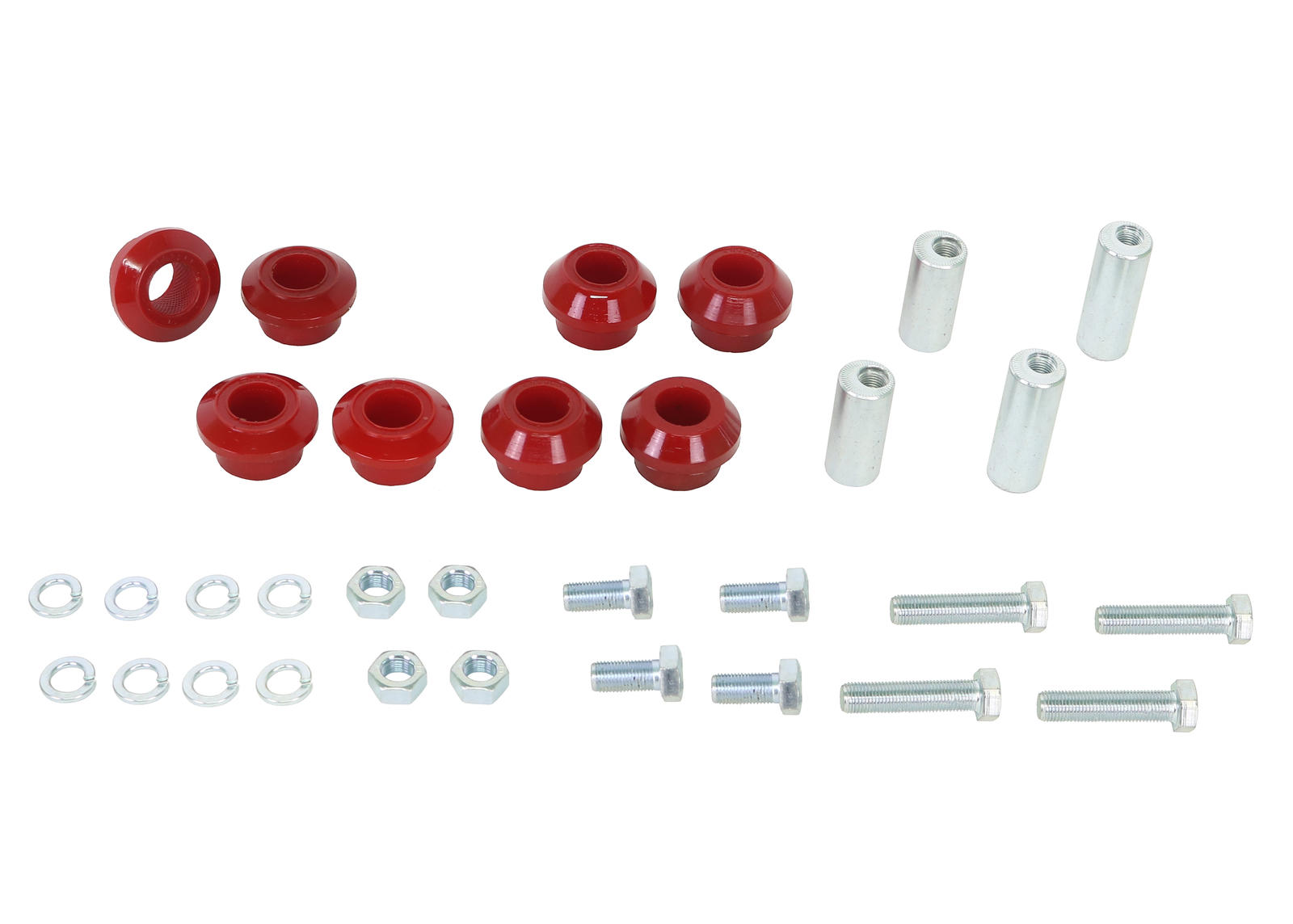

Components Per	8 Bushings, 4 Tubes, 8 Bolts, 8 Washers, 4 Nuts
Product Note	Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 8 Bushings, 4 Tubes, 8 Bolts, 8 Washers, 4 Nuts
EAN	9319924380404

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment
