What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

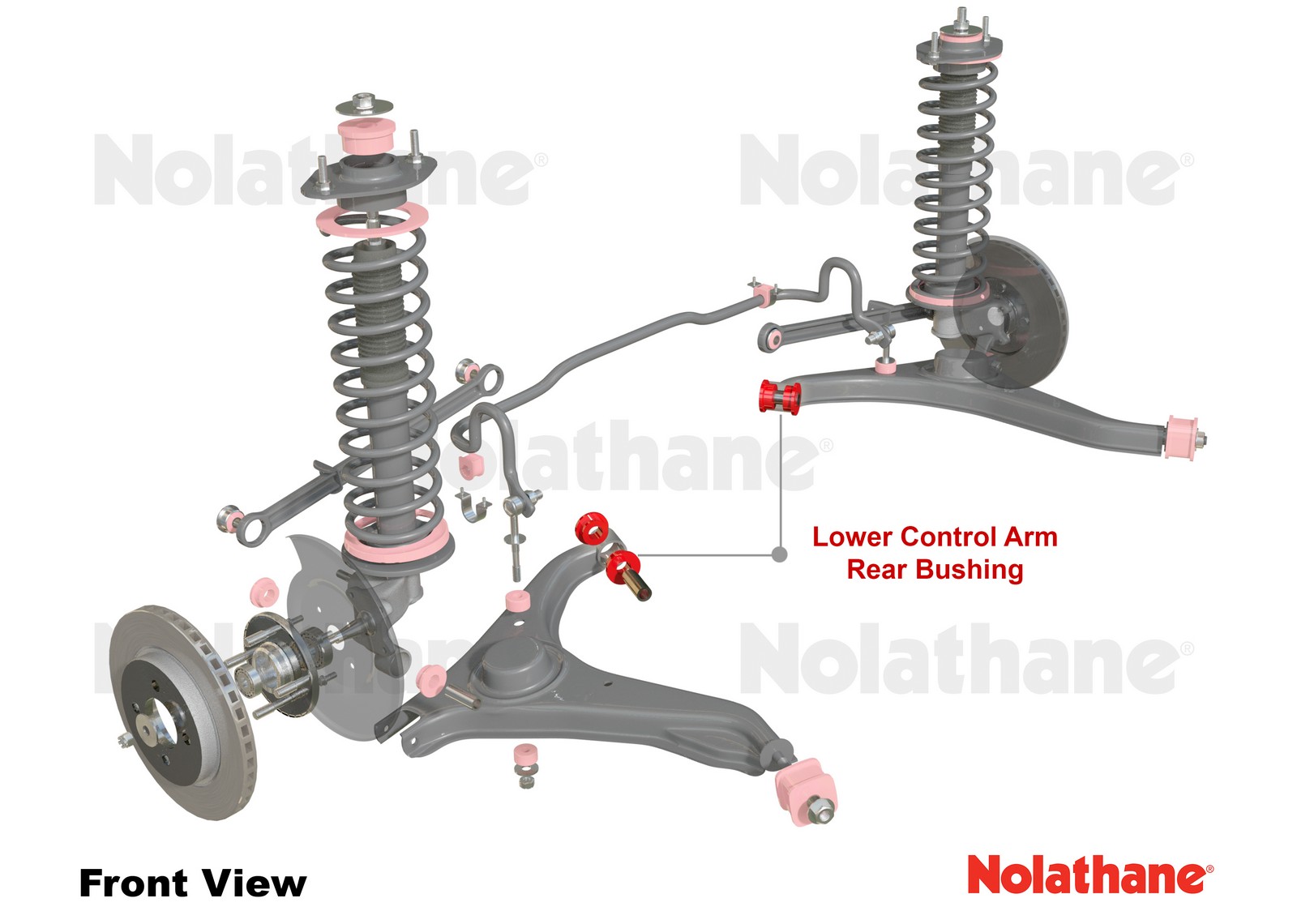

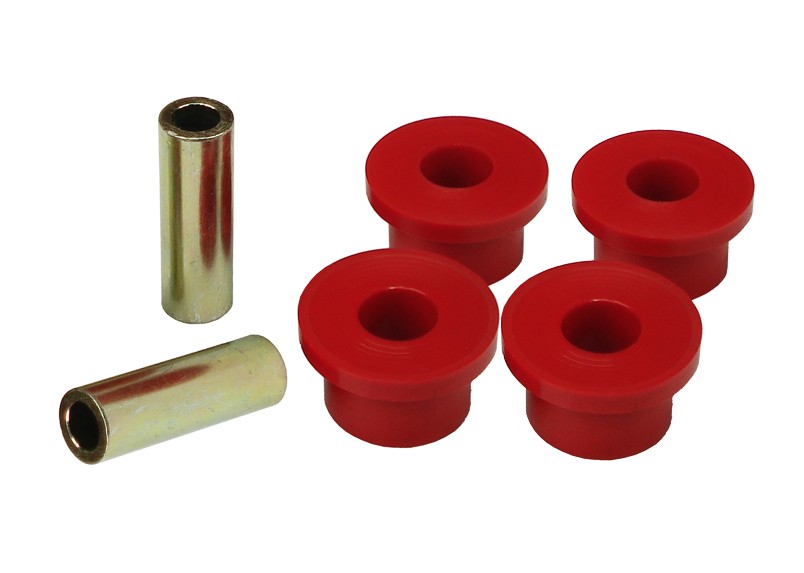

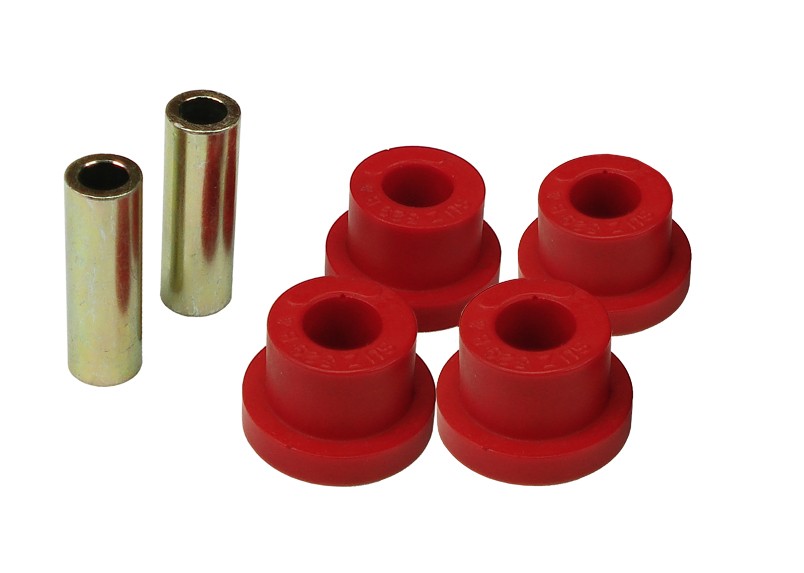

Rear Control Arm Lower - Inner Rear Bushing Kit to Suit Holden Barina, Suzuki Cultus and Swift

Description

Benefit Note:
Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

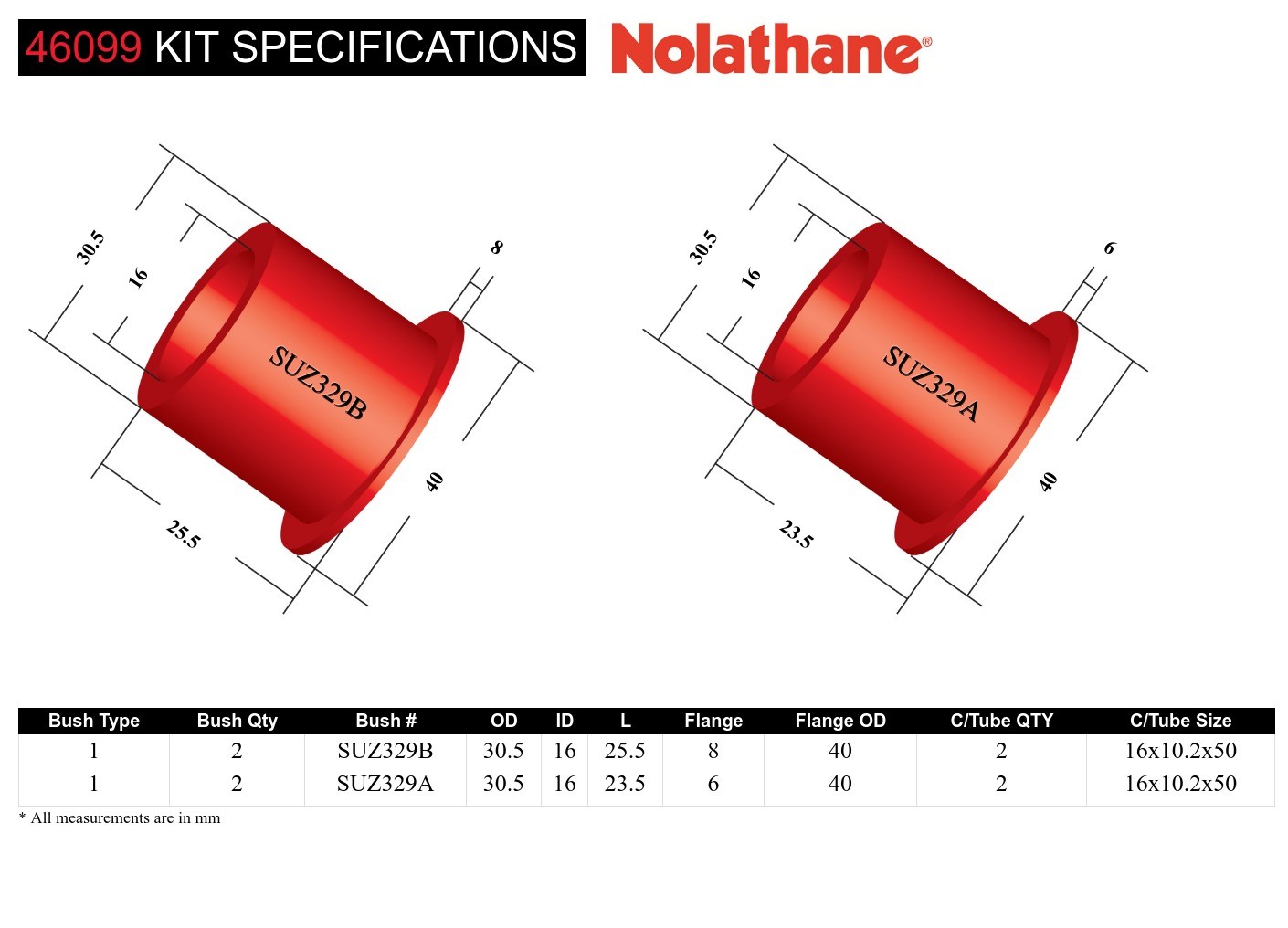

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	2 mm	30.5 mm	16 mm	25.5 mm	8 mm	40 mm	2	16x10.2x50 mm	Click Here
1 - Shackle Bushing	2 mm	30.5 mm	16 mm	23.5 mm	6 mm	40 mm	2	16x10.2x50 mm	Click Here

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	2 mm
OD (A)	30.5 mm	30.5 mm
ID (B)	16 mm	16 mm
Length (C)	25.5 mm	23.5 mm
Flange Thickness (D)	8 mm	6 mm
Flange OD (E)	40 mm	40 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	16x10.2x50 mm	16x10.2x50 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	2	30.5	16	25.5	8	40	2	16x10.2x50	Click Here
1	2	30.5	16	23.5	6	40	2	16x10.2x50	Click Here

Bush Type	1	1
QTY	2	2
OD (A)	30.5	30.5
ID (B)	16	16
Length (C)	25.5	23.5
FL (D)	8	6
FLOD (E)	40	40
C/Tube Qty	2	2
C/Tube Size	16x10.2x50	16x10.2x50
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.198kg	7cm	20cm	14cm
in/lbs	0.44lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.198kg	0.44lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	46099
Foot Note 3	Lifetime Warranty
Components Per	4 Bushings, 2 Tubes
Product Note	Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 4 Bushings, 2 Tubes
EAN	9314258507992

Installation & Fitment Guide

More Information
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment
