What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

46346

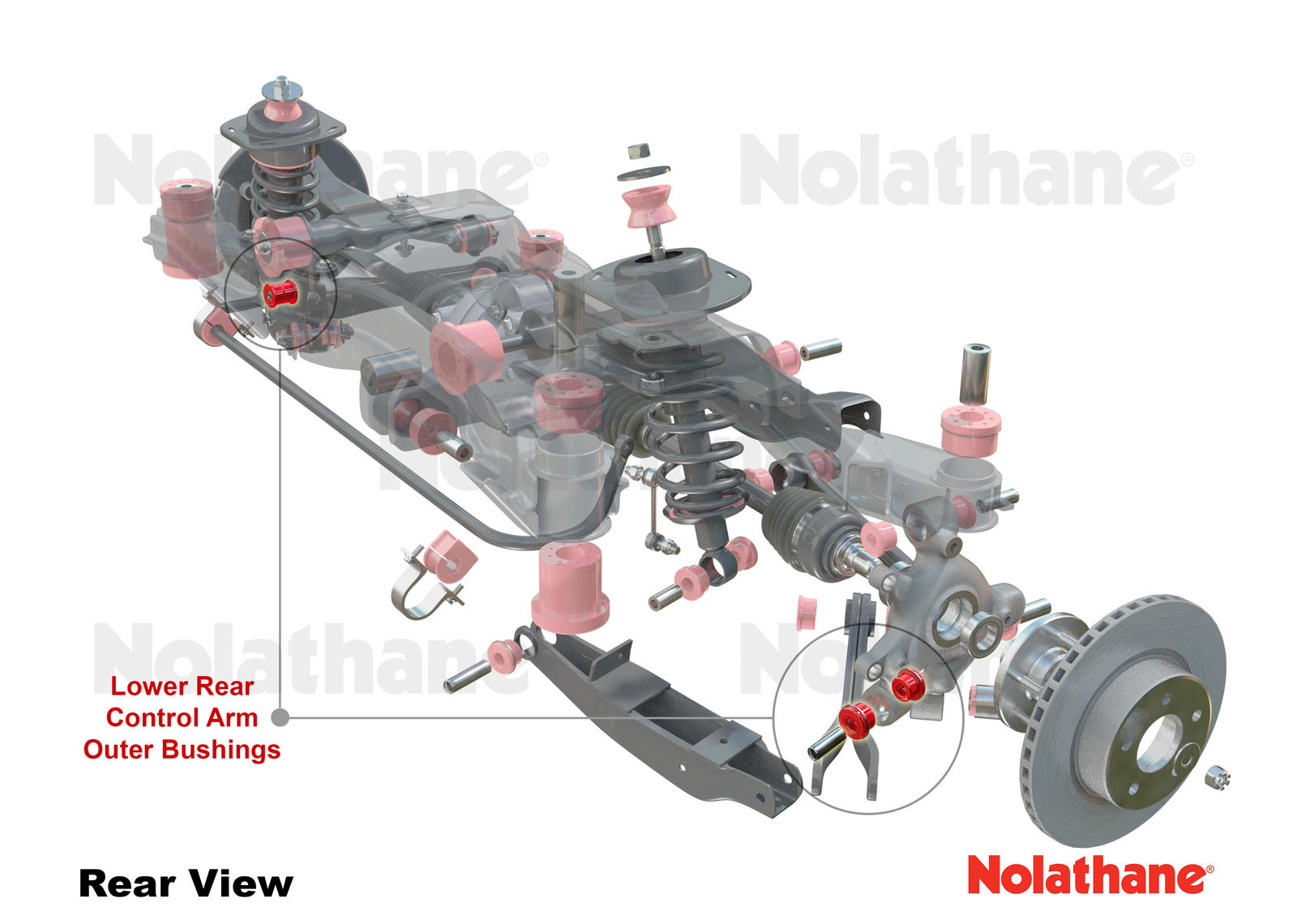

Rear Control Arm Lower Front and Rear - Outer Bushing Kit Double Offset to Suit Holden Commodore VE, VF and HSV

Rear Control Arm Lower Front and Rear - Outer Bushing Kit Double Offset to Suit Holden Commodore VE, VF and HSV

Performance Alignment - adds +/- 1.5deg camber

Item Price

$217.87

SKU	46346
Warranty	lifetime warranty
Installation Time	3 Hours
Fitting Position	Front and Rear

Select your car to check fitment.

in stock

Ships within 24hrs

Description

Benefit Note:

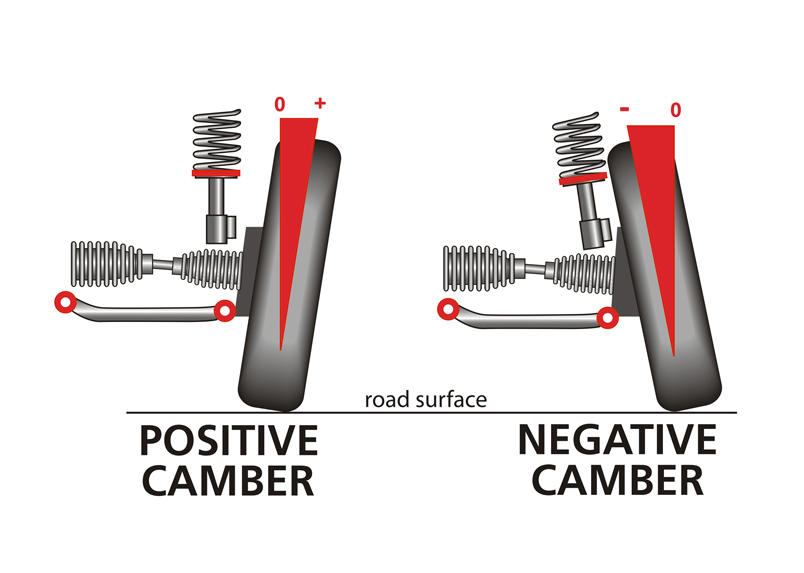

Providing +/- 1.5º camber adjustment (on car), Nolathane's kit is the economical solution for correcting alignment and prolonging tyre life especially on vehicles which are lowered, load carrying and/ or running expensive low profile tyres.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

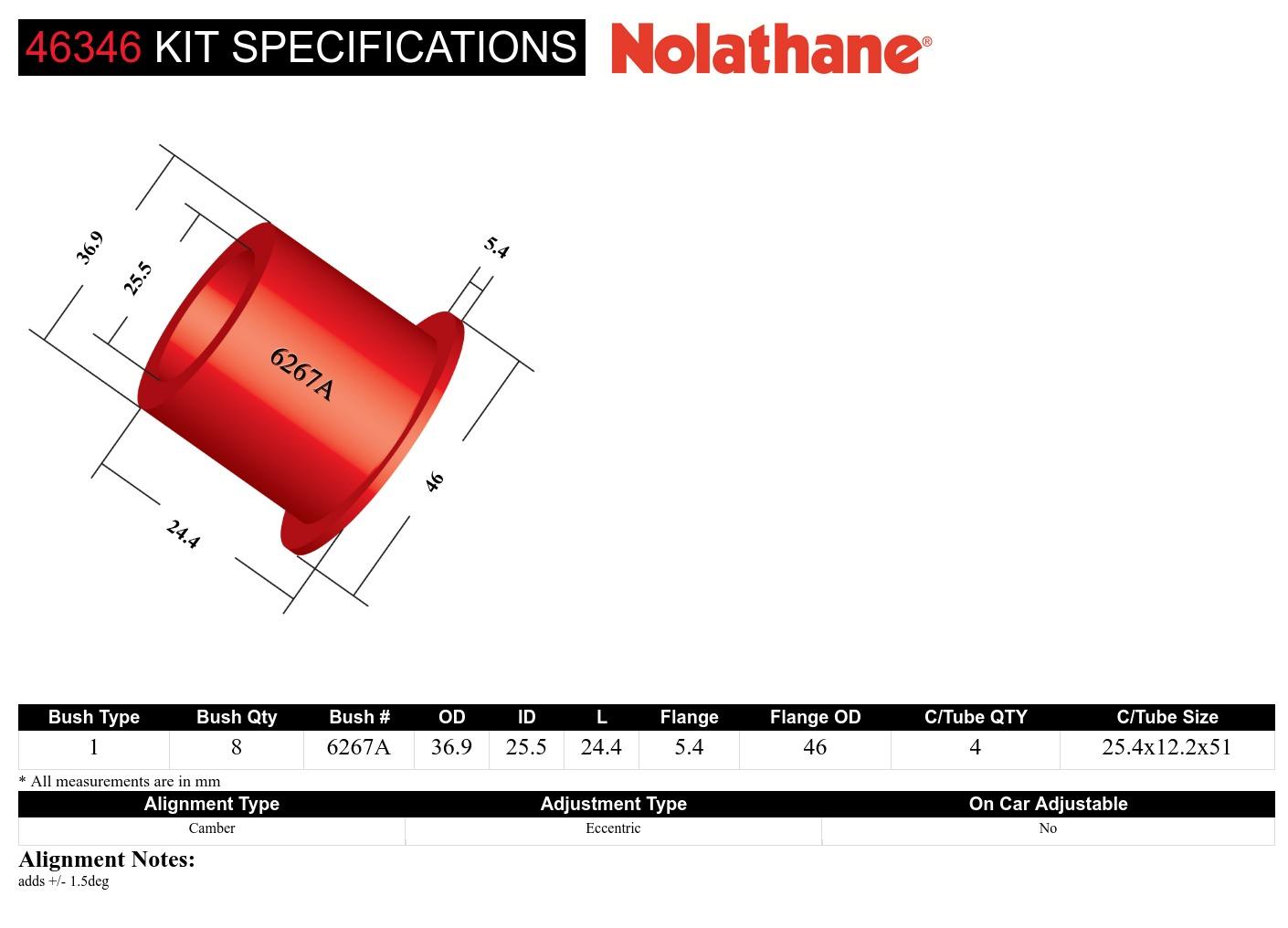

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	8 mm	36.9 mm	25.5 mm	24.4 mm	5.4 mm	46 mm	4	25.4x12.2x51 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	8 mm
OD (A)	36.9 mm
ID (B)	25.5 mm
Length (C)	24.4 mm
Flange Thickness (D)	5.4 mm
Flange OD (E)	46 mm
C/Tube Quantity	4
C/Tube ODxIDxL	25.4x12.2x51 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Camber	Eccentric	No

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	8	36.9	25.5	24.4	5.4	46	4	25.4x12.2x51	Click Here

Bush Type	1
QTY	8
OD (A)	36.9
ID (B)	25.5
Length (C)	24.4
FL (D)	5.4
FLOD (E)	46
C/Tube Qty	4
C/Tube Size	25.4x12.2x51
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.792kg	10cm	26cm	16cm
in/lbs	1.75lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.792kg	1.75lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	46346
Foot Note 2	Adds +/-1.5deg camber
Foot Note 3	Lifetime Warranty

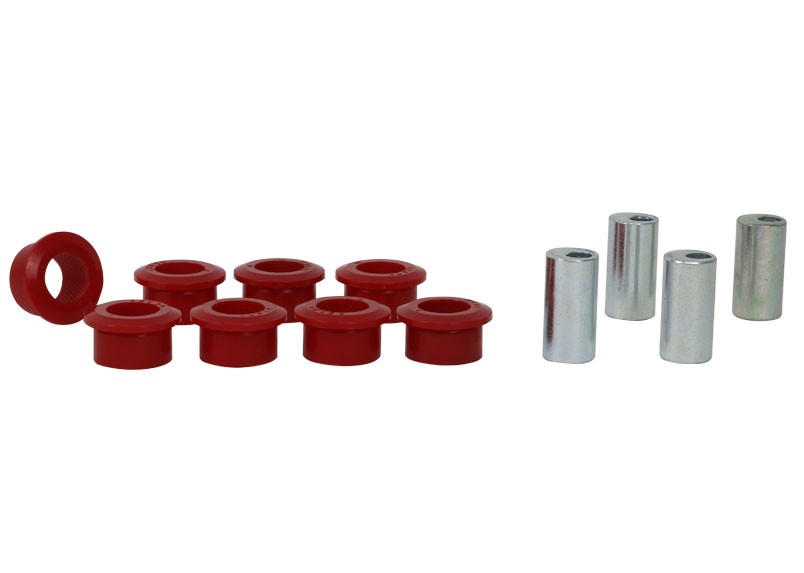

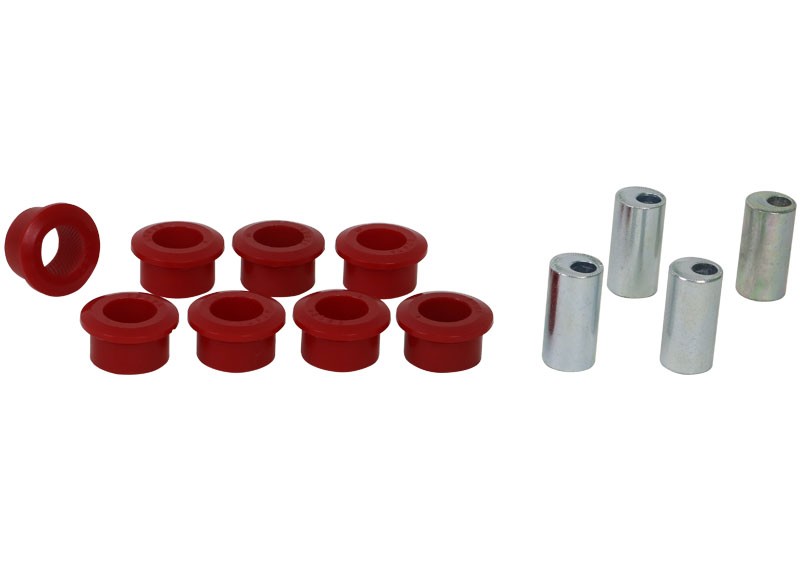

Components Per	8 Bushings, 4 Tubes
Product Note	Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 8 Bushings, 4 Tubes
EAN	9319924391134

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front and Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
