What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

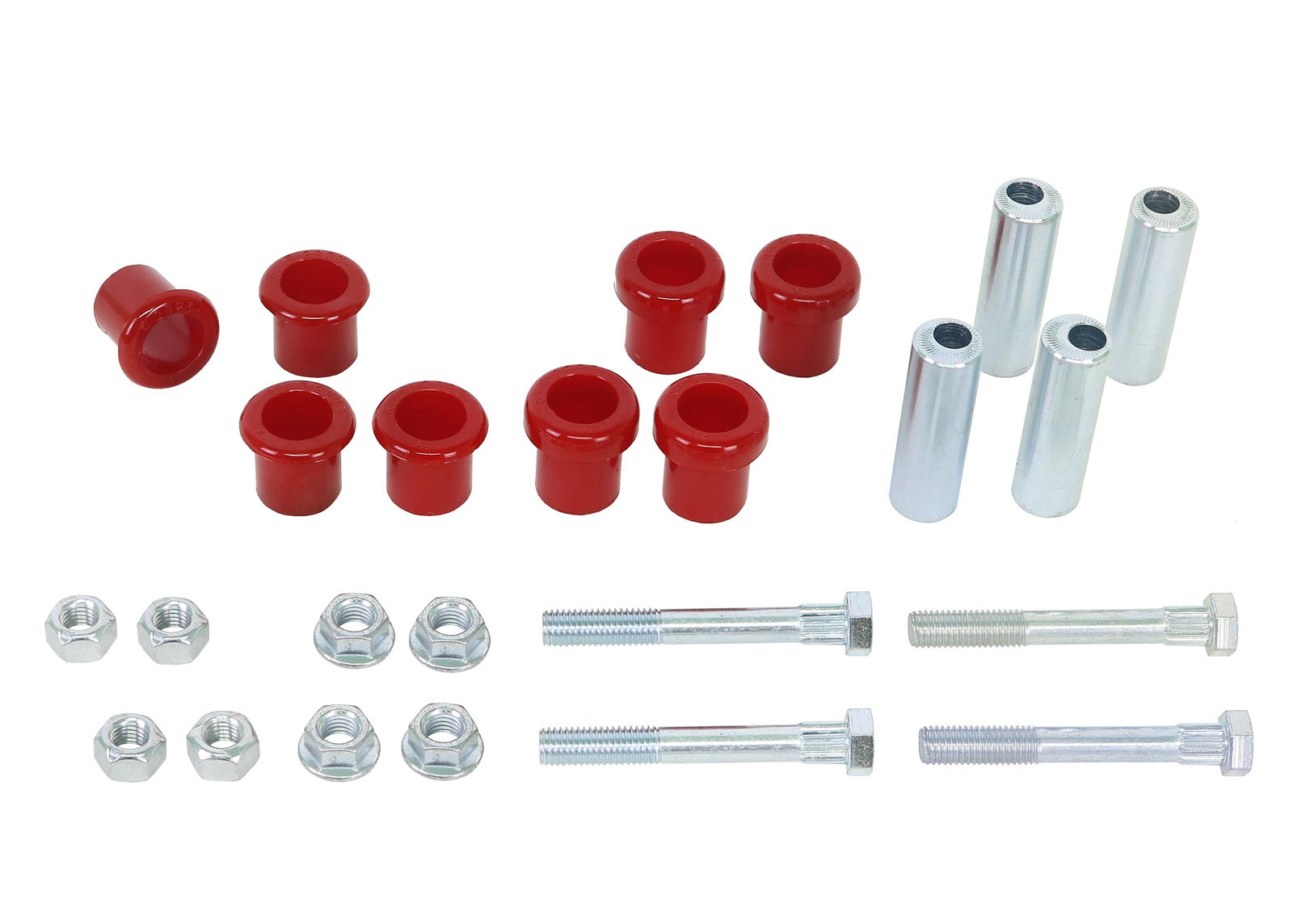

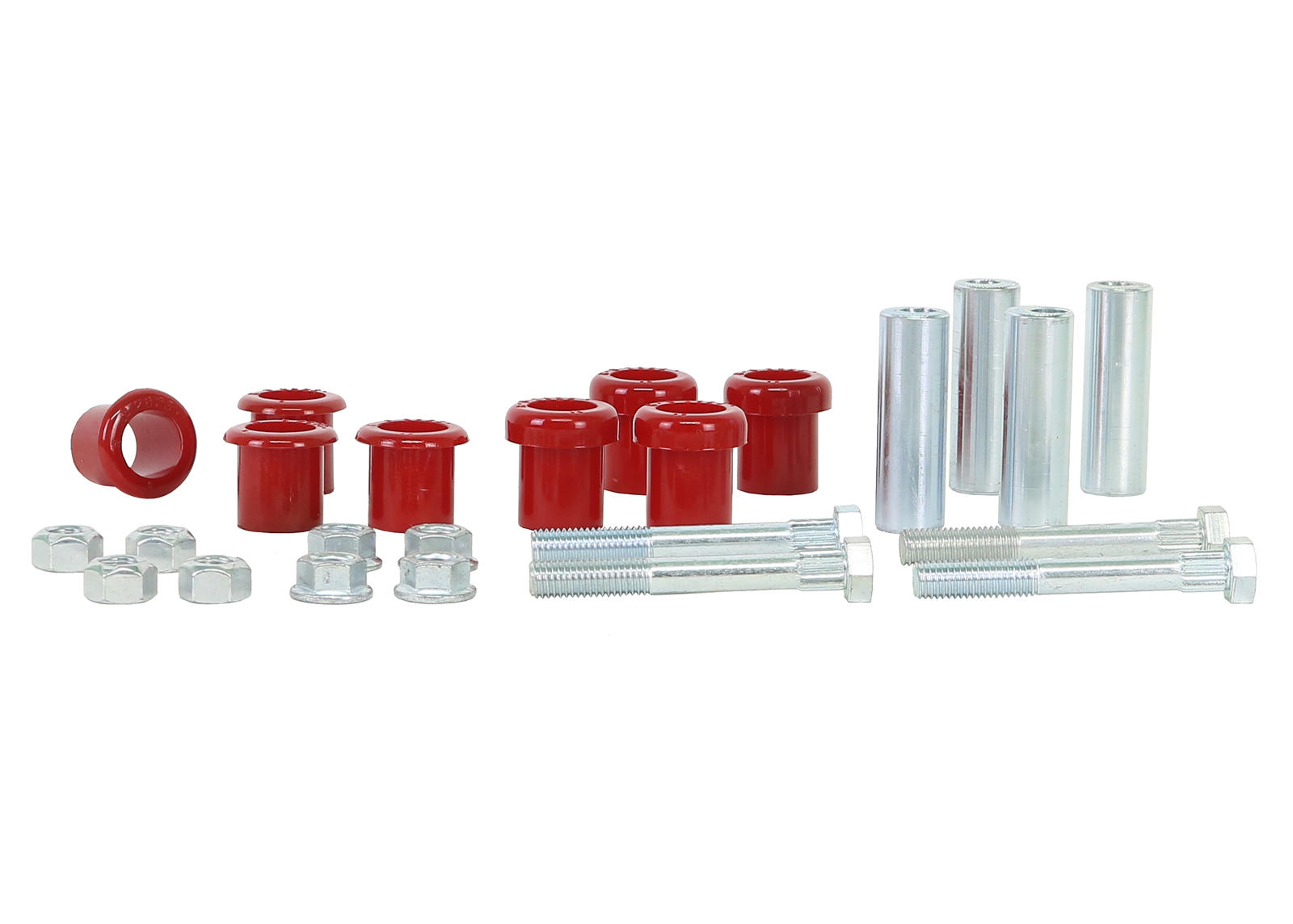

Rear Control Arm Lower - Bushing Kit Double Offset to Suit BMW 3 Series E30 and Z3

Description

Benefit Note:

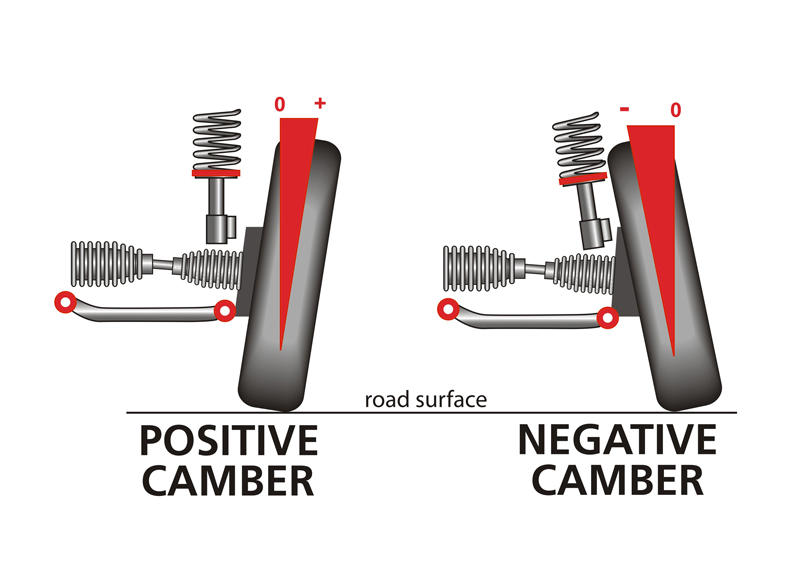

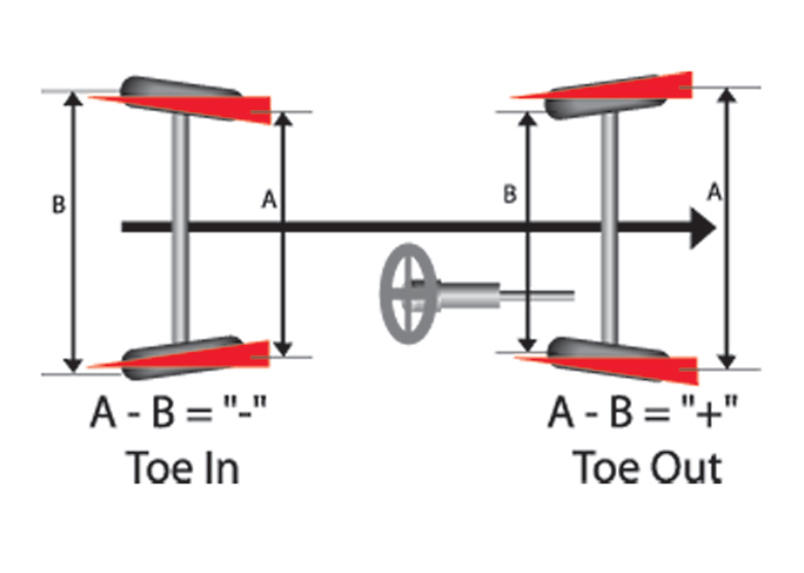

Nolathane adjustable camber and toe kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. The kit includes Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

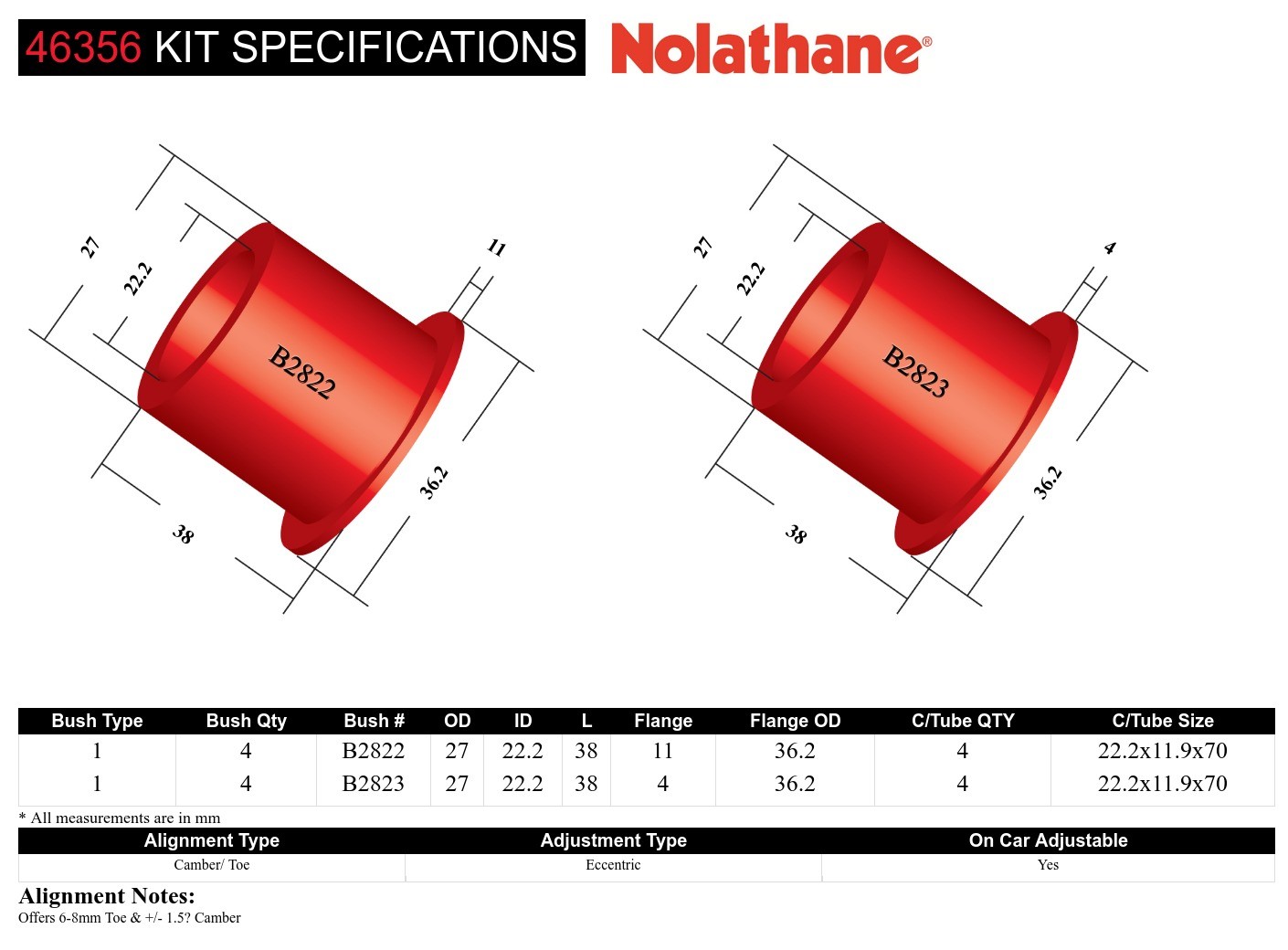

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	27 mm	22.2 mm	38 mm	11 mm	36.2 mm	4	22.2x11.9x70 mm	Click Here
1 - Shackle Bushing	4 mm	27 mm	22.2 mm	38 mm	4 mm	36.2 mm	4	22.2x11.9x70 mm	Click Here

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	4 mm	4 mm
OD (A)	27 mm	27 mm
ID (B)	22.2 mm	22.2 mm
Length (C)	38 mm	38 mm
Flange Thickness (D)	11 mm	4 mm
Flange OD (E)	36.2 mm	36.2 mm
C/Tube Quantity	4	4
C/Tube ODxIDxL	22.2x11.9x70 mm	22.2x11.9x70 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Camber / Toe	Eccentric	Yes
Camber / Toe	Eccentric	Yes

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	27	22.2	38.0	11	36.2	4	22.2x11.9x70	Click Here
1	4	27	22.2	38.0	4	36.2	4	22.2x11.9x70	Click Here

Bush Type	1	1
QTY	4	4
OD (A)	27	27
ID (B)	22.2	22.2
Length (C)	38.0	38.0
FL (D)	11	4
FLOD (E)	36.2	36.2
C/Tube Qty	4	4
C/Tube Size	22.2x11.9x70	22.2x11.9x70
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.2kg	10cm	26cm	16cm
in/lbs	2.65lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1.2kg	2.65lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	46356
Foot Note 2	Camber and toe adjustable
Foot Note 3	Lifetime Warranty
Components Per	8 Bushings, 4 Tubes
Product Note	Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 8 Bushings, 4 Tubes
EAN	9319924393305

Installation & Fitment Guide

More Information
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
