What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

47341

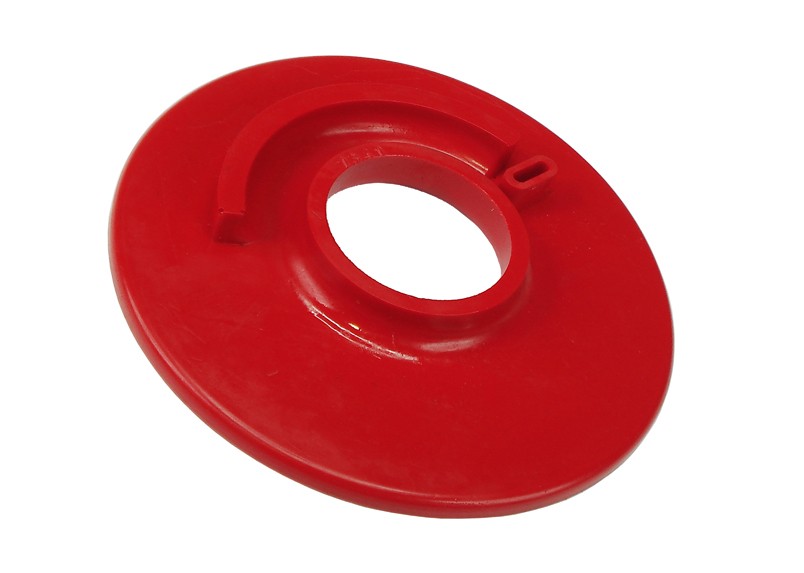

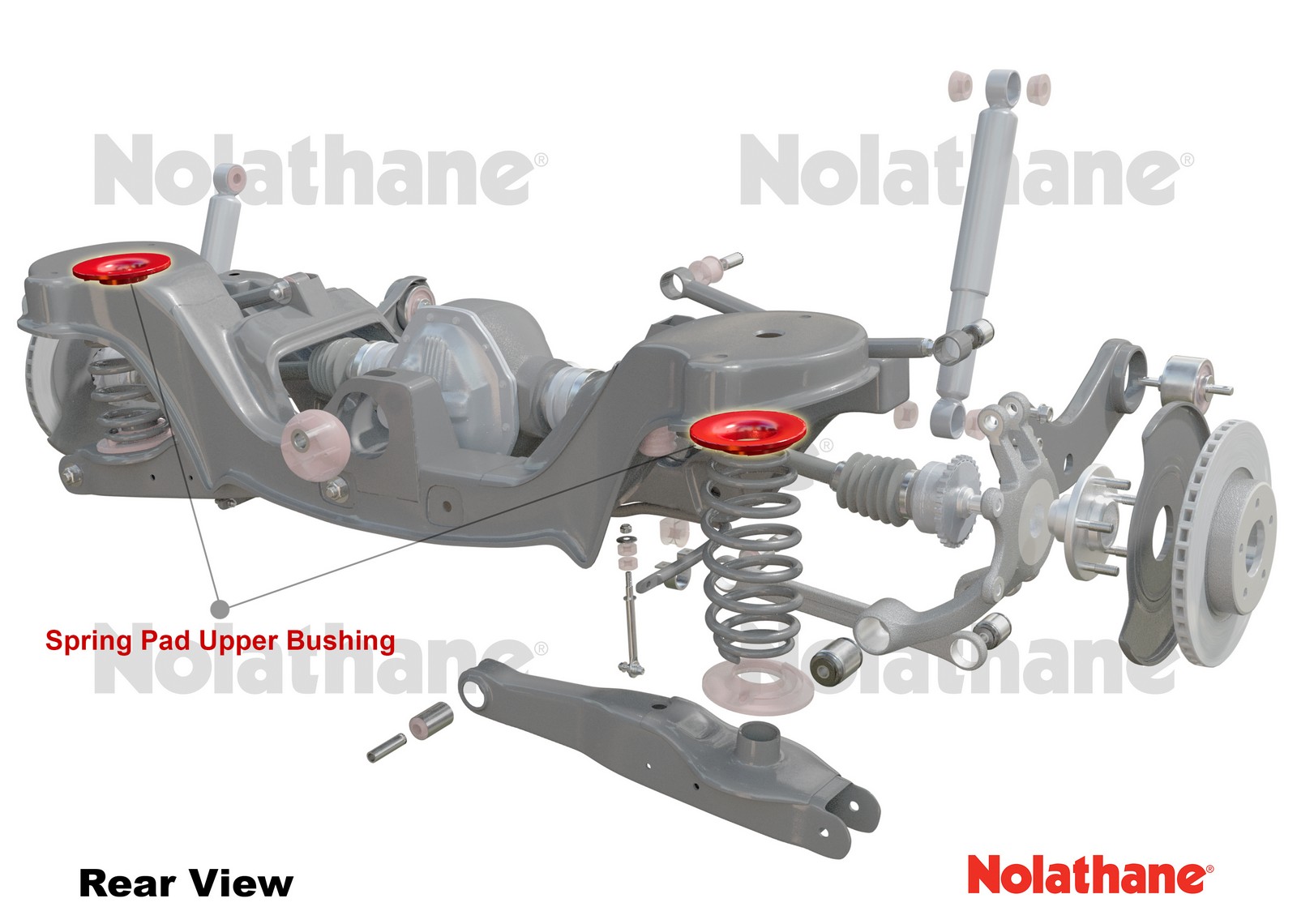

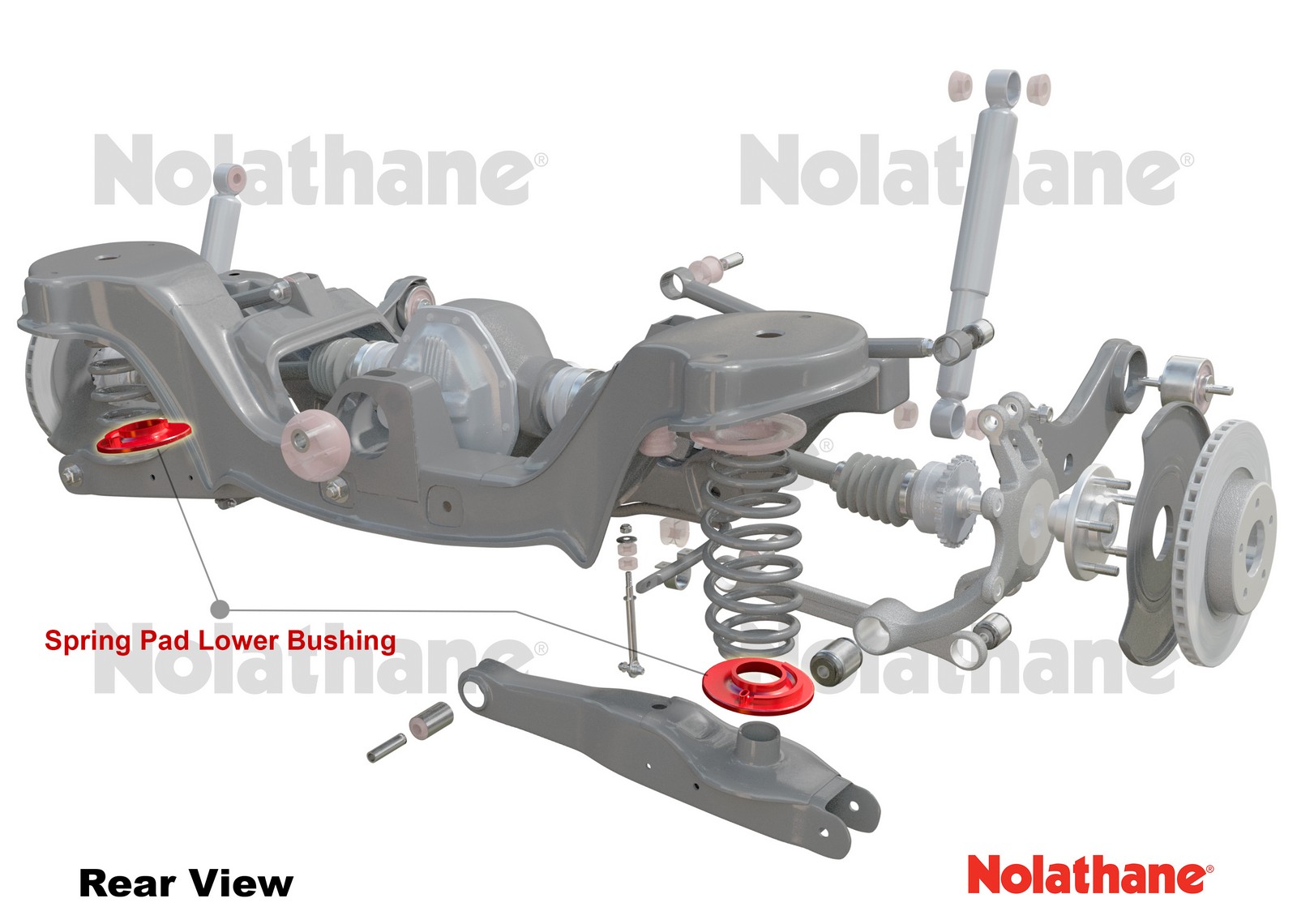

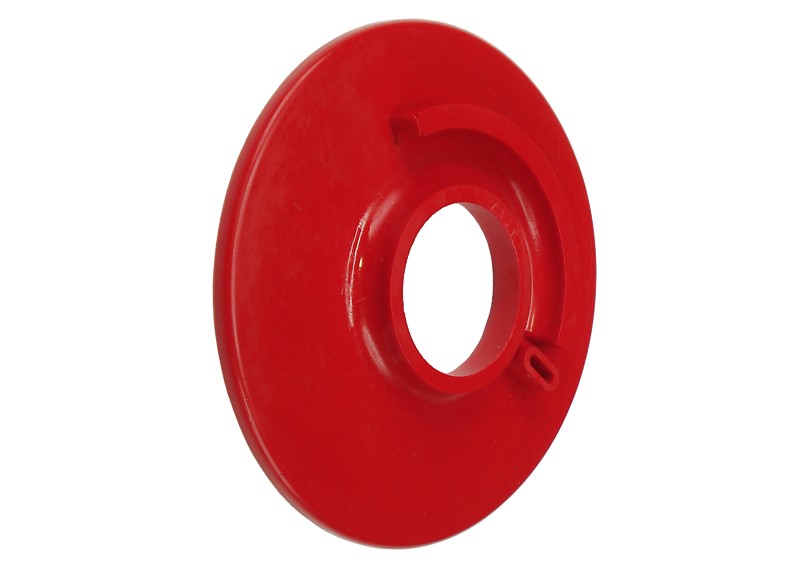

Rear Coil Spring Pad - Bushing Kit Standard Height to Suit Ford Falcon/Fairlane BA-FGX, Territory SX, SY and FPV

Rear Coil Spring Pad - Bushing Kit Standard Height to Suit Ford Falcon/Fairlane BA-FGX, Territory SX, SY and FPV

Standard ride height - suits models to - 09/2005

Item Price

$33.54

SKU	47341
Warranty	lifetime warranty
Installation Time	1.5 Hours
Fitting Position	Rear Axle

Select your car to check fitment.

in stock

Ships within 24hrs

Description

Benefit Note:
Whether its replacing deteriorated original units, to compensate loading one side of a vehicle (common to 4x4 models), looking to obtain that preferred ride height setting or improve steering response. Nolathane spring pads are an economical solution.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

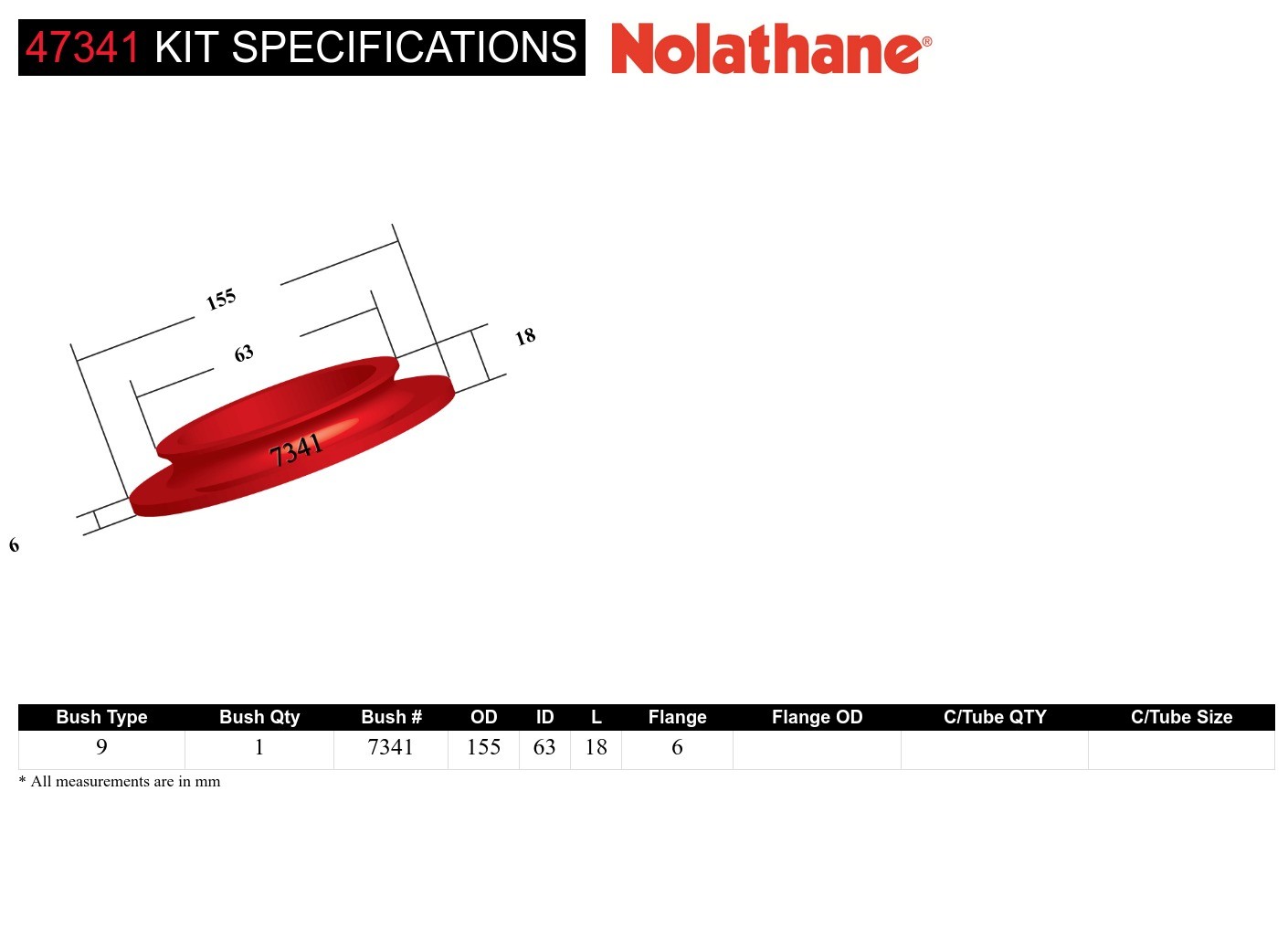

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
9 - Coil Spring Seats And Spacer Bushing	1 mm	155 mm	63 mm	18 mm	6 mm				Click Here

Bush Type	9 - Coil Spring Seats And Spacer Bushing
Bush Quantity	1 mm
OD (A)	155 mm
ID (B)	63 mm
Length (C)	18 mm
Flange Thickness (D)	6 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 9 - Coil Spring Seats And Spacer Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
9	1	155	63	18.0	6				Click Here

Bush Type	9
QTY	1
OD (A)	155
ID (B)	63
Length (C)	18.0
FL (D)	6
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.167kg	40cm	10cm	20cm
in/lbs	0.37lbs	15.75"	3.94"	7.87"

Units	cm/kg	in/lbs
Weight	0.167kg	0.37lbs
Length	40cm	15.75"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	47341
Foot Note 2	Standard ride height
Foot Note 3	Lifetime Warranty
Components Per	1 Bushing
Product Note	Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:
EAN	9330074007423

Installation & Fitment Guide

More Information
Installation Time	1.5 Hours
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
