What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

Front Upper Control Arm - Bushing Kit Double Offset to Suit Honda Civic 6th Gen and CR-V RD1-RD3

Description

Benefit Note:

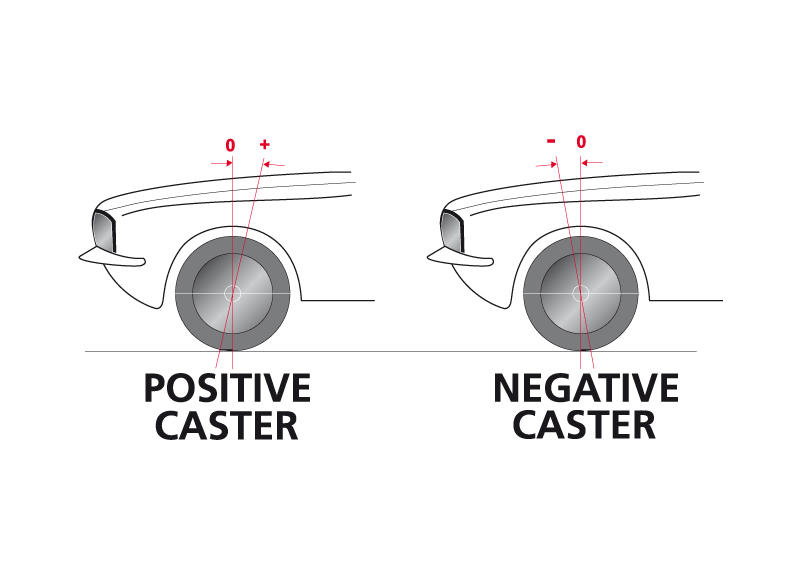

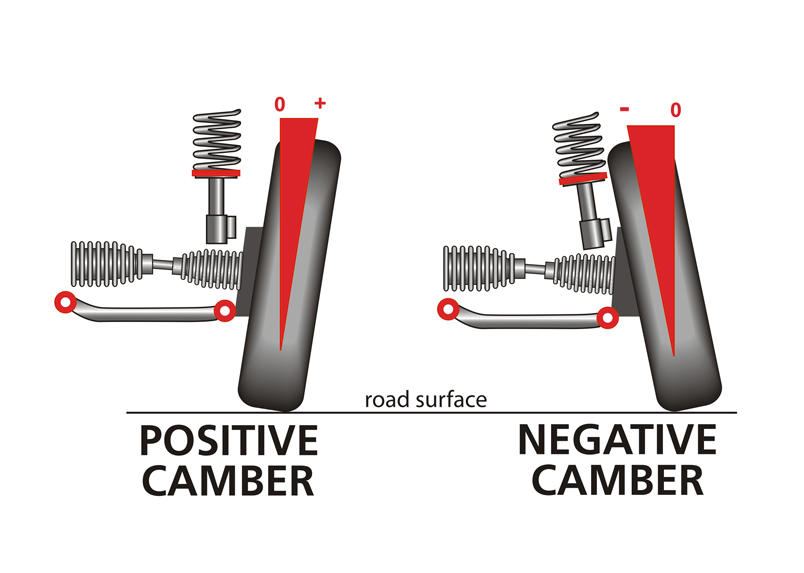

Nolathane camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. Whilst the caster kits are designed to improve cornering grip and vehicle straight line stability, greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, The kit is supplied with dual offset Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability which help provide enhanced steering response, improved braking performance and less under load alignment change.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

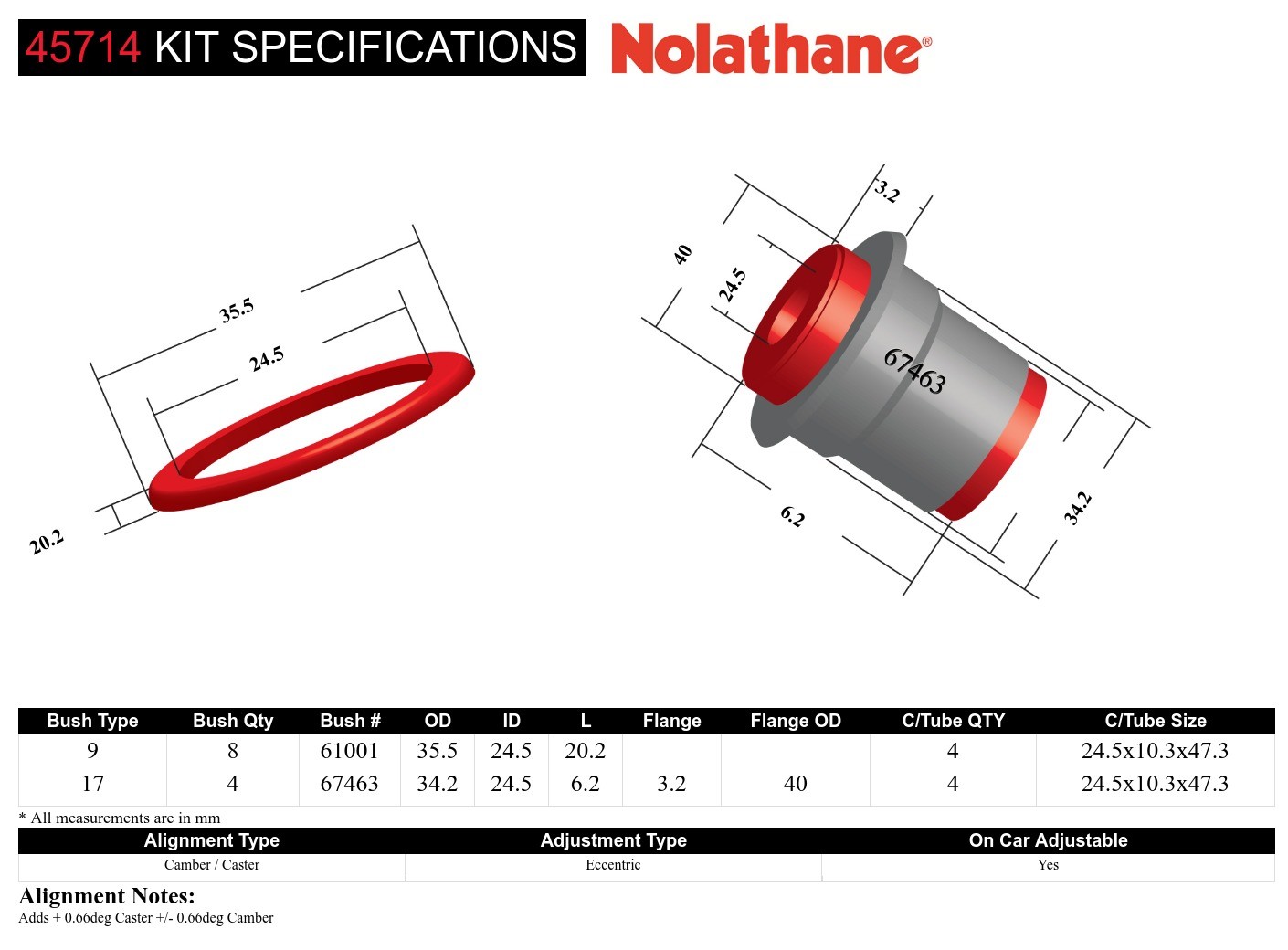

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
7 - Pin Bush With & Without Spigot	8 mm	35.5 mm	24.5 mm	20.2 mm			4	24.5x10.3x47.3 mm	Click Here
17 - Shell With Flange Bushing	4 mm	34.2 mm	24.5 mm	6.2 mm	3.2 mm	40 mm	4	24.5x10.3x47.3 mm	Click Here

Bush Type	7 - Pin Bush With & Without Spigot	17 - Shell With Flange Bushing
Bush Quantity	8 mm	4 mm
OD (A)	35.5 mm	34.2 mm
ID (B)	24.5 mm	24.5 mm
Length (C)	20.2 mm	6.2 mm
Flange Thickness (D)		3.2 mm
Flange OD (E)		40 mm
C/Tube Quantity	4	4
C/Tube ODxIDxL	24.5x10.3x47.3 mm	24.5x10.3x47.3 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Type 17 - Shell With Flange Bushing

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Camber / Caster	Eccentric	Yes
Camber / Caster	Eccentric	Yes

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
7	8	35.5	24.5	20.2			4	24.5x10.3x47.3	Click Here
17	4	34.2	24.5	6.2	3.2	40	4	24.5x10.3x47.3	Click Here

Bush Type	7	17
QTY	8	4
OD (A)	35.5	34.2
ID (B)	24.5	24.5
Length (C)	20.2	6.2
FL (D)		3.2
FLOD (E)		40
C/Tube Qty	4	4
C/Tube Size	24.5x10.3x47.3	24.5x10.3x47.3
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.011kg	7cm	20cm	14cm
in/lbs	2.23lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	1.011kg	2.23lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	45714
Foot Note 1	Performance Alignment
Foot Note 2	Adds +0.6deg caster +/-0.6deg camber
Foot Note 3	Lifetime Warranty
Components Per	4 Shell Bushings, 8 Bushings, 4 Tubes
Product Note	Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 4 Shell Bushings, 8 Bushings, 4 Tubes
EAN	9319924392902

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
