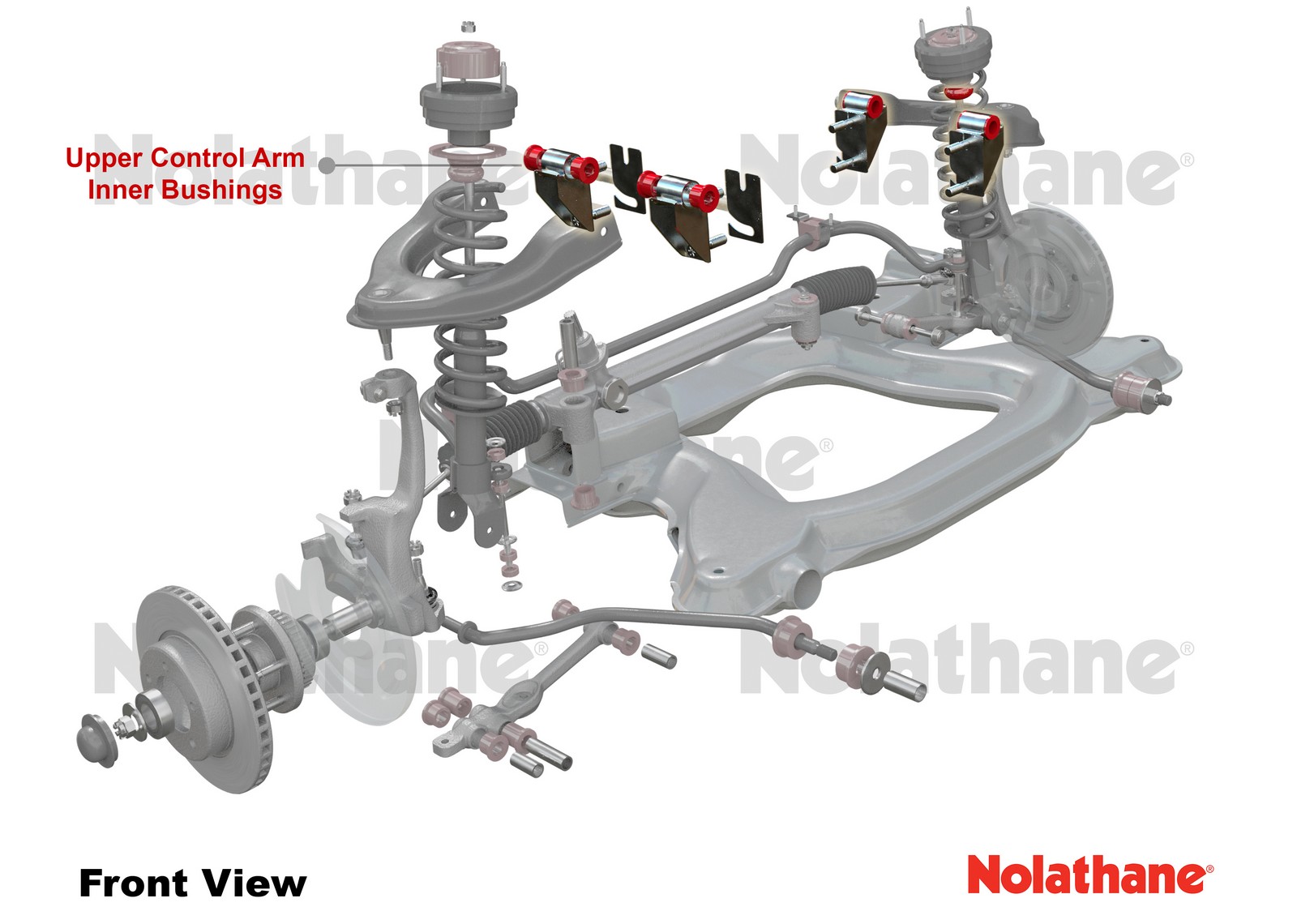

Front Upper Control Arm - Bushing Double Offset Camber Kit to Suit Nissan 300ZX and Skyline R32 Fwd/Awd

Description

Benefit Note:

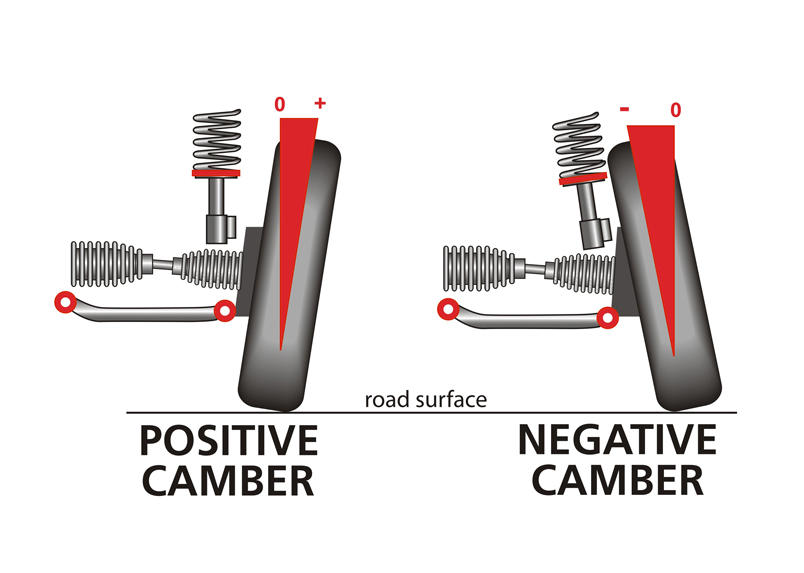

Nolathane camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. The kit is supplied with dual offset Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

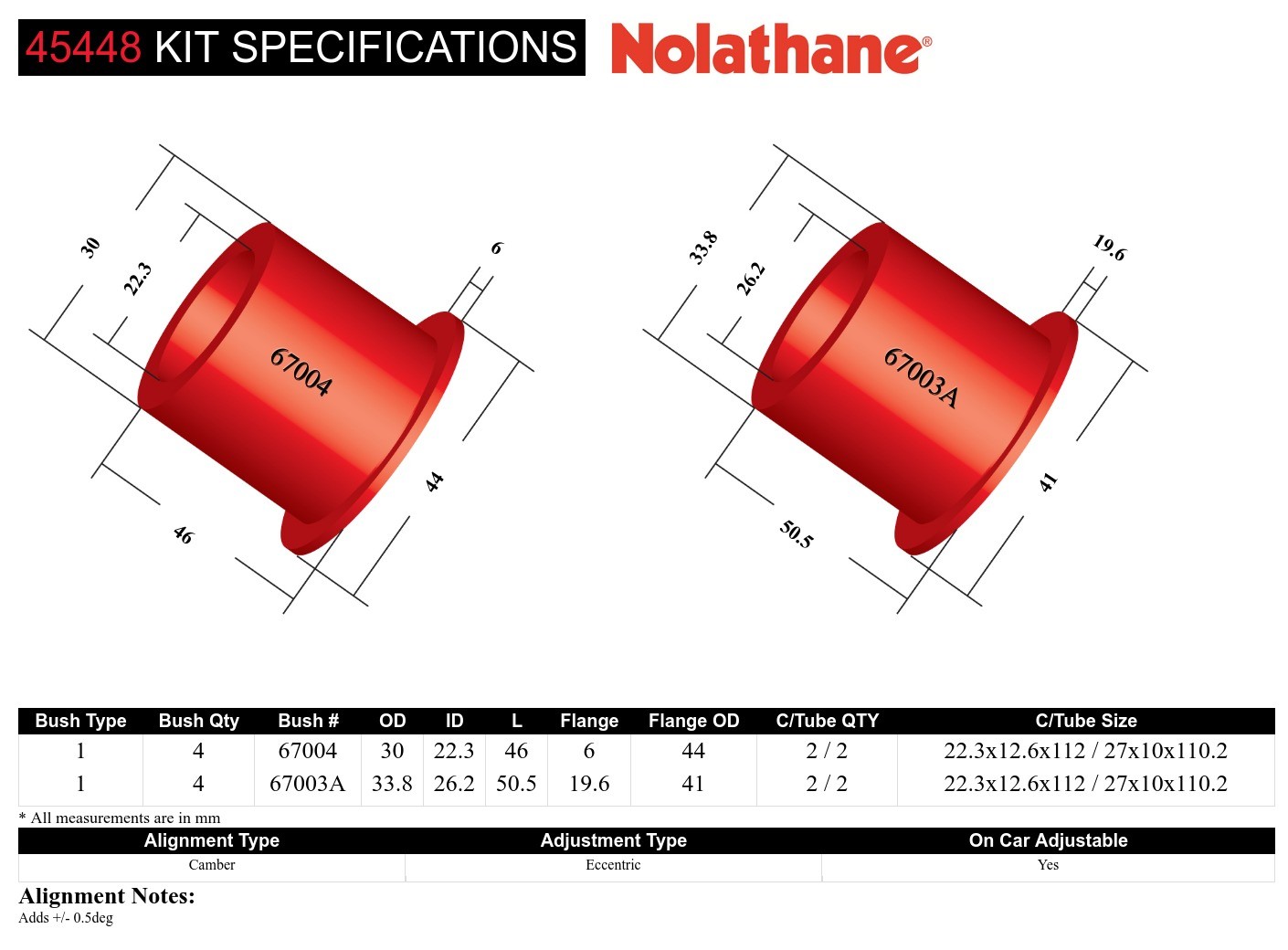

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	30 mm	22.3 mm	46 mm	6 mm	44 mm	2 / 2	22.3x12.6x112 / 27x10x110.2 mm	Click Here
1 - Shackle Bushing	4 mm	33.8 mm	26.2 mm	50.5 mm	19.6 mm	41 mm	2 / 2	22.3x12.6x112 / 27x10x110.2 mm	Click Here

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	4 mm	4 mm
OD (A)	30 mm	33.8 mm
ID (B)	22.3 mm	26.2 mm
Length (C)	46 mm	50.5 mm
Flange Thickness (D)	6 mm	19.6 mm
Flange OD (E)	44 mm	41 mm
C/Tube Quantity	2 / 2	2 / 2
C/Tube ODxIDxL	22.3x12.6x112 / 27x10x110.2 mm	22.3x12.6x112 / 27x10x110.2 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Camber	Eccentric	Yes
Camber	Eccentric	Yes

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	30	22.3	46.0	6	44	2 / 2	22.3x12.6x112 / 27x10x110.2	Click Here
1	4	33.8	26.2	50.5	19.6	41	2 / 2	22.3x12.6x112 / 27x10x110.2	Click Here

Bush Type	1	1
QTY	4	4
OD (A)	30	33.8
ID (B)	22.3	26.2
Length (C)	46.0	50.5
FL (D)	6	19.6
FLOD (E)	44	41
C/Tube Qty	2 / 2	2 / 2
C/Tube Size	22.3x12.6x112 / 27x10x110.2	22.3x12.6x112 / 27x10x110.2
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	2.154kg	10cm	26cm	16cm
in/lbs	4.75lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	2.154kg	4.75lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	45448
Foot Note 1	Performance Alignment
Foot Note 2	Adds +/-0.5deg camber
Foot Note 3	Lifetime Warranty

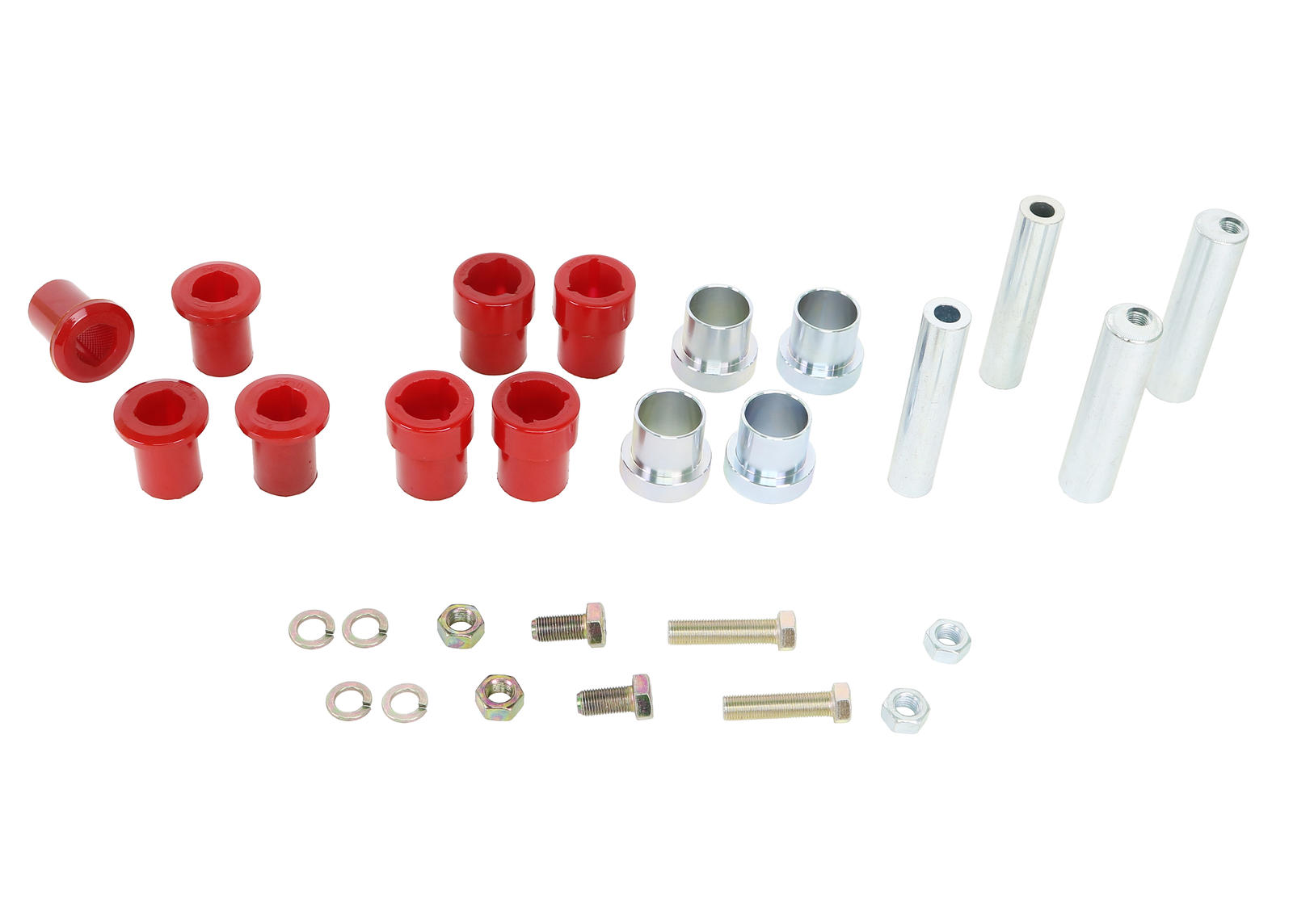

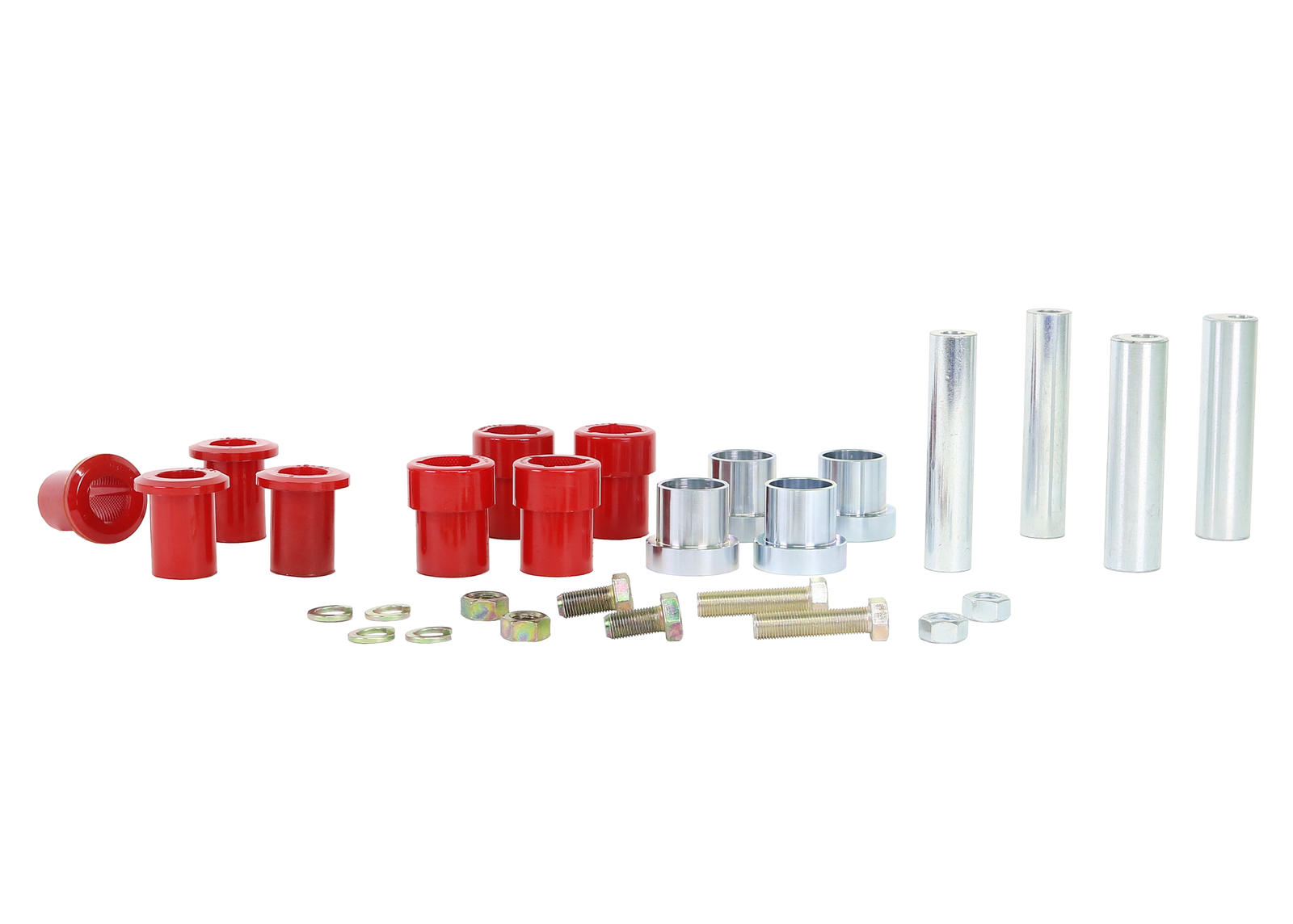

Components Per	8 Bushings, 4 Shells, 4 Tubes
Product Note	Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 8 Bushings, 4 Shells, 4 Tubes
EAN	9330074002176

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	4 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
