What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

45716

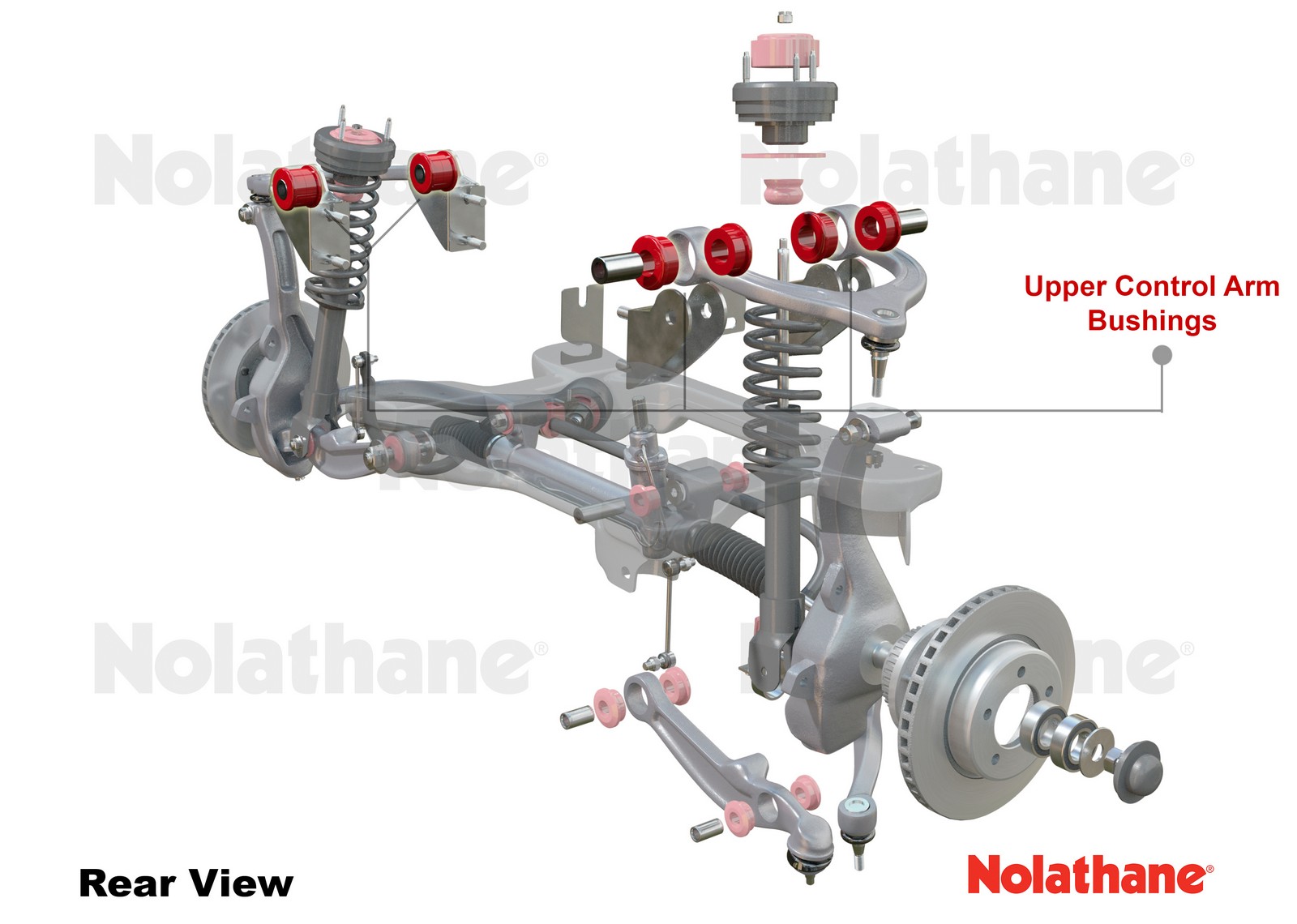

Front Upper Control Arm - Bushing Double Offset Camber Kit to Suit Audi A4-A8, S4-S8 Fwd/Awd

Front Upper Control Arm - Bushing Double Offset Camber Kit to Suit Audi A4-A8, S4-S8 Fwd/Awd

Performance Alignment - adds +/- 0.5deg camber

Item Price

$187.83

SKU	45716
Warranty	10 years warranty
Installation Time	3 Hours
Fitting Position	Front Axle

Select your car to check fitment.

in stock

Ships within 24hrs

Description

Benefit Note:

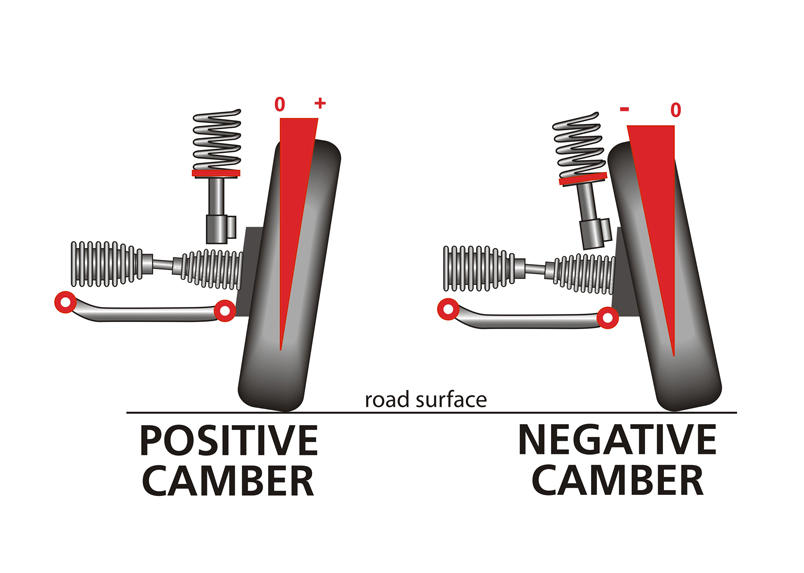

Nolathane camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. The kit is supplied with dual offset Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

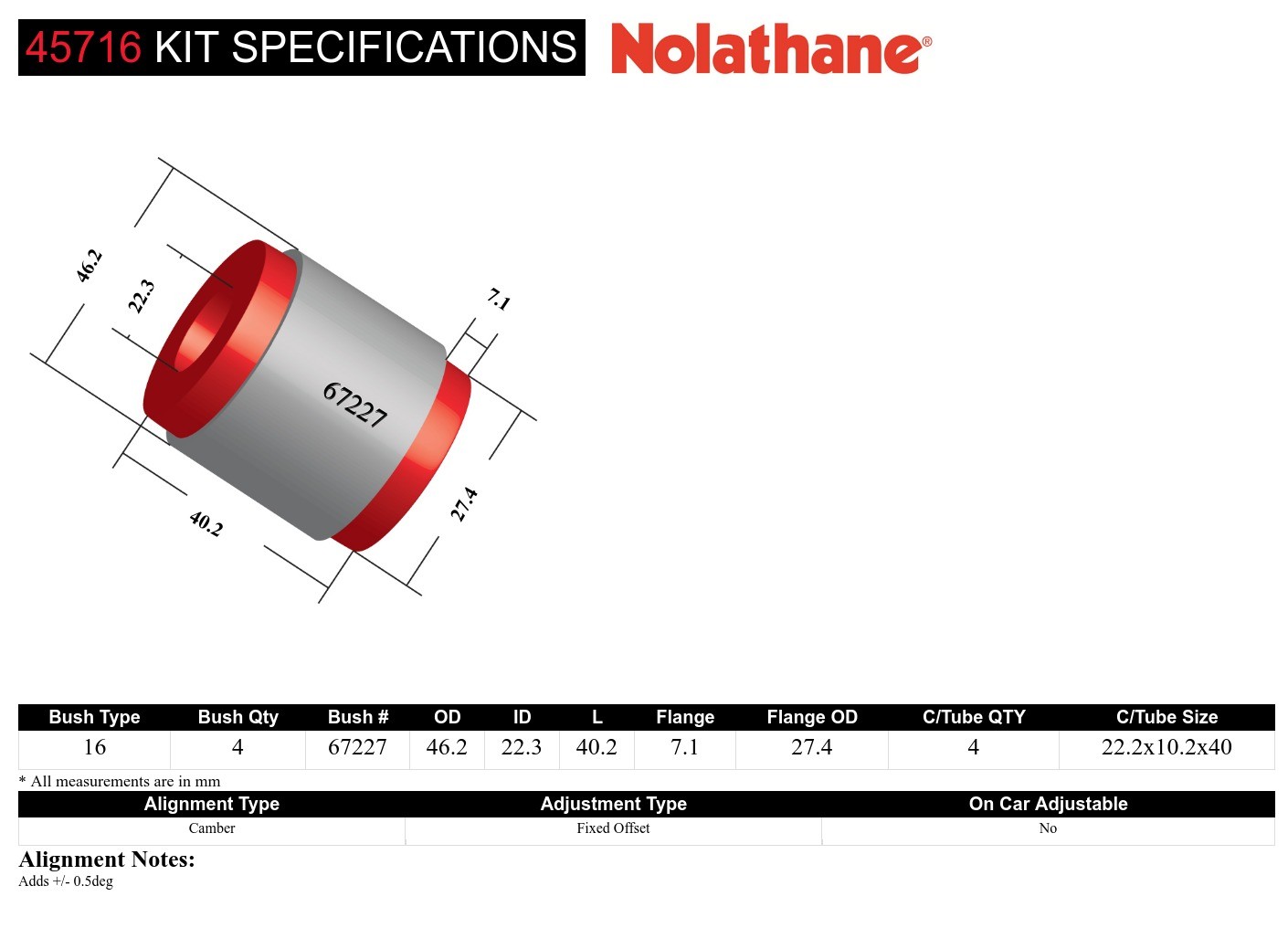

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	4 mm	46.2 mm	22.3 mm	40.2 mm	7.1 mm	27.4 mm	4	22.2x10.2x40 mm	Click Here

Bush Type	16 - Shell Without Flange Bushing
Bush Quantity	4 mm
OD (A)	46.2 mm
ID (B)	22.3 mm
Length (C)	40.2 mm
Flange Thickness (D)	7.1 mm
Flange OD (E)	27.4 mm
C/Tube Quantity	4
C/Tube ODxIDxL	22.2x10.2x40 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Camber	Offset	No

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16	4	46.2	22.3	40.2	7.1	27.4	4	22.2x10.2x40	Click Here

Bush Type	16
QTY	4
OD (A)	46.2
ID (B)	22.3
Length (C)	40.2
FL (D)	7.1
FLOD (E)	27.4
C/Tube Qty	4
C/Tube Size	22.2x10.2x40
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.736kg	7cm	20cm	14cm
in/lbs	1.62lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.736kg	1.62lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	45716
Foot Note 1	Performance Alignment
Foot Note 2	Adds +/-0.5deg camber

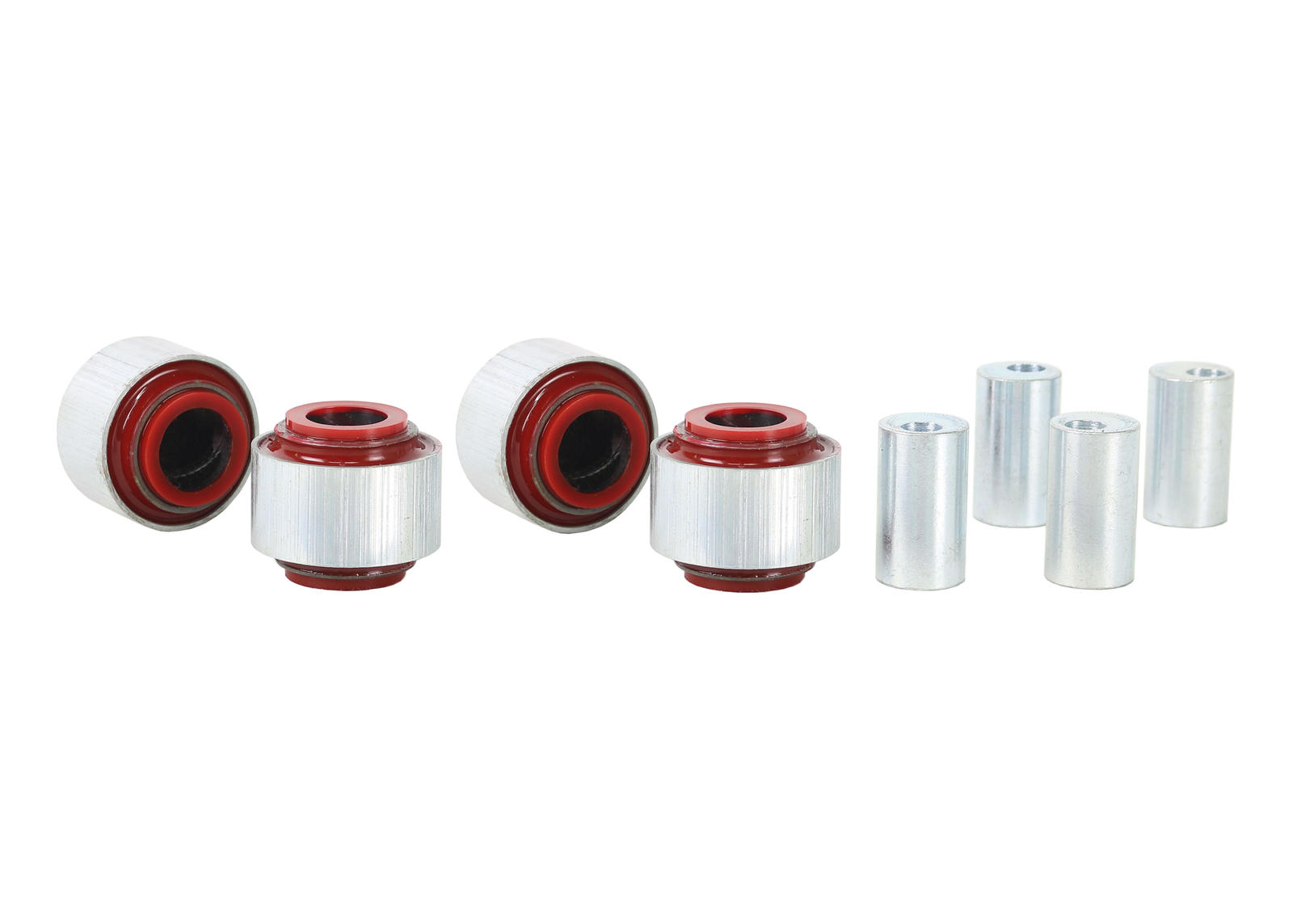

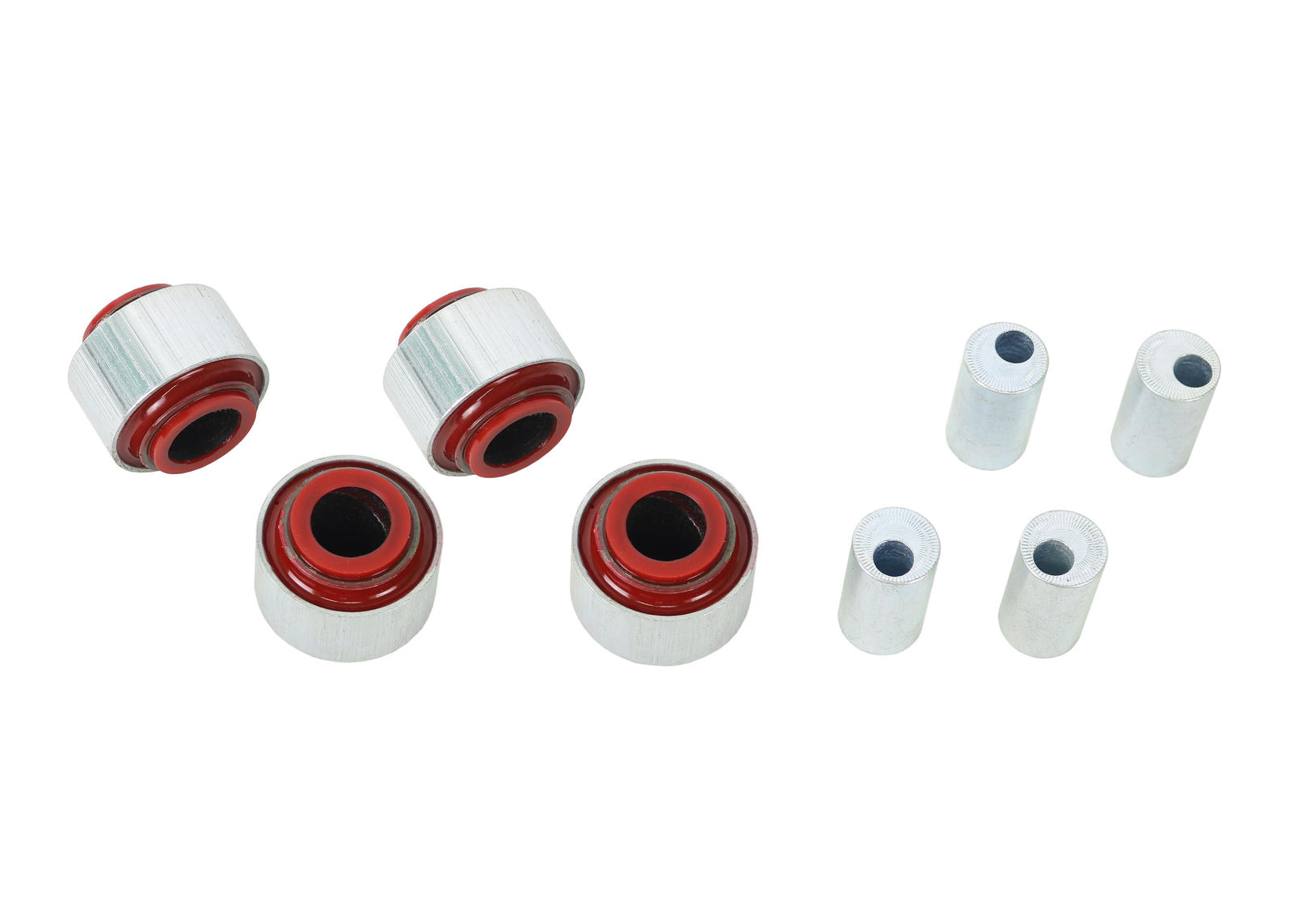

Components Per	4 Shell Bushings, 4 Tubes
Product Note	Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 4 Shell Bushings, 4 Tubes
EAN	9319924392926

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
