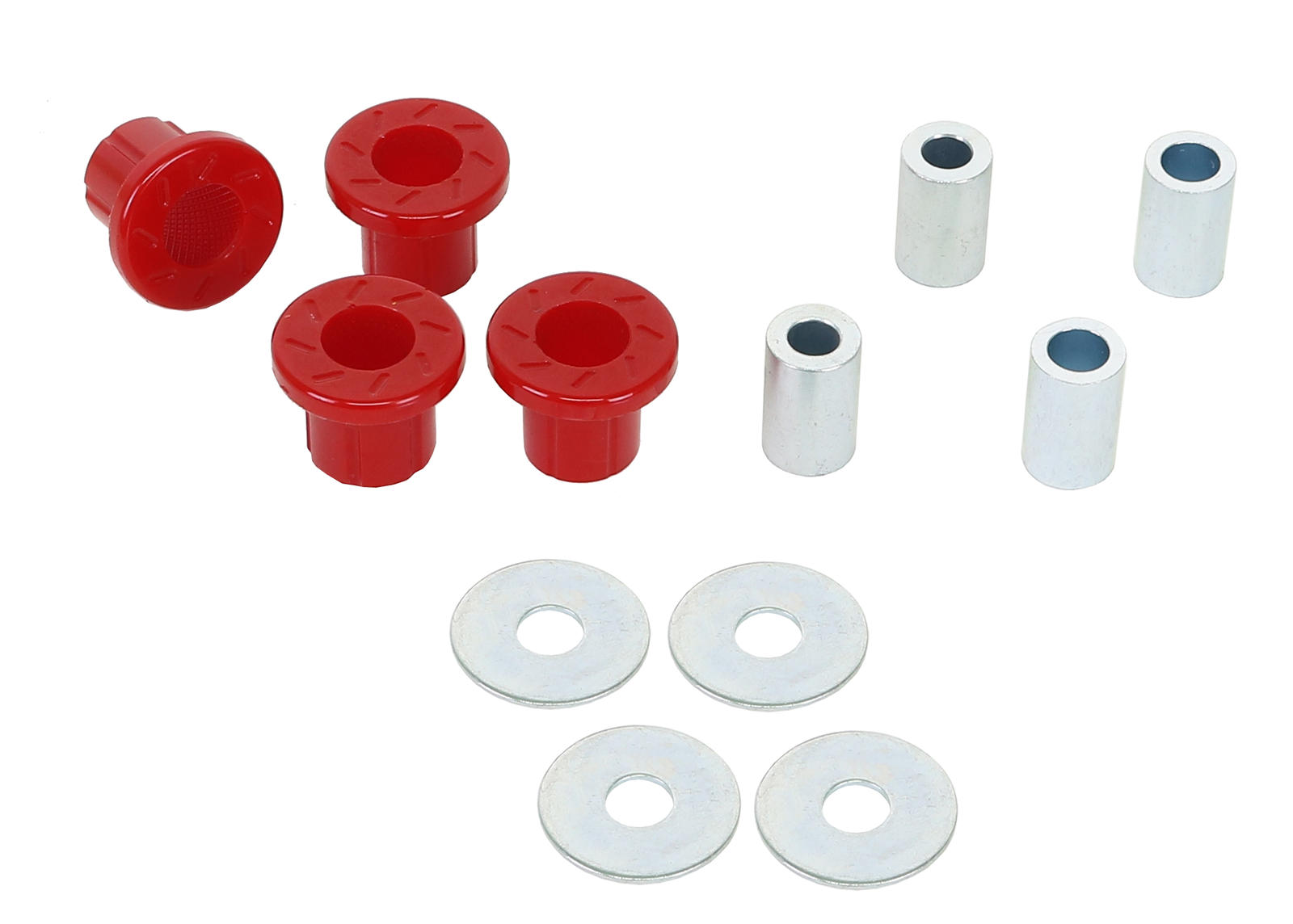

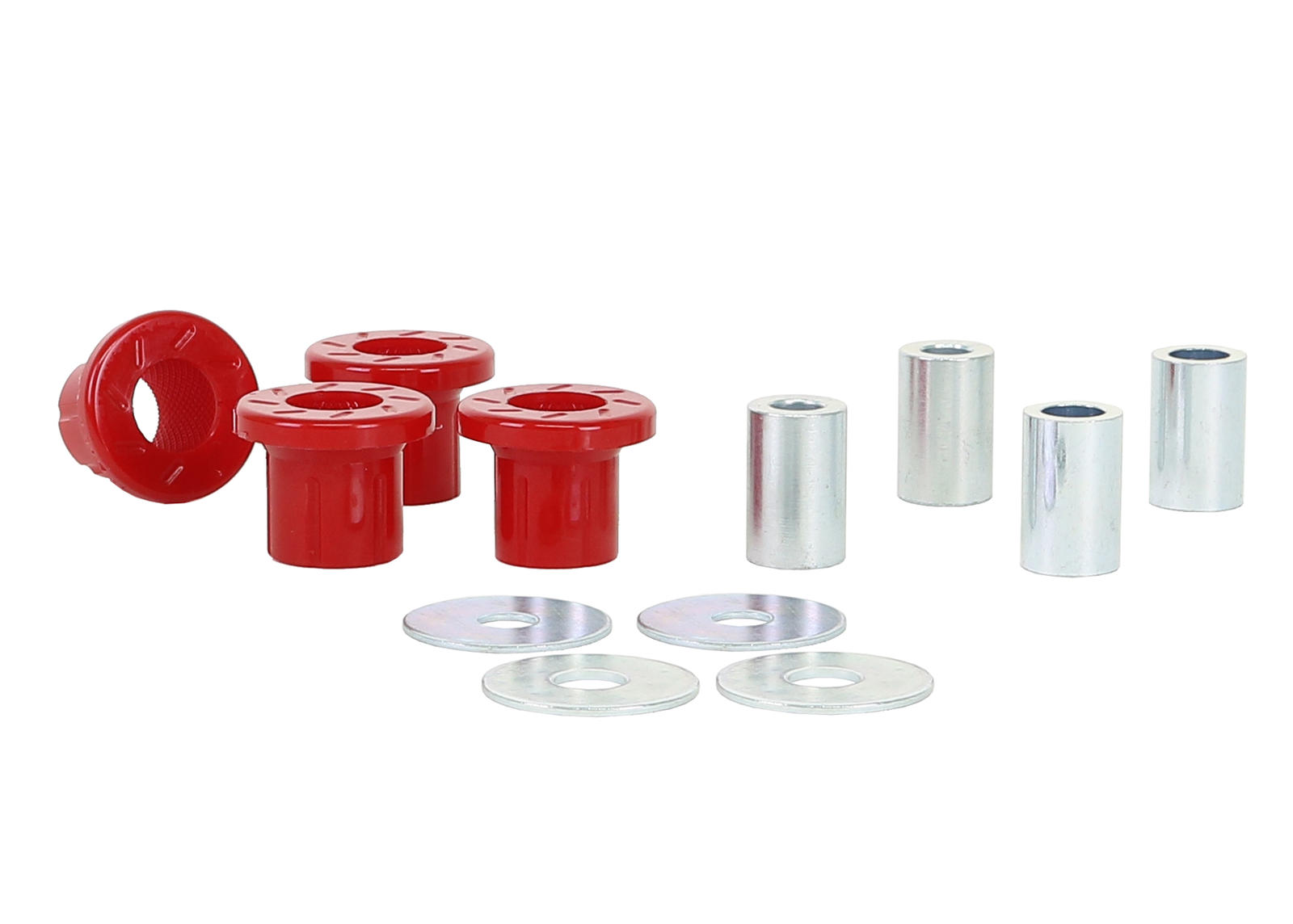

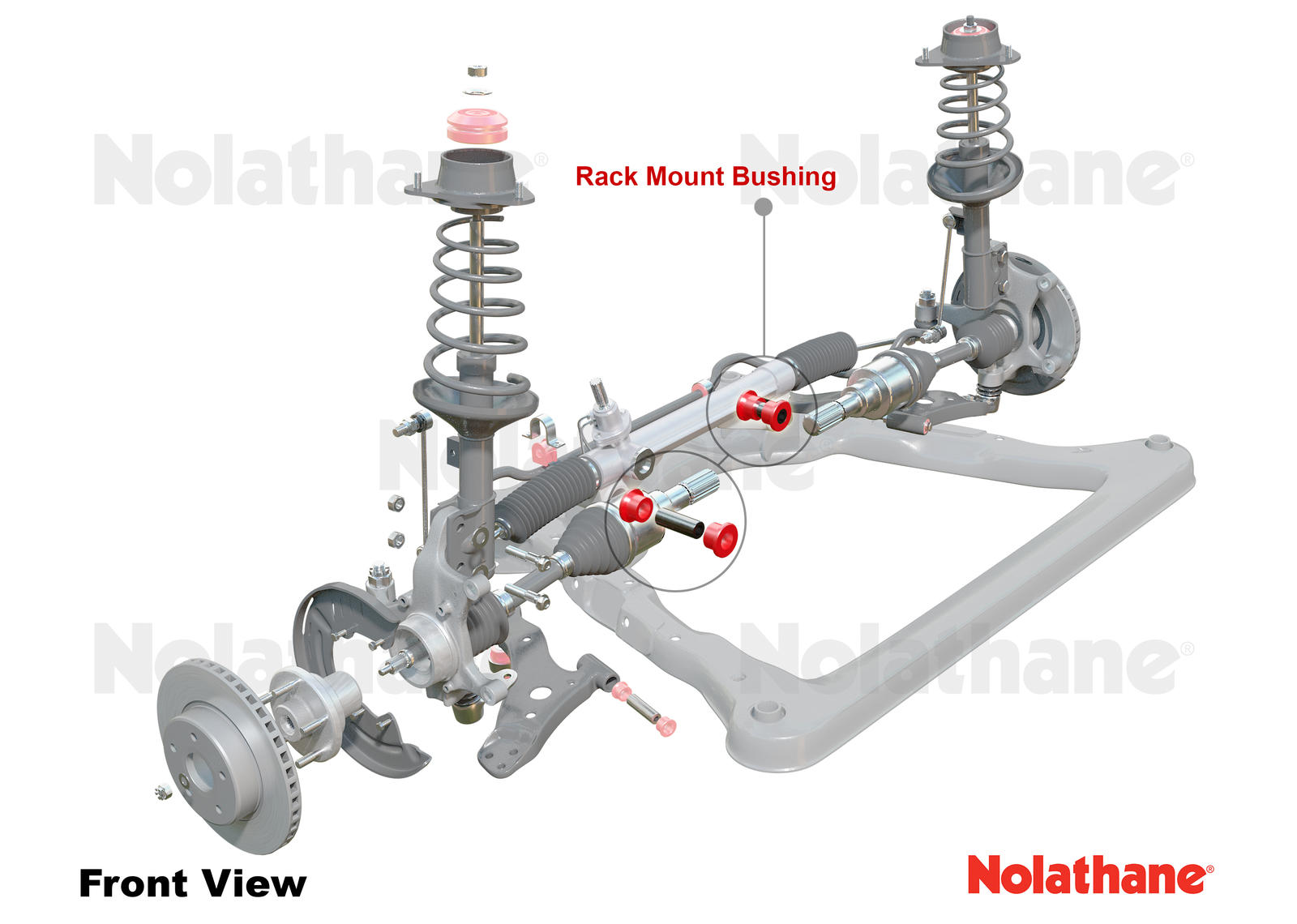

Front Steering Rack and Pinion - Mount Bushing Kit to Suit Toyota Avensis T27

Description

Benefit Note:
Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Nolathane steering rack mounts are engineered to outlast and enhance steering precision and feedback.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

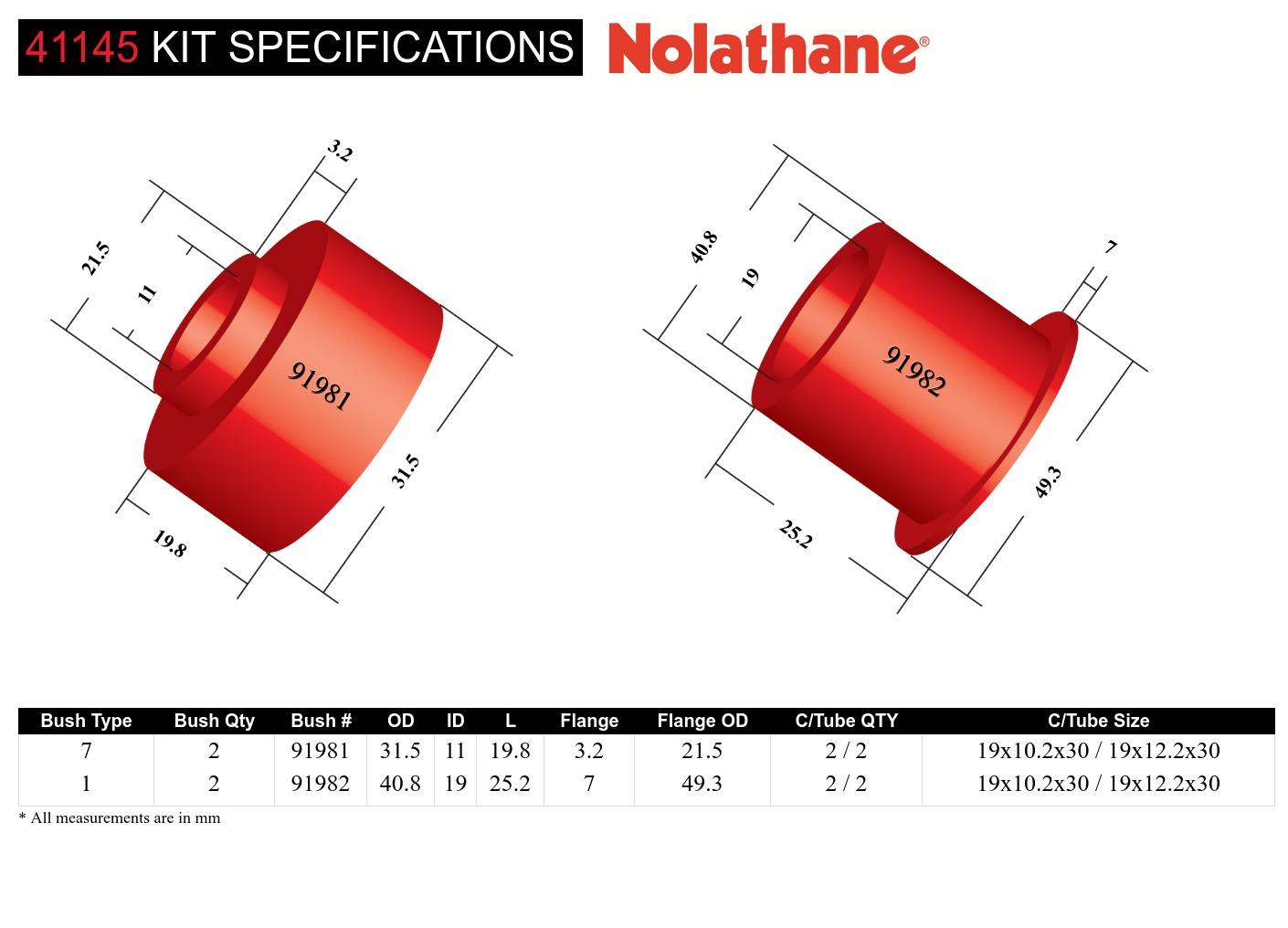

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	2 mm	40.8 mm	19 mm	25.2 mm	7 mm	49.3 mm	2 / 2	19x10.2x30 / 19x12.2x30 mm	Click Here
7 - Pin Bush With & Without Spigot	2 mm	31.5 mm	11 mm	19.8 mm	3.2 mm	21.5 mm	2 / 2	19x10.2x30 / 19x12.2x30 mm	Click Here

Bush Type	1 - Shackle Bushing	7 - Pin Bush With & Without Spigot
Bush Quantity	2 mm	2 mm
OD (A)	40.8 mm	31.5 mm
ID (B)	19 mm	11 mm
Length (C)	25.2 mm	19.8 mm
Flange Thickness (D)	7 mm	3.2 mm
Flange OD (E)	49.3 mm	21.5 mm
C/Tube Quantity	2 / 2	2 / 2
C/Tube ODxIDxL	19x10.2x30 / 19x12.2x30 mm	19x10.2x30 / 19x12.2x30 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	2	40.8	19	25.2	7	49.3	2 / 2	19x10.2x30 / 19x12.2x30	Click Here
7	2	31.5	11	19.8	3.2	21.5	2 / 2	19x10.2x30 / 19x12.2x30	Click Here

Bush Type	1	7
QTY	2	2
OD (A)	40.8	31.5
ID (B)	19	11
Length (C)	25.2	19.8
FL (D)	7	3.2
FLOD (E)	49.3	21.5
C/Tube Qty	2 / 2	2 / 2
C/Tube Size	19x10.2x30 / 19x12.2x30	19x10.2x30 / 19x12.2x30
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.28kg	10cm	26cm	16cm
in/lbs	0.62lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.28kg	0.62lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	41145
Foot Note 3	Lifetime Warranty
Components Per	4 Bushings, 4 Tubes, 4 Washers
Product Note	Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
EAN	9319924464005

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
