What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

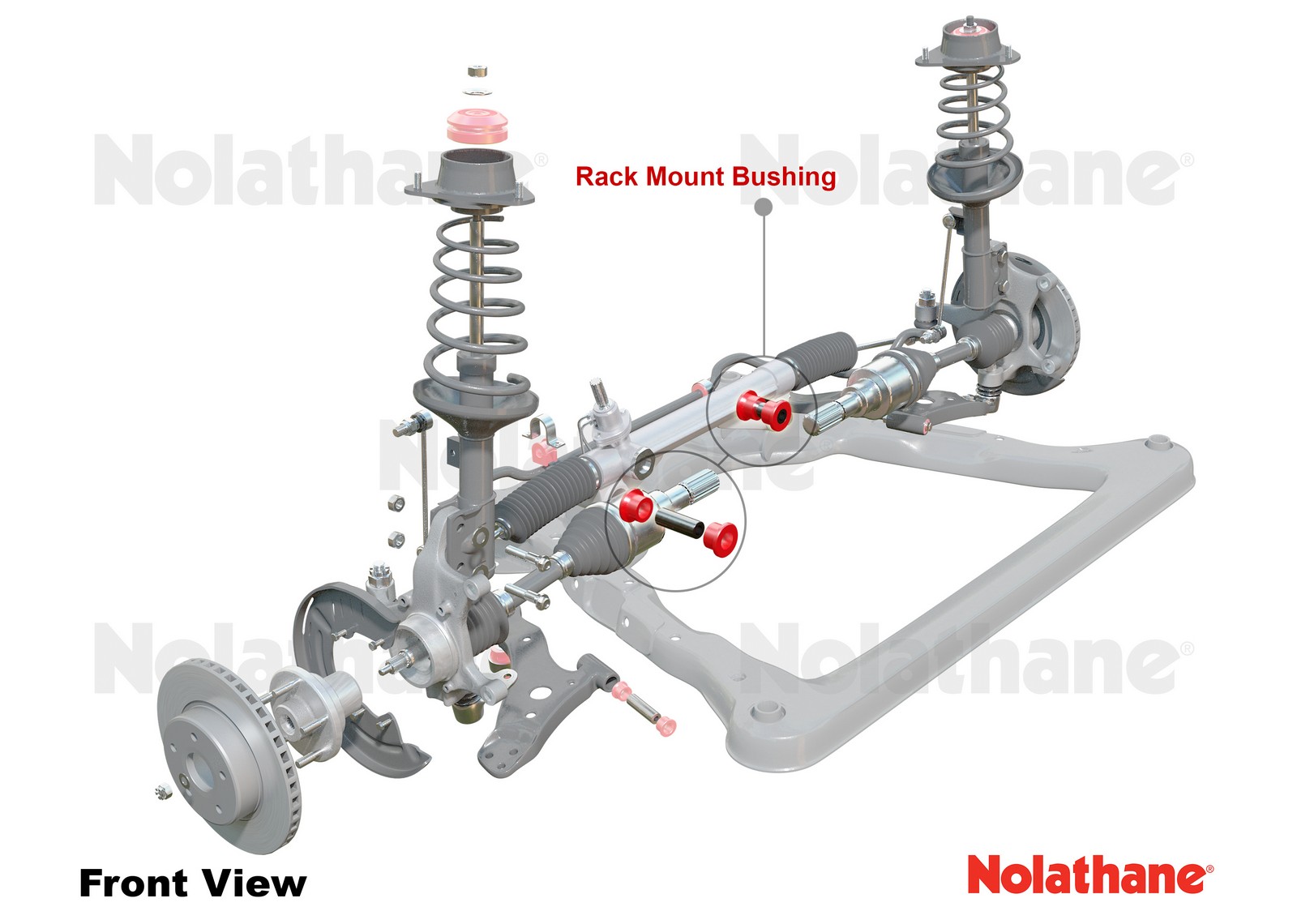

Front Steering Rack and Pinion - Mount Bushing Kit to Suit Subaru Forester, Impreza, Liberty, Outback and XV

Description

Benefit Note:
Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Nolathane steering rack mounts are engineered to outlast and enhance steering precision and feedback.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

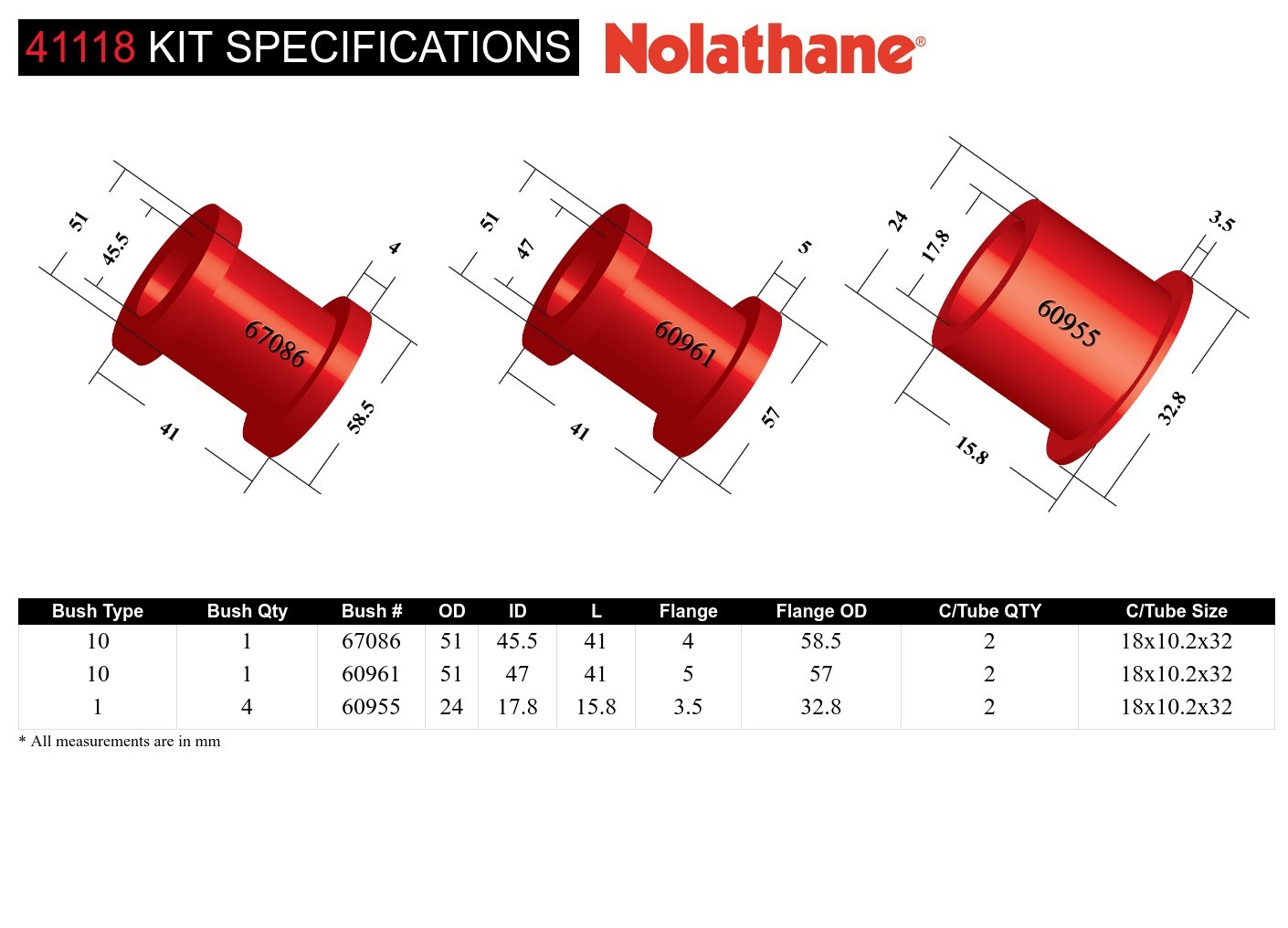

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
10 - Cotton Reel With & Without Tapper Bushing	1 mm	51 mm	45.5 mm	41 mm	4 mm	58.5 mm	2	18x10.2x32 mm	Click Here
1 - Shackle Bushing	4 mm	24 mm	17.8 mm	15.8 mm	3.5 mm	32.8 mm	2	18x10.2x32 mm	Click Here
10 - Cotton Reel With & Without Tapper Bushing	1 mm	51 mm	47 mm	41 mm	5 mm	57 mm	2	18x10.2x32 mm	Click Here

Bush Type	10 - Cotton Reel With & Without Tapper Bushing	1 - Shackle Bushing	10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity	1 mm	4 mm	1 mm
OD (A)	51 mm	24 mm	51 mm
ID (B)	45.5 mm	17.8 mm	47 mm
Length (C)	41 mm	15.8 mm	41 mm
Flange Thickness (D)	4 mm	3.5 mm	5 mm
Flange OD (E)	58.5 mm	32.8 mm	57 mm
C/Tube Quantity	2	2	2
C/Tube ODxIDxL	18x10.2x32 mm	18x10.2x32 mm	18x10.2x32 mm
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
10	1	51	45.5	41.0	4	58.5	2	18x10.2x32	Click Here
1	4	24	17.8	15.8	3.5	32.8	2	18x10.2x32	Click Here
10	1	51	47	41.0	5	57	2	18x10.2x32	Click Here

Bush Type	10	1	10
QTY	1	4	1
OD (A)	51	24	51
ID (B)	45.5	17.8	47
Length (C)	41.0	15.8	41.0
FL (D)	4	3.5	5
FLOD (E)	58.5	32.8	57
C/Tube Qty	2	2	2
C/Tube Size	18x10.2x32	18x10.2x32	18x10.2x32
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.372kg	7cm	20cm	14cm
in/lbs	0.82lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.372kg	0.82lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	41118
Foot Note 1	Includes installation tool
Foot Note 3	Lifetime Warranty

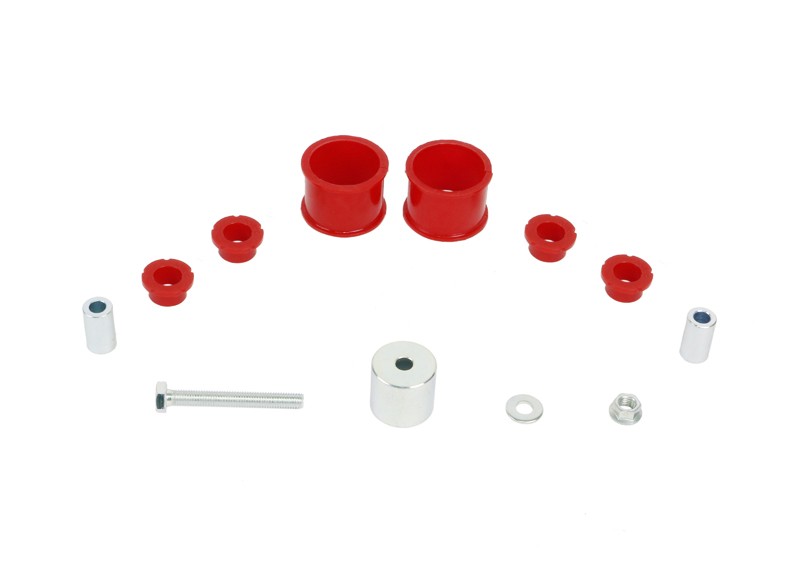

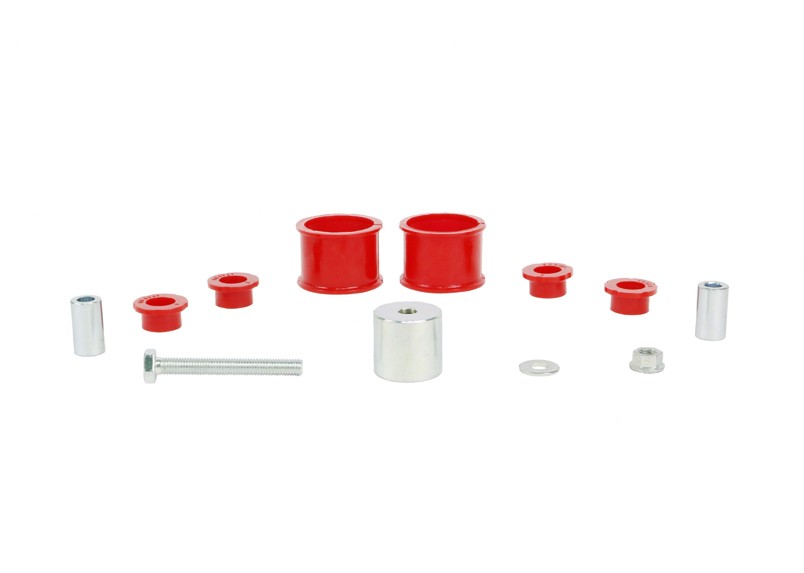

Components Per	6 Bushings, 2 Tubes, Removal Tool
Product Note	Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:
EAN	9319924373208

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
