What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

45808

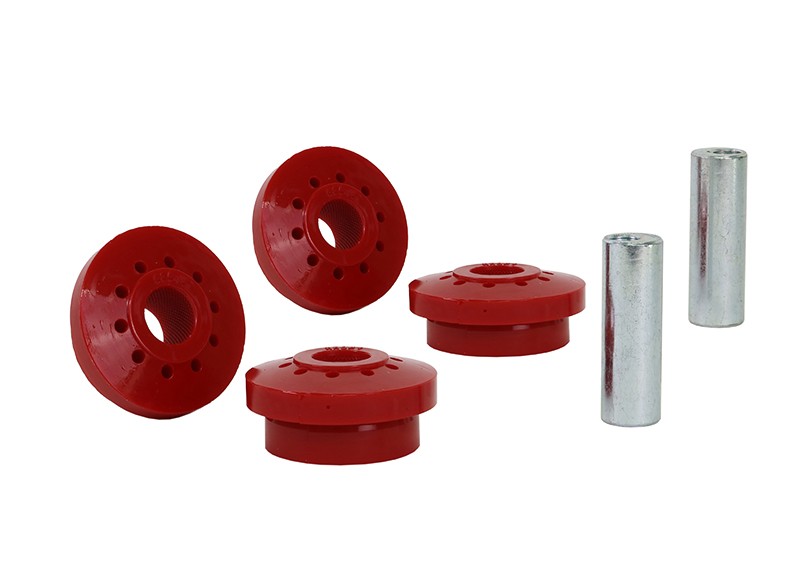

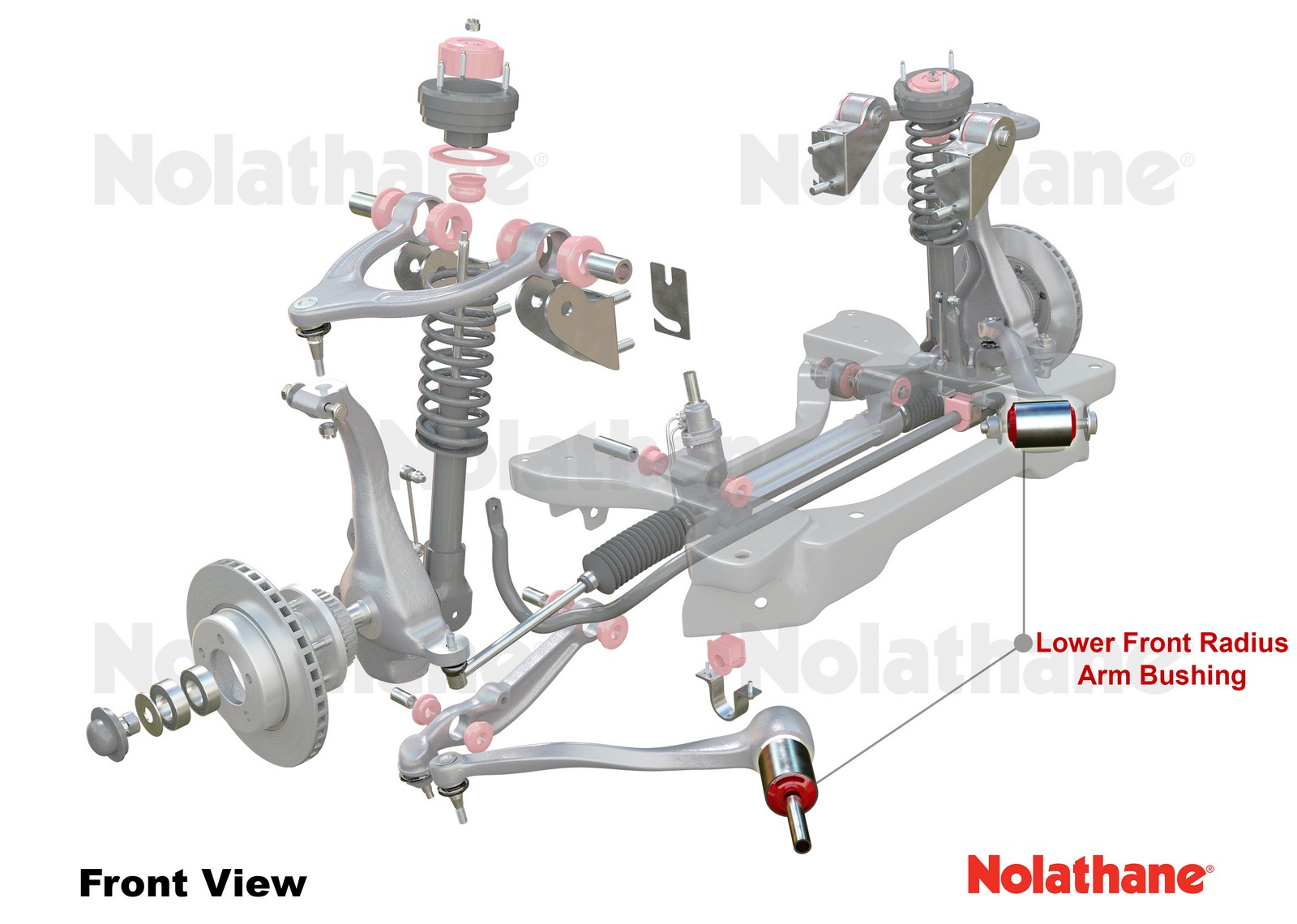

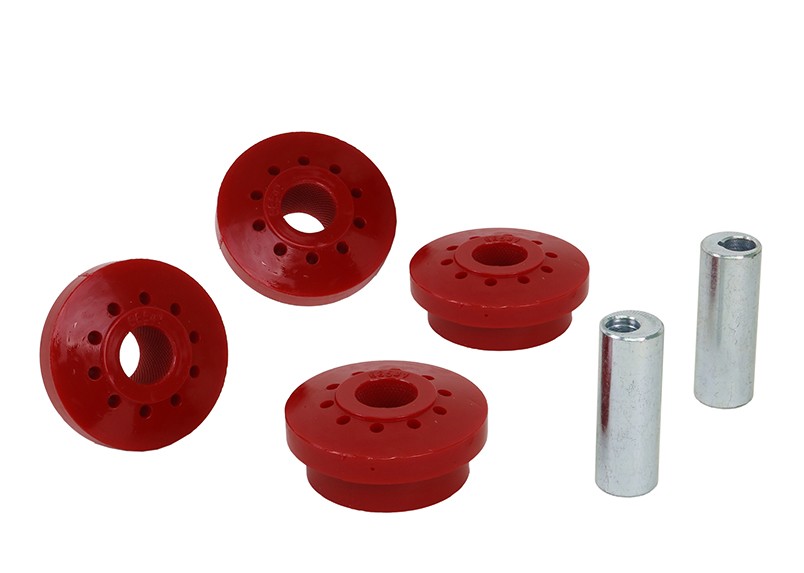

Front Radius Arm Lower - Bushing Kit to Suit Ford Territory SX-SZ and FPV

Front Radius Arm Lower - Bushing Kit to Suit Ford Territory SX-SZ and FPV

Performance Alignment - fitter friendly design - adds +0.5deg caster

Item Price

$191.92

SKU	45808
Warranty	lifetime warranty
Installation Time	1.5 Hours
Fitting Position	Front Axle

Select your car to check fitment.

in stock

Ships within 24hrs

Description

Benefit Note:
Not many know but worn suspension bushings have an effect on braking performance. Radius arm bushings in particular tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Nolathane bushings that offer long lasting durability for a safer more predictable vehicle.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

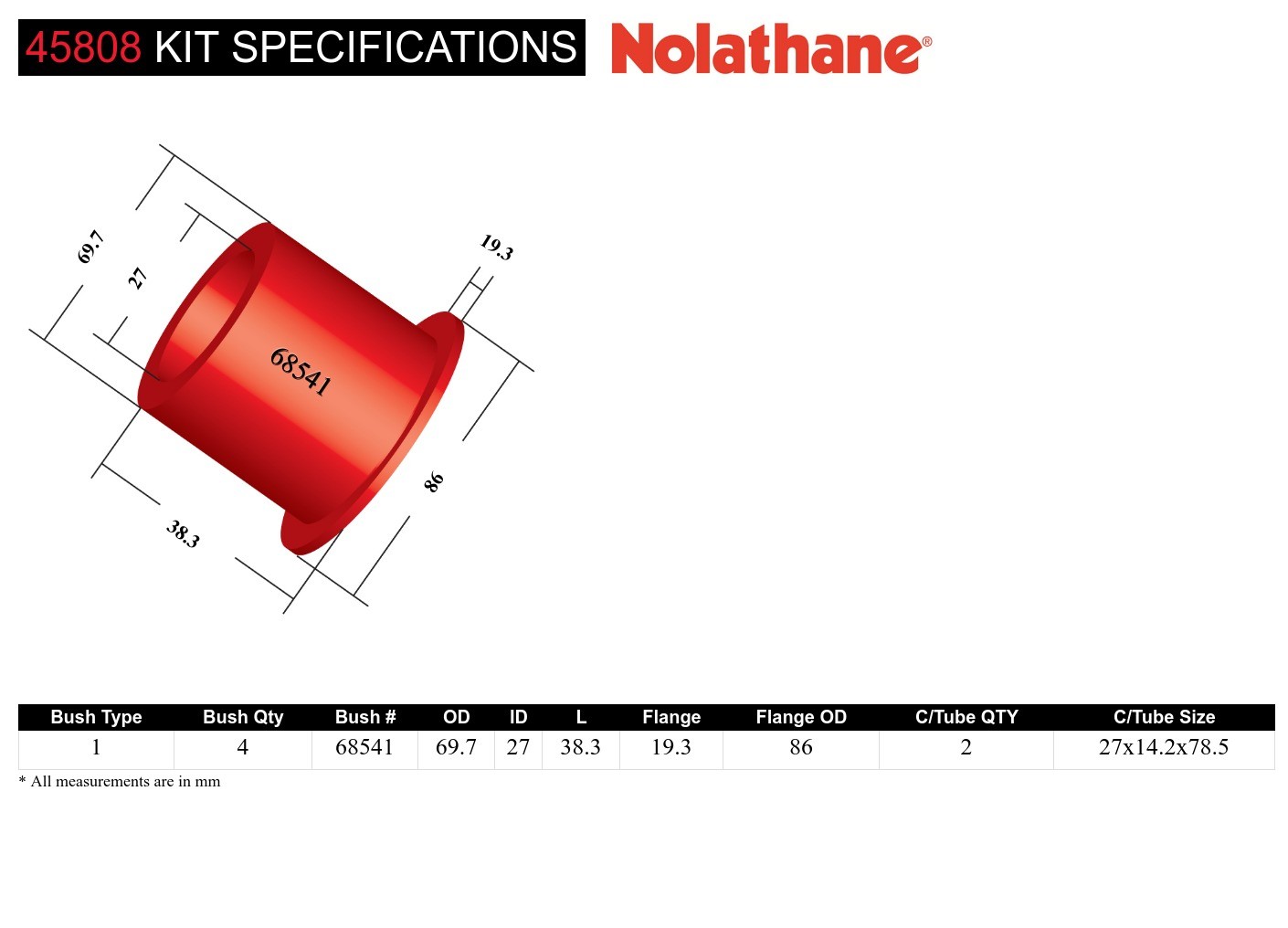

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	69.7 mm	27 mm	38.3 mm	19.3 mm	86 mm	2	27x14.2x78.5 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	4 mm
OD (A)	69.7 mm
ID (B)	27 mm
Length (C)	38.3 mm
Flange Thickness (D)	19.3 mm
Flange OD (E)	86 mm
C/Tube Quantity	2
C/Tube ODxIDxL	27x14.2x78.5 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	69.7	27	38.3	19.3	86	2	27x14.2x78.5	Click Here

Bush Type	1
QTY	4
OD (A)	69.7
ID (B)	27
Length (C)	38.3
FL (D)	19.3
FLOD (E)	86
C/Tube Qty	2
C/Tube Size	27x14.2x78.5
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.816kg	10cm	26cm	16cm
in/lbs	1.8lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.816kg	1.8lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	45808
Foot Note 1	Fitter friendly design
Foot Note 3	Lifetime Warranty
Components Per	4 Bushings, 2 Tubes
Product Note	Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 4 Bushings, 2 Tubes
EAN	9319924443888

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	1.5 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
