What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

45582

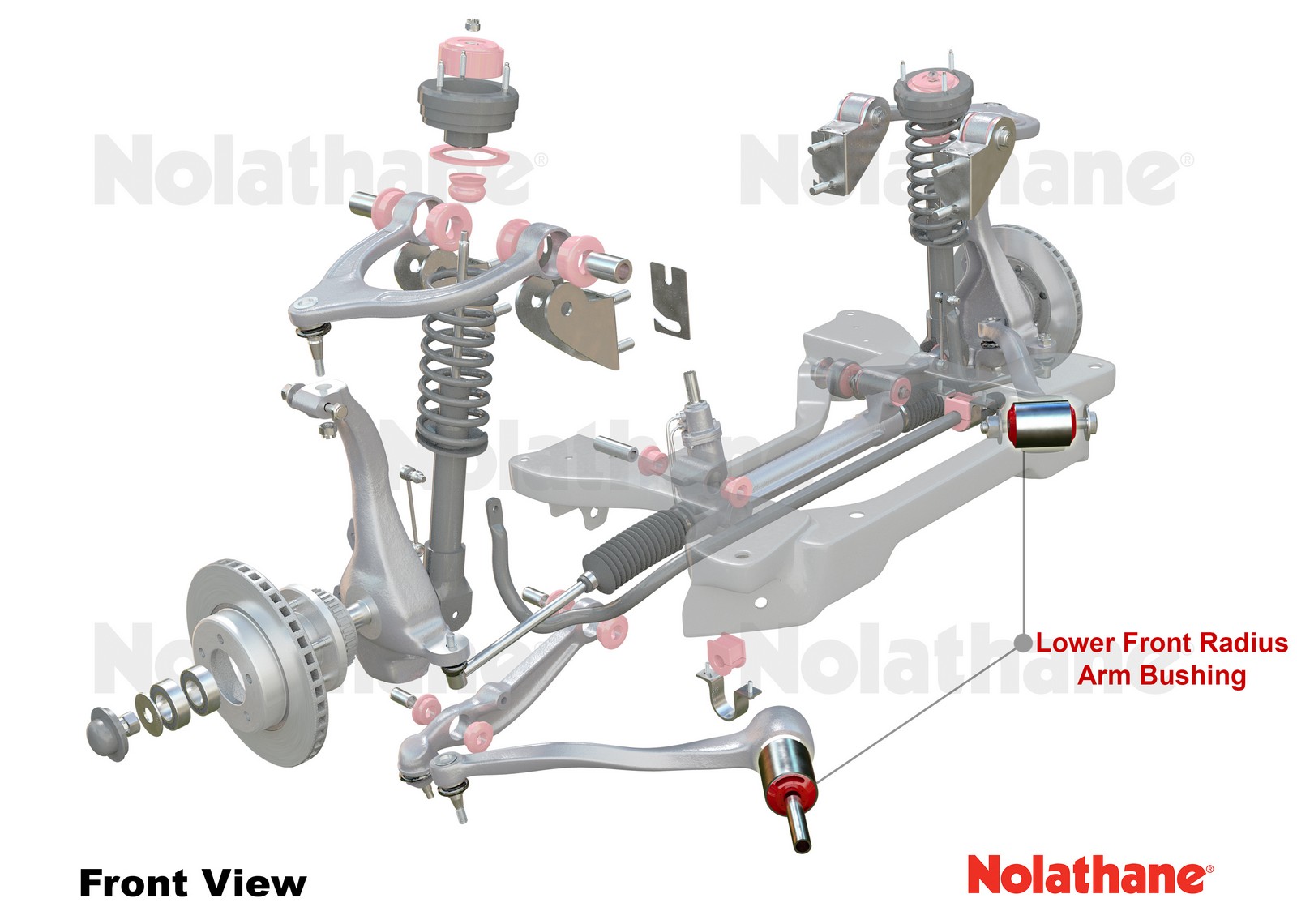

Front Radius Arm Lower - Bushing Kit to Suit Ford Falcon FG, FGX and FPV

Front Radius Arm Lower - Bushing Kit to Suit Ford Falcon FG, FGX and FPV

OEM design

Item Price

$227.33

SKU	45582
Warranty	lifetime warranty
Installation Time	3 Hours
Fitting Position	Front Axle

Select your car to check fitment.

in stock

Ships within 24hrs

Description

Benefit Note:

Not many know but worn suspension bushings have an effect on braking performance. Radius arm bushings in particular tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Nolathane bushings that offer long lasting durability for a safer more predictable vehicle.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

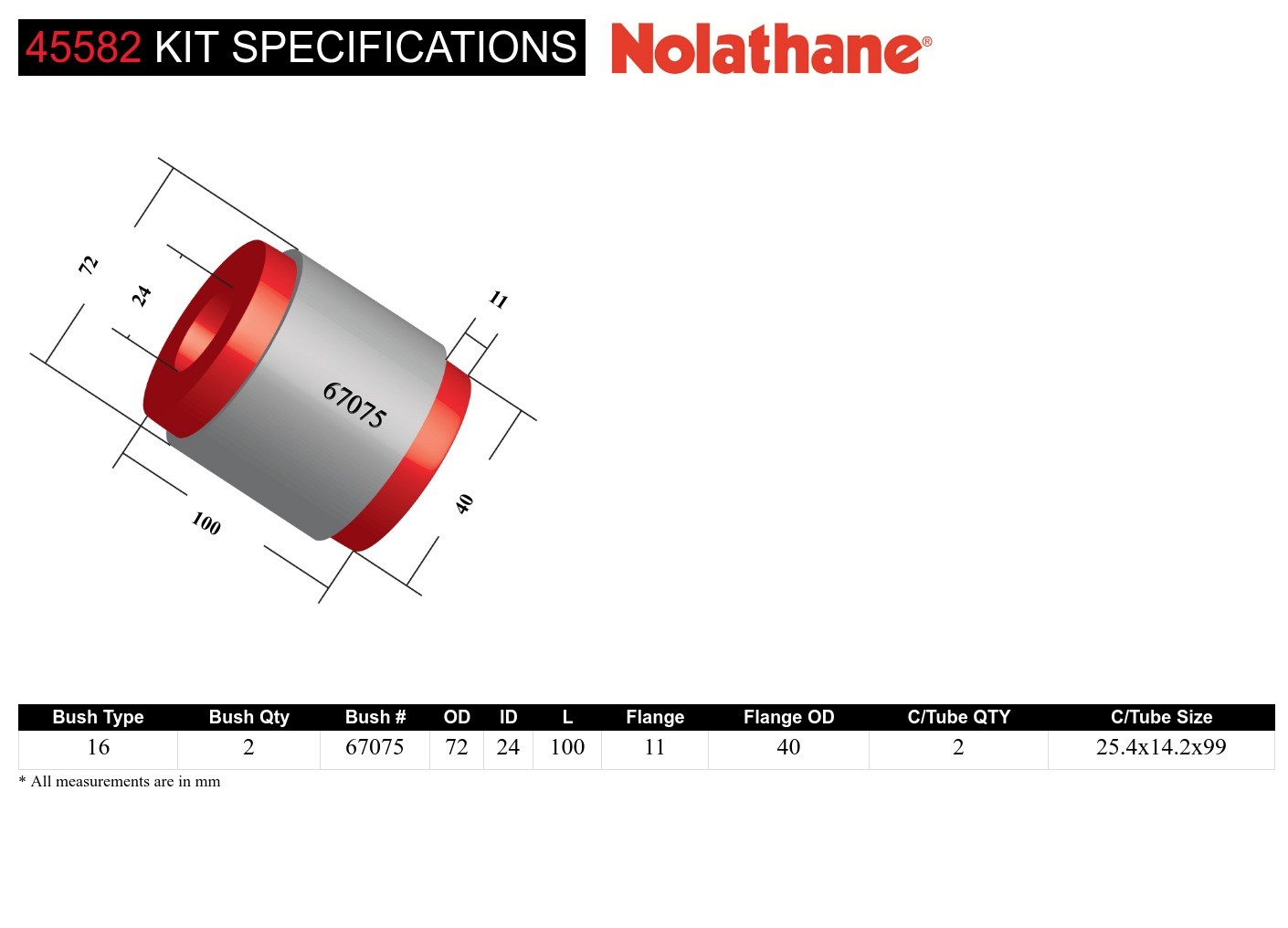

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	2 mm	72 mm	24 mm	100 mm	11 mm	40 mm	2	25.4x14.2x99 mm	Click Here

Bush Type	16 - Shell Without Flange Bushing
Bush Quantity	2 mm
OD (A)	72 mm
ID (B)	24 mm
Length (C)	100 mm
Flange Thickness (D)	11 mm
Flange OD (E)	40 mm
C/Tube Quantity	2
C/Tube ODxIDxL	25.4x14.2x99 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16	2	72	24	100.0	11	40	2	25.4x14.2x99	Click Here

Bush Type	16
QTY	2
OD (A)	72
ID (B)	24
Length (C)	100.0
FL (D)	11
FLOD (E)	40
C/Tube Qty	2
C/Tube Size	25.4x14.2x99
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.63kg	25cm	10cm	20cm
in/lbs	3.59lbs	9.84"	3.94"	7.87"

Units	cm/kg	in/lbs
Weight	1.63kg	3.59lbs
Length	25cm	9.84"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information
SKU	45582
Foot Note 1	Direct OEM replacement design
Foot Note 3	Lifetime Warranty

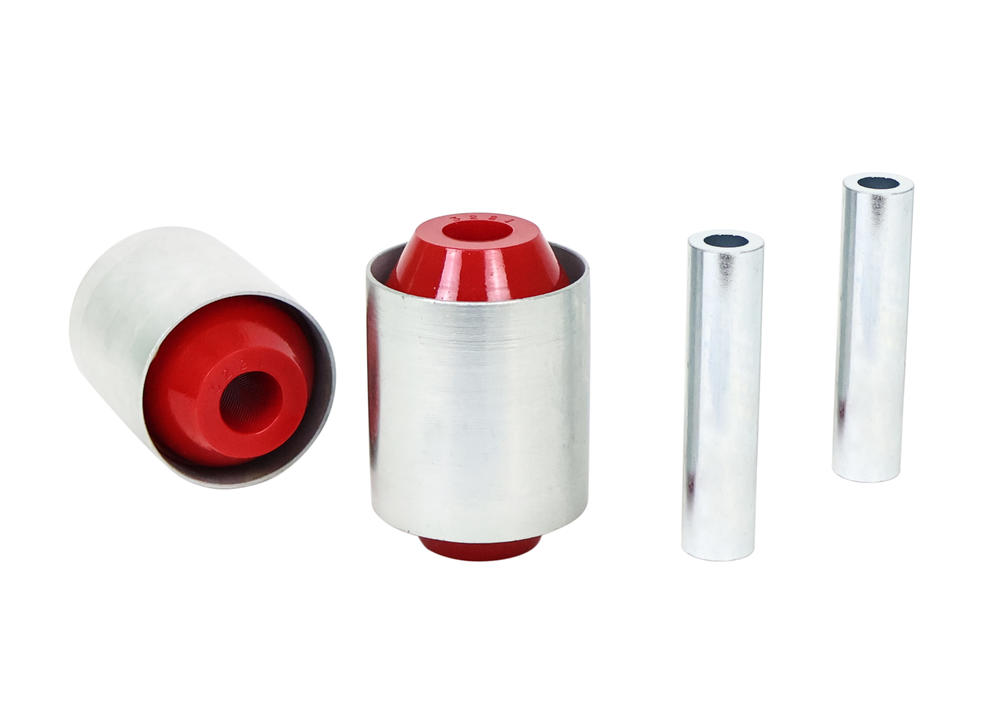

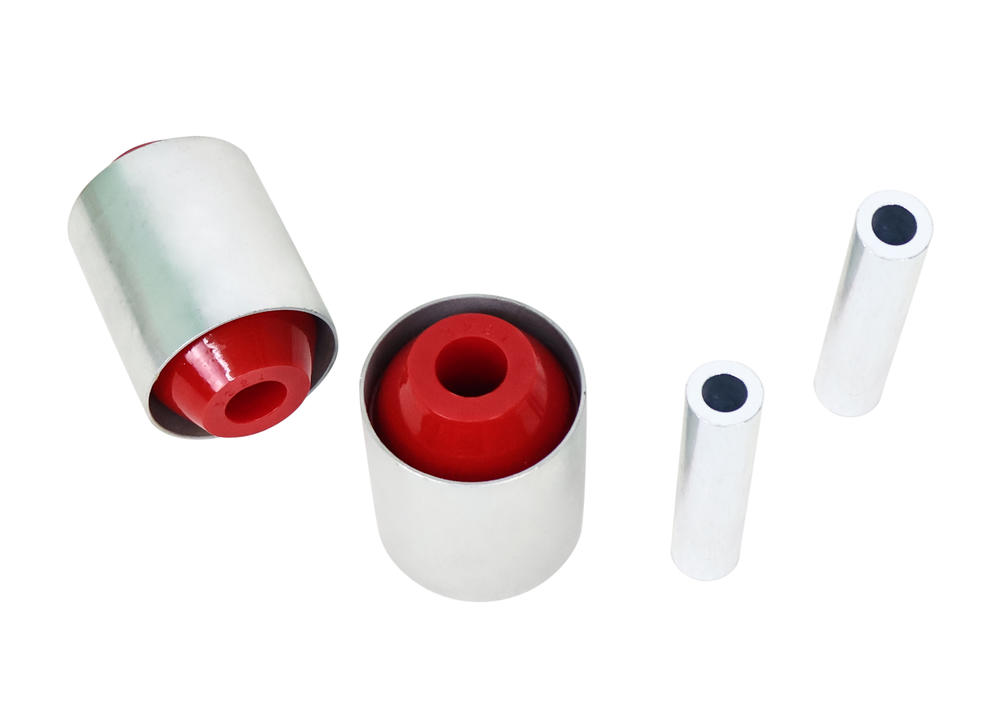

Components Per	2 Shell Bushings, 2 Tubes
Product Note	Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN	9319924372188

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Shipping & Returns

Shipping Times

You can use the shipping calculator to find your shipping costs. The shipping calculator will also show all shipping prices.

Returns

We guarantee the fitment and quality of our products, but if you choose to return an item we offer a generous 60 day returns policy. See our returns policy here.

Warranty

All products sold by Nolathane are covered by a national warranty. The products warranty is subject to conditions from the date of purchase, unless otherwise stated on the item.

Warranty claims must meet certain criteria and be sent to Nolathane with a receipt to be eligible for a refund. See full warranty claim criteria here.

⚠️
