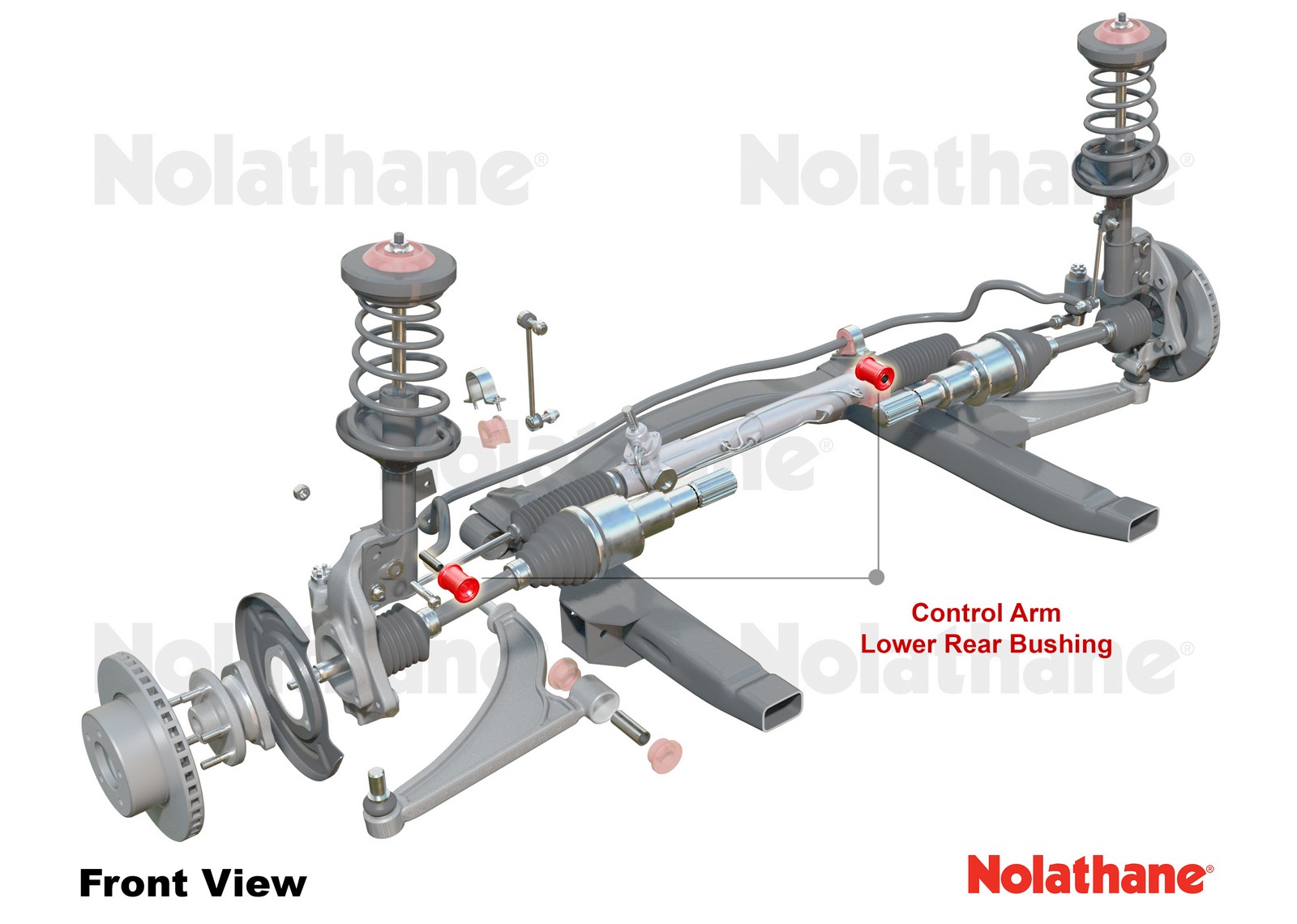

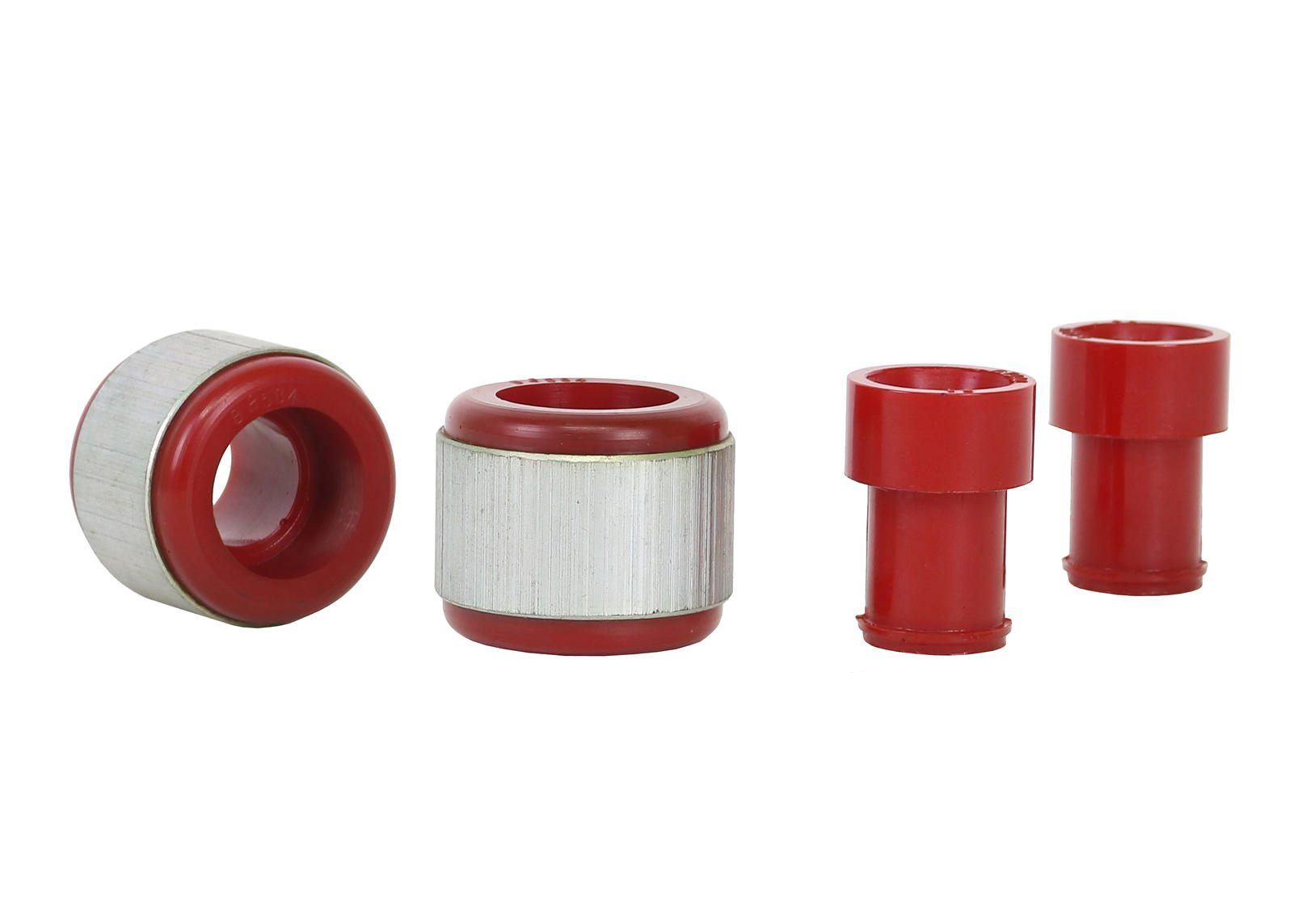

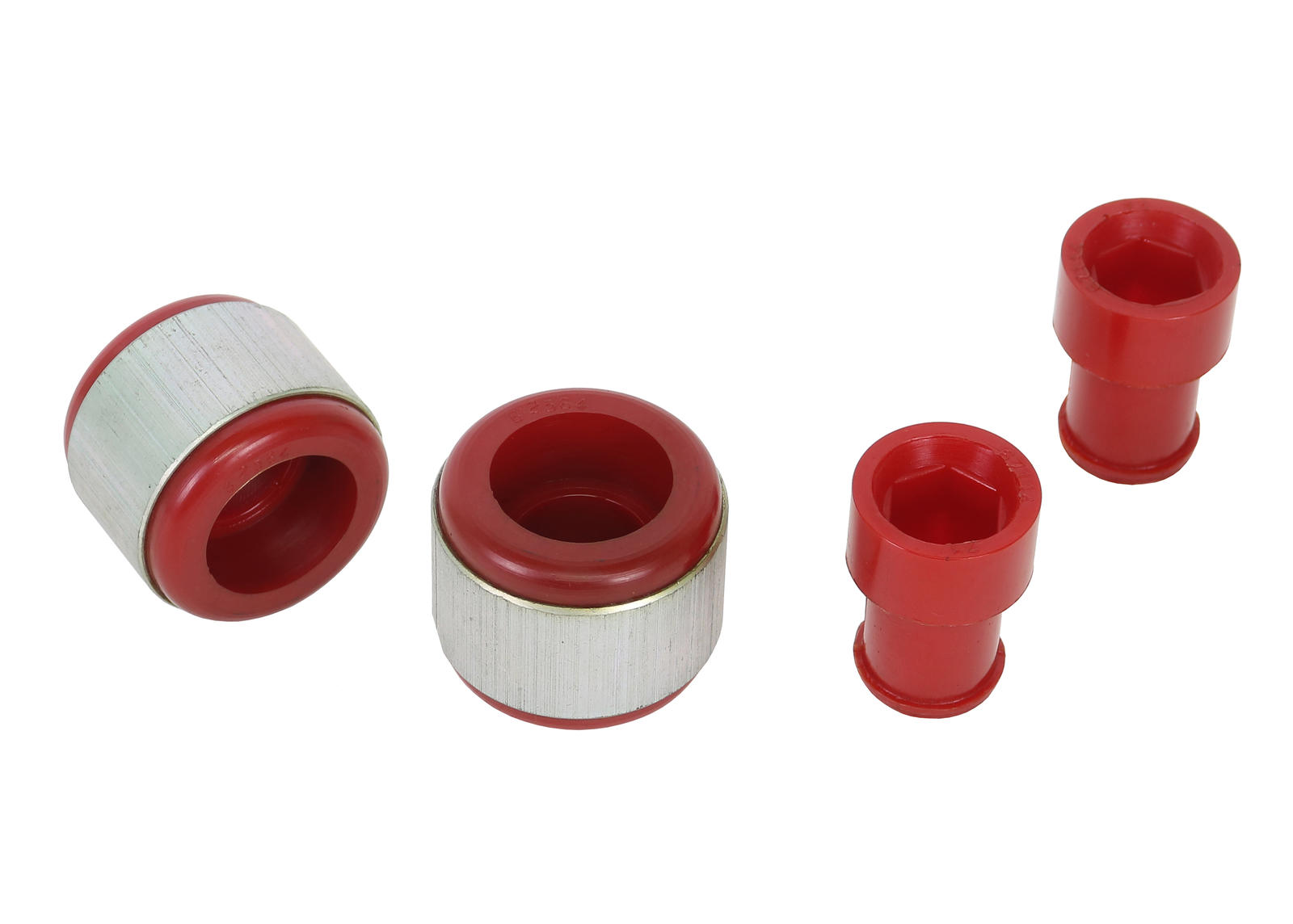

Front Lower Control Arm - Inner Rear Bushing Kit to Suit BMW M3 E46 and Z4M E85, E86

Description

Benefit Note:
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

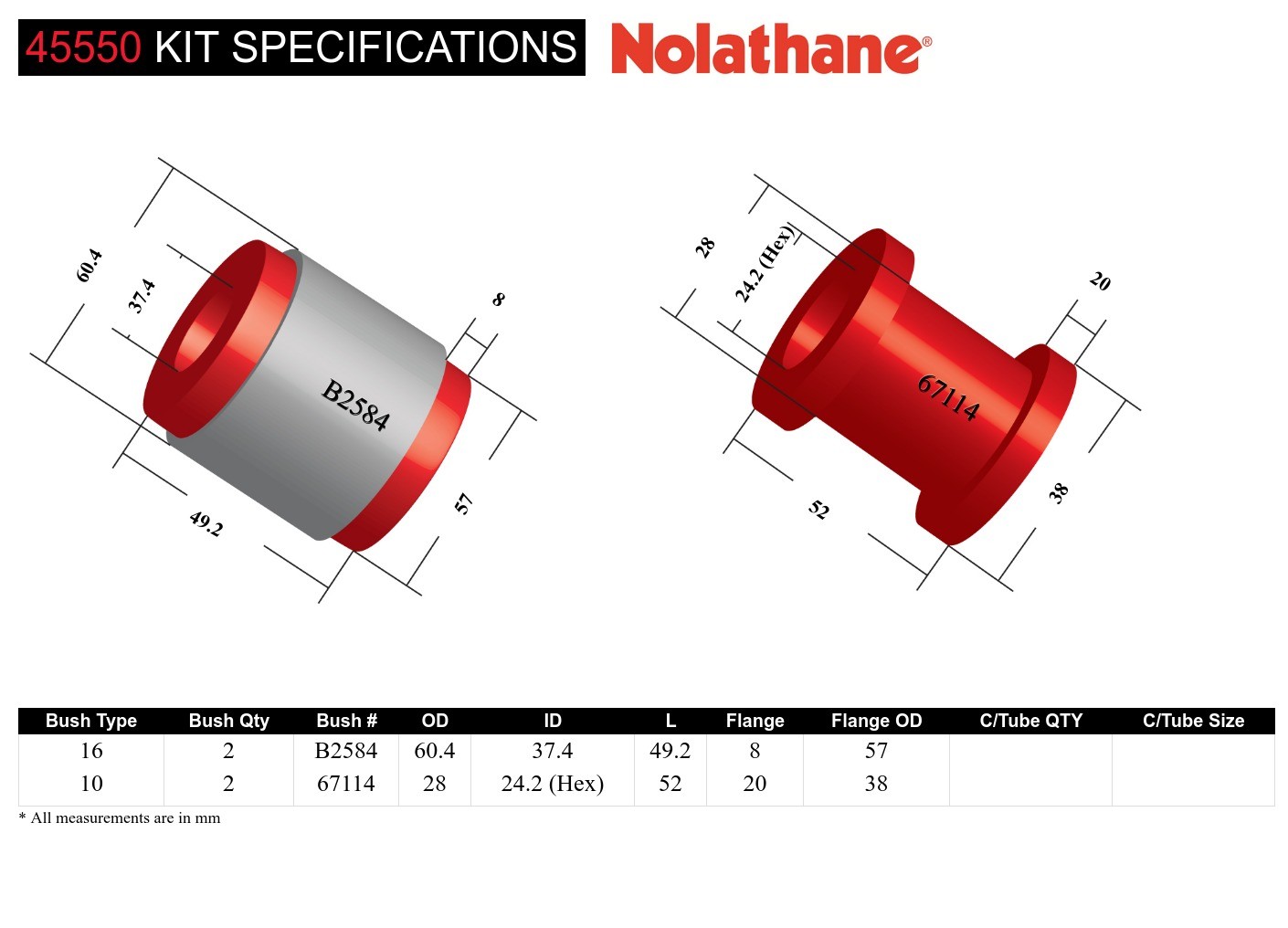

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
10 - Cotton Reel With & Without Tapper Bushing	2 mm	28 mm	24.2 (Hex) mm	52 mm	20 mm	38 mm			Click Here
16 - Shell Without Flange Bushing	2 mm	60.4 mm	37.4 mm	49.2 mm	8 mm	57 mm			Click Here

Bush Type	10 - Cotton Reel With & Without Tapper Bushing	16 - Shell Without Flange Bushing
Bush Quantity	2 mm	2 mm
OD (A)	28 mm	60.4 mm
ID (B)	24.2 (Hex) mm	37.4 mm
Length (C)	52 mm	49.2 mm
Flange Thickness (D)	20 mm	8 mm
Flange OD (E)	38 mm	57 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
10	2	28	24.2 (Hex)	52.0	20	38			Click Here
16	2	60.4	37.4	49.2	8	57			Click Here

Bush Type	10	16
QTY	2	2
OD (A)	28	60.4
ID (B)	24.2 (Hex)	37.4
Length (C)	52.0	49.2
FL (D)	20	8
FLOD (E)	38	57
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.415kg	7cm	20cm	14cm
in/lbs	0.91lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.415kg	0.91lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	45550
Foot Note 2	Standard replacement
Foot Note 3	Lifetime Warranty
Components Per	2 Shell Bushings, 2 Bushings
Product Note	Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Bushings
EAN	9330074009205

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2.5 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
