What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

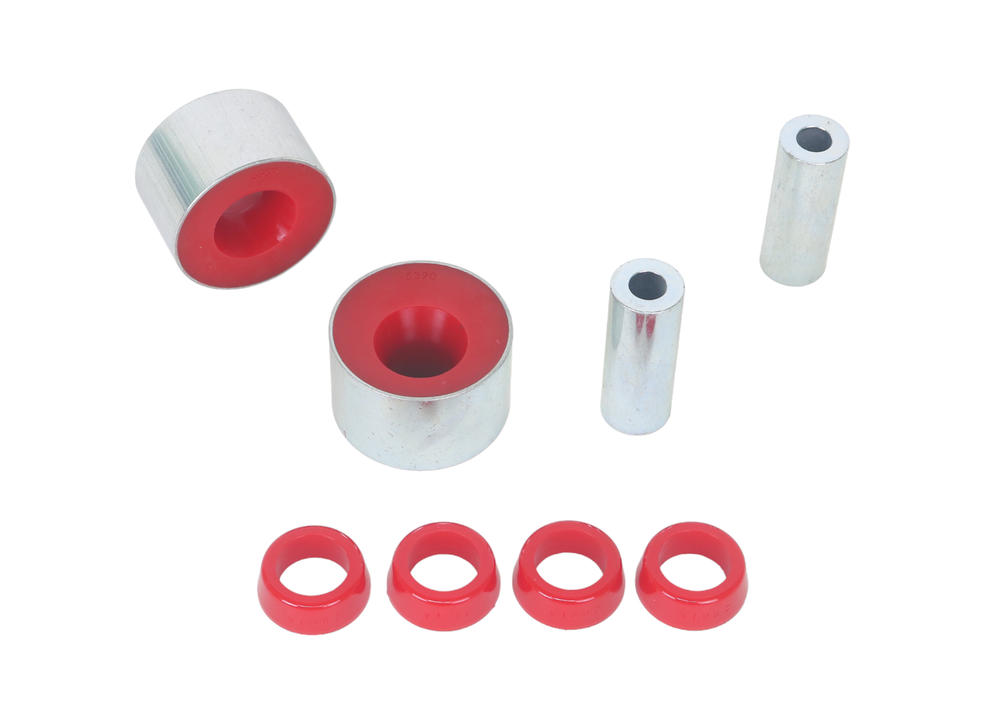

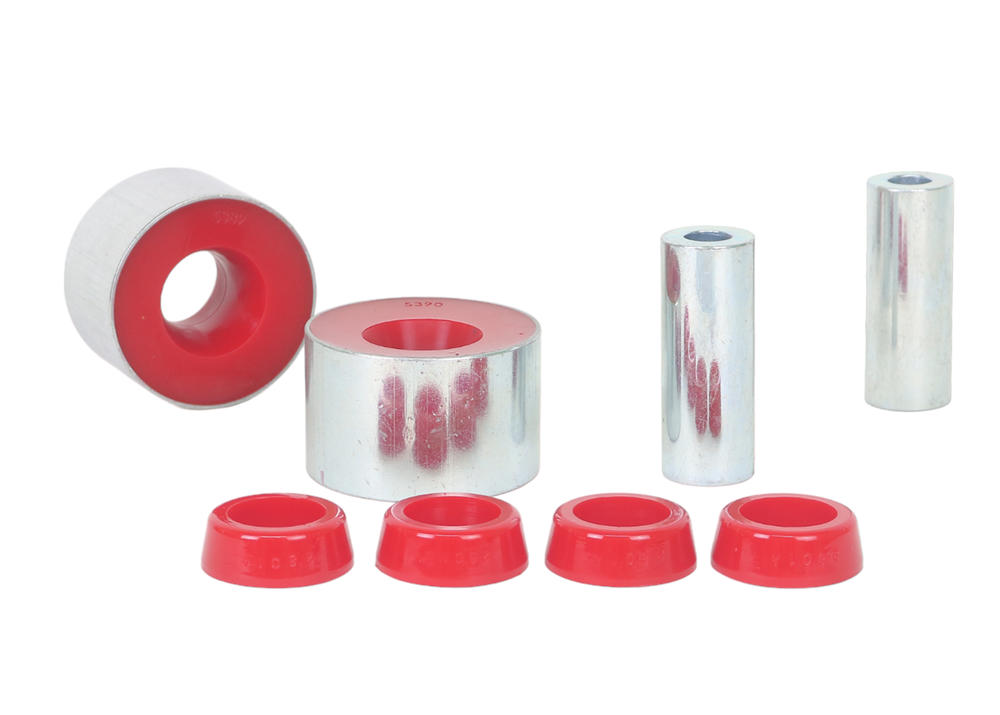

Control Arm Lower - Inner Rear Bushing Kit-Single Offset to Suit Nissan Elgrand, Maxima and Murano

Description

Benefit Note:

Nolathane caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Nolathane bushings provide improved braking performance, and less under load alignment change.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
3 - Half Tapered Cotton Reel Bush	4 mm	AI=43 AII=38 mm	28 mm	15 mm	2 mm	43 mm	2	28.5x14.3x75 mm	Click Here
16 - Shell Without Flange Bushing	1 mm	72.1 mm	28.5 mm	45 mm			2	28.5x14.3x75 mm	Click Here
16 - Shell Without Flange Bushing	1 mm	72.1 mm	28.5 mm	45 mm			2	28.5x14.3x75 mm	Click Here

Bush Type	3 - Half Tapered Cotton Reel Bush	16 - Shell Without Flange Bushing	16 - Shell Without Flange Bushing
Bush Quantity	4 mm	1 mm	1 mm
OD (A)	AI=43 AII=38 mm	72.1 mm	72.1 mm
ID (B)	28 mm	28.5 mm	28.5 mm
Length (C)	15 mm	45 mm	45 mm
Flange Thickness (D)	2 mm
Flange OD (E)	43 mm
C/Tube Quantity	2	2	2
C/Tube ODxIDxL	28.5x14.3x75 mm	28.5x14.3x75 mm	28.5x14.3x75 mm
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 3 - Half Tapered Cotton Reel Bush

Bushing Type 16 - Shell Without Flange Bushing

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Caster	Offset	No
Caster	Offset	No
Caster	Offset	No

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
3	4	AI=43 AII=38	28	15.0	2	43	2	28.5x14.3x75	Click Here
16	1	72.1	28.5	45.0			2	28.5x14.3x75	Click Here
16	1	72.1	28.5	45.0			2	28.5x14.3x75	Click Here

Bush Type	3	16	16
QTY	4	1	1
OD (A)	AI=43 AII=38	72.1	72.1
ID (B)	28	28.5	28.5
Length (C)	15.0	45.0	45.0
FL (D)	2
FLOD (E)	43
C/Tube Qty	2	2	2
C/Tube Size	28.5x14.3x75	28.5x14.3x75	28.5x14.3x75
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.232kg	10cm	26cm	16cm
in/lbs	2.72lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1.232kg	2.72lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	451000
Foot Note 3	Lifetime Warranty
Components Per	2 Shell Bushings, 2 Tubes
Product Note	Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN	9319924475971

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	1.5 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
