What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

45271

Control Arm Lower - Bushing Kit to Suit Ford Courier PA and Mazda B Series PE, UC and UD

Control Arm Lower - Bushing Kit to Suit Ford Courier PA and Mazda B Series PE, UC and UD

Suits models 12/1980 - on

Item Price

$144.99

SKU	45271
Warranty	lifetime warranty
Installation Time	2 Hours

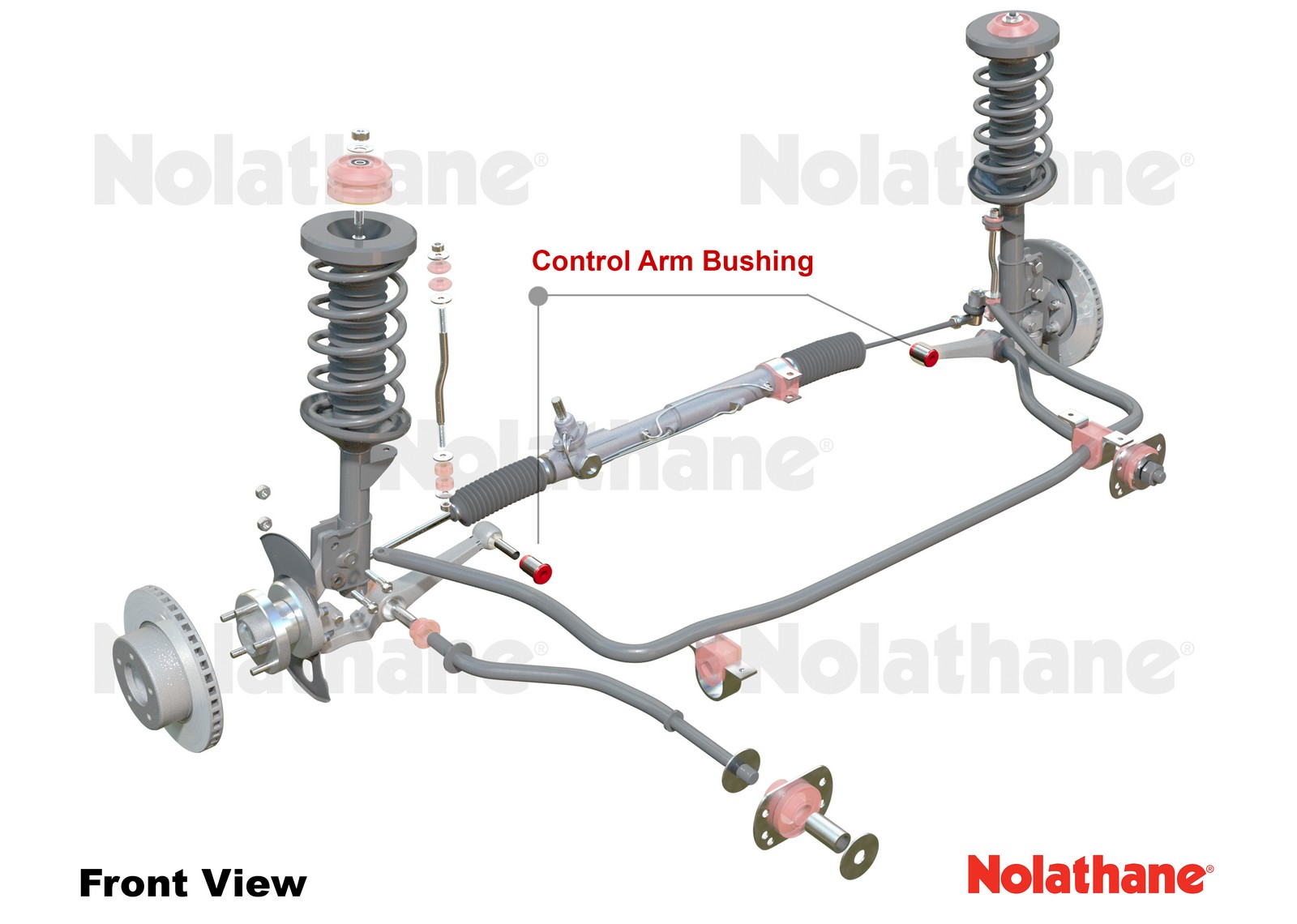

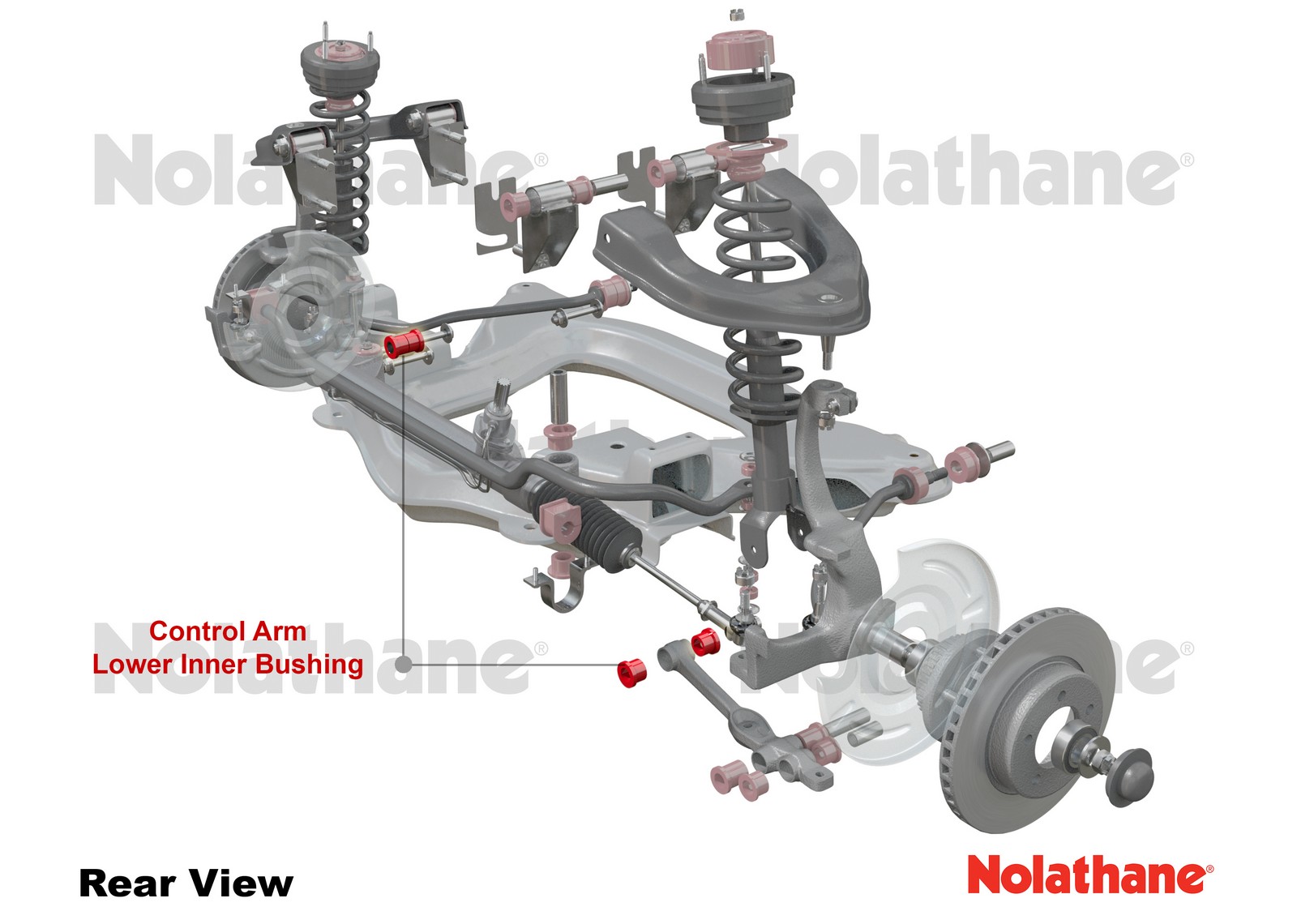

Fitting Position	Front Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

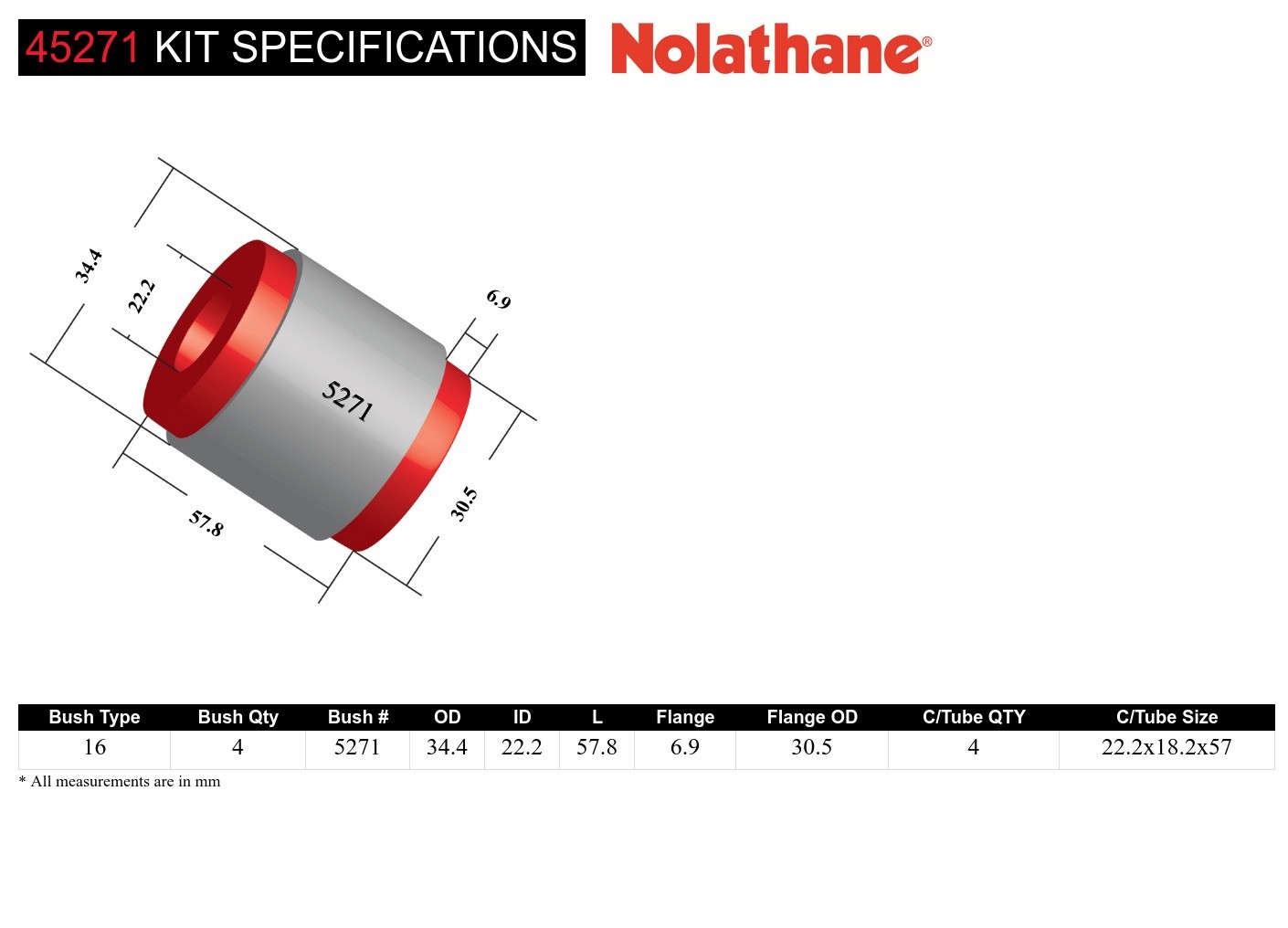

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
16 - Shell Without Flange Bushing	4 mm	34.4 mm	22.2 mm	57.8 mm	6.9 mm	30.5 mm	4	22.2x18.2x57 mm	Click Here

Bush Type	16 - Shell Without Flange Bushing
Bush Quantity	4 mm
OD (A)	34.4 mm
ID (B)	22.2 mm
Length (C)	57.8 mm
Flange Thickness (D)	6.9 mm
Flange OD (E)	30.5 mm
C/Tube Quantity	4
C/Tube ODxIDxL	22.2x18.2x57 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
16	4	34.4	22.2	57.8	6.9	30.5	4	22.2x18.2x57	Click Here

Bush Type	16
QTY	4
OD (A)	34.4
ID (B)	22.2
Length (C)	57.8
FL (D)	6.9
FLOD (E)	30.5
C/Tube Qty	4
C/Tube Size	22.2x18.2x57
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.624kg	10cm	26cm	16cm
in/lbs	1.38lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	0.624kg	1.38lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	45271
Foot Note 3	Lifetime Warranty

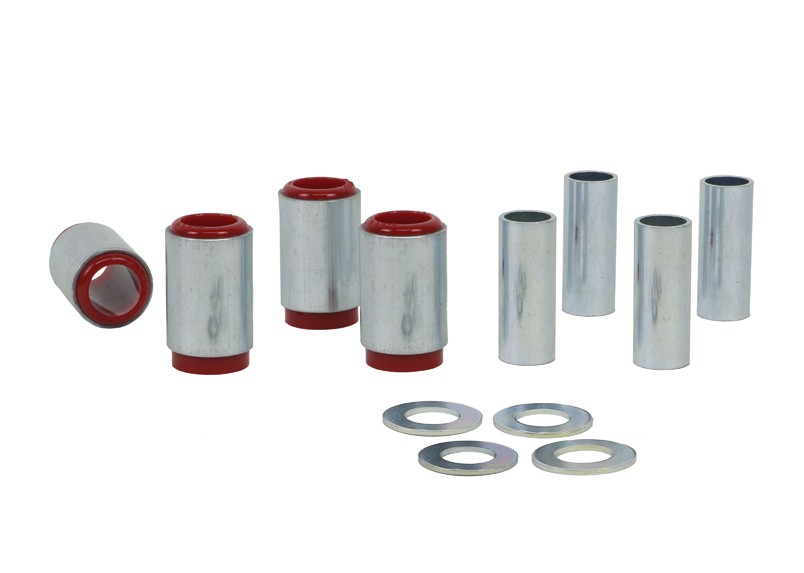

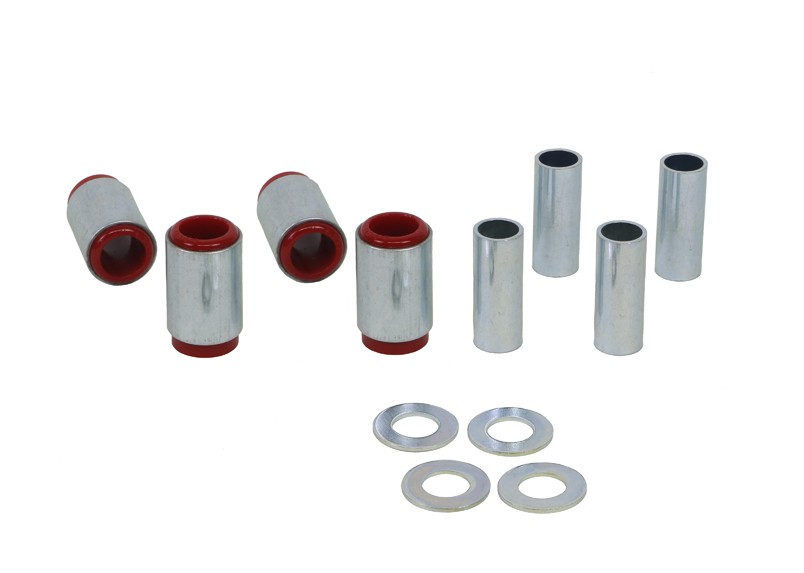

Components Per	4 Shell Bushings, 4 Tubes, 4 Washers
Product Note	Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 4 Shell Bushings, 4 Tubes, 4 Washers
EAN	9314258041298

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
