What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

46210

Control Arm - Bushing Kit-Double Offset to Suit Datsun 1600, 180B and 280ZX

Control Arm - Bushing Kit-Double Offset to Suit Datsun 1600, 180B and 280ZX

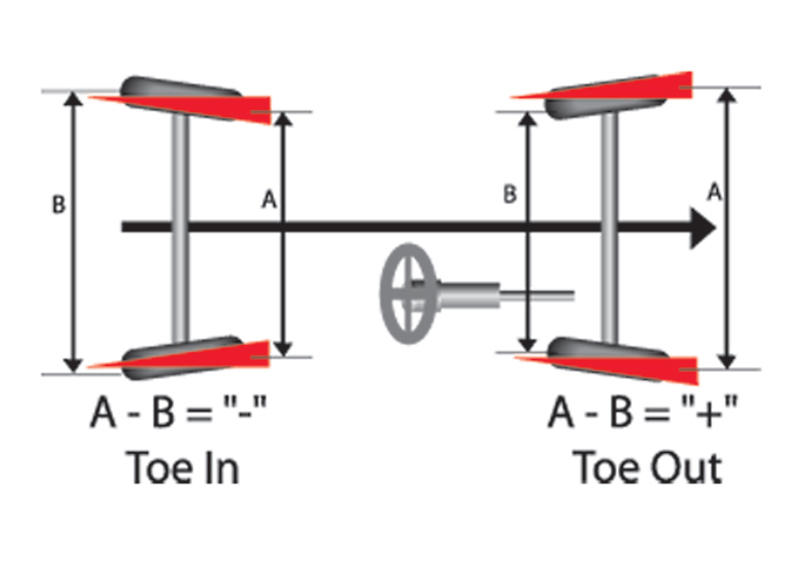

Performance Alignment - suits IRS models - offers 6 - 8mm Toe and +/- 1.5deg Camber

Item Price

$383.04

SKU	46210
Warranty	lifetime warranty
Installation Time	3 Hours
Fitting Position	Rear Axle

Select your car to check fitment.

Pre-Order

Available for Preorder. Ships within 4-6 weeks.

Description

Benefit Note:

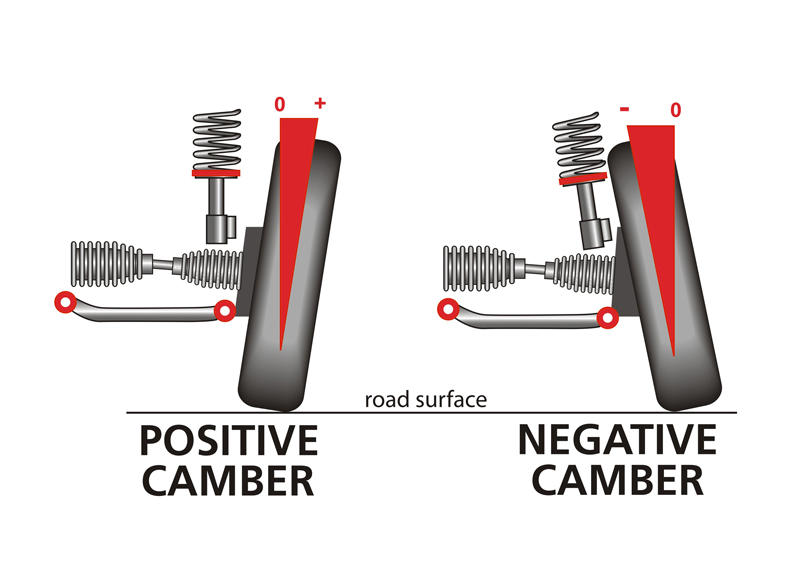

Nolathane adjustable camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. The kit includes Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

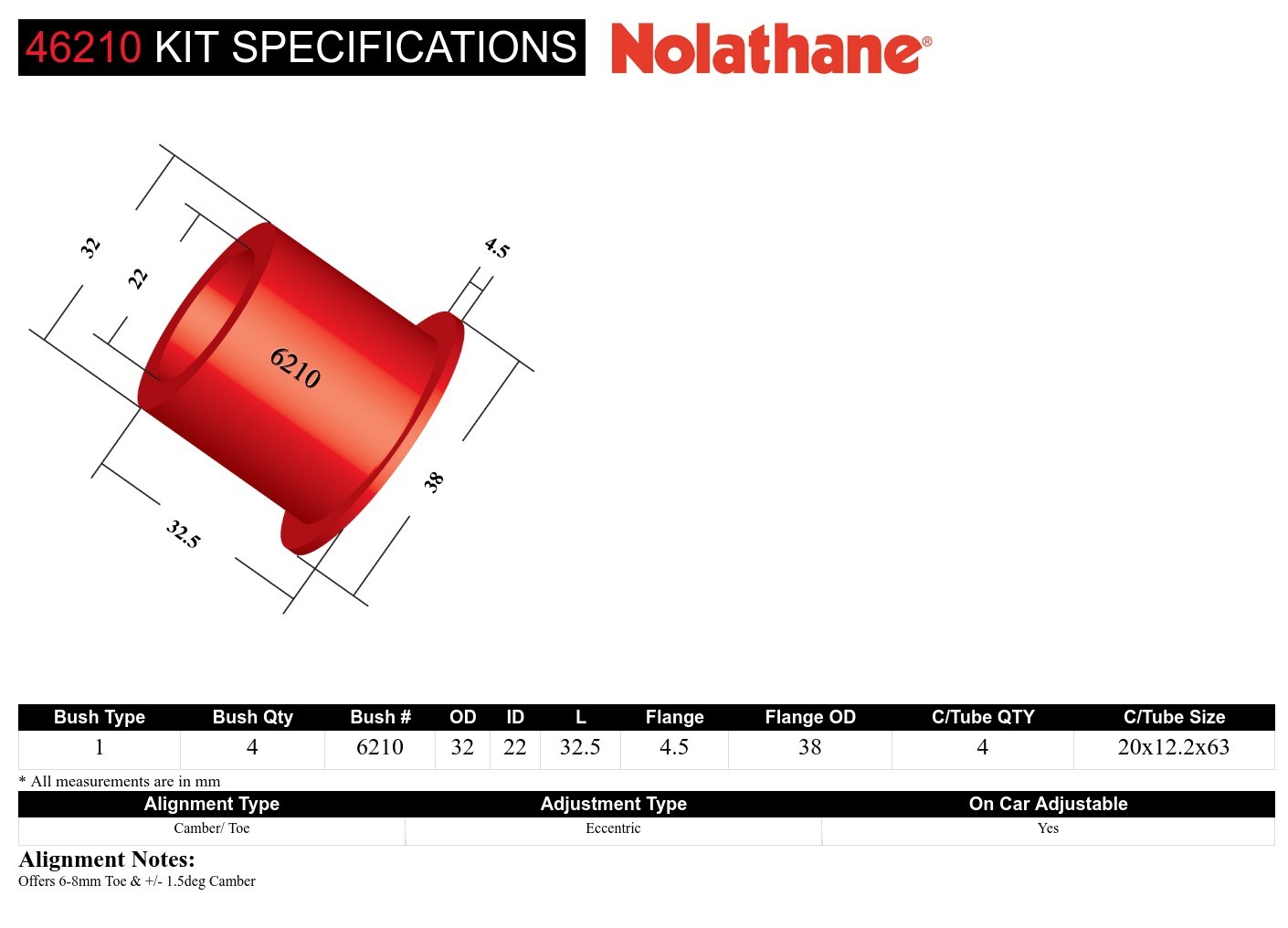

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	32 mm	22 mm	32.5 mm	4.5 mm	38 mm	4	20x12.2x63 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	4 mm
OD (A)	32 mm
ID (B)	22 mm
Length (C)	32.5 mm
Flange Thickness (D)	4.5 mm
Flange OD (E)	38 mm
C/Tube Quantity	4
C/Tube ODxIDxL	20x12.2x63 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Camber / Toe	Eccentric	Yes

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	32	22	32.5	4.5	38	4	20x12.2x63	Click Here

Bush Type	1
QTY	4
OD (A)	32
ID (B)	22
Length (C)	32.5
FL (D)	4.5
FLOD (E)	38
C/Tube Qty	4
C/Tube Size	20x12.2x63
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.275kg	10cm	26cm	16cm
in/lbs	2.81lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1.275kg	2.81lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	46210
Foot Note 2	Adds 6 - 8mm toe and +/-1.5deg camber adjustment
Foot Note 3	Lifetime Warranty

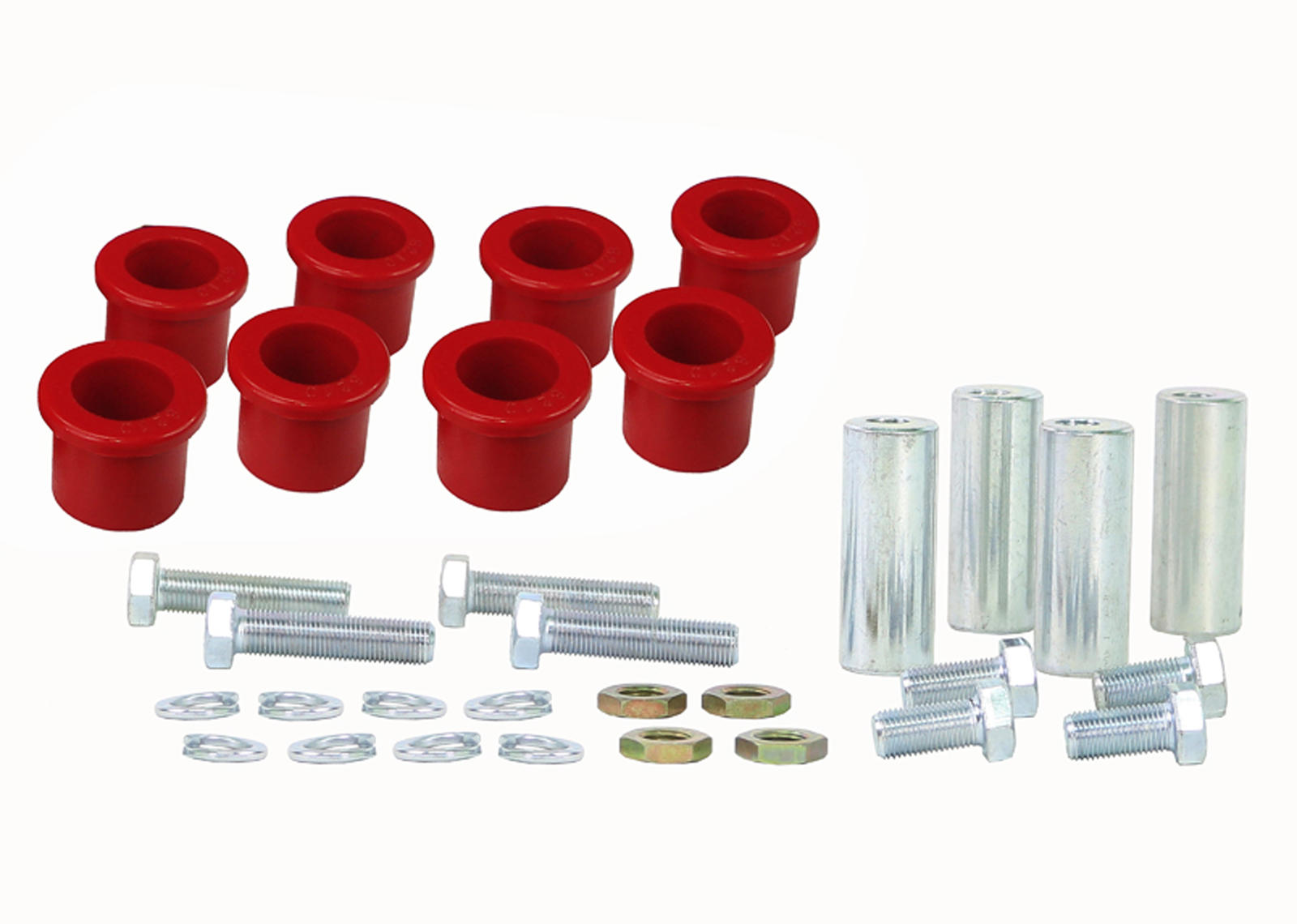

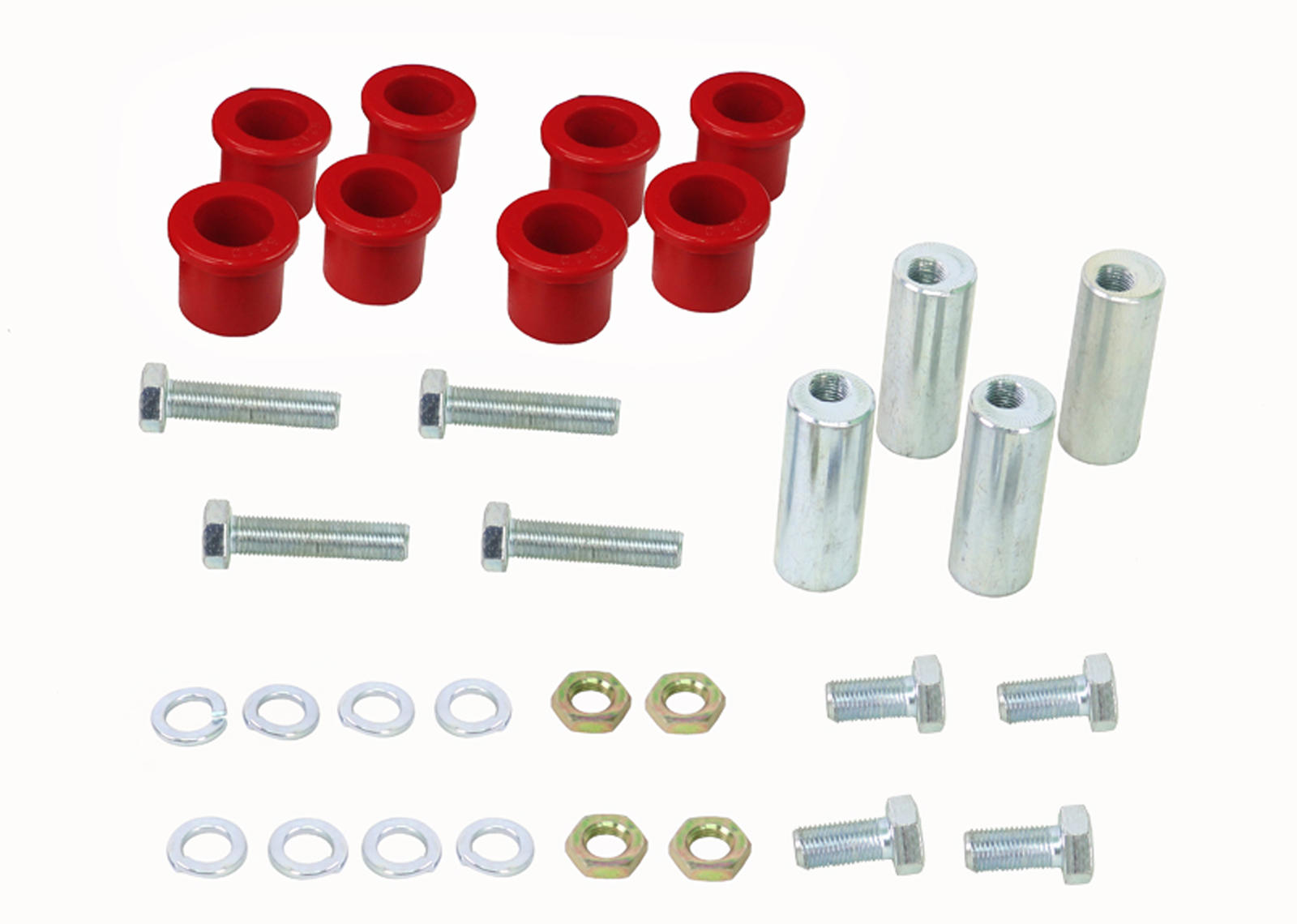

Components Per	4 Bushings, 4 Tubes
Product Note	Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 4 Bushings, 4 Tubes
EAN	9330074007386

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment
