What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

46684

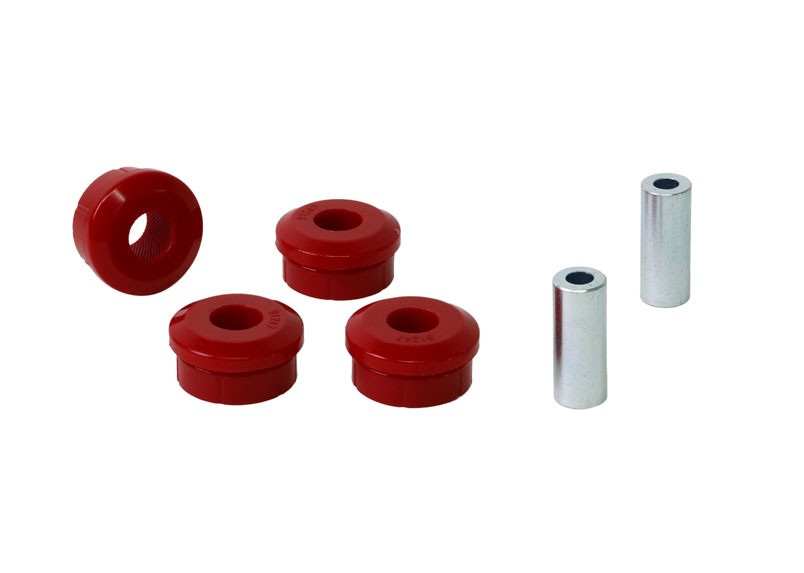

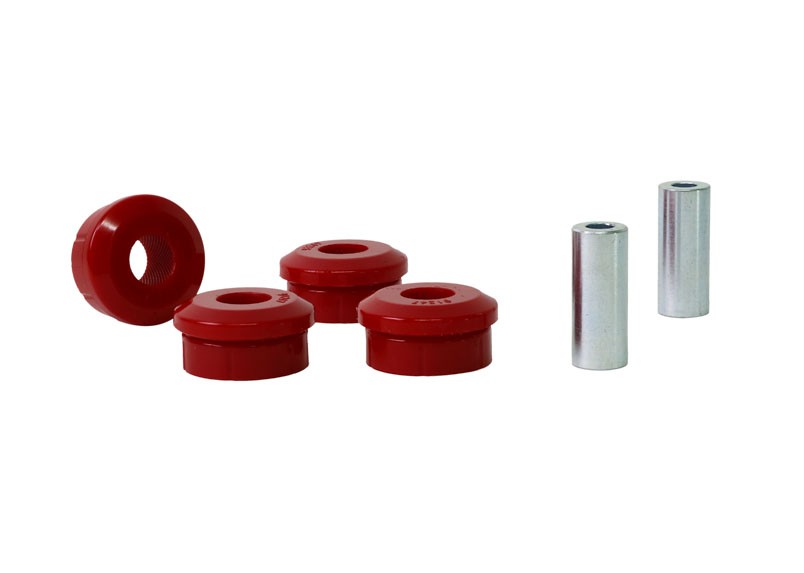

Beam Axle - Bushing Kit to Suit Nissan Pulsar N15, N16

Beam Axle - Bushing Kit to Suit Nissan Pulsar N15, N16

Item Price

$117.78

SKU	46684
Warranty	lifetime warranty
Installation Time	4 Hours
Fitting Position	Rear Axle

Select your car to check fitment.

in stock

Ships within 24hrs

Description

Benefit Note:

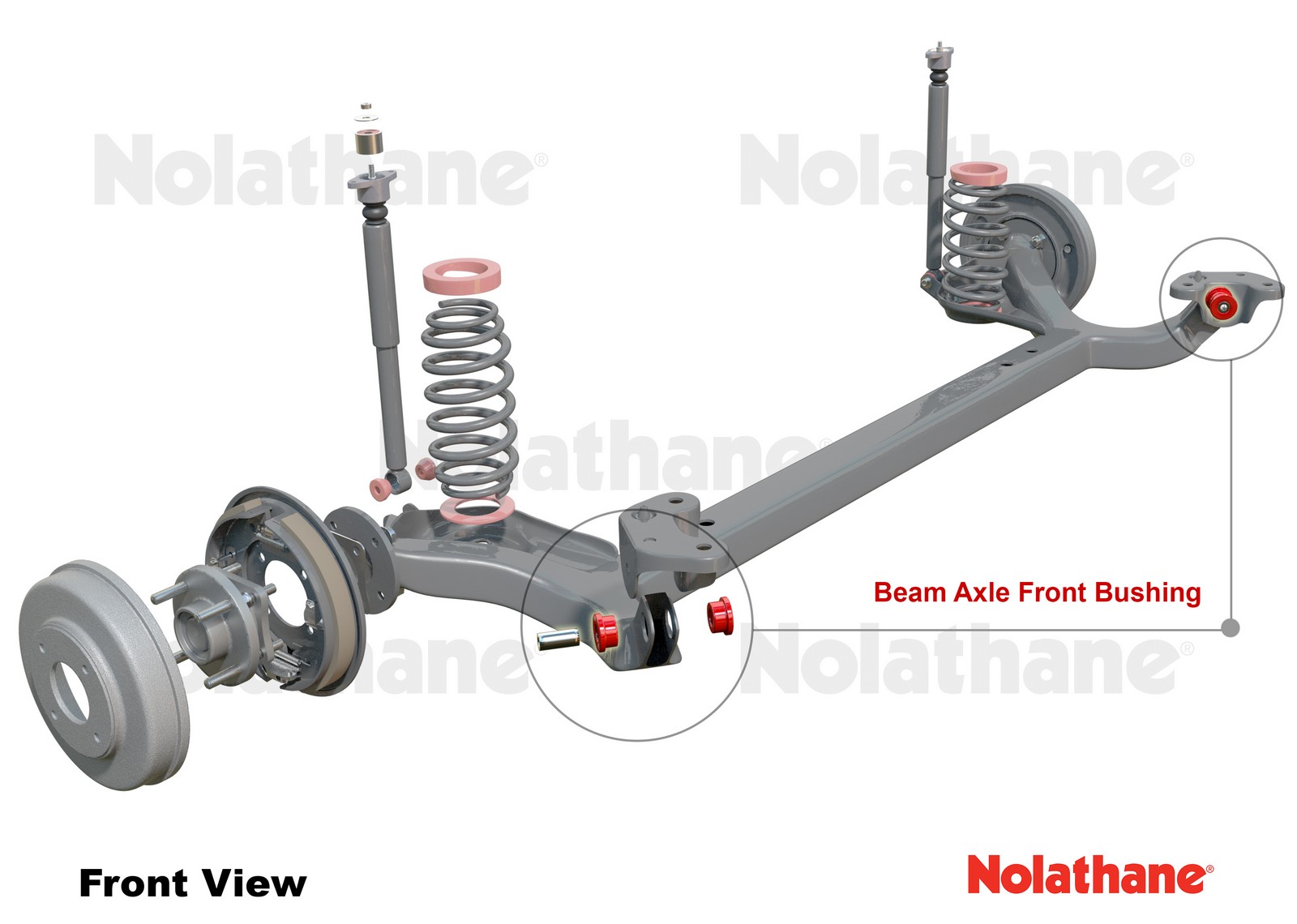

A critical rear end bushing for any front wheel drive vehicle as it absorbs all the cornering and braking energy. Over compliance leads to early wear and tear, especially in performance applications. Reduce rear end cornering squirm and improve braking efficiencies with the Nolathane beam axle kit.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

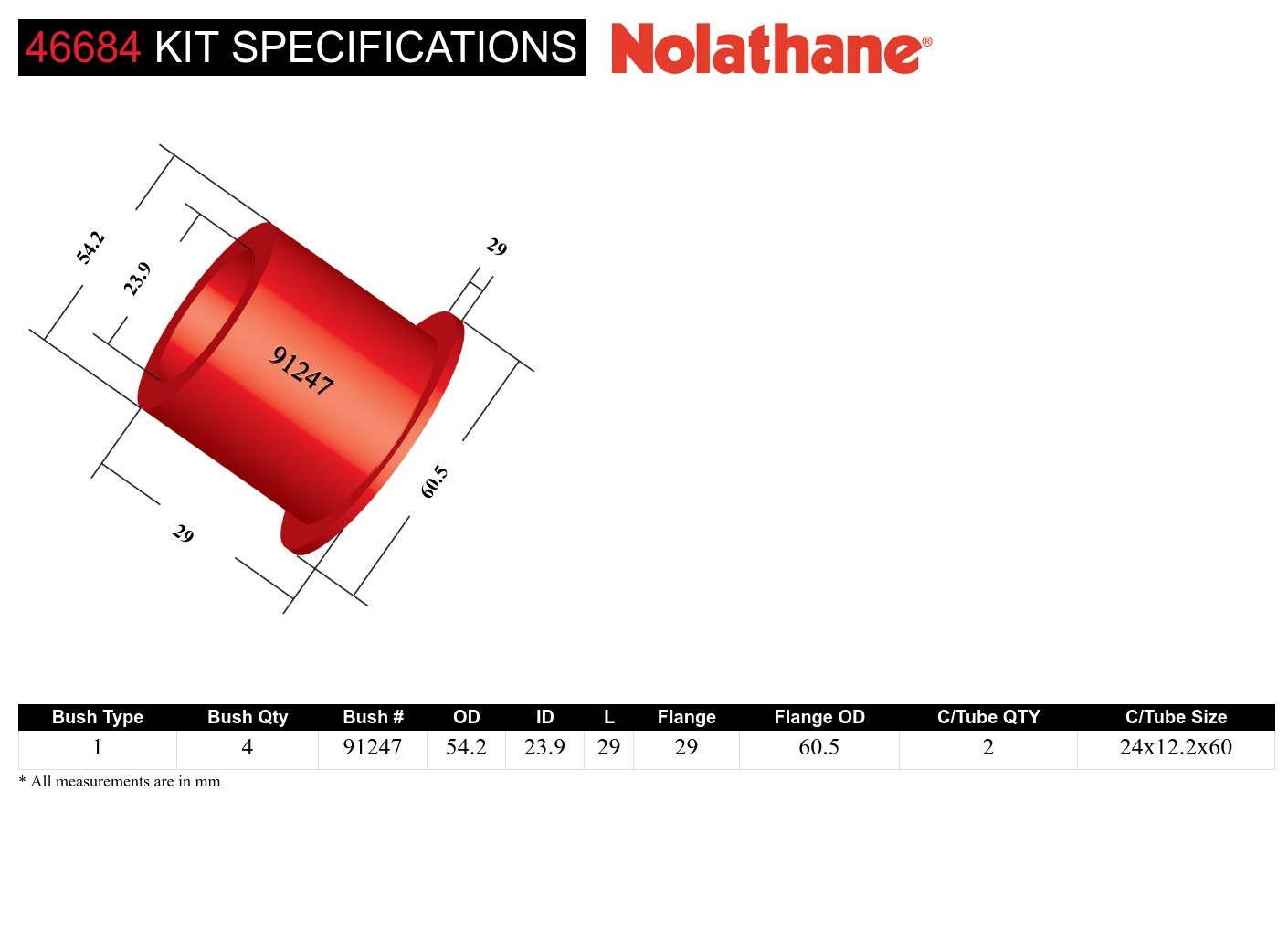

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	54.2 mm	23.9 mm	29 mm	29 mm	60.5 mm	2	24x12.2x60 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	4 mm
OD (A)	54.2 mm
ID (B)	23.9 mm
Length (C)	29 mm
Flange Thickness (D)	29 mm
Flange OD (E)	60.5 mm
C/Tube Quantity	2
C/Tube ODxIDxL	24x12.2x60 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	54.2	23.9	29.0	29	60.5	2	24x12.2x60	Click Here

Bush Type	1
QTY	4
OD (A)	54.2
ID (B)	23.9
Length (C)	29.0
FL (D)	29
FLOD (E)	60.5
C/Tube Qty	2
C/Tube Size	24x12.2x60
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.57kg	7cm	20cm	14cm
in/lbs	1.26lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.57kg	1.26lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	46684
Foot Note 3	Lifetime Warranty
Components Per	4 Bushings, 2 Tubes
Product Note	Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:
EAN	9319924452262

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	4 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment
